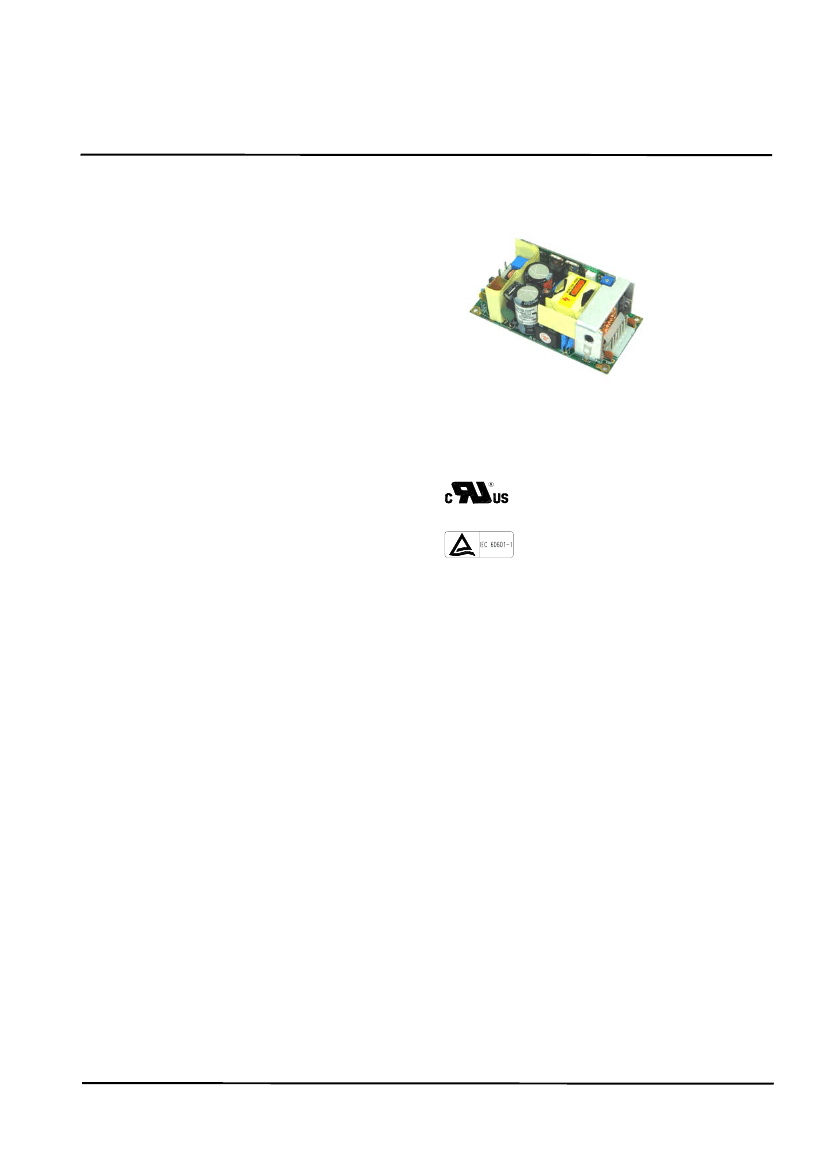

TRUMPower
DESCRIPTION
100 WATT MEDICAL & ITE SWITCHING POWER SUPPLIES
TMC100 SERIES
The TMC100 series of compact, open PCB constructed, AC-DC
switching power supplies are capable of delivering 100 watts of
continuous output power at convection. They operate at 90-264 VAC
input voltage without the need of voltage selection, and are suited for
medical, information technology and industrial applications. Approval
to both EN 60601-1 and EN 60950-1 safety standards improves
design-in time and reduces end equipment compliance costs.
FEATURES
Medical and ITE approvals
Compact size 2” × 4” × 1.26”
Ultra high power density 10 W/cubic inch
Full range input 90-132 VAC, or 180-264 VAC
Low earth leakage current
Conducted EMI class B
RoHS compliant
SAFETY STANDARD APPROVALS
INPUT SPECIFICATIONS
Input voltage:
Input frequency:
Input current:
Earth leakage current:
90-132 VAC or 180-264 VAC
47-63 Hz
1.9A (rms) for 100-120 VAC
1.0A (rms) for 200-240 VAC
150 µA max. @ 264 VAC, 63 Hz
UL 60601-1
CSA C22.2 No. 601.1
TÜV EN60601-1
OUTPUT SPECIFICATIONS
Output voltage/current:
Total output power:
Ripple and noise:
Overvoltage protection:
Overcurrent protection:
Temperature coefficient:
Transient response:
See rating chart
100 watts maximum
250 mV peak to peak on 5.0 V model ,
1%
peak to peak on other models.
Provided on output; set at 110-140% of its
nominal output voltage
All outputs protected to short circuit
conditions
All outputs ±0.04% / C maximum
Maximum excursion of 4% or better on all
models, recovering to 1% of final value
within 500 µs after a 25% step load
change
o
GENERAL SPECIFICATIONS
Switching frequency:
Efficiency:
Hold-up time:
Line regulation:
Inrush current:
Withstand voltage:
100 KHz
87-90% @ 230 VAC full load.
12 msec minimum at 110 VAC.
±0.2% maximum at full load
40 A @ 115 VAC or 80 A @ 230 VAC, at 25 C
cold start
4000 VAC from input to output
1500 VAC from input to ground
500 VAC from output to ground
MTBF:
EMC Performance
EN55011 / EN55022:
FCC:
VCC:
Class B conducted, class A radiated
Class B conducted, class A radiated
Class B conducted, class A radiated
Harmonic distortion, class A
Line flicker
ESD, ±8 KV air and ±6 KV contact
Radiated immunity, 3 V/m
Fast transient/burst, ±2 KV
Surge, ±1 KV diff., ±2 KV com.
Conducted immunity, 3 Vrms
Magnetic field immunity, 3 A/m
Voltage dips,
30% reduction for 500 ms
60% reduction for 100 ms
>95% reduction for 5 sec.
Performance criteria A, B, A.
270,000 hours at full load at 25 C ambient
temperature, calculated per MIL-HDBK-217F
o
o
ENVIRONMENTAL SPECIFICATIONS
Operating temperature:
Storage temperature:
Relative humidity:
Derating:
Cooling:
-10 C to +70 C
-40 C to +85 C
5% to 95% non-condensing
Derate from 100% at +50 C linearly to
50% at +70 C
Convection cooling
o
o
o
o
o
o
EN61000-3-2:
EN61000-3-3:
EN61000-4-2:
EN61000-4-3:
EN61000-4-4:
EN61000-4-5:
EN61000-4-6:
EN61000-4-8:
EN61000-4-11:
Tumbler Technologies + TRUMPower
3350 Scott Blvd., Bldg. 13, Santa Clara, California 95054, USA
Phone: 408-988-6616
●
Fax: 408-988-6622
●
email: sales@trumpower.com
●
Website: www.TRUMPower.com
UNIVERSAL INPUT
OUTPUT VOLTAGE/CURRENT RATING CHART
P/N
TMC100-S05
TMC100-S12
TMC100-S15
TMC100-S18
TMC100-S24
TMC100-S28
TMC100-S36
TMC100-S48
Vnom.
5V
12 V
15 V
18 V
24 V
28 V
36 V
48 V
Output
Imin.
Imax.
0A
20 A
0A
8.34 A
0A
6.7 A
0A
5.56 A
0A
4.2 A
0A
3.58 A
0A
2.78 A
0A
2.1 A
Tol.
2%
2%
2%
2%
2%
2%
2%
2%
TMC100 MEDICAL & ITE SERIES
Maximum Output Power
100 W
100 W
100 W
100 W
100 W
100 W
100 W
100 W
NOTES: 1. Safety approvals are for PCB form only. To order unit with cover fitted, add suffix “C”.
MECHANICAL SPECIFICATIONS
NOTES:
1.
2.
3.
Dimensions shown in inches [mm]
Tolerance 0.02 [0.5] maximum
Input connector mates with Molex
housing 09-50-3031 and Molex 2878
series crimp terminal.
Output connector mates with Molex
housing 09-50-3061 and Molex 2878
series crimp terminal.
To ensure compliance with level B
emissions, connect the three “＊
“ marked mounting holes with
metallic standoffs to chassis.
Weight: 190 grams (0.44 lbs.) approx.
4.
5.
6.
.
PIN CHART
PIN
1
MODEL
TMC100-S05
TMC100-S18
TMC100-S36
TMC100-S12
TMC100-S24
TMC100-S48
TMC100-S15
TMC100-S28
RETURN
RETURN
RETURN
OUTPUT
OUTPUT
OUTPUT
2
3
4
5
6
Tumbler Technologies + TRUMPower
3350 Scott Blvd., Bldg. 13, Santa Clara, California 95054, USA
Phone: 408-988-6616
●
Fax: 408-988-6622
●
email: sales@trumpower.com
●
Website: www.TRUMPower.com
