BR-HD033-12V-TRB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BR-HD033-12V-TRB

Preview

BR-HD033-12V-TRB: DescriptionSingle Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size253KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BR-HD033-12V-TRB Overview

Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2

BR-HD033-12V-TRB Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
color	SUPER RED
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.012 A
Lens type	WATER CLEAR
Nominal luminous intensity	30.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	660 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	140 deg

Preview

Download Datasheet

View All

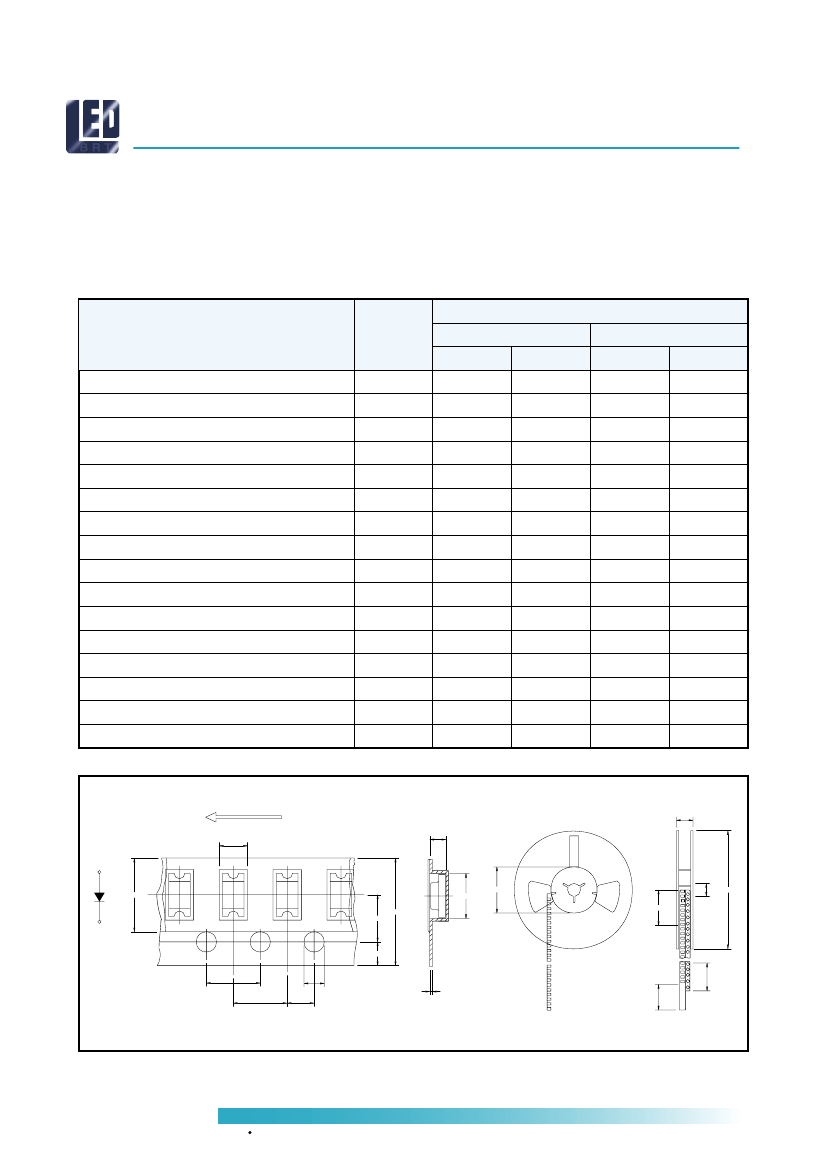

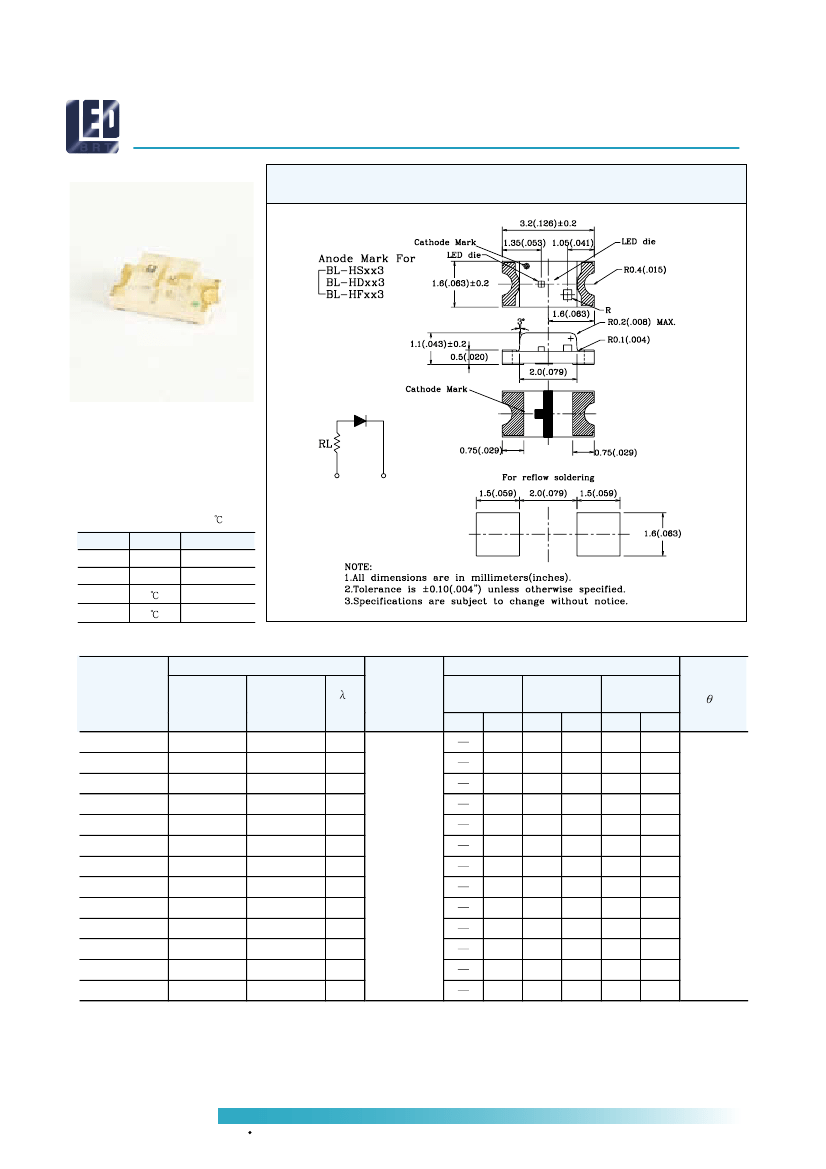

Surface Mount Resistor Chip LED Lamps

1206 Resistor Built-in BR-Hxxx3-xx Series

Absolute Maximum Ratings(Ta=25 )

UNIT

IF

IFp

Topr

Tstg

mA

SPEC.

12

100

-45~+85

-45~+100

Chip

Part No.

Material

GaP/GaP

GaAsP/GaP

A1GaInP

GaP/GaP

GaAsP/GaP

GaP/GaP

GaAsP/GaP

Emitted Color

Yellow Green

Yellow

Hi-Eff Red

Super Red

Yellow Green

Yellow

Hi-Eff Red

Super Red

Yellow Green

Yellow

Hi-Eff Red

p

(nm)

568

583

640

660

645

568

583

640

660

568

583

640

Water Clear

Lens

Appearance

Operating

Voltage

Typ.

Max.

5

9

12

15

Electro-optical Data

Forward

Current

Typ.

7

Max.

12

Iv(mcd)

Min.

5.5

3.7

5.5

12.3

5.5

3.7

5.5

12.3

5.5

3.7

5.5

Typ.

15.0

12.0

15.0

30.0

25.0

15.0

12.0

15.0

30.0

15.0

12.0

15.0

Viewing

Angle

2 1/2

(deg)

BR-HG033-05V

BR-HY033-05V

BR-HE133-05V

BR-HUB33-05V

BR-HUB33-09V

BR-HG033-12V

BR-HY033-12V

BR-HE033-12V

BR-HG033-15V

BR-HY033-15V

BR-HE133-15V

BR-HD033-05V GaA1As/GaAs

140

BR-HD033-12V GaA1As/GaAs

AMERICAN BRIGHT

(909) 628-5050 FAX (909) 628-5006

.

w w w . a m e r ica n b r ig h tle d . co m

SMT-18

BR-HD033-12V-TRB Related Products

	BR-HD033-12V-TRB	BR-HUB33-09V-TRB	BR-HE033-12V-TRB
Description	Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, High Efficiency Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2
Maker	BRIGHT	BRIGHT	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	SUPER RED	SUPER RED	HIGH EFFICIENCY RED
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.012 A	0.012 A	0.012 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	30.0 mcd	25.0 mcd	15.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm	1.1 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	660 nm	645 nm	640 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm	2 mm
surface mount	YES	YES	YES
Terminal pitch	3.5 mm	3.5 mm	3.5 mm
perspective	140 deg	140 deg	140 deg
