BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB
●
Features:
1. Emitted Color : White
2. Mono-color type.
3. 1.6x0.8x0.8mm(0603) tandard package
4. Suitable for all SMT assembly methods.
5. Compatible with infrared and vapor phase
reflow solder process.
6. Compatible with automatic placement
equipment.
7. This product doesn’t contain restriction
Substance, comply ROHS standard.
0.8(.031)±0.2
0.3(.012)
1.0(.039)
2
￠
X
2-R0.05(.002)
1.6(.063)±0.2
●
Package Dimensions:
Cathode Mark
0.95(.037)
0.8(.031)±0.2
2-R0.05(.002)
For reflow soldering
0.8(.031)
0.7(.027)
0.8(.031)
Cathode Mark
0.8(.031)
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs.
Status indicators : Comsumer & industrial
electronics.
0.35(.014)
0.35(.014)
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
120
30
100
5
-35℃~85℃
-40℃~100℃
See Page7
Unit
mW
mA
mA
V
℃-
-
-
＊1
Condition for
I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 9
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Chromaticity
Coordinates
Veiwing Angle
Symbol
VF
Iv
I
R
x
y
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
3.2
140
-
Typ.
3.6
330
-
0.30
0.28
Max.
Unit
V
mcd
1
µA
-
-
-
120
-
deg
●

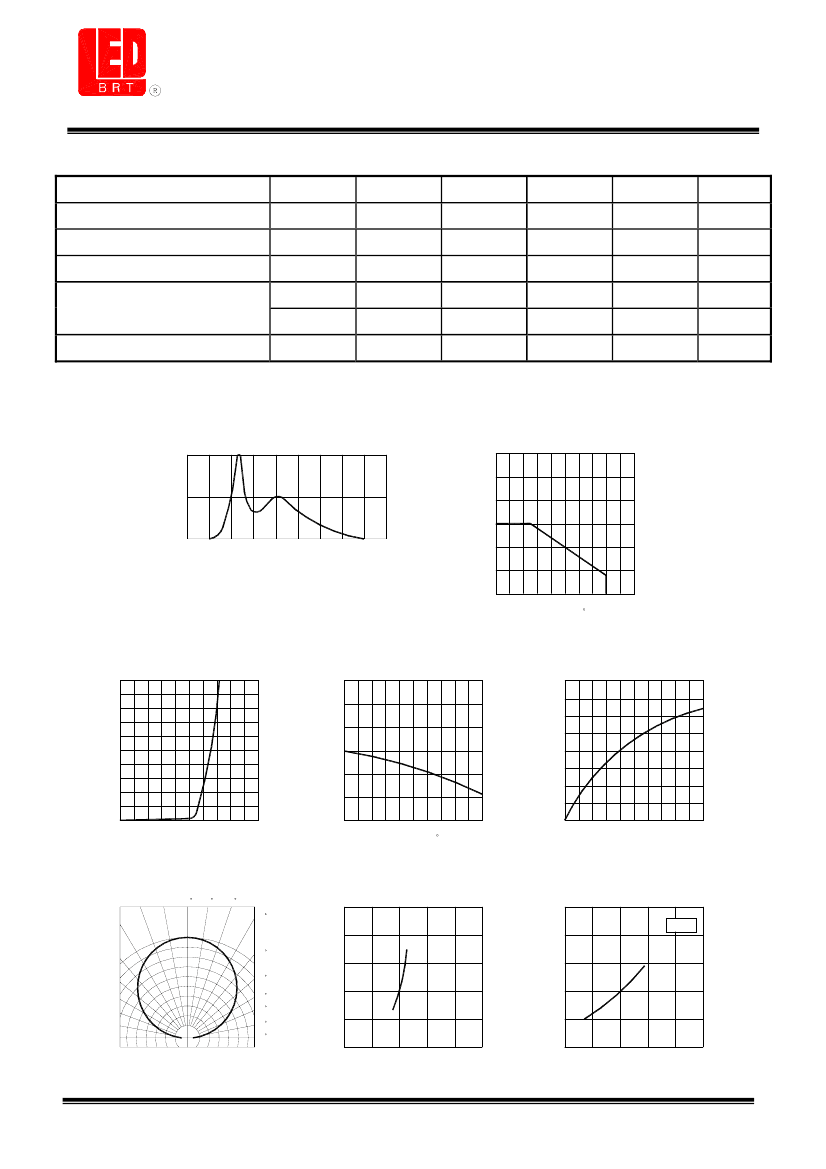

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
Fig.2 Forward current derating curve
vs. ambient temperature
1.0
60
Relative radiant intensity
50
Forward current (mA)
0.5
40
30
0
350
400
450
500
550
600
650
700
750
800
20
Wavelength (nm)
10
0
20
40
60
80
100
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
2.0
Fig.5 Relative luminous intensity
vs. forward current
40
2.5
Relative Luminous intensity
(Normalized @20mA)
Relative luminous intensity (@20mA)
1.5
Forward current (mA)
2.0
30
1.5
1.0
20
1.0
10
0.5
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
0
10
20
30
40
50
Forward voltage(V)
Ambient temperature Ta( C)
Forward current (mA)
Fig.6 Radiation diagram
0
10
20
30
Fig.7 Forward current vs chromaticity coordtnates
0.35
Fig.8 Ambient Temperature vs chromaticity coordtnates
0.35
IF=20mA
0.34
0.34
Relative radiant intensity
5mA
40
1.0
0.9
0.8
50
60
70
0.7
80
90
0.5
0.3
0.1
0.2
0.4
0.6
0.30
0.29
0.30
0.31
0.31
0.33
10mA
20mA
30mA
0.33
-30°
C
0°C
X
y
0.32
0.32
50° C
25°C
0.31
85° C
x
0.32
0.33
0.34
0.30
0.29
0.30
0.31
X
0.32
0.33
0.34
Ver.1.0 Page 2 of 9
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB
●

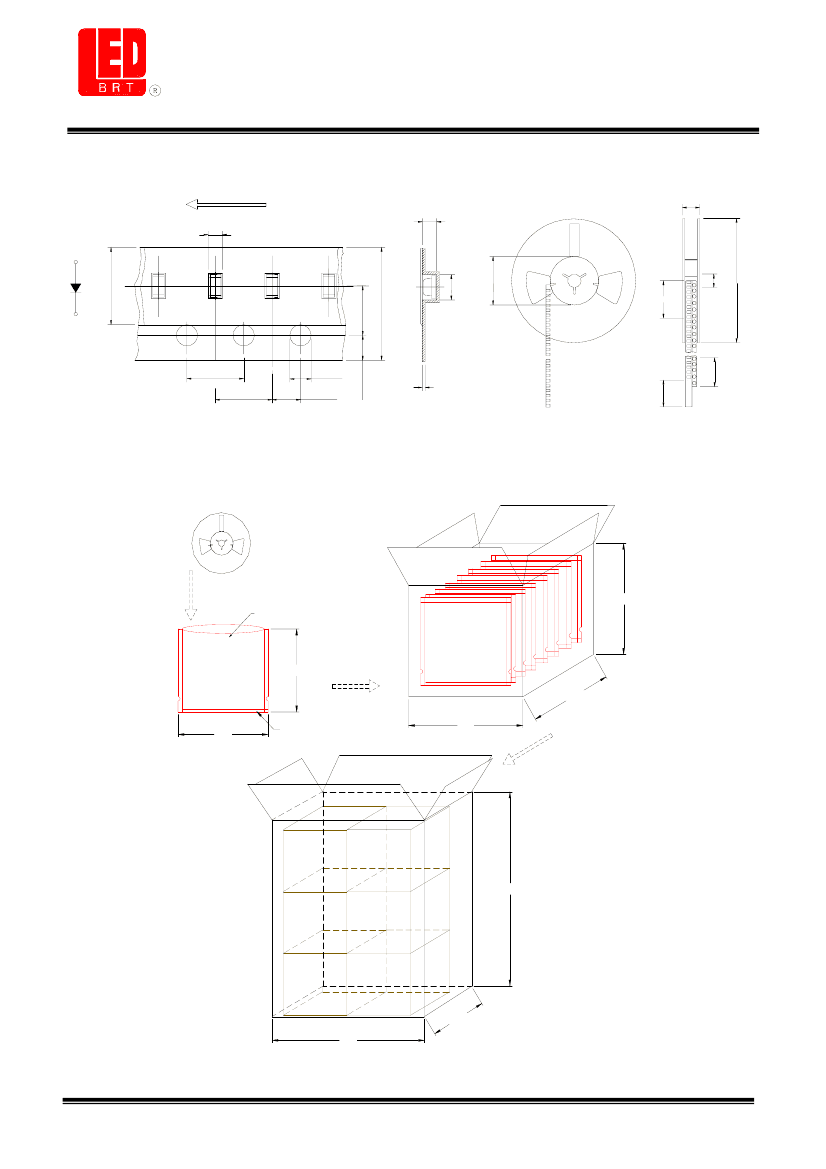

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.04± 0.1
1.08± 0.1
ANODE
START
END
71.0± 0.1
13.0± 0.5
1.88± 0.1
13.0± 0.5
5.3 ± 0.05
8.0 ± 0.3
CATHODE
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
1.75 ± 0.1
3.5 ± 0.05
TRAILER
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
200
Bar Code Label
245
220
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.1.0 Page 3 of 9
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( @ 2 0 m A ) :
BIN CODE
Min. (mcd)
R
S
T
U
120.0
180.0
280.0
410.0
Max. (mcd)
240.0
360.0
550.0
820.0
V F B i n L i m i ts ( @ 2 0 m A ) :
BIN CODE
G
H
J
K
Min.(v)
2.75
2.95
3.15
3.35
Max.(v)
3.05
3.25
3.45
3.65
●
B IN：
x
x
x
V
F
BIN CODE
Color BIN CODE
Intensity BIN CODE
Ve1.0 Page 4 of 9
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB

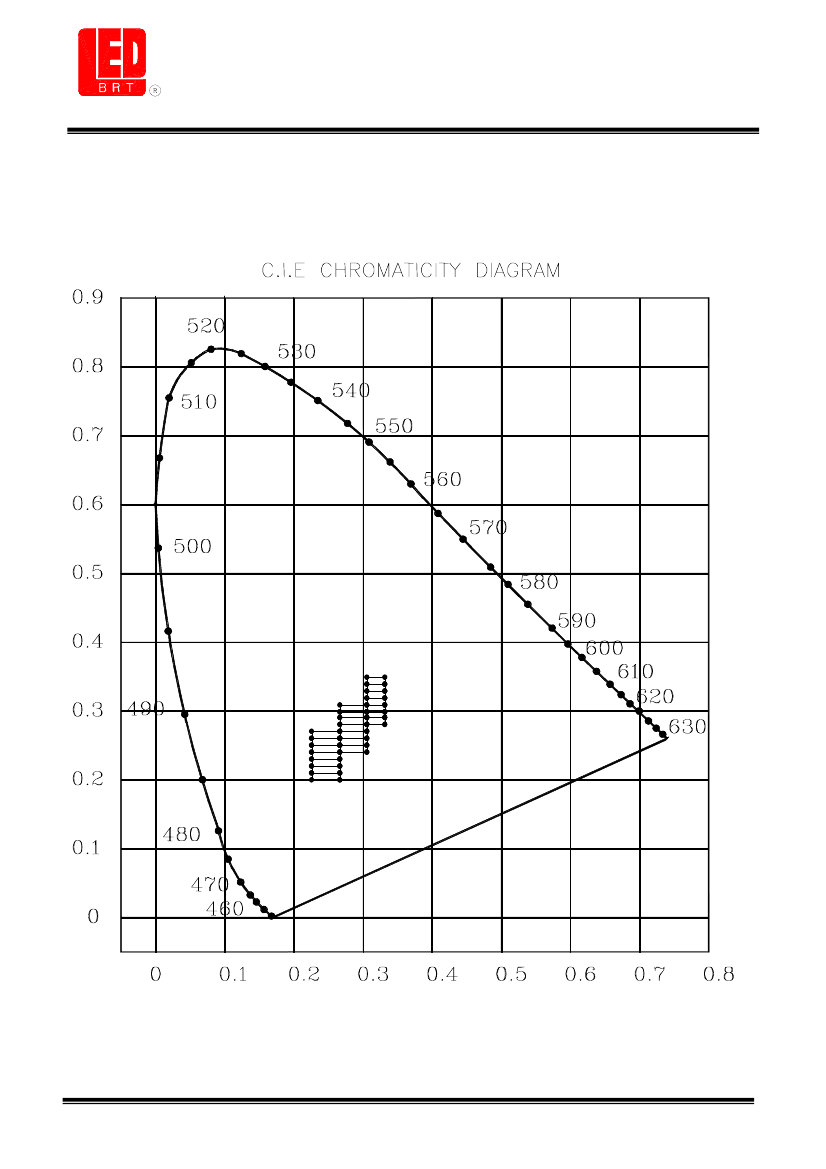

Color Bin Limits(@20mA):
4-7
4-6
4-5
4-4
4-3
4-2
4-1
5-7
5-6
5-5
5-4
5-3
5-2
5-1
6-7
6-6
6-5
6-4
6-3
6-2
6-1
Ve1.0 Page 5of 9
