BL-HZD36D-L8-TRB-EP
●
Features:
1. Emitted Color : White
2. Mono-color type.
3. 1.6x0.8x0.8mm(0603) tandard package
4. Suitable for all SMT assembly methods.
5. Compatible with infrared and vapor phase
reflow solder process.
1.0(.039)
0.8(.031)±0.2
1.6(.063)±0.2
●
Package Dimensions:
Cathode Mark
0.95(.037)
Cathode
Polarity
2
￠
X
2-R0.05(.002)
Anode
6. Compatible with automatic placement
equipment.
7. This product doesn’t contain restriction
Substance, comply ROHS standard.
0.8(.031)±0.2
0.3(.012)
2-R0.05(.002)
For reflow soldering
0.8(.031)
0.7(.027)
0.8(.031)
Cathode Mark
0.8(.031)
0.35(.014)
0.35(.014)
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Symbol
Pd
I
F
Rating
120
30
Unit
mW
mA
mA
V
℃-
-
-
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
½鴻工業股½有限公司
http://www.brtled.com
I
FP
100
5
V
R
Topr
Tstg
Tsol
-40℃~85℃
-40℃~85℃
See Page8
＊1
Condition for
I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 9
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB-EP
Typ.
2.8
120
-
0.30
0.28
1
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Chromaticity
Coordinates
Viewing Angle
Symbol
VF
Iv
I
R
x
y
2θ
1/2
Condition
I
F
=5mA
I
F
=5mA
V
R
=5V
I
F
=5mA
I
F
=5mA
I
F
=5mA
Min.
63
-
Max.
3.2
Unit
V
mcd
µA
-
-
-
120
-
deg
●

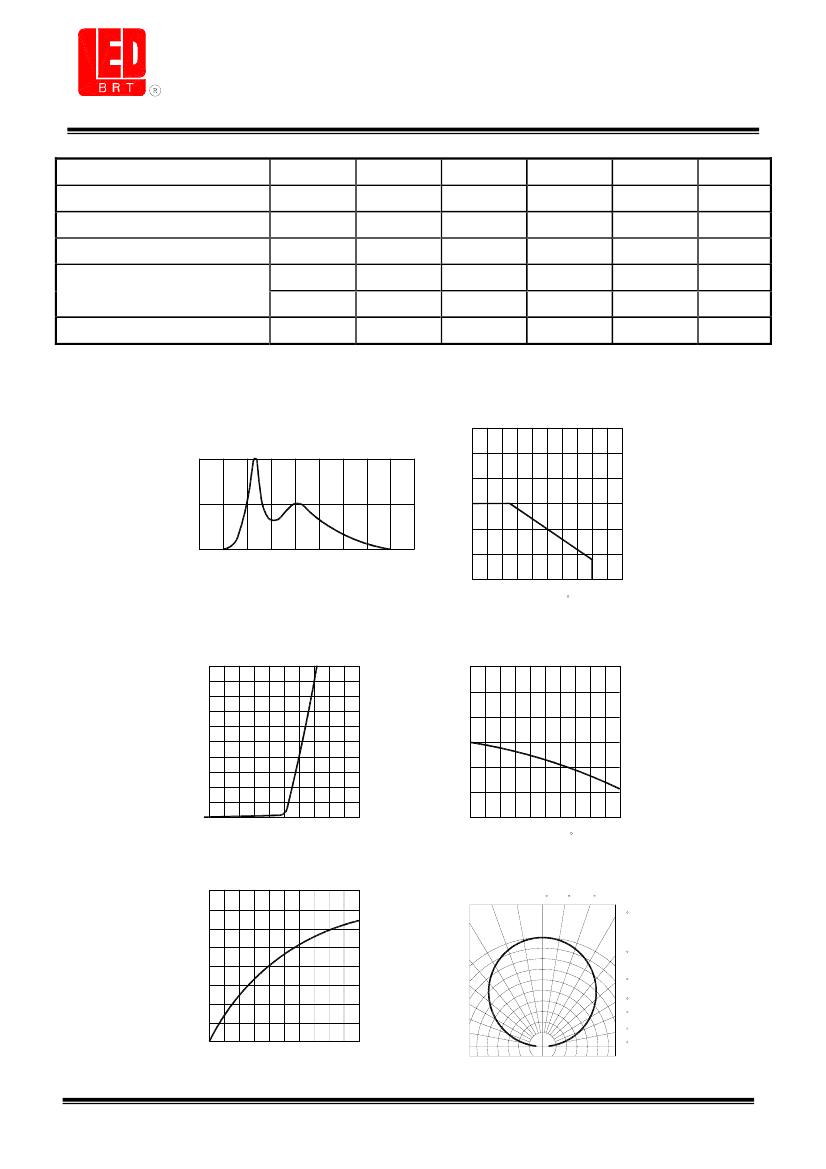

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
60
Fig.2 Forward current derating curve
vs. ambient temperature
1.0
50
Relative radiant intensity
Forward current (mA)
400
450
500
550
600
650
700
750
800
40
0.5
30
20
0
350
10
0
Wavelength (nm)
20
40
60
80
100
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
2.5
Relative Luminous intensity
(Normalized @20mA)
Forward current (mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
Relative luminous intensity (@20mA)
Relative radiant intensity
½鴻工業股½有限公司
http://www.brtled.com
Fig.5 Relative luminous intensity
vs. forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
1.5
40
1.0
1.0
0.9
0.8
50
60
70
0.5
0.7
80
90
0.5
0.3
0.1
0.2
0.4
0.6
0
10
20
30
40
50
Forward current (mA)
Ver.1.0 Page 2 of 9
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB-EP
●

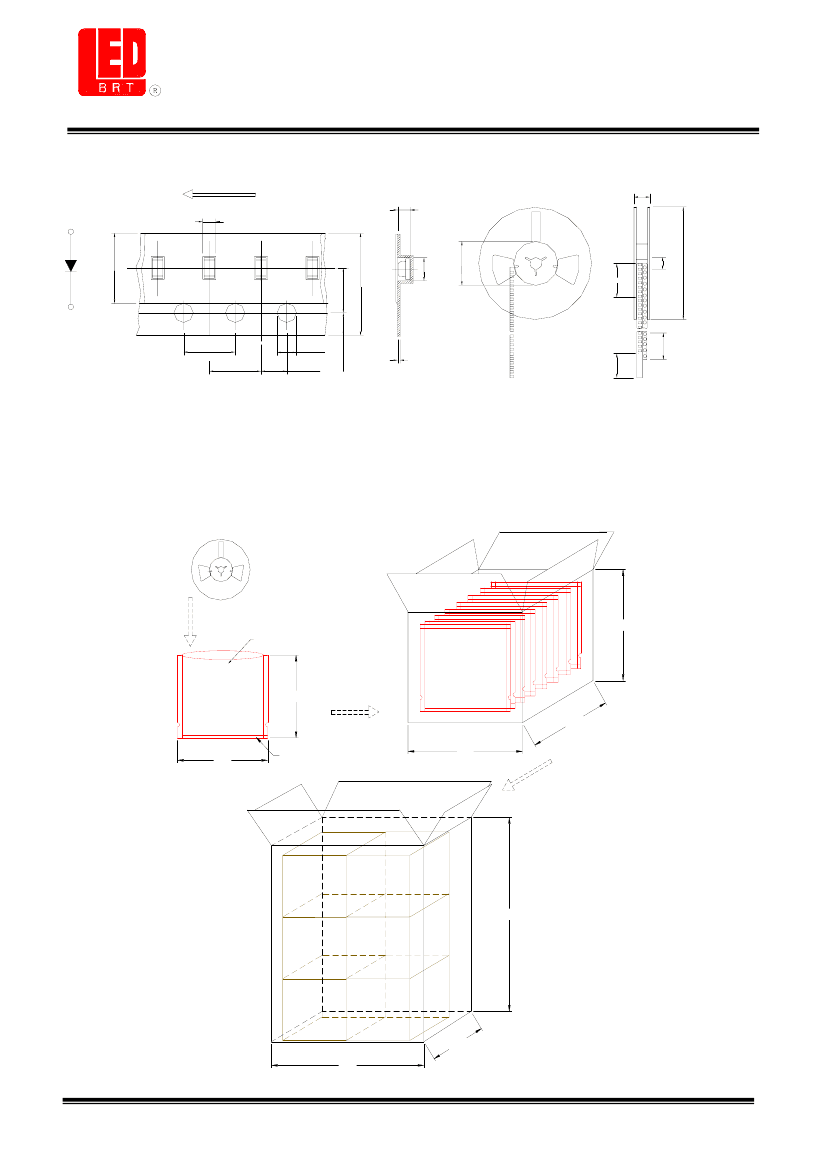

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
ANODE
1.04±0.1
1.08±0.1
START
END
71.0±0.1
13.0±0.5
1.88±0.1
13.0± 0.5
5.3 ± 0.05
8.0 ± 0.3
CATHODE
4.0 ± 0.1
4.0 ± 0.1
1.5±0.1
2.0±0.05
1.75 ± 0.1
3.5 ± 0.05
TRAILER
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●Package
Method:(unit:mm) Vacuum
12 bag/box
3000 pcs/reel
200
Bar Code Label
245
220
185
220
Aluminum Foil Bag
½鴻工業股½有限公司
http://www.brtled.com
645
6 box/carton
210
470
Ver.1.0 Page 3 of 9
179±1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB-EP
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 5 m A ) :
BIN CODE
Min. (mcd)
P
Q
R
S
63
94
140
210
Max. (mcd)
94
140
210
317
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 %
V F B i n L i m i ts ( A t 5 m A ) :
BIN CODE
E
F
G
H
Min.(v)
2.4
2.6
2.8
3.0
Max.(v)
2.6
2.8
3.0
3.2
To l e r a n c e f o r e a c h B i n l i m i t i s ± 0 . 0 5 V
●
B IN：
x
x
x
V
F
BIN CODE
Color BIN CODE
½鴻工業股½有限公司
http://www.brtled.com
Intensity BIN CODE
Ve1.0 Page 4 of 9
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HZD36D-L8-TRB-EP

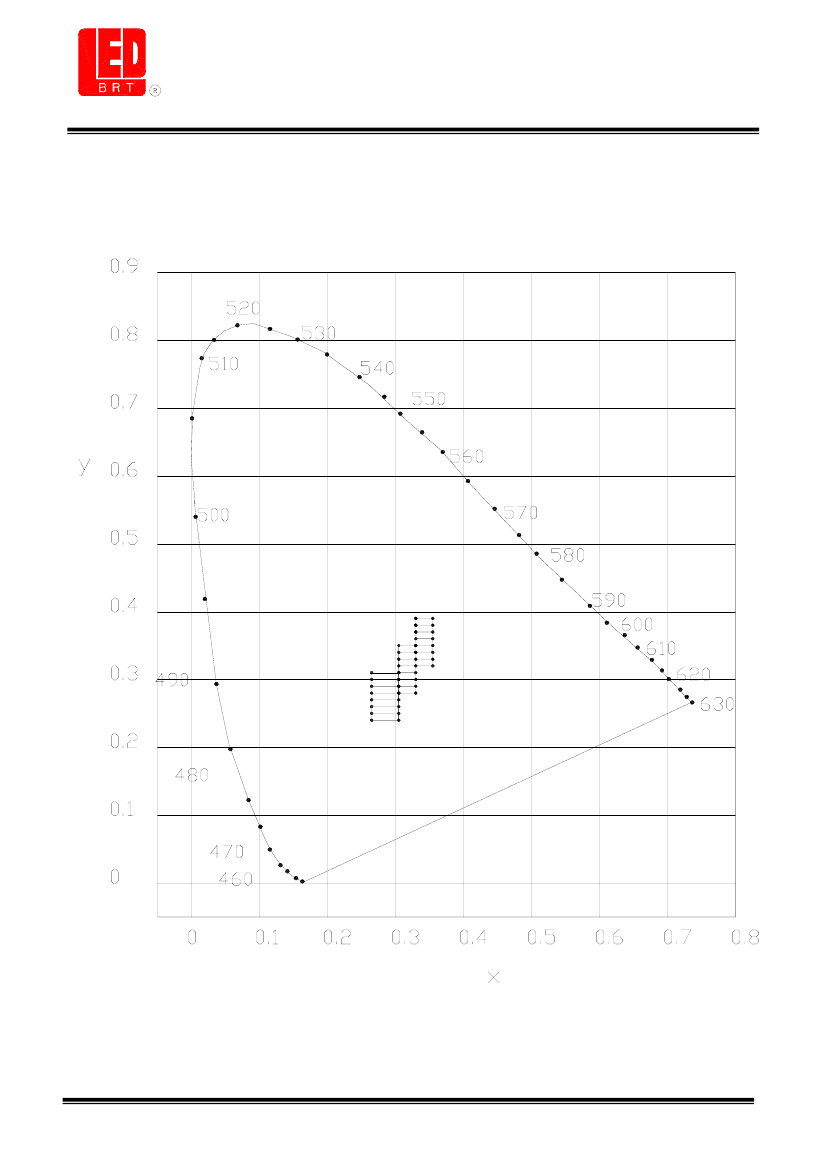

C o l o r B i n L i m i ts ( A t 5 m A ) :
C.I.E CHROMATICITY DLAGRAM
5-7
5-6
5-5
5-4
5-3
5-2
5-1
7-7
7-6
7-5
7-4
6-7 7-3
6-6 7-2
6-5 7-1
6-4
6-3
6-2
6-1
½鴻工業股½有限公司
http://www.brtled.com
Ve1.0 Page 5 of 9
