Crimp
ZL
CONNECTOR
• Retainer
5.0mm
(.197") pitch
Disconnectable Crimp style Wire-to-wire connectors

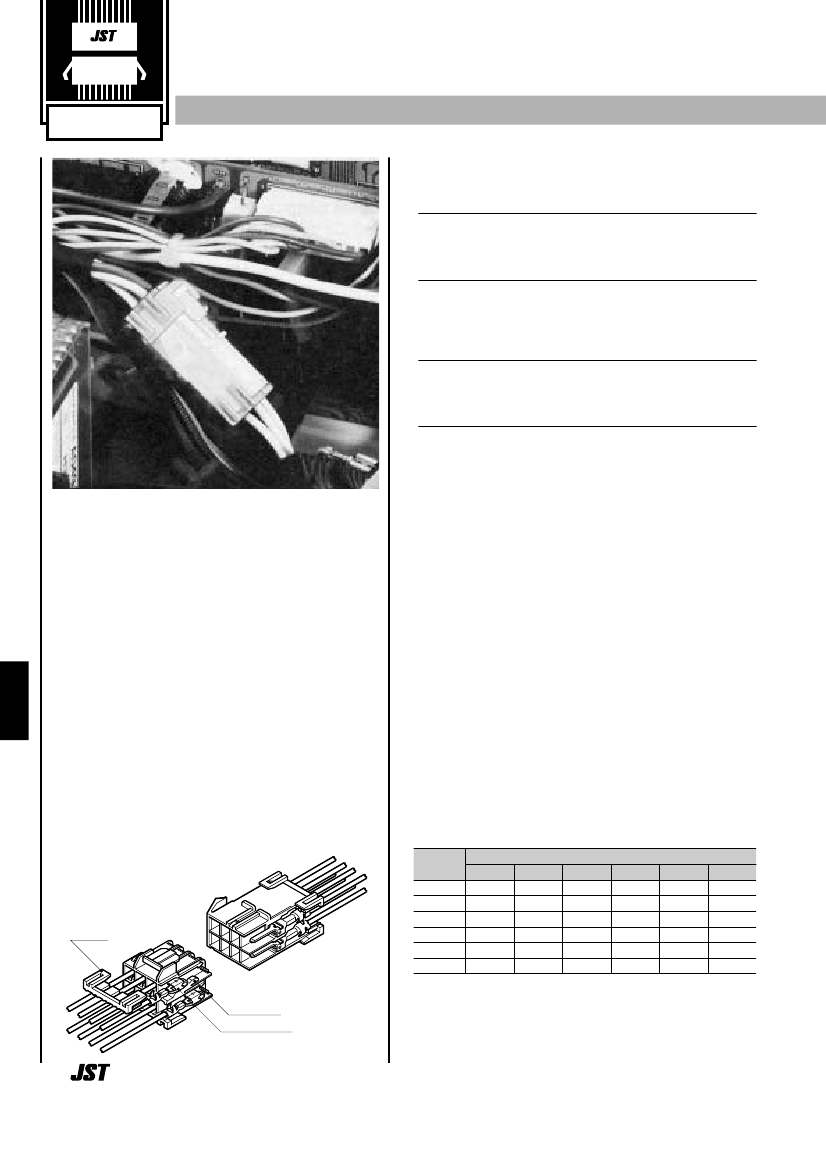

Features ––––––––––––––––––––––––
• Housing lances
The lances on the resilient housing are not affected by external
force. They allow the contact to be easily inserted and securely
locked into the housing, and require only a light insertion force.
The retainer ensures high reliability by preventing non-insertion
or accidental release of the contact. Installed after the contacts
are inserted, it locks and secures the contacts at the lance
sections.
• Box-shaped contacts
Our box-shaped contacts serve as socket contacts in a wide
variety of applications from low-voltage, low-current signal
circuits to power supply circuits.
• Mountable on a variety of panels
Due to our unique panel installation locking mechanisms, the
housing can be easily installed on panels of various thicknesses
without using tools.
ZL connectors are reliable, smoothly mating
wire-to-wire connectors.
Specifications –––––––––––––––––––
• Current rating: 10A AC, DC max.
• Voltage rating: 300V AC, DC max.
• Temperature range: -25˚C to +90˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/7m
Ω
max.
After environmental testing/10m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #26 to #16
0.13 to 1.25mm
2
• Applicable panel thickness: 0.7 to 2.4mm(.028" to .094")
* Contact JST for details.
Note: The current rating varies depending on the number of
circuits and the wire size used in each connector.
The table below lists the current rating as a function of the
number of circuits and wire size.
Current unit: A
Circuits
#16
2
4
6
10
9
8
6
6
5
Wire size (AWG)
#18
6
5
4
4
4
3
#20
5
4
3
3
3
2
#22
4
3
3
3
3
2
#24
3
3
2
2
2
1
#26
2
2
2
2
2
1
Retainer
8
12
16
Housing lance
Box-shaped contact
Standards ––––––––––––––––––––––
0
1
Recognized E60389
Certified LR20812
666
ZL
CONNECTOR
Contact––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Pin contact
1.85
(.073)
Socket contact
3.2
(.126)
14.3(.563)
22.5(.886)
4.0
2.5
(.157) (.098)
4.5
(.177)
2.5
4.0
(.098) (.157)
Model No.
Pin contact
Socket contact
mm
2
Applicable wire
AWG #
Insulation O.D.
mm(in.)
1.3 to 2.7
(.051 to .106)
3,000
Q´ty / reel
SZM-01T-P0.7
SZF-01T-P0.7
0.13 to 0.5
26 to 20
0.75 to 1.25
18 to 16
22+22
to
20+20
1.9 to 3.1
(.075 to .122)
1.7+1.7 to 2.0+2.0
(.067+.067 to .079+.079)
SZM-41T-P0.7
SZF-41T-P0.7
0.3+0.3
to
0.5+0.5
Material and Finish
Phoshor bronze , tin-plated
Note: Contact JST for special products.

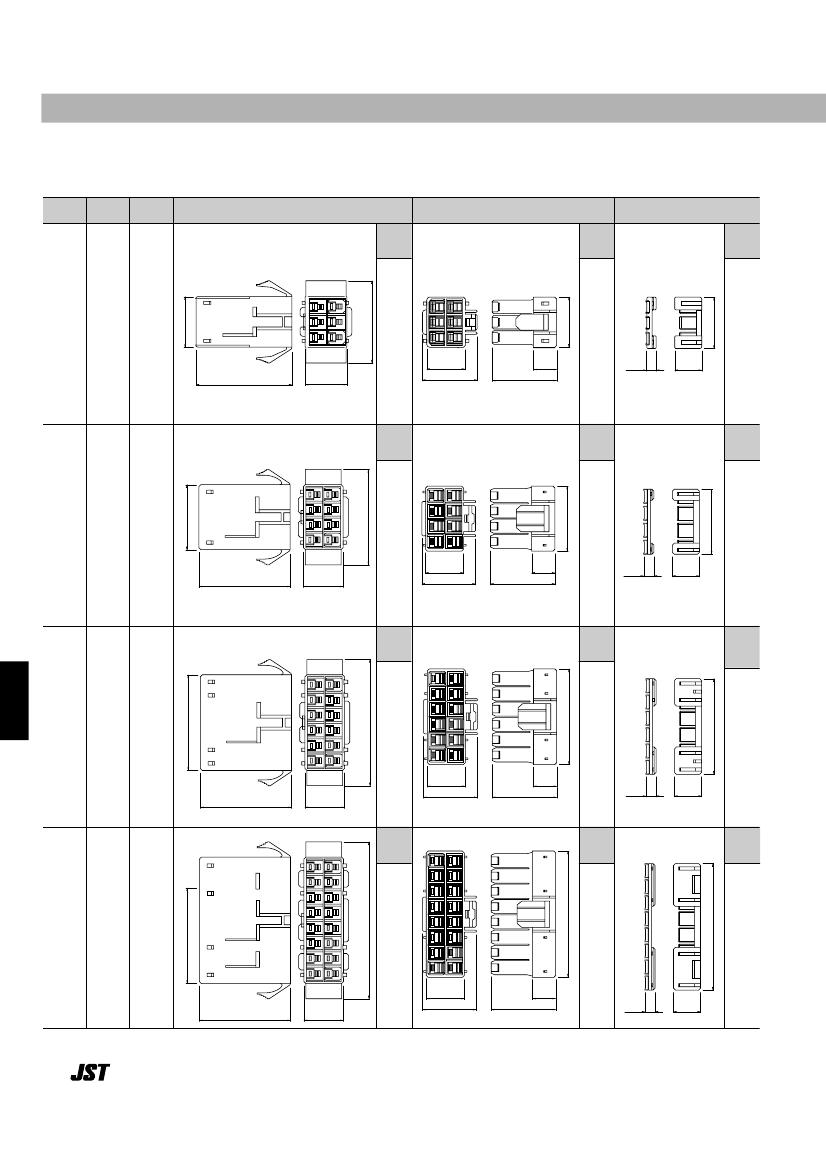

Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Material: Housing...Nylon 6, UL94V-0, white
Retainer...Glass-filled nylon 66, UL94V-0, ivory
Circuits
Voltage Current
rating
rating
Receptacle housing(for pin contact)
ZLR-02V
Q’ty /
bag
16.2(.638)
Plug housing(for socket contact)
ZLP-02V
9.4
(.370)
Retainer
Q’ty /
bag
ZLS-02V
(Used with both
housings with 2
and 4 circuits)
Q’ty /
bag
2
300V
10.0A
6.2(.244)
500
12.4
(.488)
17.5(.689)
8.2
(.323)
21.0(.827)
500
29.7(1.169)
12.9
(.508)
10.45
(.411)
1,000
ZLR-04V
Q’ty /
bag
21.2(.835)
ZLP-04V
Q’ty /
bag
11.7
(.461)
6.4
(.250)
8.8
(.346)
11.2(.441)
4
300V
9.0A
500
12.4
(.488)
17.5(.689)
8.2
(.323)
21.0(.827)
500
29.7(1.169)
12.9
(.508)
667
ZL
CONNECTOR
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Material: Housing...Nylon 6, UL94V-0, white
Retainer...Glass-filled nylon 66, UL94V-0, ivory
Retainer
Q’ty /
bag
ZLS-03V
Q’ty /
bag
Circuits
Voltage Current
rating
rating
Receptacle housing(for pin contact)
ZLR-06V
Q’ty /
bag
Plug housing(for socket contact)
ZLP-06V
26.2(.1.031)
16.2(.638)
16.2(.638)
16.2(.638)
3.3
(.130)
8.8
(.346)
6
300V
8.0A
500
500
1,000
29.7(1.169)
12.9(.508)
12.4(.488)
17.5(.689)
8.2
(.323)
21.0(.827)
ZLR-08V
Q’ty /
bag
ZLP-08V
Q’ty /
bag
ZLS-08V
Q’ty /
bag
31.2(1.228)
21.2(.835)
21.2(.835)
8
300V
6.0A
21.2(.835)
500
500
1,000
29.7(1.169)
12.9
(.508)
12.4
(.488)
17.5(.689)
8.2
(.323)
21.0(.827)
3.3
(.130)
8.8
(.346)
ZLR-12V
Q’ty /
bag
ZLP-12V
Q’ty /
bag
ZLS-12V
Q’ty /
bag
31.2(1.228)
41.2(1.622)
31.2(1.228)
12
300V
6.0A
200
200
31.2(1.228)
3.3
(.130)
8.8
(.346)
1,000
29.7(1.169)
12.9
(.508)
12.4
(.488)
17.5(.689)
8.2
(.323)
21.0(.827)
ZLR-16V
Q’ty /
bag
ZLP-16V
Q’ty /
bag
ZLS-16V
Q’ty /
bag
41.2(1.622)
51.2(2.016)
41.2(1.622)
16
300V
5.0A
200
200
41.2(1.622)
1,000
29.7(1.169)
12.9
(.508)
12.4
(.488)
17.5(.689)
8.2
(.323)
21.0(.827)
3.3
(.130)
8.8
(.346)
Note: 1. ZL connectors with any number of circuits can be used either panel mounted or free hanging. The panel hole dimensions are given on the next page.
2. Contact JST for special products.
668
ZL
CONNECTOR

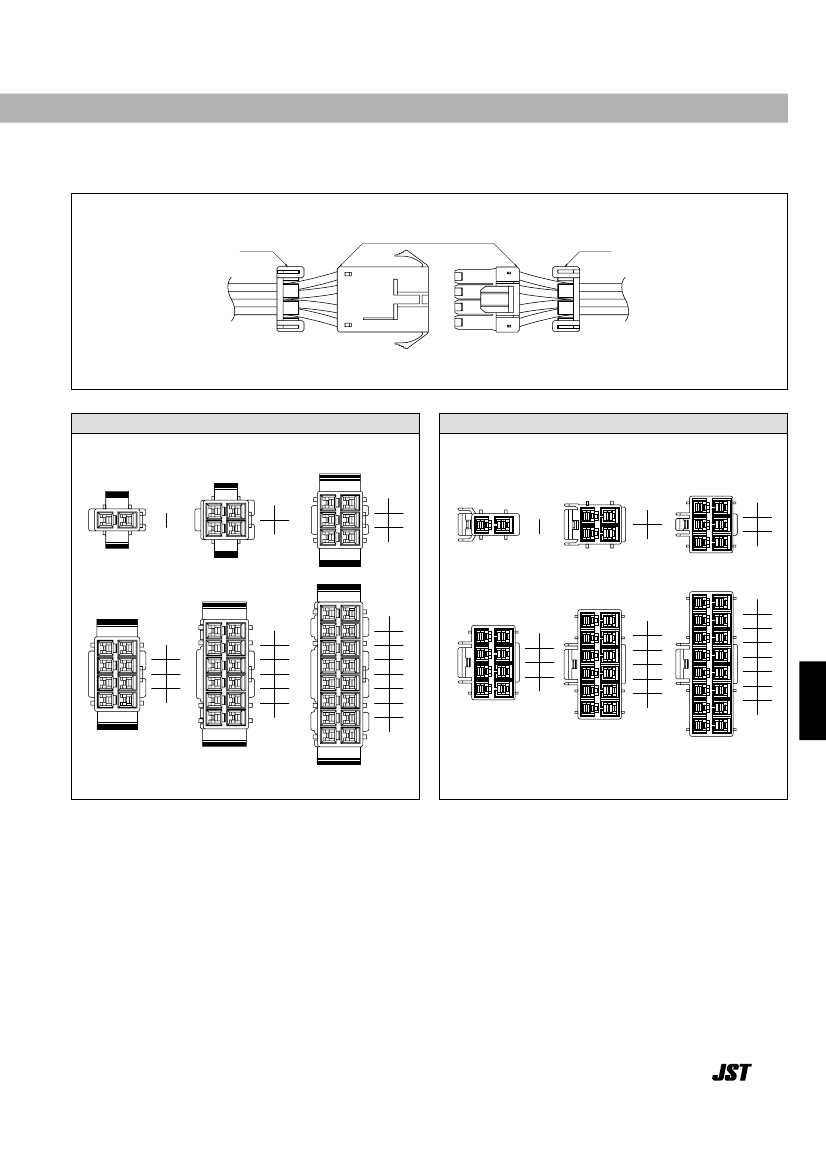

Panel layout––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Shape l
6.5
(.256)
B
Shape ll
B
2.7 7.8
(.106) (.307)
D C
D C
A
A
Cir-
cuits
2
4
6
8
12
16
Receptacle
housing
ZLR-02V
ZLR-04V
ZLR-06V
ZLR-08V
ZLR-12V
ZLR-16V
Panel
hole
shape
Panel dimensions mm(in.)
A
11.5( .453)
16.5( .650)
21.5( .846)
26.5(1.043)
36.5(1.437)
46.5(1.831)
General tolerance
C
13.95(.549)
13.95(.549)
13.95(.549)
13.95(.549)
13.95(.549)
13.95(.549)
±
0.13 (
±
.005)
D
13.2(.520)
13.2(.520)
13.2(.520)
13.2(.520)
13.2(.520)
13.2(.520)
B
4.4(.173)
5.2(.205)
5.2(.205)
5.2(.205)
5.2(.205)
5.2(.205)
Applicable panel
thickness mm(in.)
0.7 to 2.4
(0.28 to .094)
Note:
1. Punch holes in the panel according to the sketch and table shown above. Burrs must be removed.
2. The strength of the panel must be considered when punching two or more holes.
3. The connector must be inserted from the same side as the hole is punched.
Assembly layout ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2, 4
41.5(1.634)
When retainers are mounted
Dimensions mm(in.)
18.1(.713)
17.5(.689)
6, 8, 12, 16
37.9(1.492)
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SZF-01T-P0.7
SZM-01T-P0.7
SZF-41T-P0.7
SZM-41T-P0.7
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SZF/M01-07
APLMK SZF/M01-07
APLMK SZF/M41-07
APLMK SZF/M41-07
APLNC SZF/M01-07
APLNC SZF/M01-07
APLNC SZF/M41-07
APLNC SZF/M41-07
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
–
–
–
–
–
–
Strip-crimp applicator MKS-SC
with safety cover
–
–
–
–
670
Microcontroller MCU
