3-338240-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-338240-1

3-338240-1: Description25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-338240-1 Overview

25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG

3-338240-1 Parametric

Parameter Name	Attribute value
Objectid	1515048888
Reach Compliance Code	unknown
Other features	ACTION PIN
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	338240
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	PRESS FIT
Total number of contacts	25

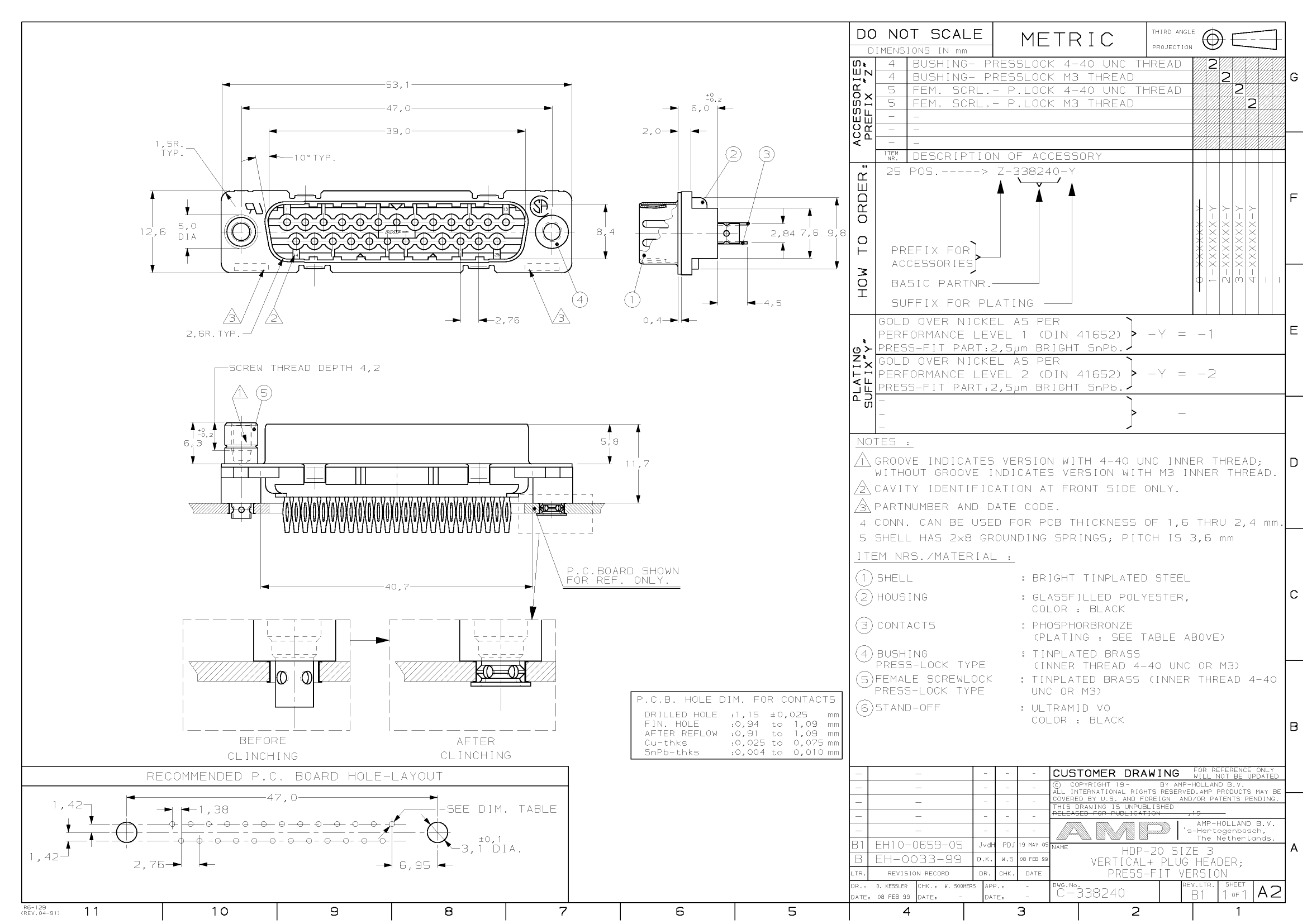

Preview

Download Datasheet

View All

3-338240-1 Related Products

	3-338240-1	1-338240-2	1-338240-1	2-338240-1	4-338240-1	151-12.096M-SR-15R-TR	0-338240-1	4-338240-2
Description	25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	Quartz Crystal,	CONNECTOR, 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG
Objectid	1515048888	1515048864	1515048863	1515048880	1515048892	145224838798	1515048857	1515048893
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	unknown	unknown
Other features	ACTION PIN	AMPLIMITE	ACTION PIN	ACTION PIN	ACTION PIN	-	ACTION PIN	AMPLIMITE
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	-	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	-	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	-	NO	NO
empty shell	NO	NO	NO	NO	NO	-	NO	NO
Filter function	NO	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	NO	-	NO	NO
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO	NO	-	NO	NO
Manufacturer's serial number	338240	338240	338240	338240	338240	-	338240	338240
Mixed contacts	NO	NO	NO	NO	NO	-	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	-	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	-	STEEL	STEEL
Housing size	3/B	3/B	3/B	3/B	3/B	-	3/B	3/B
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-	PRESS FIT	PRESS FIT
Total number of contacts	25	25	25	25	25	-	25	25
