ZLLS400

Description
0.52 A, SILICON, SIGNAL DIODE
Categorysemiconductor    Discrete semiconductor
File Size272KB,6 Pages
ManufacturerZetex Semiconductors
Websitehttp://www.zetex.com/
Download Datasheet Parametric Compare View All

ZLLS400 Overview

0.52 A, SILICON, SIGNAL DIODE

ZLLS400 Parametric

Parameter NameAttribute value
Number of terminals2
Number of components1
Processing package descriptionSOD-323, 2 PIN
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shapeRectangle
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingMATTE Tin
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
CraftsmanshipSCHOTTKY
structuresingle
Diode component materialssilicon
Maximum power consumption limit0.3300 W
Diode typeSignal diode
Maximum reverse recovery time0.0030 us
Maximum average forward current0.5200 A
ZLLS400
40V SILICON HIGH CURRENT LOW LEAKAGE SCHOTTKY DIODE
SUMMARY
Schottky Diode V
R
= 40V; I
F
= 0.52A; I
R
= 10mA
DESCRIPTION
This compact SOD323 packaged Schottky diode offers users an excellent
performance combination comprising high current operation, extremely low
leakage and low forward voltage ensuring suitability for applications requiring

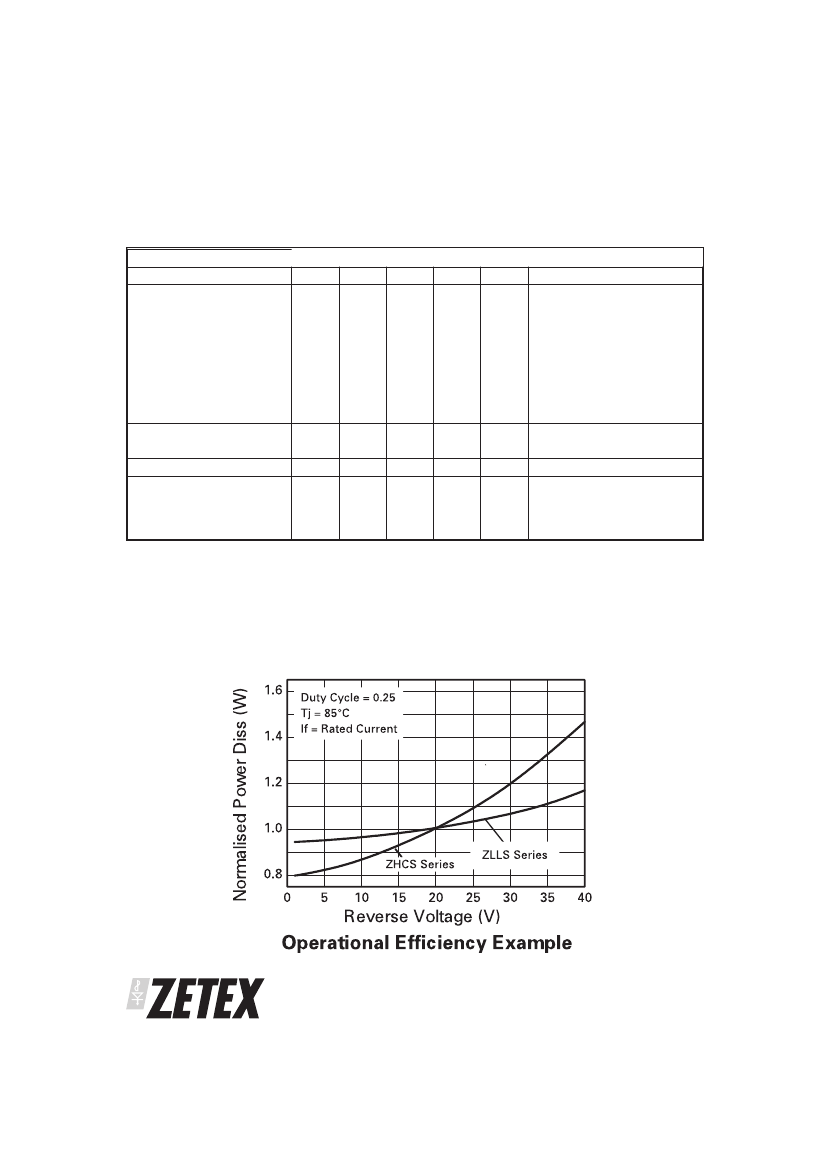

efficient operation at higher temperatures ( above 85 C) see Operational Efficiency
chart on page 4.
key benefits:
Performance capability equivalent to much larger packages
Improved circuit efficiency & power levels
PCB area savings
FEATURES
·
Low Equivalent On Resistance
·
Extremely Low Leakage (10 A @30V)
·
High current capability (I
F
= 0.52A)
·
Low VF, Fast switching Schottky
·
SOD323 Package
·
ZLLS400 complements low temperature equivalent ZHCS400
·
Package thermally rated to 150 C
APPLICATIONS
·
DC - DC Converters
·
Mobile Phones
·
Charging Circuits
·
Motor control
ORDERING INFORMATION
DEVICE
ZLLS400TA
ZLLS400TC
REEL
TAPE WIDTH
(inches) (mm)
7
13
QUANTITY
PER REEL
8mm embossed 3000 units
8mm embossed 10000 units
DEVICE MARKING
40
ISSUE 1 - JANUARY 2002
1
Top view

ZLLS400 Related Products

ZLLS400 ZLLS400TA ZLLS400TC
Description 0.52 A, SILICON, SIGNAL DIODE 0.52 A, SILICON, SIGNAL DIODE 0.52 A, SILICON, SIGNAL DIODE
Number of terminals 2 2 2
Number of components 1 1 1
surface mount Yes YES YES
Terminal form GULL WING GULL WING GULL WING
Terminal location pair DUAL DUAL
Diode component materials silicon SILICON SILICON
Diode type Signal diode RECTIFIER DIODE RECTIFIER DIODE
Maximum reverse recovery time 0.0030 us 0.003 µs 0.003 µs
Is it Rohs certified? - conform to conform to
Maker - Zetex Semiconductors Zetex Semiconductors
package instruction - SOD-323, 2 PIN SOD-323, 2 PIN
Reach Compliance Code - unknown unknown
ECCN code - EAR99 EAR99
Configuration - SINGLE SINGLE
Maximum forward voltage (VF) - 0.35 V 0.35 V
JESD-30 code - R-PDSO-G2 R-PDSO-G2
JESD-609 code - e3 e3
Humidity sensitivity level - 1 1
Maximum non-repetitive peak forward current - 2.5 A 2.5 A
Maximum operating temperature - 150 °C 150 °C
Maximum output current - 0.52 A 0.52 A
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY
Package shape - RECTANGULAR RECTANGULAR
Package form - SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) - 260 260
Maximum power dissipation - 0.33 W 0.33 W
Certification status - Not Qualified Not Qualified
Maximum repetitive peak reverse voltage - 40 V 40 V
technology - SCHOTTKY SCHOTTKY
Terminal surface - Matte Tin (Sn) Matte Tin (Sn)
Maximum time at peak reflow temperature - 40 10
