ATV2500BL-30PI datasheet, PDF - EEWORLD Datasheet

ATV2500BL-30PI: DescriptionOT PLD, 30ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40; CategoryProgrammable logic devices Programmable logic; File Size482KB，14 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

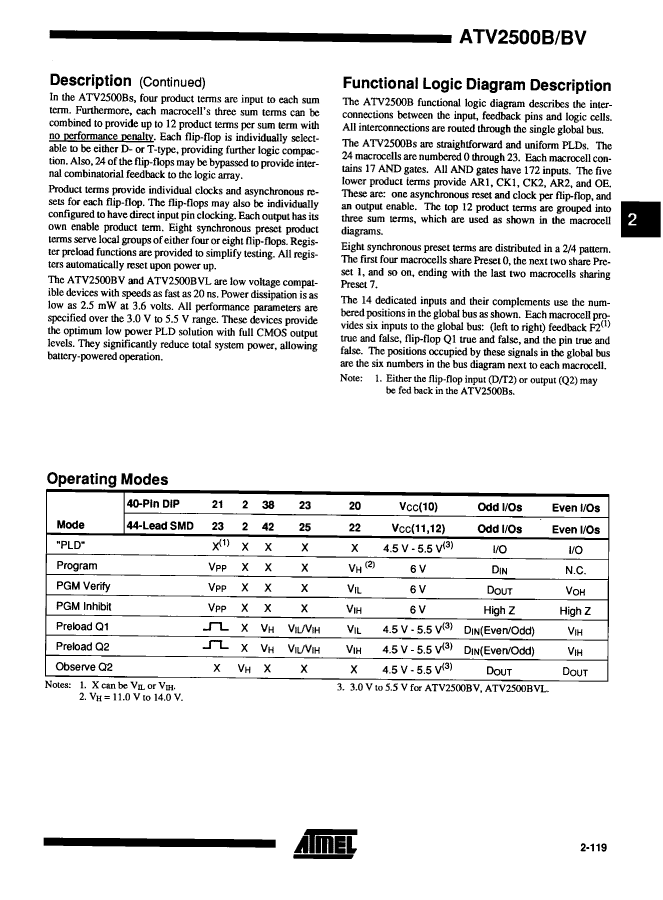

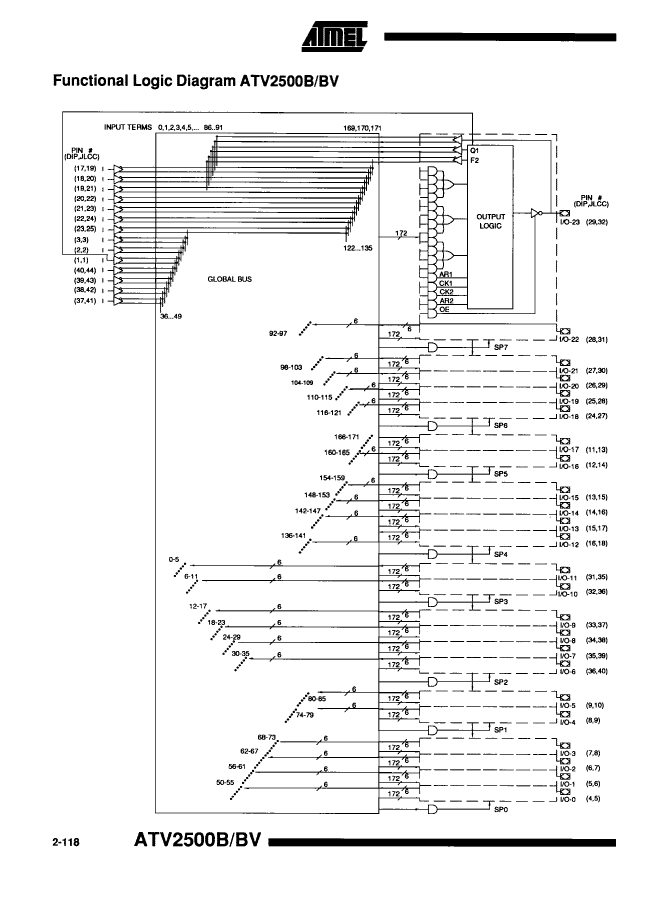

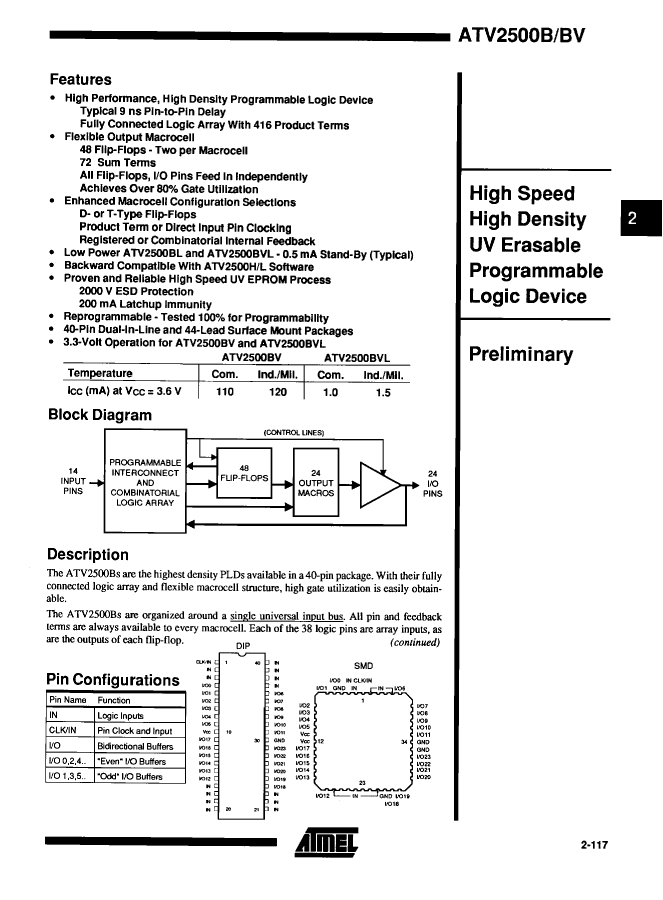

ATV2500BL-30PI Overview

OT PLD, 30ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Other features	PAL WITH MACROCELLS; 24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	20 MHz
JESD-30 code	R-PDIP-T40
length	52.2 mm
Dedicated input times	13
Number of I/O lines	24
Number of terminals	40

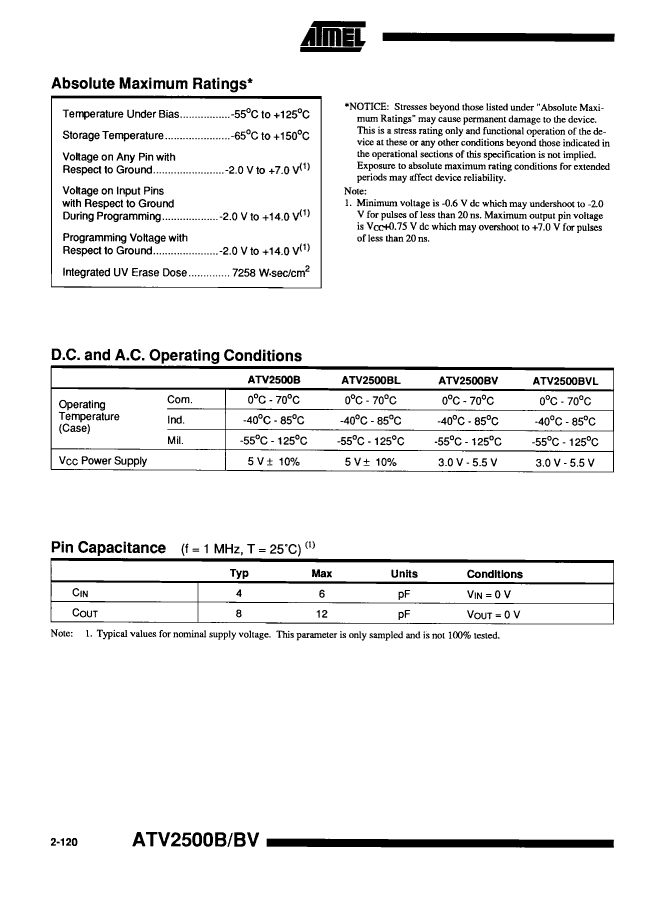

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	13 DEDICATED INPUTS, 24 I/O

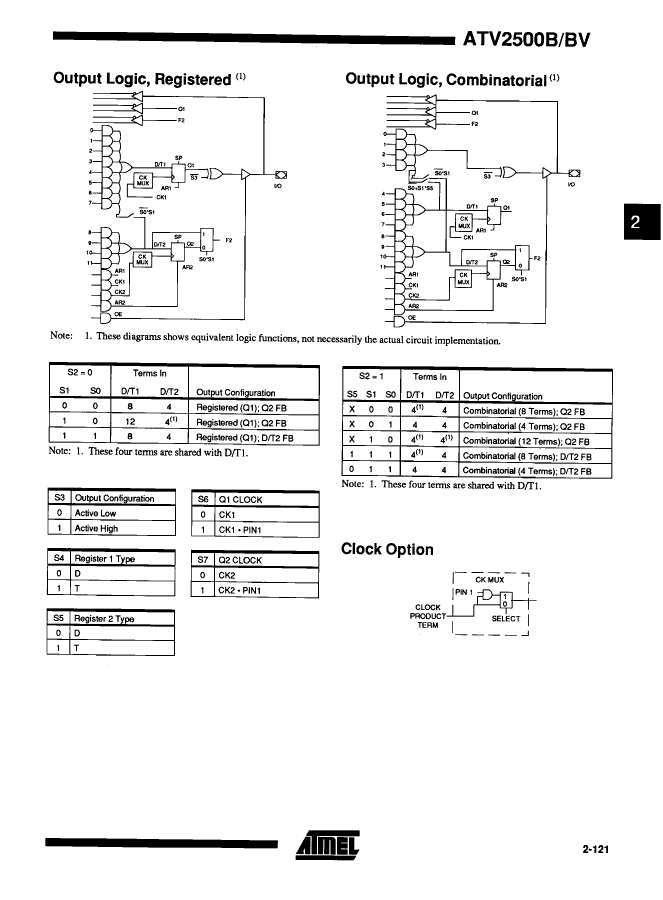

Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	OT PLD
propagation delay	30 ns
Certification status	Not Qualified
Maximum seat height	5.59 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
