Type TDL
Solid Tantalum Capacitors

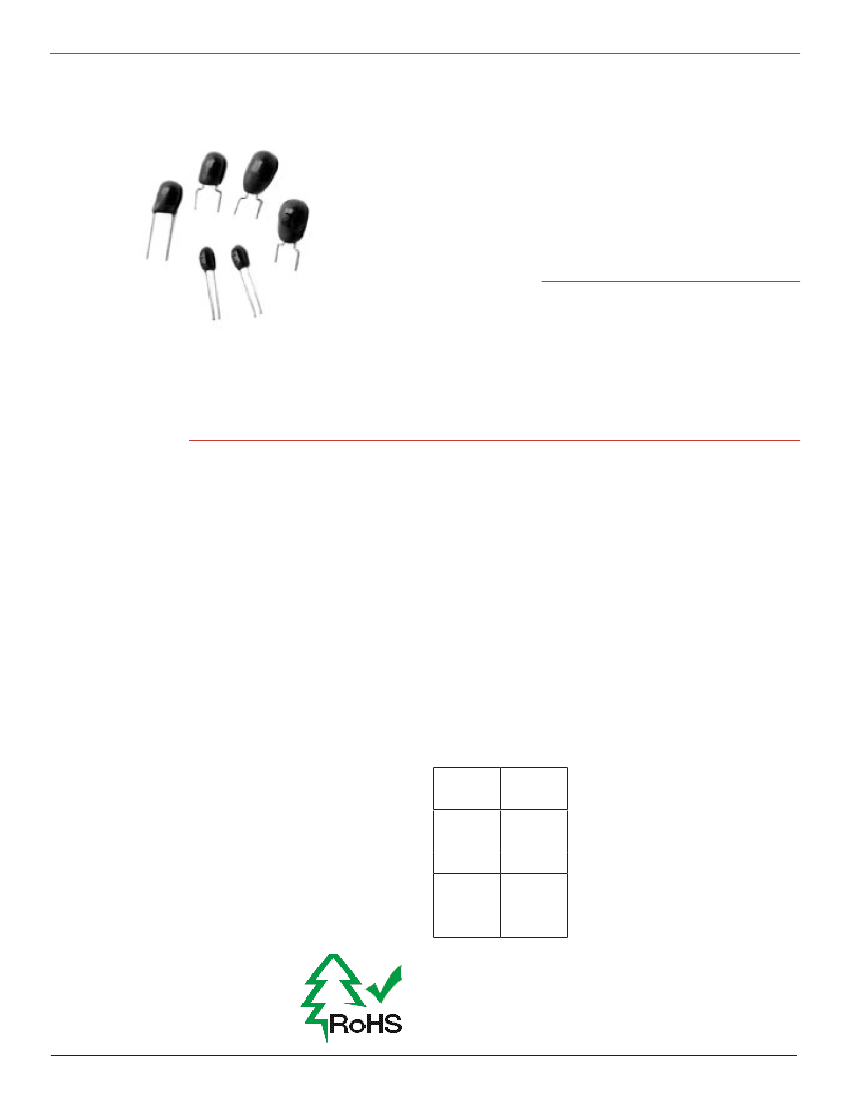

Dipped, Radial Leaded, Solid Tantalum Capacitors
The Type TDL, like the Type TDC, is a low cost alter-
native to molded solid tantalum capacitors, and is con-
structed in a tough, radial dipped flame retardant plastic
case. It assures the user that it is a top performer with
such attributes as low DCL, Low ESR, low impedance
and a great value with low in-place cost. The 0.10” and
0.20” lead spacings of the TDL are what distinguishes
it from the Type TDC.
Highlights
♦
♦
♦
♦
♦
♦
♦
Specifications
Tough plastic case
Low DCL
Low ESR and impedance
Low cost
Temperature stable
UL94VO flammability rating
Resistant to shock and vibration
Capacitance Range:
Voltage Range:
Tolerance:
Operating Temperature Range:
DC Leakage:
0.10 µF to 330 µF
6 WVdc to 50 WVdc at 85 ºC
±10%, ±20% (±5% by Special Order)
–55 ºC to +125 ºC (with proper derating)
+25 ºC - See ratings limit
+85 ºC - 10 x Ratings limit
+125 ºC - 12.5 x Ratings limit
Capacitance Change Maximum:
–10% @ –55 ºC
+10% @ +85 ºC
+12% @ +125 ºC
Reverse Voltage (Non-continuous):
15% of rated voltage @ 25 ºC
5% of rated voltage @ 85 ºC
1% of rated voltage @ 125 ºC
Reel Packaging:
Case
Quantity
Code
A
B
C
D
E
Per Reel
1,500
1,500
1,500
1,000
1,000
1,000
RoHS Compliant:
F
Complies with the EU Directive 2002/95/EC
requirement restricting the use of Lead (Pb),
Mercury (Hg), Cadmium (Cd), Hexavalent
chromium (Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl Ethers
(PBDE).
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
Type TDL
Solid Tantalum Capacitors

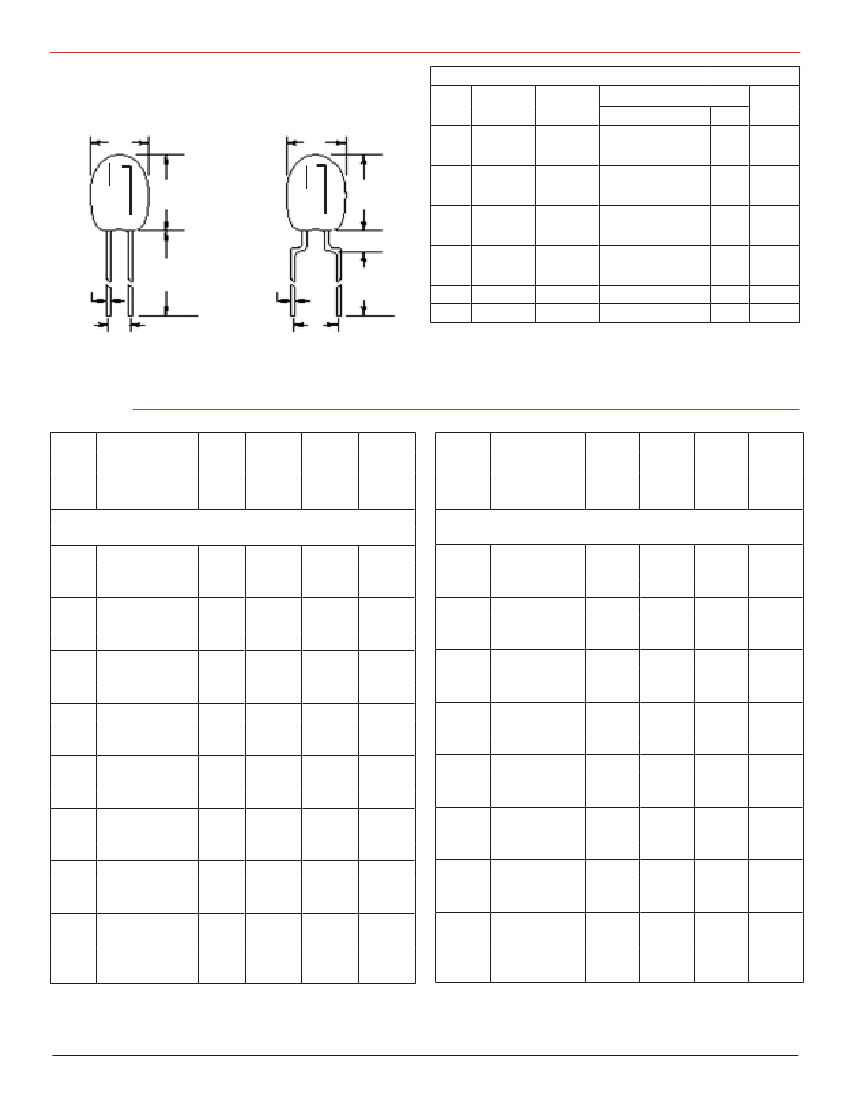

Capacitor Outline Drawing
D
Max
D
Max
Dimensions - Inches (Millimeters)
Case
Code
A
B
C
.140 (3.56) Max
Leads
D (Max.)
H (Max.)
S
.200 (5.08) (Special)
0180 (4.57) .280 (7.11) .100 (2.54) (Standard)
200 (5.08)
.260 (6.60)
.300 (7.62) .100 (2.54) (Standard)
.200 (5.08) (Special)
.360 (9.14) .100 (2.54) (Standard)
.200 (5.08) (Special)
S1
M2
S1
M2
S1
M2
S1
M2
M1
M1
Quantity
Code Per Reel
1,500
1,500
1,500
1,000
1,000
1,000
226
M
10
226
M
10
H
Max
H
Max
+
+
.020
(0.51)
S
.390 (10)
Min
.020
(0.51)
S
Lead Form
Code M2
D
E
F
.340 (8.64) .400 (10.16) .100 (2.54) (Standard)
.200 (5.08) (Special)
.400 (10.16) .560 (14.22) .200 (5.08) (Standard)
.440 (11.18) .680 (17.27) .200 (5.08) (Standard)
.187 ±.032
(4.75 ±0.81)
Lead Form
Codes S1, M1
Listed Catalog Numbers reflect standard lead forms as indicated
below.
M2 lead form and lead lengths of .500 (12.7) minumum are avail-
able by special order.
Ratings
Max.
Catalog
Cap
(µF)
Part Number
Case
Code
Lead
(S)
DCL
(µA)
Spacing @ +25ºC
Max. DF
@ +25ºC
120 Hz
(%)
Cap
(µF)
Catalog
Part Number
Case
Code
Lead
(S)
10 WVdc; 13 Vdc Surge @ 85 ºC
7 WVdc; 9 Vdc Surge @ 125 ºC
Max.
DCL
(µA)
Spacing @ +25ºC
Max. DF
@ +25ºC
120 Hz
(%)
6.3 WVdc; 8 Vdc Surge @ 85 ºC
4 WVdc; 5 Vdc Surge @ 125 ºC
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
TDL335*006S1A
TDL395*006S1A
TDL475*006S1A
TDL565*006S1A
TDL685*006S1A
TDL825*006S1B
TDL106*006S1B
TDL126*006S1B
TDL156*006S1B
TDL186*006S1B
TDL226*006S1C
TDL276*006S1C
TDL336*006S1C
TDL396*006S1C
TDL476*006S1D
TDL566*006S1D
TDL686*006S1D
TDL826*006S1D
TDL107*006S1D
TDL127*006M1D
TDL157*006M1E
TDL187*006M1E
TDL227*006M1E
TDL277*006M1E
TDL337*006M1F
A
A
A
A
A
B
B
B
B
B
C
C
C
C
D
D
D
D
D
D
E
E
E
E
F
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.1
1.3
1.6
1.9
2.3
2.7
3.3
3.9
4.8
5.8
7.2
8.6
10
10
10
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
8
8
8
8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
TDL225*010S1A
TDL275*010S1A
TDL335*010S1A
TDL395*010S1A
TDL475*010S1A
TDL565*010S1A
TDL685*010S1B
TDL825*010S1B
TDL106*010S1B
TDL126*010S1C
TDL156*010S1C
TDL186*010S1C
TDL226*010S1C
TDL276*010S1C
TDL336*010S1D
TDL396*010S1D
TDL476*010S1D
TDL566*010S1D
TDL686*010S1D
TDL826*010M1E
TDL107*010M1E
TDL127*010M1E
TDL157*010M1E
TDL187*010M1E
TDL227*010M1F
A
A
A
A
A
A
B
B
B
C
C
C
C
C
D
D
D
D
D
E
E
E
E
E
F
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.7
0.8
1.0
1.2
1.4
1.8
2.2
2.6
3.1
3.8
4.5
5.4
6.6
8.0
9.6
10.0
10.0
10.0
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
8
8
* Indicates capacitance tolerance: K = ±10%, M = ±20%, (J = ±5%, Special Order)
CDE reserves the right to substitute a tighter tolerance, higher voltage capacitor within the same case size.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 •
www.cde.com
Type TDL
Solid Tantalum Capacitors
Ratings
Max.
Catalog
Cap
(µF)
Part Number
Case
Code
Lead
(S)
16 WVdc; 20 Vdc Surge @ 85 ºC
10 WVdc; 12 Vdc Surge @ 125 ºC
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
TDL155*016S1A
TDL185*016S1A
TDL225*016S1A
TDL275*016S1A
TDL335*016S1A
TDL395*016S1B
TDL475*016S1B
TDL565*016S1B
TDL685*016S1B
TDL825*016S1C
TDL106*016S1C
TDL126*016S1C
TDL156*016S1C
TDL186*016S1C
TDL226*016S1D
TDL276*016S1D
TDL336*016S1D
TDL396*016M1E
TDL476*016M1E
TDL566*016M1E
TDL686*016M1E
TDL826*016M1E
TDL107*016M1F
TDL127*016M1F
TDL157*016M1F
A
A
A
A
A
B
B
B
B
C
C
C
C
C
D
D
D
E
E
E
E
E
F
F
F
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.0
1.3
1.5
1.8
2.2
2.6
3.2
4.0
4.7
5.6
6.8
8.2
9.8
10
10
10
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
DCL
(µA)
Max. DF
@ +25ºC
Max.
Catalog
Cap
(µF)
Part Number
Case
Code
Lead
(S)
20 WVdc; 26 Vdc Surge @ 85 ºC
13 WVdc; 16 Vdc Surge @ 125 ºC
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
TDL155*020S1A
TDL185*020S1A
TDL225*020S1A
TDL275*020S1A
TDL335*020S1A
TDL395*020S1B
TDL475*020S1B
TDL565*020S1B
TDL685*020S1B
TDL825*020S1B
TDL106*020S1C
TDL126*020S1C
TDL156*020S1C
TDL186*020S1C
TDL226*020S1C
TDL276*020M1E
TDL336*020M1E
TDL396*020M1E
TDL476*020M1E
TDL566*020M1E
TDL686*020M1E
TDL826*020M1F
TDL107*020M1F
A
A
A
A
A
B
B
B
B
B
C
C
C
C
C
E
E
E
E
E
E
F
F
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.5
0.5
0.5
0.5
0.5
0.6
0.8
0.9
1.1
1.3
1.6
1.9
2.4
2.9
3.5
4.3
5.3
6.2
7.5
9
10
10
10
DCL
(µA)
Max. DF
@ +25ºC
(%)
Spacing @ +25ºC 120 Hz
(%)
Spacing @ +25ºC 120 Hz
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
8
8
25 WVdc; 32 Vdc Surge @ 85 ºC
16.5 WVdc; 21.5 Vdc Surge @ 125 ºC
1.0
1.2
TDL105*025S1A
TDL125*025S1A
TDL155*025S1A
TDL185*025S1A
TDL225*025S1B
TDL275*025S1B
TDL335*025S1B
TDL395*025S1B
TDL475*025S1C
TDL565*025S1C
TDL685*025S1C
TDL825*025S1C
A
A
A
A
B
B
B
B
C
C
C
C
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.5
0.5
0.5
0.5
0.5
0.5
0.7
0.8
0.9
1.1
1.4
1.6
3
5
5
5
5
5
5
5
5
5
5
6
20 WVdc; 26 Vdc Surge @ 85 ºC
13 WVdc; 16 Vdc Surge @ 125 ºC
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
TDL155*020S1A
TDL185*020S1A
TDL225*020S1A
TDL275*020S1A
TDL335*020S1A
TDL395*020S1B
TDL475*020S1B
TDL565*020S1B
TDL685*020S1B
TDL825*020S1B
A
A
A
A
A
B
B
B
B
B
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.5
0.5
0.5
0.5
0.5
0.6
0.8
0.9
1.1
1.3
5
5
5
5
5
5
5
5
5
6
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
* Indicates capacitance tolerance: K = ±10%, M = ±20%, (J = ±5%, Special Order)
CDE reserves the right to substitute a tighter tolerance, higher voltage capacitor within the same case size.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
Type TDL
Solid Tantalum Capacitors
Ratings
Max.
Catalog
Cap
(µF)
Part Number
Case
Code
Lead
(S)
25 WVdc; 32 Vdc Surge @ 85 ºC
16.5 WVdc; 21.5 Vdc Surge @ 125 ºC
10
12
15
18
22
27
33
39
47
56
68
TDL106*025S1C
TDL126*025S1C
TDL156*025S1D
TDL186*025S1D
TDL226*025S1D
TDL276*025M1E
TDL336*025M1E
TDL396*025M1E
TDL476*025M1E
TDL566*025M1E
TDL686*025M1E
C
C
D
D
D
E
E
E
E
E
F
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
2.0
2.4
3.0
3.6
4.4
5.4
6.6
7.8
9.4
10.0
10.0
6
6
6
6
6
6
6
6
6
6
6
DCL
(µA)
Spacing @ +25ºC
Max. DF
@ +25ºC
120 Hz
(%)
Max.
Catalog
Cap
(µF)
Part Number
Case
Code
Lead
(S)
35 WVdc; 46 Vdc Surge @ 85 ºC
23 WVdc; 28 Vdc Surge @ 125 ºC
18
22
27
33
39
47
TDL186*035M1E
TDL226*035M1E
TDL276*035M1E
TDL336*035M1F
TDL396*035M1F
TDL476*035M1F
E
E
E
F
F
F
0.2
0.2
0.2
0.2
0.2
0.2
5.0
6.2
7.6
9.2
10.0
10.0
DCL
(µA)
Spacing @ +25ºC
Max. DF
@ +25ºC
120 Hz
(%)
6
6
6
6
6
6
50 WVdc; 65 Vdc Surge @ 85 ºC
33 WVdc; 40 Vdc Surge @ 125 ºC
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
TDL104*050S1A
TDL124*050S1A
TDL154*050S1A
TDL184*050S1A
TDL224*050S1A
TDL274*050S1A
TDL334*050S1A
TDL394*050S1A
TDL474*050S1B
TDL564*050S1B
TDL684*050S1B
TDL824*050S1B
TDL105*050S1C
TDL125*050S1C
TDL155*050S1C
TDL185*050S1C
TDL225*050S1D
TDL275*050S1D
TDL335*050S1D
TDL395*050S1D
TDL475*050S1D
TDL565*050S1D
TDL685*050M1F
TDL825*050M1F
TDL106*050M1F
TDL126*050M1F
TDL156*050M1F
TDL186*050M1F
TDL226*050M1F
A
A
A
A
A
A
A
A
B
B
B
B
C
C
C
C
D
D
D
D
D
D
F
F
F
F
F
F
F
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.1
1.3
1.6
1.9
2.2
2.7
3.3
4.0
4.8
6.0
7.2
8.8
3
3
3
3
3
3
3
3
3
3
3
3
3
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
35 WVdc; 46 Vdc Surge @ 85 ºC
23 WVdc; 28 Vdc Surge @ 125 ºC
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
TDL104*035S1A
TDL124*035S1A
TDL154*035S1A
TDL184*035S1A
TDL224*035S1A
TDL274*035S1A
TDL334*035S1A
TDL394*035S1A
TDL474*035S1A
TDL564*035S1A
TDL684*035S1A
TDL824*035S1A
TDL105*035S1B
TDL125*035S1B
TDL155*035S1B
TDL185*035S1B
TDL225*035S1C
TDL275*035S1C
TDL335*035S1C
TDL395*035S1C
TDL475*035S1D
TDL565*035S1D
TDL685*035S1D
TDL825*035S1D
TDL106*035S1D
TDL126*035M1E
TDL156*035M1E
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
C
C
C
C
D
D
D
D
D
E
E
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.7
0.9
1.0
1.3
1.6
1.9
2.3
2.8
3.4
4.2
3
3
3
3
3
3
3
3
3
3
3
3
3
5
5
5
5
5
5
5
5
5
5
6
6
6
6
* Indicates capacitance tolerance: K = ±10%, M = ±20%, (J = ±5%, Special Order)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 •
www.cde.com
Type TDL
Solid Tantalum Capacitors
Part Numbering System
TDL
106
M
050
M
1
Lead
Length
1
= Straight
.390 Long
2
= Straight
.187 Long
F
Case
Code
A
B
C
D
E
F
–F
RoHS
Compliant
–F
=
Compliant
Blank=
Not
Compliant
Series Capacitance
TDL 104
= 0.10 µF
105
= 1.0 µF
225
= 2.2 µF
186
= 18 µF
107
= 100 µF
Lead
Tolerance Voltage
Spacing
J
= ±5%
006
= 6.3 Vdc
S
= .100
K
= ±10%
010
= 10 Vdc
M
= .200
M
= ±20%
015
= 15 dc
T
= Tape &
020
= 20 Vdc
Reel
025
= 25 Vdc
035
= 35 Vdc
050
= 50 Vdc
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
京公网安备 11010802033920号
EEWORLD
