BR605 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BR605

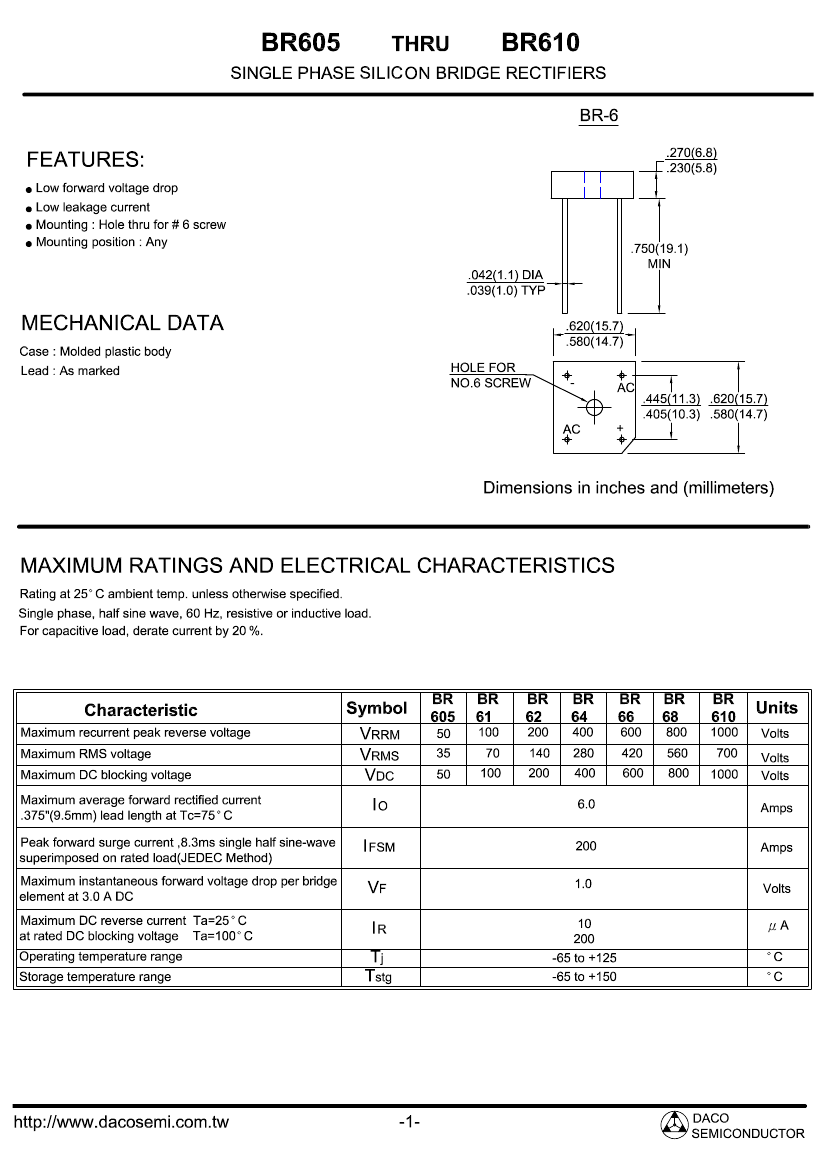

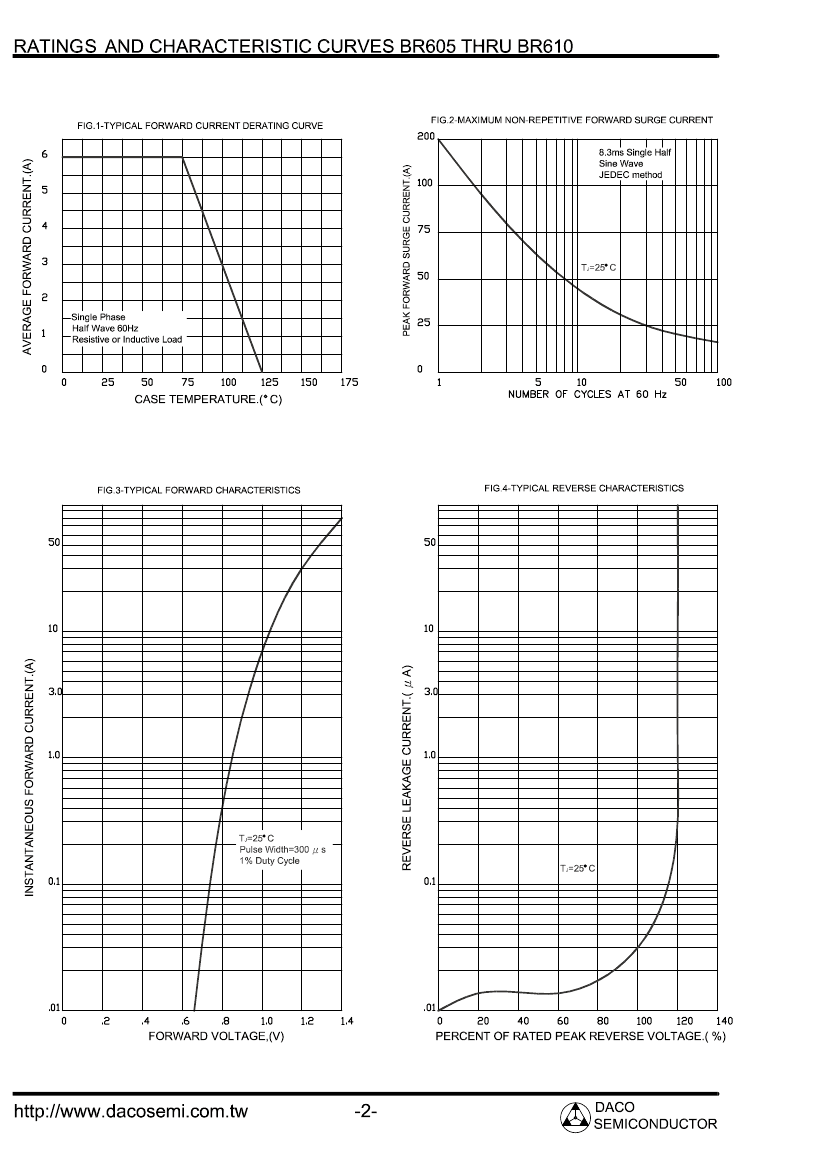

BR605: DescriptionBridge Rectifier Diode, 1 Phase, 6A, 50V V(RRM), Silicon, PLASTIC, BR-6, 4 PIN; CategoryDiscrete semiconductor diode; File Size661KB，2 Pages; ManufacturerDaco Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

BR605 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR605	-	-	View	Buy Now

BR605 Overview

Bridge Rectifier Diode, 1 Phase, 6A, 50V V(RRM), Silicon, PLASTIC, BR-6, 4 PIN

BR605 Parametric

Parameter Name	Attribute value
Maker	Daco Semiconductor Co., Ltd.
package instruction	S-PUFM-W4
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	50 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-W4
Maximum non-repetitive peak forward current	200 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER

Preview

Download Datasheet

View All

BR605 Related Products

	BR605	BR61	BR610	BR62	BR68
Description	Bridge Rectifier Diode, 1 Phase, 6A, 50V V(RRM), Silicon, PLASTIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, PLASTIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 6A, 1000V V(RRM), Silicon, PLASTIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, PLASTIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, PLASTIC, BR-6, 4 PIN
Maker	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.
package instruction	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	50 V	800 V	1000 V	800 V	800 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A	200 A
Number of components	4	4	4	4	4
Phase	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	6 A	6 A	6 A	6 A	6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V	800 V	1000 V	800 V	800 V
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
