SB220
THRU
SB260
Technical Data
Data Sheet N0870, Rev. B
SB220 THRU SB260 SCHOTTKY RECTIFIER
Features
Schottky Barrier Chip
Guard Ring Die Construction for Transient Protection
High Current Capability
Low Power Loss, High Efficiency
High Surge Current Capability
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
Green Products in Compliance with the RoHS Directive
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
DO-15
Circuit Diagram
Mechanical Data
Case: JEDEC DO-15 molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-
750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.014 ounce, 0.40 grams
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Characteristics
Maximum repetitive peak reverse voltage
Maximum DC blocking voltage
Maximum RMS voltage
Maximum average forward rectified
current 0.375"( 9.5mm ) lead length at
T
L
=100℃
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load ( JEDEC Method)
Maximum instantaneous forward voltage
at 2.0A
Maximum DC reverse current T
A
=25℃
at rated DC blocking voltage T
A
=100℃
Typical junction capacitance ( Note 1)
Typical thermal resistance junction to lead
Typical thermal resistance junction to
ambient( Note 2)
Operating junction and storage
temperature range
Symbol
SB220
SB230
SB240
SB250
SB260
Units
V
RRM
V
DC
V
RMS
I
(AV)
I
FSM
V
F
I
R
C
J
R
θJL
R
θJA
T
J,
T
STG
20
14
30
21
40
28
2.0
50
50
35
60
42
V
V
A
A
0.5
5.0
10
170
15
50.0
-65 to +150
0.70
V
mA
140
pF
℃/W
℃/W
℃
Note: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3. Thermal resistance from junction to ambient at 0.375”(9.5mm) lead length, P.C.B mounted.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SB220
THRU
SB260
Technical Data
Data Sheet N0870, Rev. B

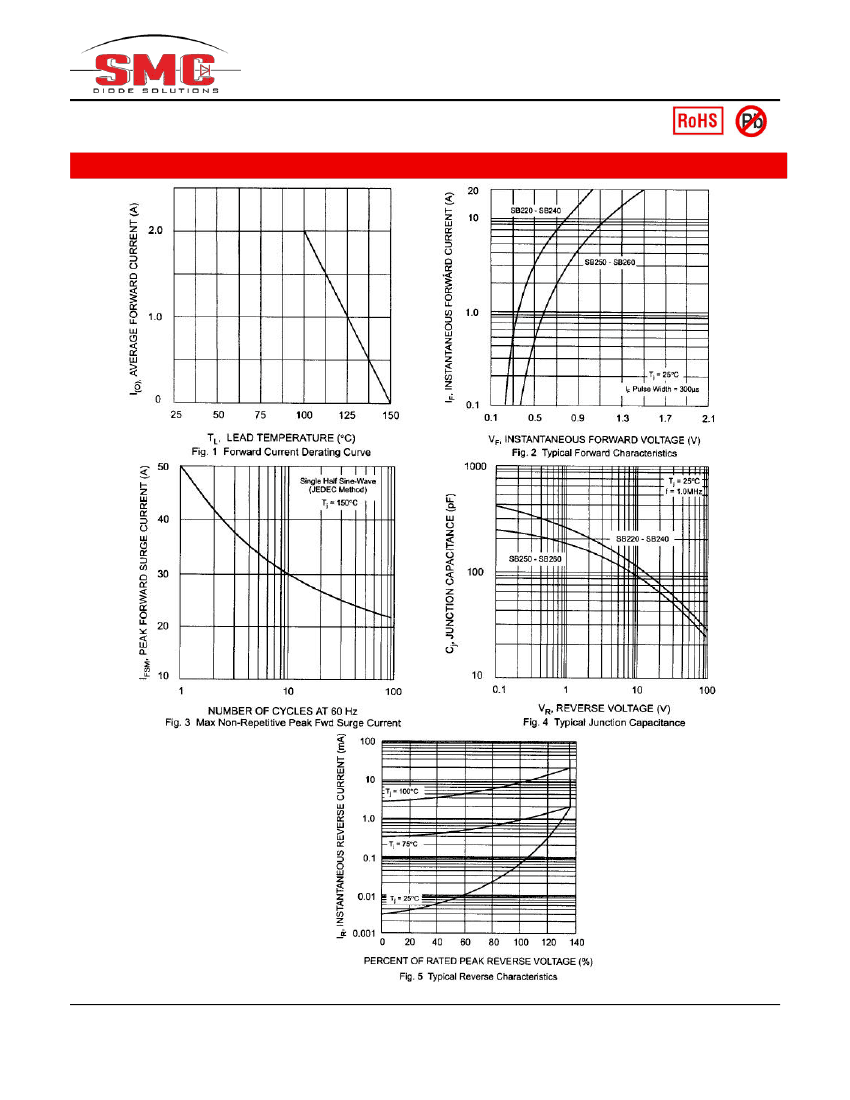

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SB220
THRU
SB260
Technical Data
Data Sheet N0870, Rev. B

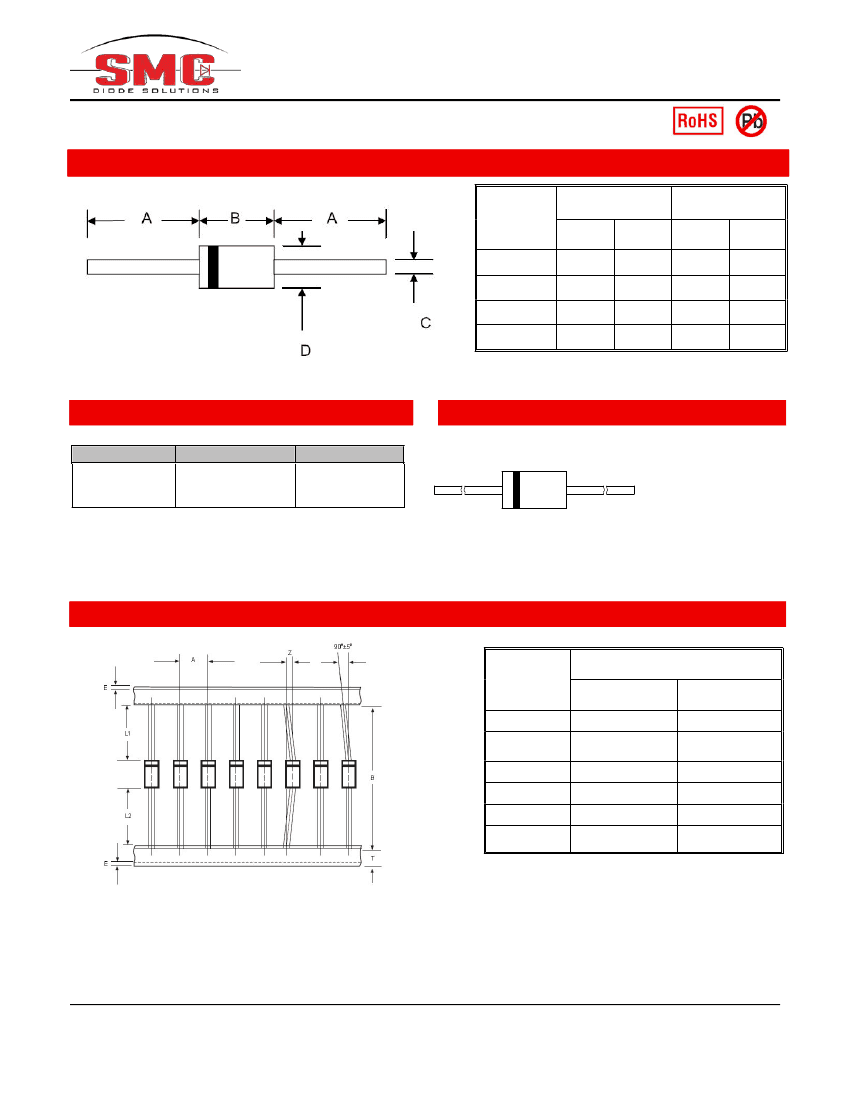

Mechanical Dimensions DO-15
SYMBOL
A
B
C
D
Millimeters
Min.
25.4
5.5
0.7
2.6
Max.
-
7.62
0.9
3.6
Inches
Min.
1.000
0.217
0.028
0.104
Max.
-
0.300
0.034
0.140
Ordering Information
Device
SB220
THRU
SB260
Marking Diagram
Shipping
SB240
Package
DO-15(Pb-Free)
Where XXXXX is YYWWL
SB
2
40
SSG
YY
WW
L
= Device Type
= Forward Current (2A)
= Reverse Voltage (40V)
= SSG
= Year
= Week
= Lot Number
3000pcs / tape
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
SSG XXXXX
Cautions：Molding resin
Epoxy resin UL:94V-0
Carrier Tape Specification DO-15
Millimeters
Min.
4.50
50.9
-
5.60
-
-
SYMBOL
A
B
Z
T
E
IL1-L2I
Max.
5.50
53.9
1.20
6.40
0.80
1.0
