MDF7P-46DP-2.54DSA(55) datasheet, PDF

Datasheet> All Categories > The connector> The connector> MDF7P-46DP-2.54DSA(55)

MDF7P-46DP-2.54DSA(55): DescriptionBoard Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

MDF7P-46DP-2.54DSA(55) Overview

Board Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT

MDF7P-46DP-2.54DSA(55) Parametric

Parameter Name	Attribute value
Maker	Hirose
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.2 inch
subject depth	0.1 inch
body length	2.3 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MDF7
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	46
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

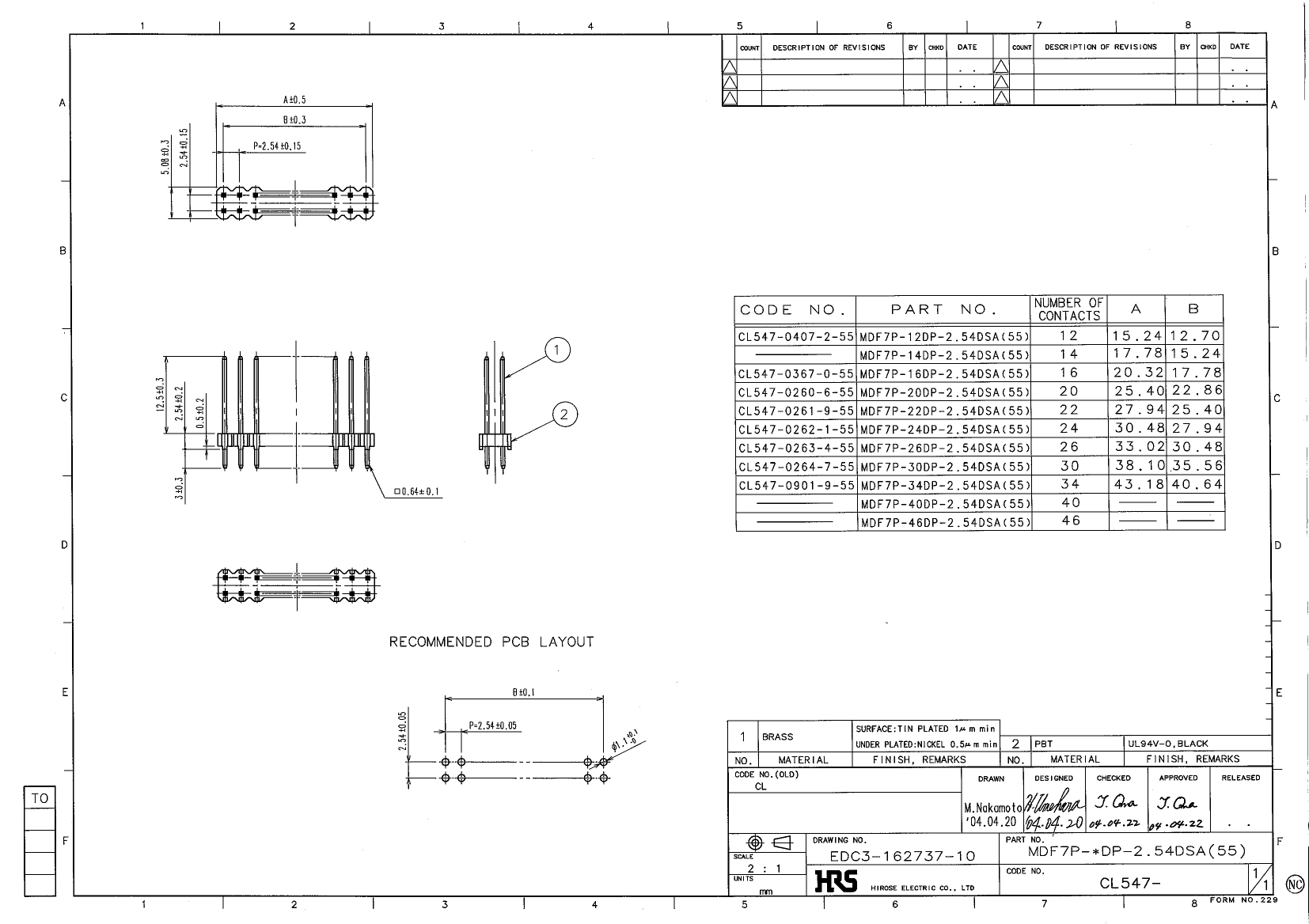

DRAWING FOR REFERENCE: This is subject to change without notice

08/11/2012

MDF7P-46DP-2.54DSA(55) Related Products

	MDF7P-46DP-2.54DSA(55)	MDF7P-40DP-2.54DSA(55)	MDF7P-14DP-2.54DSA(55)	MDF7P-34DP-2.54DSA(55)	CL547-0901-9-55	CL547-0262-1-55
Description	Board Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT	Board Connector	Board Connector
Maker	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99
Contact to complete cooperation	TIN	TIN	TIN	TIN	-	-
Contact completed and terminated	TIN	TIN	TIN	TIN	-	-
Contact point gender	MALE	MALE	MALE	MALE	-	-
DIN compliance	NO	NO	NO	NO	-	-
Filter function	NO	NO	NO	NO	-	-
IEC compliance	NO	NO	NO	NO	-	-
JESD-609 code	e3	e3	e3	e3	-	-
MIL compliance	NO	NO	NO	NO	-	-
Manufacturer's serial number	MDF7	MDF7	MDF7	MDF7	CL547	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	-
Mixed contacts	NO	NO	NO	NO	-	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-
Installation type	BOARD	BOARD	BOARD	BOARD	-	-
Number of rows loaded	2	2	2	2	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-	-
Total number of contacts	46	40	14	34	-	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	-
