NJ88C22AADG datasheet, PDF - EEWORLD Datasheet

NJ88C22AADG: DescriptionPLL Frequency Synthesizer, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size203KB，5 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric View All

NJ88C22AADG Overview

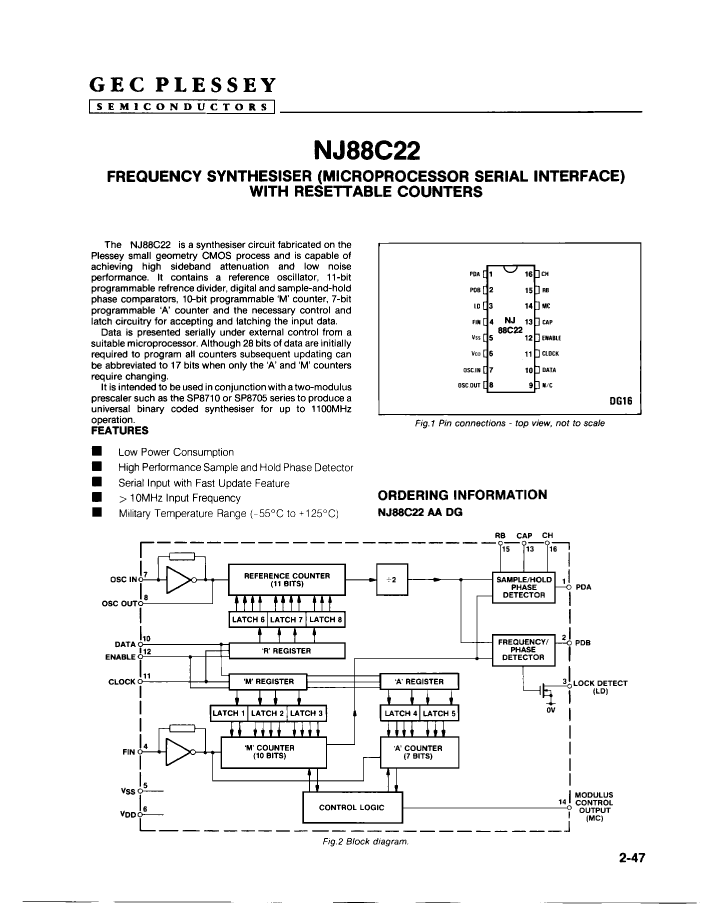

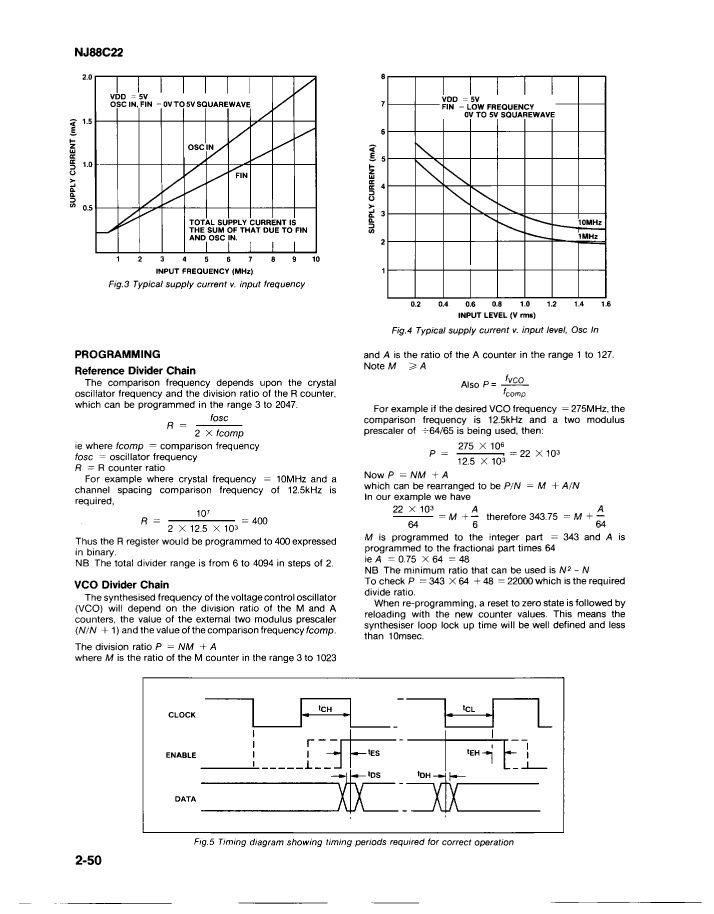

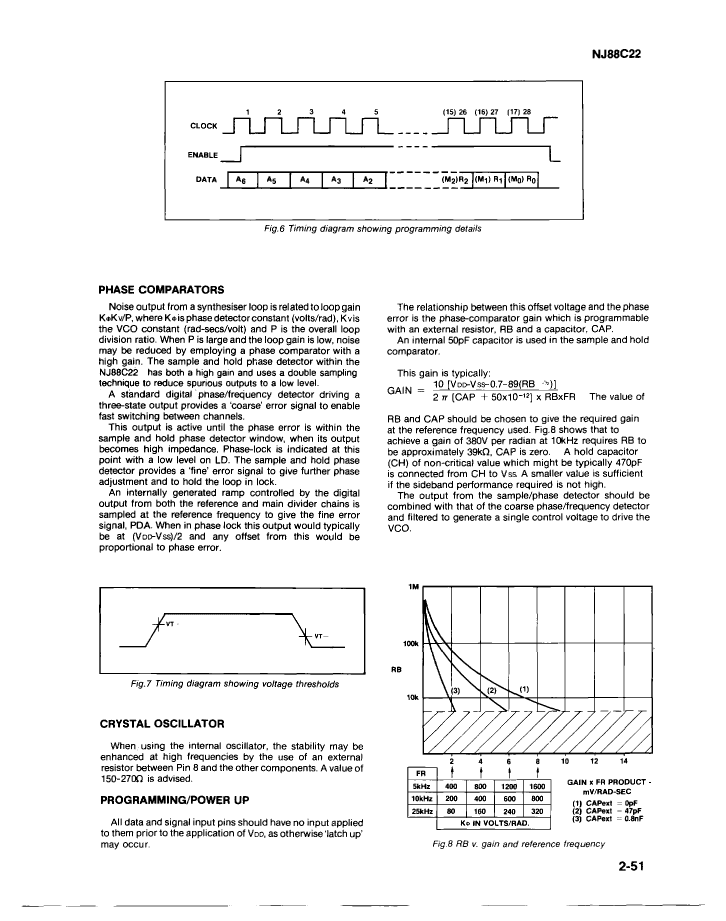

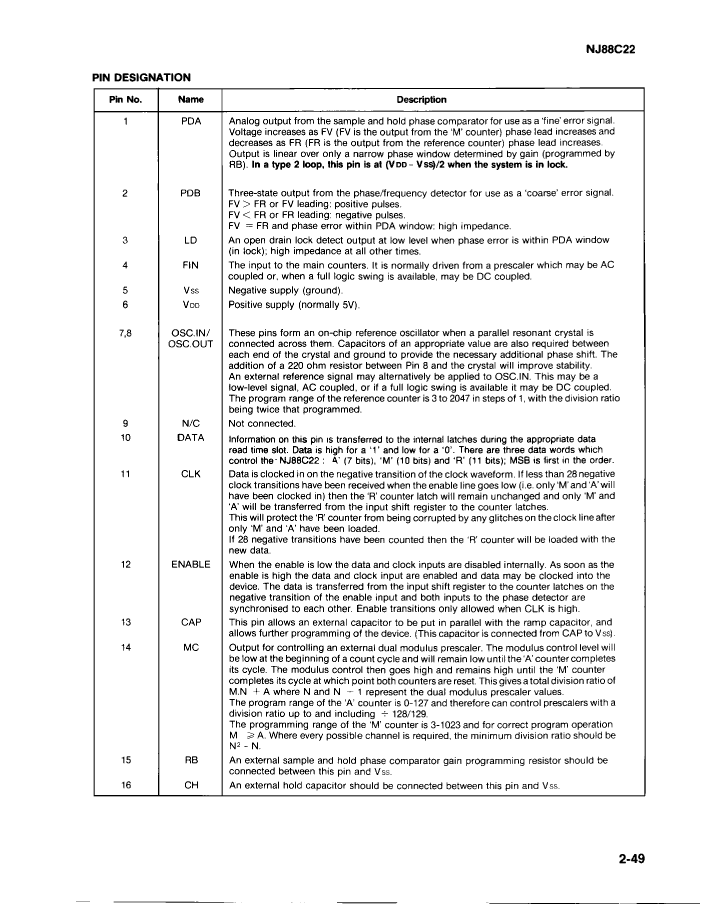

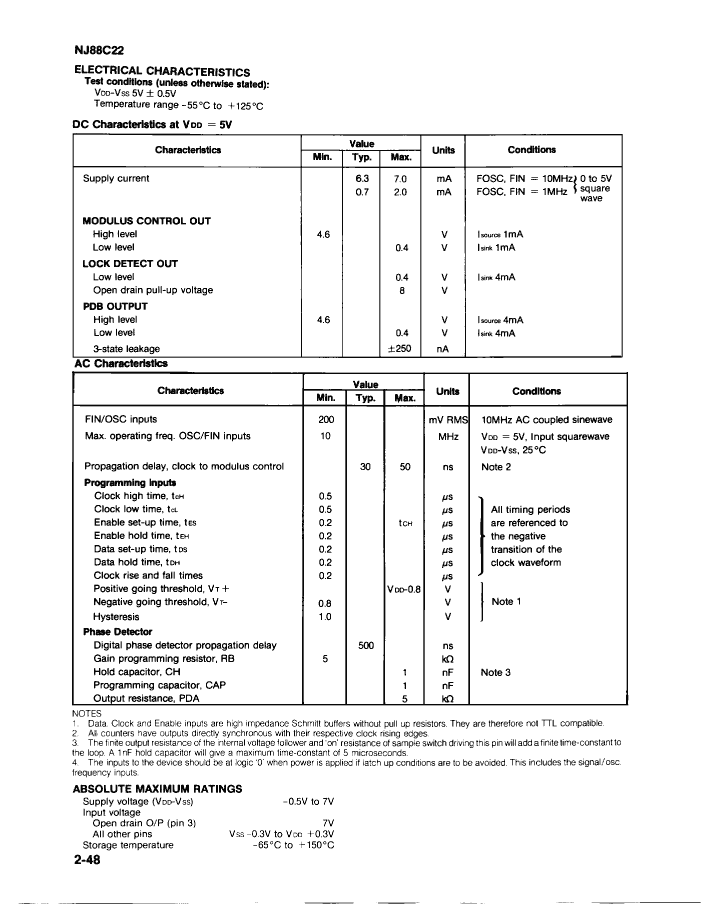

PLL Frequency Synthesizer, CMOS, CDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Other features	7-BIT AUXILIARY INPUT COUNTER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	7 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
