BZG05XX Series
BZG05XX Series
SURFACE MOUNT ZENER DIODE
Features
Glass passivated chip
Built-in strain relief
Low inductance
High peak reverse power dissipation
Low reverse leakage
For use in stabilizing and clipping with high power rating
RoHS compliant
SMA
Circuit Diagram
Mechanical Data
Case: DO-214AC SMA Molded plastic
Lead: Solderable per MIL-STD-750, method 2026
Epoxy: UL 94V-0 rate flame retardant
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 0.06 grams
Maximum Ratings
@T
A
=25°C unless otherwise specified
Parameter
Power Dissipation
Non repetitive peak surge
power dissipation
Typical Thermal resistance
junction to Lead
Maximum forward voltage
Junction temperature rang
Storage temperature range
Test Condition
R
THJA
＜30K/W,
T
AMB
=60℃
R
THJA
＜100K/W,
T
AMB
=25℃
TP=100uS sq.pulse,TJ=25℃ prior to surge
-
I
F
=200m
Symbol
P
TOT
P
TOT
P
ZSM
R
θJL
V
F
TJ
TSTG
Value
3000
1250
60
30
1.2
-55 to +150
-55 to +150
Units
mW
mW
W
K/W
V
℃
℃
Notes: 1. T
L
=Lead temperature at 3/8'' (9.5mm)from body.
Ordering Information
Device
BZG05Cxx series
BZG05Cxx series TR
Marking Diagram
5000pcs / reel
5000pcs / reel
Package
SMA
SMA
Shipping
Where XXXXX is YYWWL
3V3
YY
WW
L
= Marking Code
= Year
= Week
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
Technical Data
Data Sheet N2145, Rev. -
BZG05XX Series

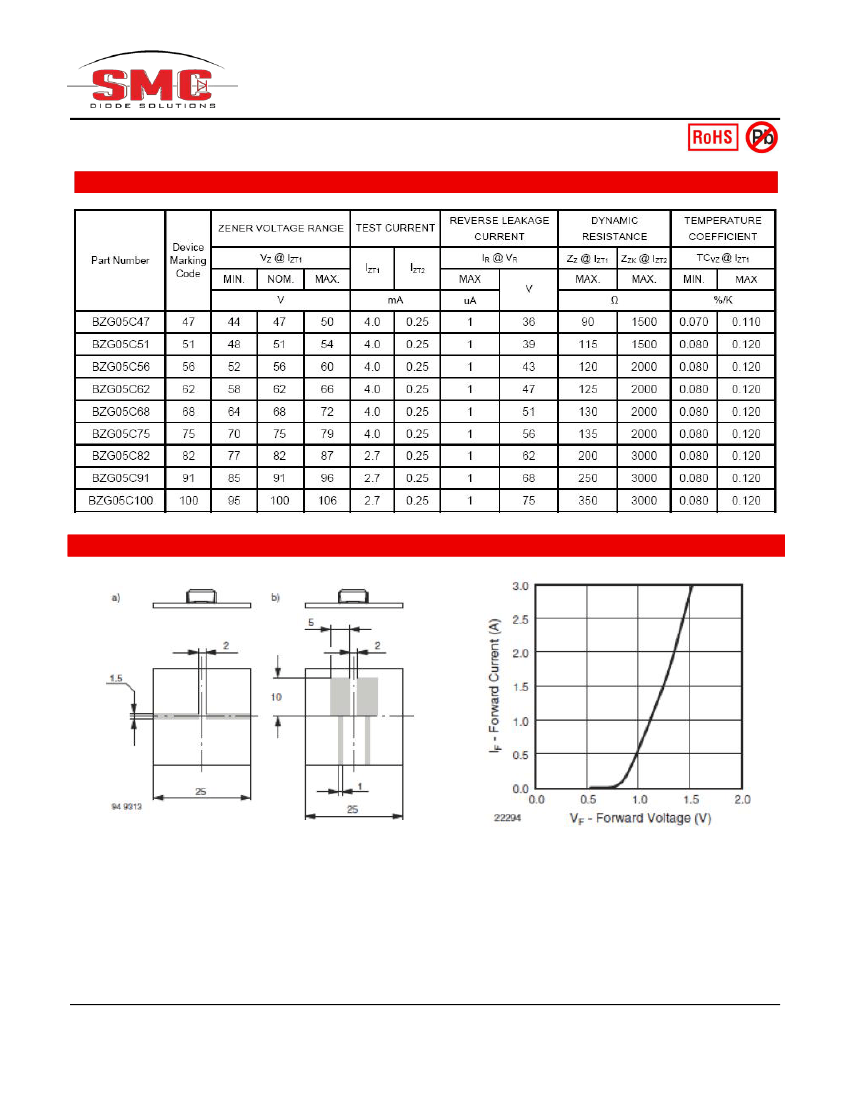

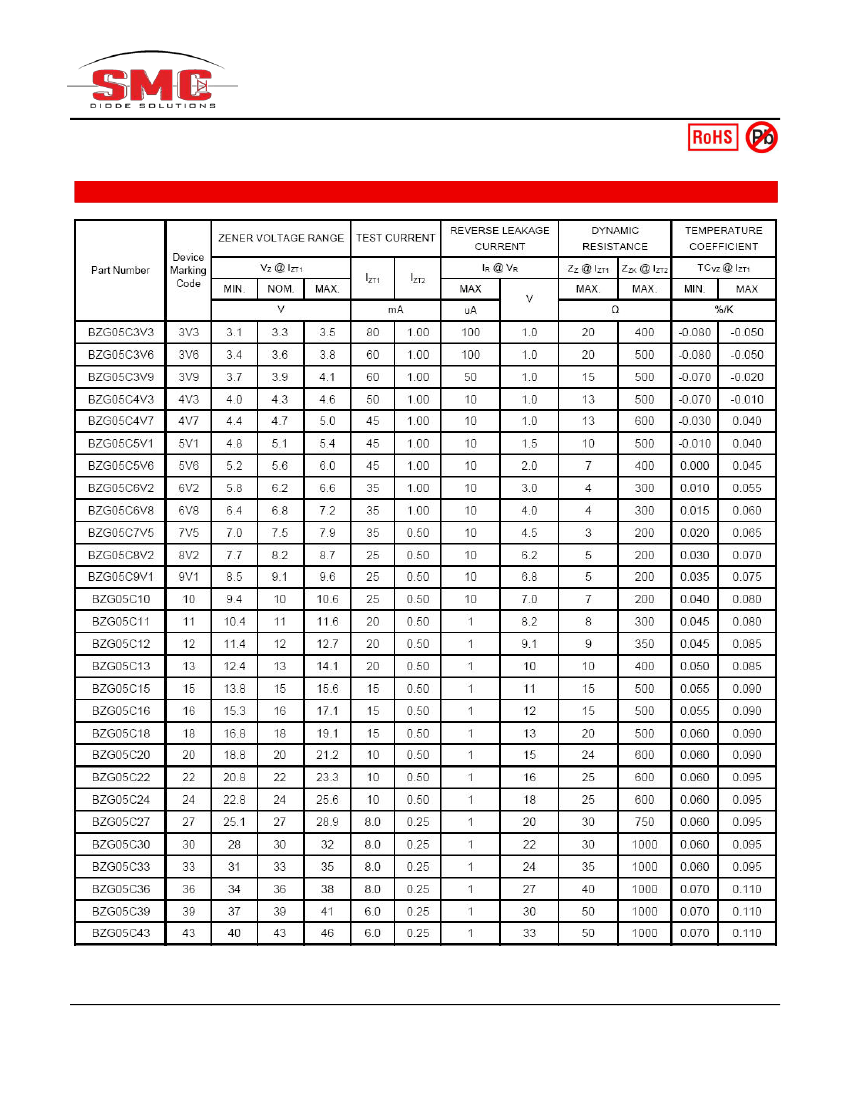

Ratings and Characteristics Curves
(T
A
=25℃ unless otherwise noted)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com

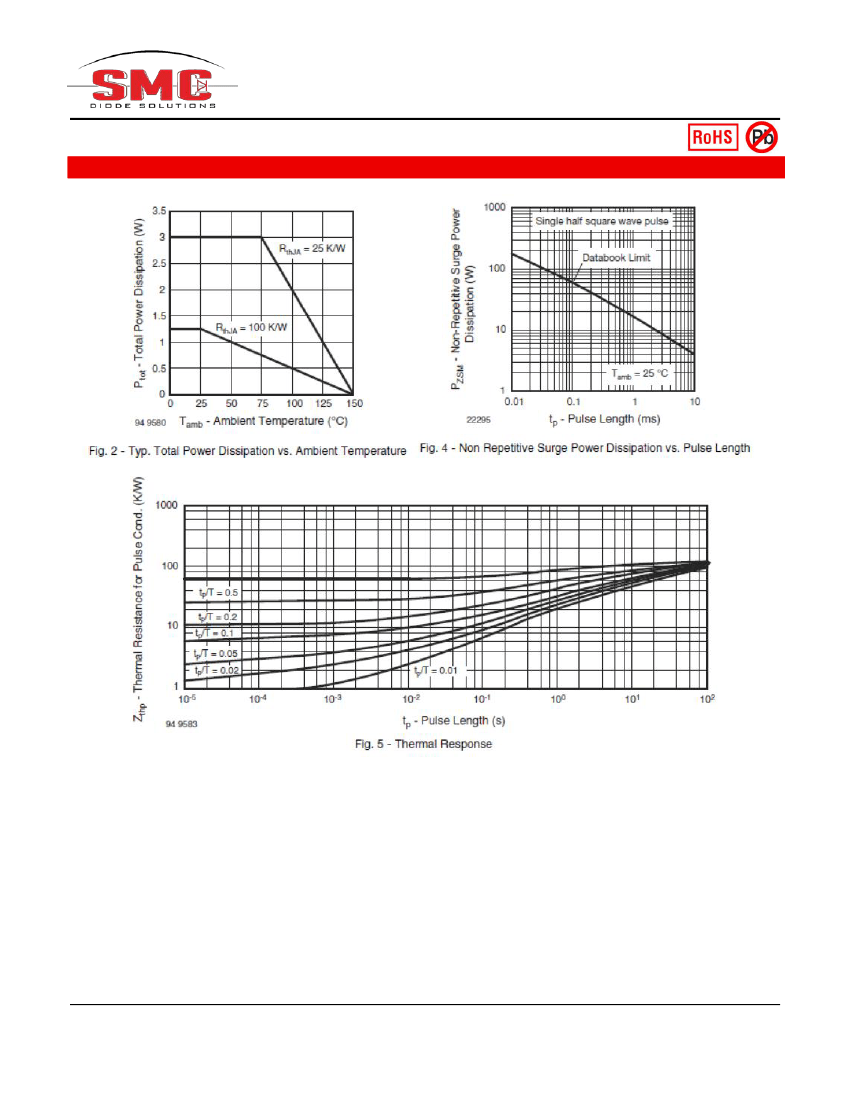

Technical Data
Data Sheet N2145, Rev. -
BZG05XX Series
Ratings and Characteristics Curve
s(T
A
=25℃ unless otherwise noted)
Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
Technical Data
Data Sheet N2145, Rev. -
BZG05XX Series
Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
Technical Data
Data Sheet N2145, Rev. -
BZG05XX Series
Mechanical Dimensions SMA
SYMBOL
Millimeters
Min.
2.18
3.90
1.05
0.145
4.70
1.70
0.05
0.76
Max.
2.84
4.75
1.80
0.51
5.66
2.95
0.203
1.52
Inches
Min.
0.086
0.154
0.041
0.006
0.185
0.067
0.002
0.030
Max.
0.112
0.187
0.071
0.020
0.223
0.116
0.008
0.600
A
B
C
D
E
F
G
H
Carrier Tape Specification SMA
SYMBOL
A
B
C
d
E
F
P
P0
P1
T
W
Min.
2.97
5.70
2.32
1.40
1.40
5.60
3.90
3.90
1.90
0.25
Millimeters
Max.
3.17
5.90
2.52
1.60
1.60
5.70
4.10
4.10
2.10
0.35
11.80
12.20
