AT29C010A-90LI: DescriptionFlash, 128KX8, 90ns, CQCC32; Categorystorage storage; File Size887KB，15 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT29C010A-90LI Overview

Flash, 128KX8, 90ns, CQCC32

AT29C010A-90LI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
package instruction	QCCN, LCC32,.45X.55
Reach Compliance Code	unknown
Maximum access time	90 ns
startup block	BOTTOM/TOP
command user interface	NO
Data polling	YES
JESD-30 code	R-XQCC-N32
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	FLASH
memory width	8
Number of departments/size	1,1,1
Number of terminals	32
word count	131072 words
character code	128000
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Department size	8K,112K,8K
Maximum standby current	0.0003 A
Maximum slew rate	0.05 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
switch bit	YES
type	NOR TYPE

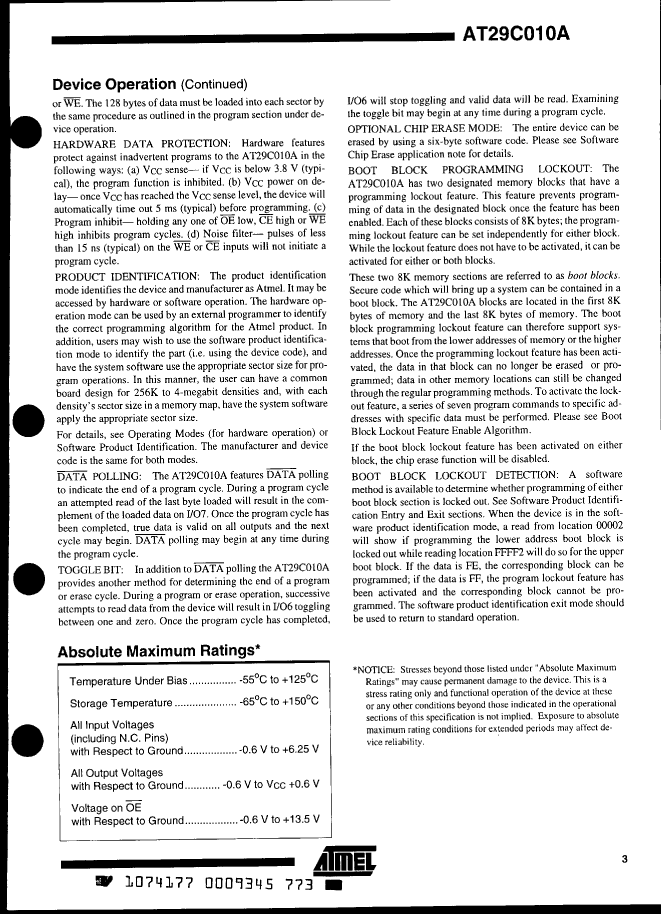

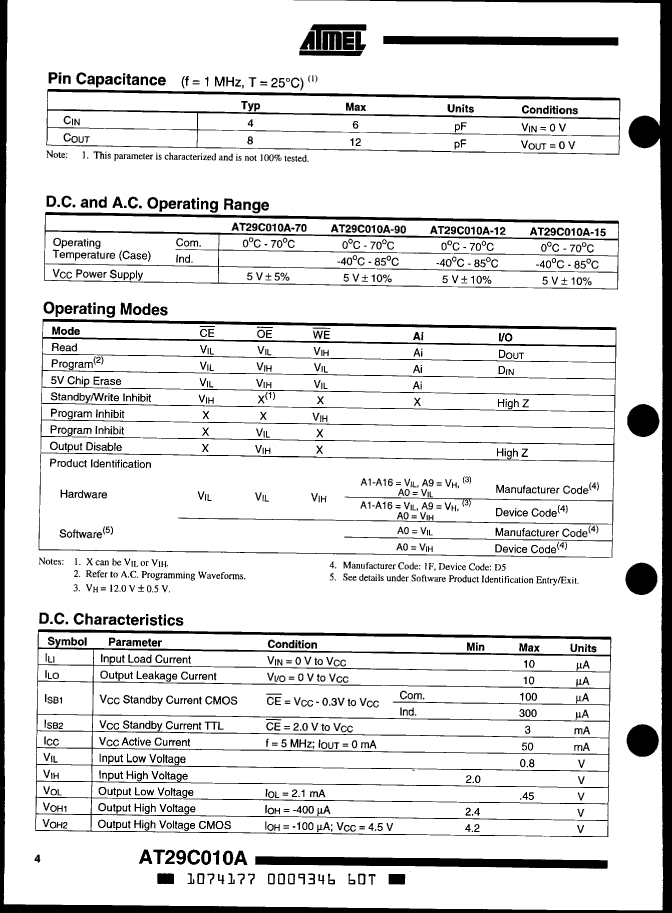

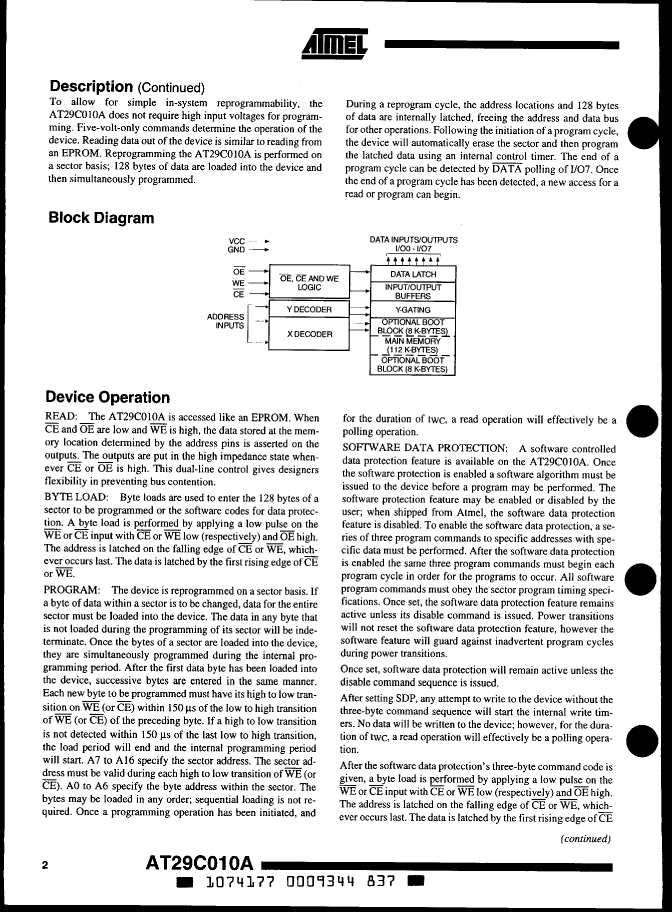

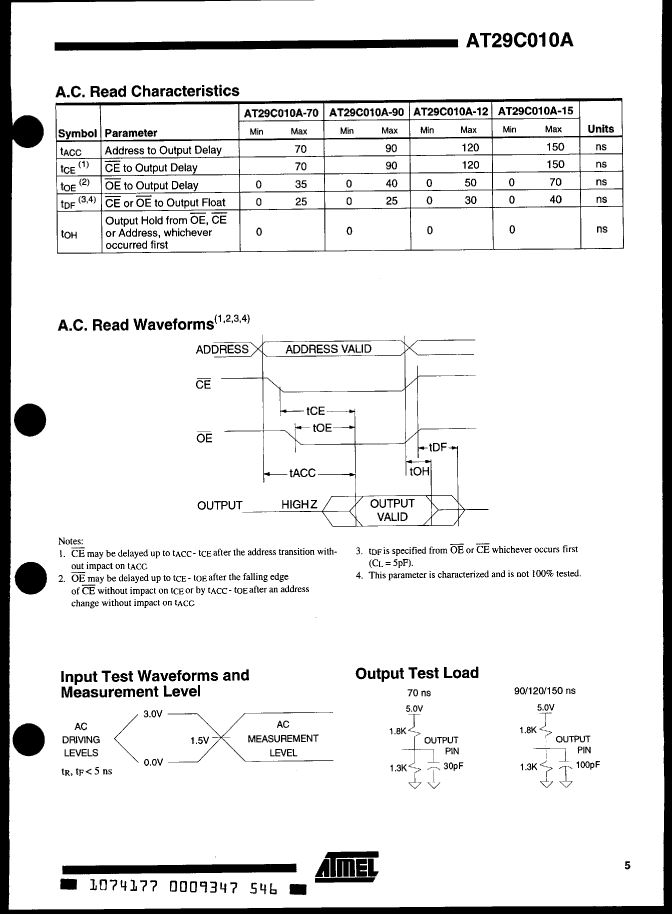

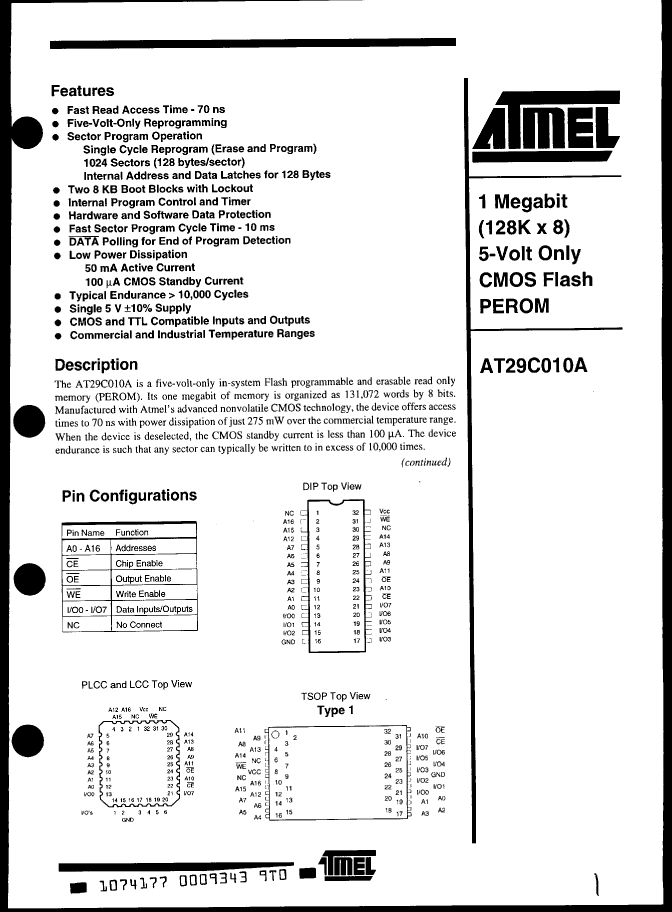

Preview

Download Datasheet

View All

AT29C010A-90LI Related Products

	AT29C010A-90LI	AT29C010A-15LI	AT29C010A-15DC	AT29C010A-15DI	AT29C010A-90DI	AT29C010A-90DC	AT29C010A-90LC	AT29C010A-12DI
Description	Flash, 128KX8, 90ns, CQCC32	Flash, 128KX8, 150ns, CQCC32	Flash, 128KX8, 150ns, CDIP32, DIP-32	Flash, 128KX8, 150ns, CDIP32, DIP-32	Flash, 128KX8, 90ns, CDIP32, DIP-32	Flash, 128KX8, 90ns, CDIP32, DIP-32	Flash, 128KX8, 90ns, CQCC32	Flash, 128KX8, 120ns, CDIP32, DIP-32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
package instruction	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	QCCN, LCC32,.45X.55	DIP, DIP32,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	90 ns	150 ns	150 ns	150 ns	90 ns	90 ns	90 ns	120 ns
startup block	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP
command user interface	NO	NO	NO	NO	NO	NO	NO	NO
Data polling	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-XQCC-N32	R-XQCC-N32	R-CDIP-T32	R-CDIP-T32	R-CDIP-T32	R-CDIP-T32	R-XQCC-N32	R-CDIP-T32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8
Number of departments/size	1,1,1	1,1,1	1,1,1	1,1,1	1,1,1	1,1,1	1,1,1	1,1,1
Number of terminals	32	32	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-	-	-40 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Package body material	CERAMIC	CERAMIC	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	DIP	DIP	DIP	DIP	QCCN	DIP
Encapsulate equivalent code	LCC32,.45X.55	LCC32,.45X.55	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	LCC32,.45X.55	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Department size	8K,112K,8K	8K,112K,8K	8K,112K,8K	8K,112K,8K	8K,112K,8K	8K,112K,8K	8K,112K,8K	8K,112K,8K
Maximum standby current	0.0003 A	0.0003 A	0.0001 A	0.0003 A	0.0003 A	0.0001 A	0.0001 A	0.0003 A
Maximum slew rate	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL
switch bit	YES	YES	YES	YES	YES	YES	YES	YES
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
length	-	-	42.2 mm	42.2 mm	42.2 mm	42.2 mm	-	42.2 mm
Number of functions	-	-	1	1	1	1	-	1
Operating mode	-	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS
Programming voltage	-	-	5 V	5 V	5 V	5 V	-	5 V
Maximum seat height	-	-	5.72 mm	5.72 mm	5.72 mm	5.72 mm	-	5.72 mm
Maximum supply voltage (Vsup)	-	-	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	-	-	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
width	-	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm	-	15.24 mm
Maximum write cycle time (tWC)	-	-	10 ms	10 ms	10 ms	10 ms	-	10 ms
