Cable - CAB-DSUB37M/OE/22/TP/S/10M - 2909726
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

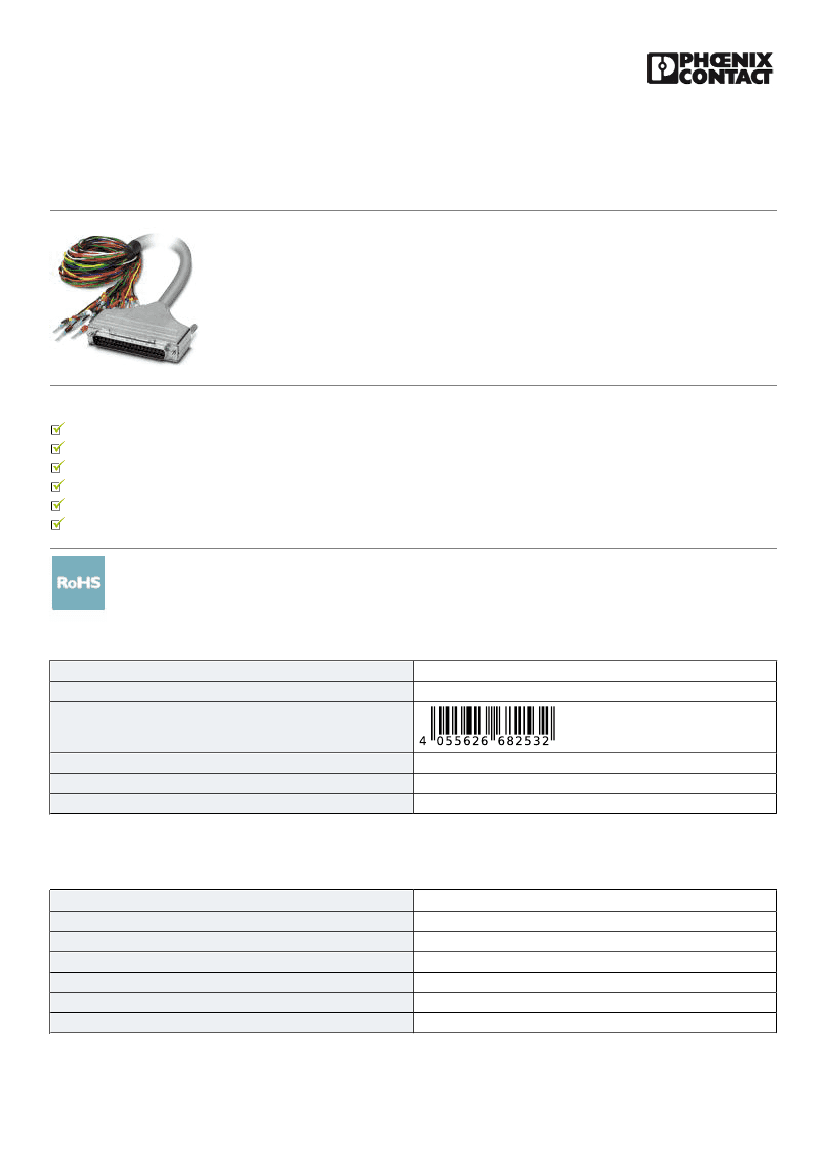

Assembled shielded round cable; connection 1: Twisted pair (37-position) (The wires are marked and fitted
with ferrules.); connection 2: D-SUB pin strip (1x 37-position); cable length: 10 m
Your advantages
Individual wire marking: 1, 2, 3, 4, etc.
Twisted-pair wires fitted with ferrules
Screw connection: 2 UNC 4-40 screws
Open end at one end
D-SUB socket or pin strip at one end
1:1 connection
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Country of origin
4055626682532
85444290
United States
1 pc
10 pc
Technical data
General
Nominal voltage U
N
Max. current carrying capacity per path
Max. conductor resistance
Length of cable
Single wire, cross section
Single wire, cross section [AWG]
125 V AC
125 V DC
1A
≤ 0.06 Ω/m
10 m
0.36 mm²
22
01/22/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/2909726
Cable - CAB-DSUB37M/OE/22/TP/S/10M - 2909726
Technical data
General
External diameter
Shielding
12.3 mm
yes
Overall foil shield
Environmental conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
Connector 1
Connection name
Connection method
Number of connections
Number of positions
Field level
D-SUB pin strip
1
37
Connector 2
Connection name
Connection method
Number of positions
Note
Controller level
Twisted pair
37
The wires are marked and fitted with ferrules.
Supported controller
Color code
Connector 1 = connector 2 (optional) = wire color
D-SUB37 (1) = black
D-SUB37 (2) = red
D-SUB37 (3) = black
D-SUB37 (4) = white
D-SUB37 (5) = black
D-SUB37 (6) = green
D-SUB37 (7) = black
D-SUB37 (8) = blue
D-SUB37 (9) = black
D-SUB37 (10) = yellow
D-SUB37 (11) = black
D-SUB37 (12) = brown
D-SUB37 (13) = black
D-SUB37 (14) = orange
D-SUB37 (15) = red
D-SUB37 (16) = white
D-SUB37 (17) = red
D-SUB37 (18) = green
D-SUB37 (19) = red
D-SUB37 (20) = blue
01/22/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/2909726
Cable - CAB-DSUB37M/OE/22/TP/S/10M - 2909726
Technical data
Color code
D-SUB37 (21) = red
D-SUB37 (22) = yellow
D-SUB37 (23) = red
D-SUB37 (24) = brown
D-SUB37 (25) = red
D-SUB37 (26) = orange
D-SUB37 (27) = green
D-SUB37 (28) = white
D-SUB37 (29) = green
D-SUB37 (30) = blue
D-SUB37 (31) = green
D-SUB37 (32) = yellow
D-SUB37 (33) = green
D-SUB37 (34) = brown
D-SUB37 (35) = green
D-SUB37 (36) = orange
D-SUB37 (37) = white
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27242200
27249200
27249205
27249205
27242220
ETIM
ETIM 5.0
ETIM 6.0
EC000237
EC000237
Accessories
Accessories
Marker carrier cable
Cable marker carrier - KME - 0807083
Cable marker carrier, white, unlabeled, mounting type: Assembly with cable binders, cable diameter: > 5 mm,
lettering field size: 20 mm x 8 mm
01/22/2019 Page 3 / 4
https://www.phoenixcontact.com/in/products/2909726
Cable - CAB-DSUB37M/OE/22/TP/S/10M - 2909726
Accessories
