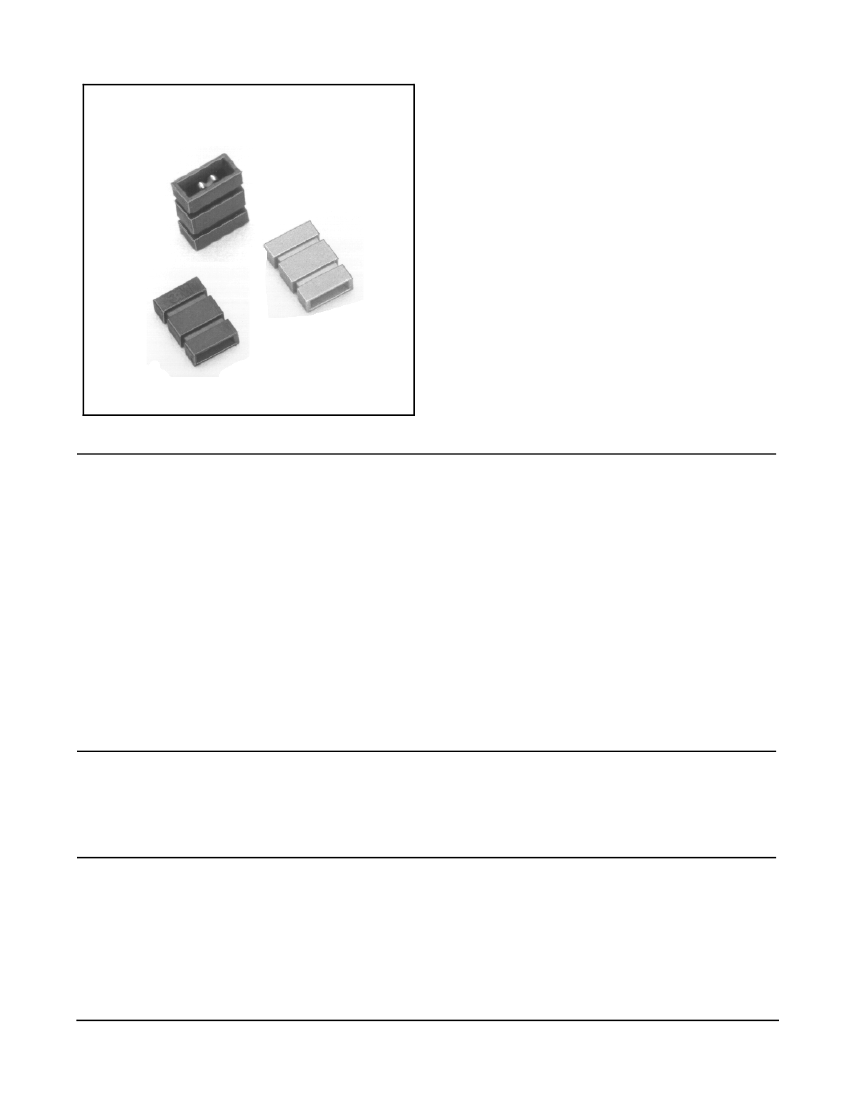

3M
™
Pak 100 Shunt
.100″ Midgie
•
•
•
•
•
•
929 Series
Unique C-Spring contact insures balanced forces
Compatible with .025″ pins
10 and 30 micro inch gold plating options
Stackable end-to-end and side-to-side
Color coded for easy identification
RoHS* compliant
Date Modified: February 7, 2005
TS-0200-10
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating:
Underplating and U-Slot:
Wiping Area:
Black:
Blue:
Gray
Glass Filled Polyester (PBT)
UL 94V-0
Black, Blue and Gray
Copper Alloy (C688)
50
µ″
[ 1.27
µm
] Nickel - QQ-N-290, Class 2
Unplated
10
µ″
[ 0.25
µm
] Gold - MIL-G-45204, Type II, Grade C
30
µ″
[ 0.76
µm
] Gold - MIL-G-45204, Type II, Grade C
Marking:
3M Logo
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 VDC
Withstanding Voltage:
1500 Vrms at Sea Level
Environmental
Temperature Rating:
-55°C to +100°C
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
*RoHS = Directive 2002/95/EC
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 100 Shunt
.100″ Midgie
929 Series
.100
[ 2.54 ]
.095
[ 2.41 ]
.298
[ 7.57 ]
.15 Ref
[ 3.8 ]
.195
[ 4.95 ]
Recommended that the header pins enter this end
of the connector housing. (See Note 1)
In c h
[m m ]
T o le ra n c e U n le s s N o te d
Notes:
1. Recommended installation is with the 3M logo on top. Reference the contact
design to help assure proper installation.
2. Recommended to be mated to .025″ [ 0.64 ] round or square header pins.
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Ordering Information
92995X-XX
Color/Plating Options:
0-00 = Black/Unplated
5-06 = 10µ
″
Blue/Gold
7-08 = 30µ
″
Gray/Gold
TS-0200-10
Sheet 2 of 2
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related
to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using
this product, you must evaluate it and determine if it is suitable
for your intended application. You assume all risks and liability
associated with such use. Any statements related to the product
which are not contained in 3M’s current publications, or any
contrary statements contained on your purchase order shall have
no force or effect unless expressly agreed upon, in writing, by an
authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture
for a period of 1 year from the time of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
If this product is defective within
the warranty period stated above, your exclusive remedy shall be,
at 3M’s option, to replace or repair the 3M product or refund the
purchase price of the 3M product.
Except where prohibited by
law, 3M will not be liable for any indirect, special, incidental or
consequential loss or damage arising from this 3M product,
regardless of the legal theory asserted.
3
Electronic Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
www.3M.com/esd
Minimum 10%
Post-consumer Fiber
Printed in USA.
© 3M 2005
