IRFY340(M)PBF: Description400V, 0.55ohm, N-CHANNEL, Si, POWER, MOSFET, TO-257AA; CategoryDiscrete semiconductor The transistor; File Size145KB，7 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric View All

IRFY340(M)PBF Overview

400V, 0.55ohm, N-CHANNEL, Si, POWER, MOSFET, TO-257AA

IRFY340(M)PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Reach Compliance Code	compliant
Configuration	SINGLE
Minimum drain-source breakdown voltage	400 V
Maximum drain-source on-resistance	0.55 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-257AA
JESD-30 code	S-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
Guideline	CECC
surface mount	NO
Terminal surface	NOT SPECIFIED
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
Transistor component materials	SILICON

Preview

Download Datasheet

View All

PD - 94189

POWER MOSFET

THRU-HOLE (TO-257AA)

Product Summary

Part Number

IRFY340

IRFY340M

IRFY340,IRFY340M

400V, N-CHANNEL

HEXFET

MOSFET TECHNOLOGY

DS(on)

0.55

Ω

0.55

Ω

8.7A

Eyelets

Glass

HEXFET

MOSFET technology is the key to International

Rectifier’s advanced line of power MOSFET transistors. The

efficient geometry design achieves very low on-state re-

sistance combined with high transconductance.

HEXFET

transistors also feature all of the well-established advan-

tages of MOSFETs, such as voltage control, very fast switch-

ing, ease of paralleling and electrical parameter temperature

stability. They are well-suited for applications such as switch-

ing power supplies, motor controls, inverters, choppers,

audio amplifiers, high energy pulse circuits, and virtually

any application where high reliability is required. The

HEXFET

transistor’s totally isolated package eliminates the

need for additional isolating material between the device

and the heatsink. This improves thermal efficiency and

reduces drain capacitance.

TO-257AA

Features:

Simple Drive Requirements

Ease of Paralleling

Hermetically Sealed

Electrically Isolated

Glass Eyelets

For Space Level Applications

Refer to Ceramic Version Part

Numbers IRFY340C, IRFY340CM

Absolute Maximum Ratings

Parameter

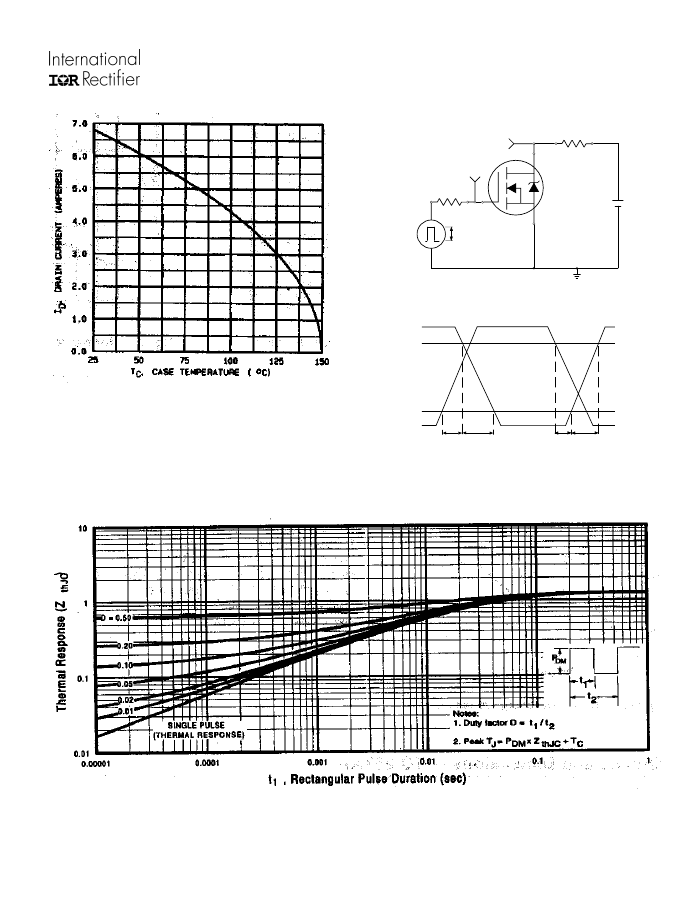

ID @ VGS = 10V, TC = 25°C

ID @ VGS = 10V, TC = 100°C

IDM

PD @ TC = 25°C

VGS

EAS

IAR

EAR

dv/dt

T STG

Continuous Drain Current

Pulsed Drain Current

➀

Max. Power Dissipation

Linear Derating Factor

Gate-to-Source Voltage

Single Pulse Avalanche Energy

➁

Avalanche Current

➀

Repetitive Avalanche Energy

➀

Peak Diode Recovery dv/dt

➂

Operating Junction

Storage Temperature Range

Lead Temperature

Weight

For footnotes refer to the last page

8.7

5.5

100

0.8

±20

520

8.7

4.0

-55 to 150

Units

W/°C

V/ns

300(0.063in./1.6mm from case for 10 sec)

3.3 (Typical)

www.irf.com

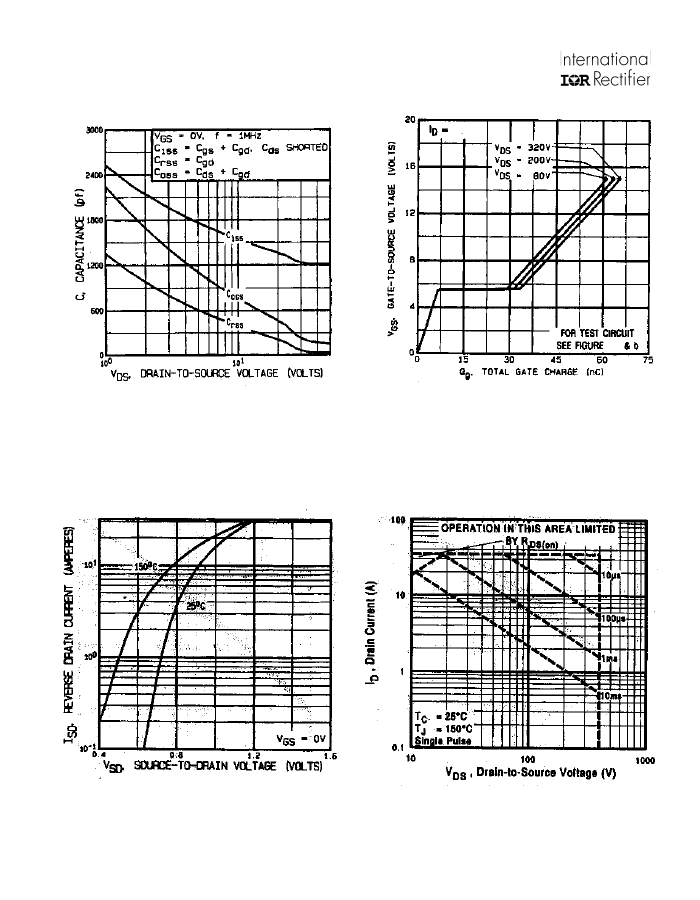

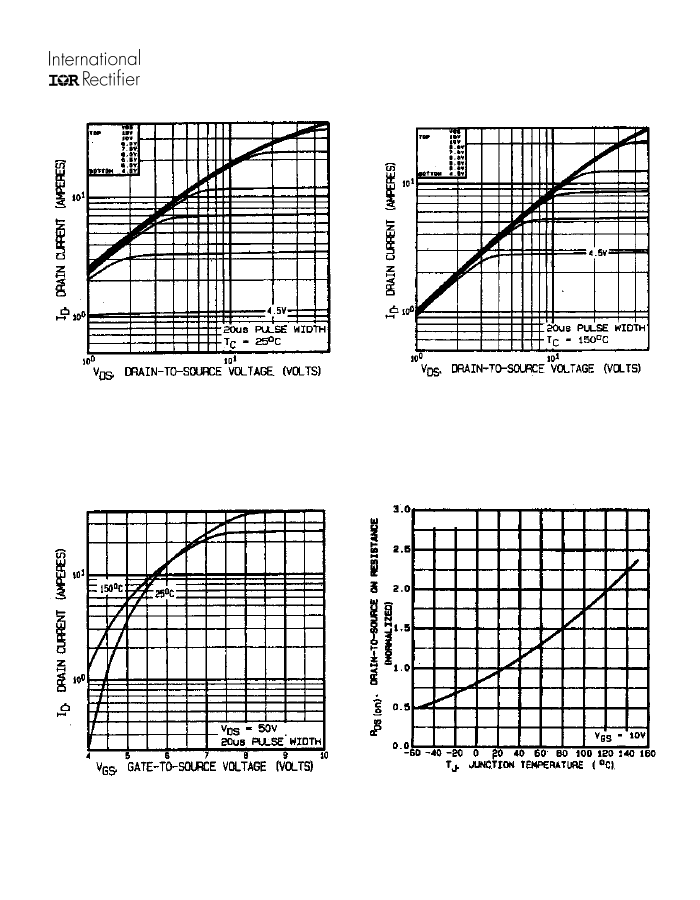

4/18/01
