SRN7382

Description
Wide Band Low Power Amplifier, 20MHz Min, 250MHz Max, SM-19, 4 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size205KB,4 Pages
ManufacturerAPI Technologies
Websitehttp://www.apitech.com/about-api
Download Datasheet Parametric Compare View All

SRN7382 Overview

Wide Band Low Power Amplifier, 20MHz Min, 250MHz Max, SM-19, 4 PIN

SRN7382 Parametric

Parameter NameAttribute value
MakerAPI Technologies
package instructionSM-19, 4 PIN
Reach Compliance Codecompliant
Other featuresI/P POWER-MAX (PEAK)=27DBM
structureCOMPONENT
Gain16 dB
Maximum input power (CW)10 dBm
Maximum operating frequency250 MHz
Minimum operating frequency20 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2
Cross Reference Guide
RN7382 / SRN7382*
* Part number for additional environmental screening.
Performance Data
Frequency
Gain
Noise Figure
P
1dB
3
rd
Order Intercept
2
nd
Order Intercept
VSWR
Reverse Isolation
Power Supply
Operating Temperature
20.0 - 250.0 MHz
18.0 dB Typical
16.0 dB Min
4.0 dB Typical
5.0 dB Max
17.5 dBm Typical
16.0 dBm Min
29.0 dBm Typical
31.0 dBm Typical
1.5/2.0 Input Typ/Max
1.2/2.0 Output Typ/Max
-32.0 dB Typical
-30.0 dB Min
15.0 Volts
45.0 mA
-55.0 - 85.0 °C

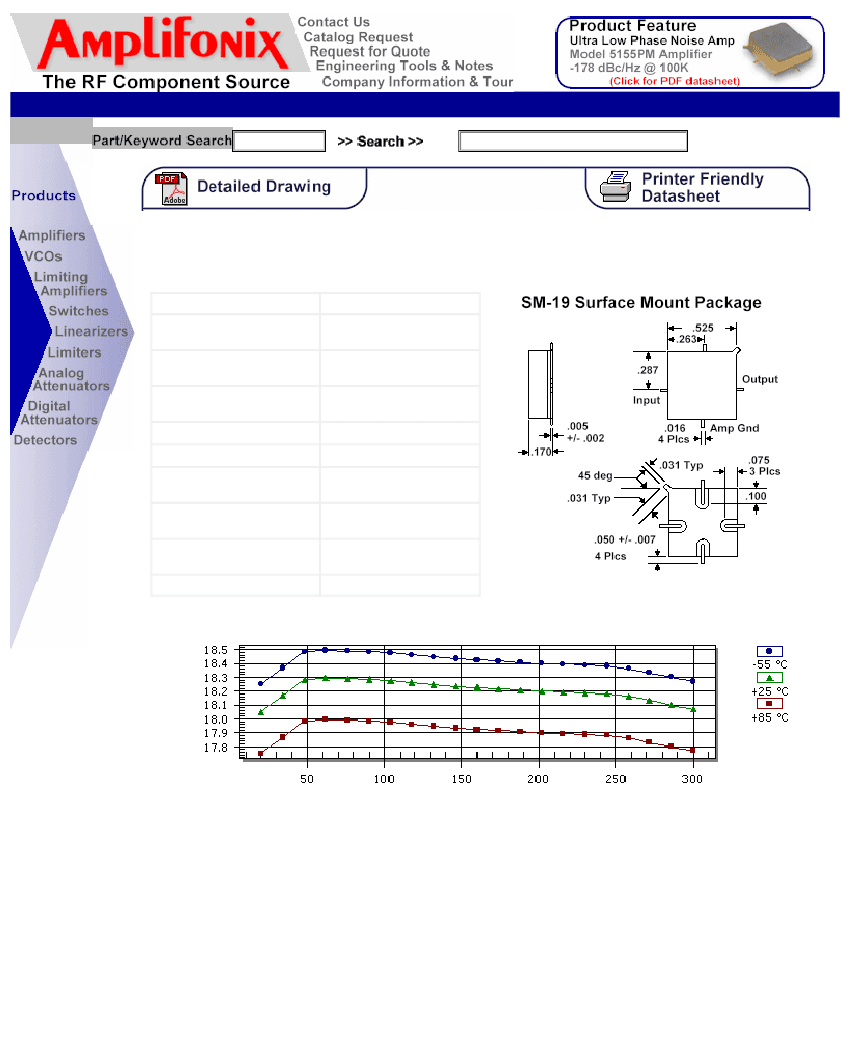

Package Drawing
Gain
dB
Frequency (MHz)
Noise Figure
