SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
SDC1207 SERIES
SDC1207-1R2YF
(a)
(b)
(c) (d)(e)
(a) Series code
(b) Dimension code
(c) Inductance code : 1R2 = 1.2uH
(d) Tolerance code : M = ±20%, Y = ±30%
(e) F : Lead Free
2. CONFIGURATION & DIMENSIONS :
Clip Termination
A
C
D
L
G
220
B
E
PCB Pattern
Unit:m/m
A
12.0±0.3
B
12.0±0.3
C
8.0 Max.
D
5.0±0.2
E
7.6±0.2
G
7.0 Ref.
H
5.4 Ref.
L
12.6 Ref.
3. SCHEMATIC :
4. GENERAL SPECIFICATION :
a) Temp. rise : 40°C Max.
b) Ambient temp. : 25°C
c) Rated current : Base on temp. rise & L/L0A = 30% Max.
d) Operating temp. : -25°C to +85°C
e) Storage temp. : -25°C to +85°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
12.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
5. ELECTRICAL CHARACTERISTICS :
Part No.
SDC1207-1R2YF
SDC1207-2R4YF
SDC1207-3R5YF
SDC1207-4R7YF
SDC1207-6R1YF
SDC1207-7R6YF
SDC1207-100MF
SDC1207-120MF
SDC1207-150MF
SDC1207-180MF
SDC1207-220MF
SDC1207-270MF
SDC1207-330MF
SDC1207-390MF
SDC1207-470MF
SDC1207-560MF
SDC1207-680MF
SDC1207-820MF
SDC1207-101MF
SDC1207-121MF
SDC1207-151MF
SDC1207-181MF
SDC1207-221MF
SDC1207-271MF
SDC1207-331MF
SDC1207-391MF
SDC1207-471MF
SDC1207-561MF
SDC1207-681MF
SDC1207-821MF
SDC1207-102MF
Inductance
( µH )
1.2 ±30%
2.4 ±30%
3.5 ±30%
4.7 ±30%
6.1 ±30%
7.6 ±30%
10 ±20%
12 ±20%
15 ±20%
18 ±20%
22 ±20%
27 ±20%
33 ±20%
39 ±20%
47 ±20%
56 ±20%
68 ±20%
82 ±20%
100 ±20%
120 ±20%
150 ±20%
180 ±20%
220 ±20%
270 ±20%
330 ±20%
390 ±20%
470 ±20%
560 ±20%
680 ±20%
820 ±20%
1000 ±20%
Test
Frequency
( Hz )
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
SDC1207 SERIES
DCR
( )
Max.
0.0070
0.0115
0.0135
0.0158
0.0176
0.0200
0.0216
0.0243
0.0270
0.0392
0.0432
0.0459
0.0648
0.0729
0.100
0.110
0.140
0.160
0.220
0.250
0.280
0.350
0.390
0.560
0.640
0.700
0.980
1.070
1.460
1.640
1.820
IDC
(A)
Max.
9.80
8.00
7.50
6.80
6.60
5.90
5.40
4.90
4.50
3.90
3.60
3.40
3.00
2.75
2.50
2.35
2.10
1.95
1.70
1.60
1.42
1.30
1.16
1.06
0.95
0.88
0.79
0.73
0.67
0.60
0.55
NOTE : Specifications subject to change without notice. Please check our website for latest information.
12.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS
6. RELIABILITY AND TEST CONDITIONS :
SDC1207 SERIES
ITEM
Electrical Characteristics Test
Inductance
DCR
Heat Rated Current (Irms)
PERFORMANCE
Refer to standard electrical characteristics list
TEST CONDITION
HP4284A, CH11025, CH3302, CH1320, CH1320S
LCR meter.
CH16502, Agilent33420A Micro-Ohm Meter.
Irms(A) will cause the coil temperature rise
approximately T=40°C without core loss
1. Applied the allowed DC current
2. Temperature measured by digital surface thermometer
Isat(A) will cause Lo to drop approximately 20% max.
Saturation Current (Isat)
Mechanical Performance Test
Solderability Test
More than 90% of the terminal electrode
should be covered with solder.
Preheating Dipping
230°C
Natural
cooling
Preheat : 150°C, 60sec.
Solder : Sn-Ag3.0-Cu0.5
Solder Temperature : 230±5°C
Flux for lead free : rosin
Dip Time : 4±1sec.
150°C
60
seconds
4±1
seconds
Solder Heat Resistance
1. Appearance : No significant abnormality
2. Inductance change : Within ±20%
Preheating
260°C
Dipping
Natural
cooling
Preheat : 150°C, 60sec.
Solder : Sn-Ag3.0-Cu0.5
Solder Temperature : 260±5°C
Flux for lead free : rosin
Dip Time : 10±0.5sec.
150°C
60
seconds
10±0.5
seconds
Reliability Test
High Temperature
Life Test
Low Temperature
Life Test
Thermal Shock
Temperature : 85±5°C
Time : 500±12 hours
Measure at room temperature after placing for 2 to 3 hrs.
1. Appearance : No damage
2. Inductance : Within ±20% of initial value.
No disconnection or short circuit.
Temperature : -25±5°C
Time : 500±12 hours
Measure at room temperature after placing for 2 to 3 hrs.
Conditions of 1 cycle.
Step
1
2
3
4
Temperature (°C)
-25±3
Room Temperature
+85±3
Room Temperature
Times (min.)
30±3
Within 3
30±3
Within 3
Total : 5 cycles
Measure at room temperature after placing for 2 to 3 hrs.
Humidity Resistance
1. Appearance : No damage
2. Inductance : Within ±20% of initial value.
No disconnection or short circuit.
Temperature : 40±5°C
Humidity : 90% to 95%
Applied Current : Rated Curent
Time : 500±12 hours
Measure at room temperature after placing for 2 to 3 hrs.
NOTE : Specifications subject to change without notice. Please check our website for latest information.
12.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS
7. SOLDERIND AND MOUNTING :
7-1. Recommended PC Board Pattern
12.6
7.0
SDC1207 SERIES
7-2. Soldering
Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused
by the difference in coefficients of expansion between solder, chip and substrate. Our terminations are suitable for all
wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot
air soldering tools.
7-2.1 Solder Re-flow :
Recommended temperature profiles for re-flow soldering in Figure 1.
7-2.2 Soldering Iron (Figure 2) :
Products attachment with soldering iron is discouraged due to the inherent process control limitations. In the event that
a soldering iron must be employed the following precautions are recommended.
Note :
a) Preheat circuit and products to 150°C.
b) 280°C tip temperature (max)
c) Never contact the ceramic with the iron tip
d) 1.0mm tip diameter (max)
e) Use a 20 watt soldering iron with tip diameter of 1.0mm
f) Limit soldering time to 3 secs.
Preheating
TEMPERATURE °C
250~260
230
180
150
60~120s
Soldering
5.4
TEMPERATURE °C
10s max.
Natural
cooling
Preheating
280
260
150
Soldering
Natural
cooling
30~60s
Over 1min.
Gradual
Cooling
Within 3secs.
Figure 1. Re-flow Soldering
Figure 2. Iron Soldering
NOTE : Specifications subject to change without notice. Please check our website for latest information.
12.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
SMD POWER INDUCTORS
8. PACKAGING INFORMATION :

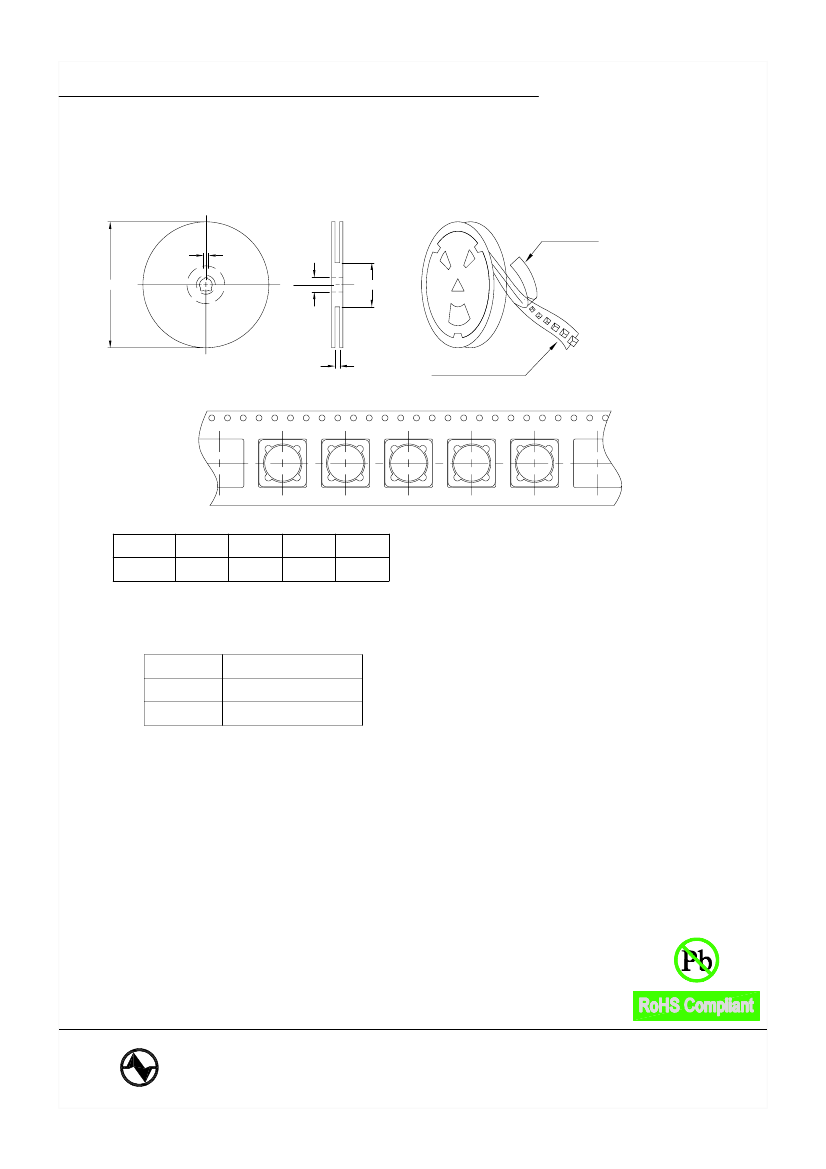

8-1. Tape and Reel Dimension
SDC1207 SERIES
COVER TAPE
2.0±0.5
D
B
ØC
A
EMBOSSED CARRIER
220
220
220
220
220
Type
13" x 24mm
A(mm)
24.0±0.1
B(mm)
100±1
C(mm)
13±0.5
D(mm)
330
8-3. Packaging Quantity
Size
Chip / Reel
Reel Style
SDC1207
200
13" x 24mm
NOTE : Specifications subject to change without notice. Please check our website for latest information.
12.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
