DATA SHEET
PHOTOCOUPLER
PS2532-1,-2,-4,PS2532L-1,-2,-4
HIGH COLLECTOR TO EMITTER VOLTATGE
HIGH ISOLATION VOLTAGE
MULTI PHOTOCOUPLER SIRIES
DESCRIPTION
The PS2532-1, -2, -4 and PS2532L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode
and an NPN silicon darlington connected phototransistor.
The PS2532-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2532L-1, -2, -4 are lead bending type
(Gull-wing) for surface mount.
−NEPOC
Series−
FEATURES
• High collector to emitter voltage (V
CEO
= 300 V)
• High Isolation voltage (BV = 5 000 Vr.m.s.)
• High current transfer ratio (CTR = 4 000 % TYP.)
• High-speed switching (t
r,
t
f
= 100
µ
s TYP.)
• Ordering number of tape product: PS2532L-1-E3, E4, F3, F4, PS2532L-2-E3, E4
• Safety standards
• UL approved: File No. E72422 (S)
• BSI approved: No. 8221/8222
• CSA approved: No. CA 101391
• NEMKO approved: No. P98101708
• SEMKO approved: No. 9824187/01-02
• DEMKO approved: No. 307863
• FIMKO approved: No. F1 11397
• VDE0884 approved (Option)
APPLICATIONS
• Telephone, Exchange equipment
• FAX/MODEM
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PN10232EJ01V0DS (1st edition)
(Previous No. P11434EJ6V0DS00)
Date Published February 2003 CP(K)
Printed in Japan
The mark
•
shows major revised points.
©
NEC Compound Semiconductor Devices 1990, 2003
PS2532-1,-2,-4,PS2532L-1,-2,-4

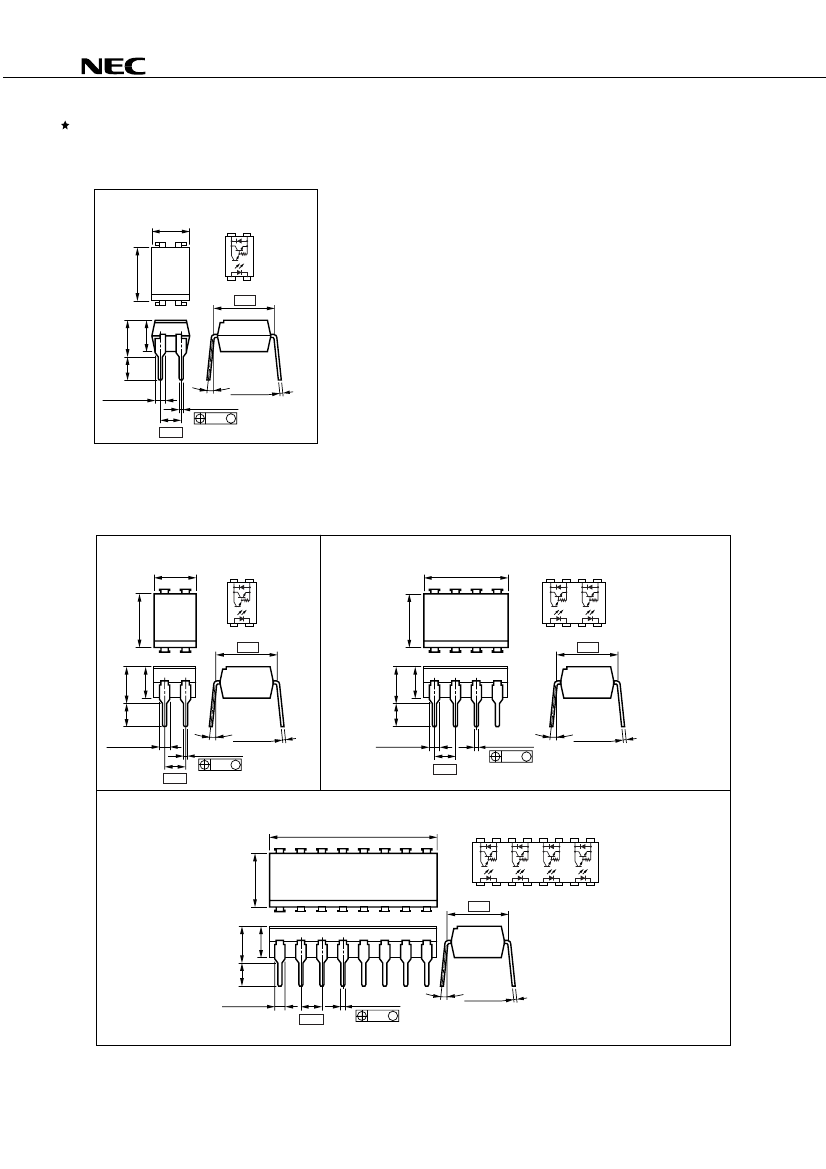

PACKAGE DIMENSIONS (Unit : mm)
DIP Type (New package)
PS2532-1
4.6±0.35
4
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
6.5±0.5
1
2
7.62
3.2±0.4 4.15±0.4
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
Caution New package 1-ch only
DIP Type
PS2532-1
4.6±0.5
4
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
PS2532-2
9.7±0.5
8
7
TOP VIEW
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
6.5±0.5
6.5±0.5
1
2
7.62
1
2
3 4
7.62
3.3±0.5 4.15±0.4
3.3±0.5 4.15±0.4
3.5±0.3
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
PS2532-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
1
7.62
2
3
3.3±0.5 4.15±0.4
3.5±0.3
4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
2
Data Sheet PN10232EJ01V0DS
PS2532-1,-2,-4,PS2532L-1,-2,-4

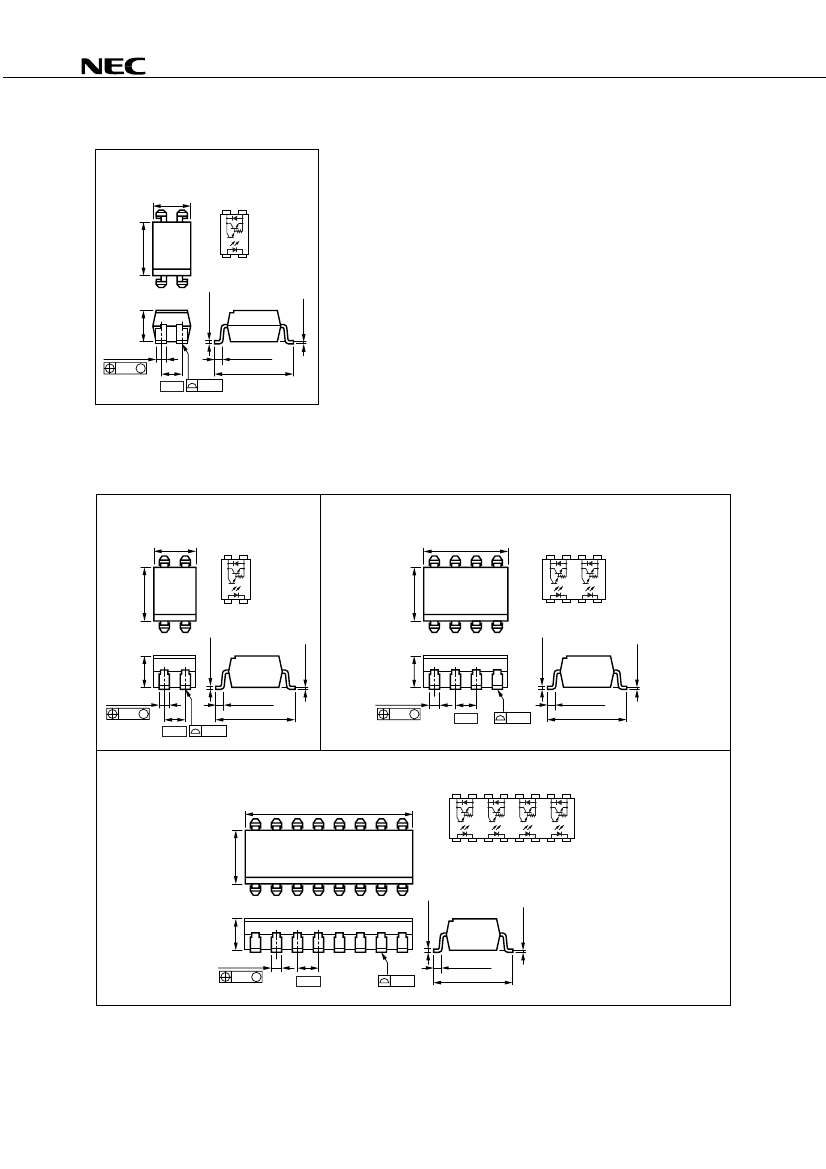

Lead Bending Type (New package)
PS2532L-1
4.6±0.35
TOP VIEW
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
0.25
+0.1
–0.05
6.5±0.5
2
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
Caution New package 1-ch only
Lead Bending Type
0.1
+0.1
–0.05
PS2532L-1
4.6±0.5
PS2532L-2
9.7±0.5
TOP VIEW
4
3
TOP VIEW
8
7
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
1
2
3
4
6.5±0.5
1
2
6.5±0.5
1. Anode
2. Cathode
3. Emitter
4. Collector
0.25
+0.1
–0.05
0.25
+0.1
–0.05
0.1
+0.1
–0.05
3.5±0.3
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
PS2532L-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
1
0.25
+0.1
–0.05
2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
0.1
+0.1
–0.05
0.1
+0.1
–0.05
Data Sheet PN10232EJ01V0DS
3
PS2532-1,-2,-4,PS2532L-1,-2,-4
ORDERING INFORMATION
Part Number
Package
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
Embossed Tape 1 000 pcs/reel
NEMKO, SEMKO,
DEMKO, FIMKO
Embossed Tape 2 000 pcs/reel
approved)
Application Part
*1
Number
PS2532-1
PS2532-1
PS2532L-1
PS2532L-1-E3
PS2532L-1-E4
PS2532L-1-F3
PS2532L-1-F4
PS2532-2
PS2532L-2
PS2532L-2-E3
PS2532L-2-E4
PS2532-4
PS2532L-4
PS2532-1-V
PS2532L-1-V
PS2532L-1-V-E3
PS2532L-1-V-E4
PS2532L-1-V-F3
PS2532L-1-V-F4
PS2532L-2-V
PS2532L-2-V
PS2532L-2-V-E3
PS2532L-2-V-E4
PS2532-4-V
PS2532L-4-V
4-pin DIP
Magazine case 100 pcs
8-pin DIP
Magazine case 45 pcs
PS2532-2
Embossed Tape 1 000 pcs/reel
16-pin DIP
Magazine case 20 pcs
PS2532-4
4-pin DIP
Magazine case 100 pcs
VDE0884 approved
products (Option)
PS2532-1
Embossed Tape 1 000 pcs/reel
Embossed Tape 2 000 pcs/reel
8-pin DIP
Magazine case 45 pcs
PS2532-2
Embossed Tape 1 000 pcs/reel
16-pin DIP
Magazine case 20 pcs
PS2532-4
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet PN10232EJ01V0DS
5
