HV0606X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> HV0606X

HV0606X: DescriptionEL Driver, 64-Segment, CMOS, 0.190 X 0.196 INCH, 0.020 INCH HEIGHT, DIE-80; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size217KB，6 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

HV0606X Overview

EL Driver, 64-Segment, CMOS, 0.190 X 0.196 INCH, 0.020 INCH HEIGHT, DIE-80

HV0606X Parametric

Parameter Name	Attribute value
Maker	Supertex
Parts packaging code	DIE
package instruction	DIE,
Contacts	80
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	EL DISPLAY DRIVER
JESD-30 code	R-XUUC-N80
Multiplex display function	NO
Number of functions	1
Number of segments	64
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum slew rate	25 mA
Maximum supply voltage	13.2 V
Minimum supply voltage	10.8 V
Nominal supply voltage	12 V
Supply voltage 1-max	60 V
Mains voltage 1-minute	-0.3 V
Supply voltage1-Nom	30 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	UPPER
minfmax	8 MHz

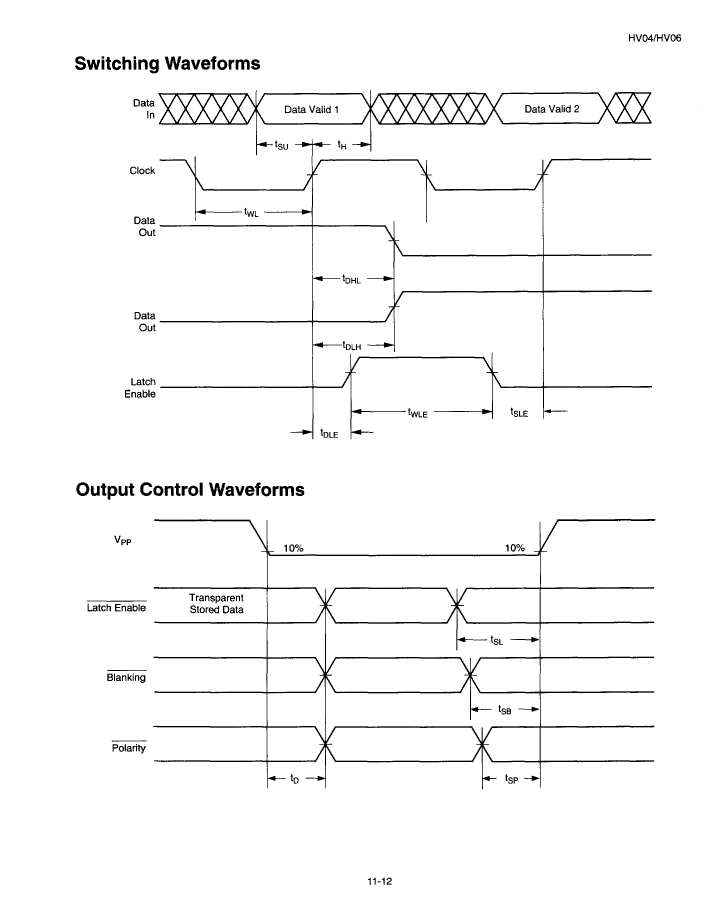

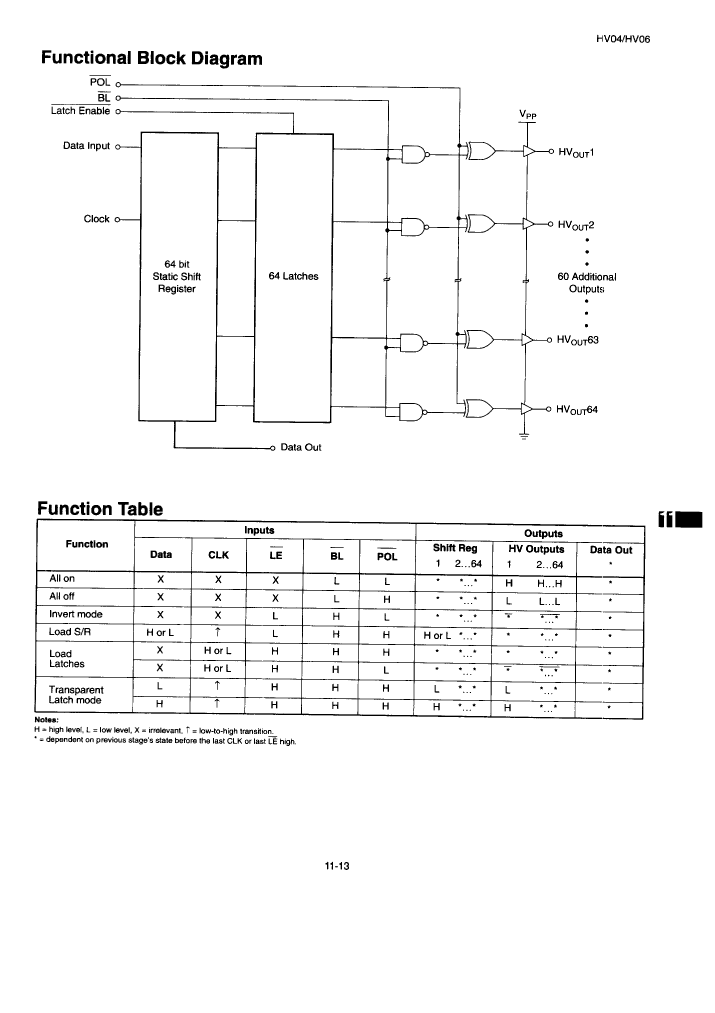

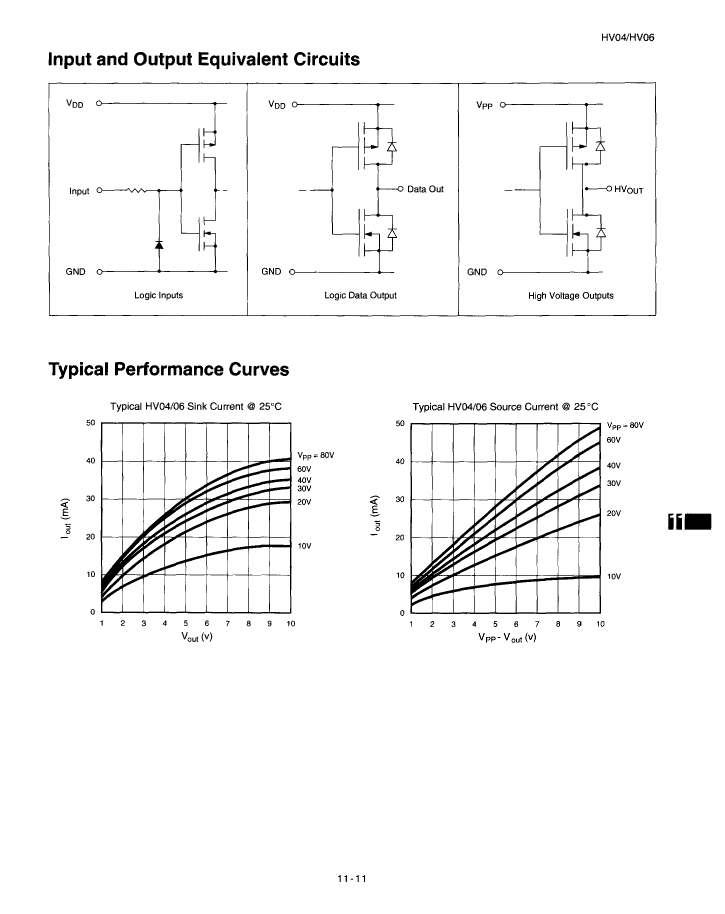

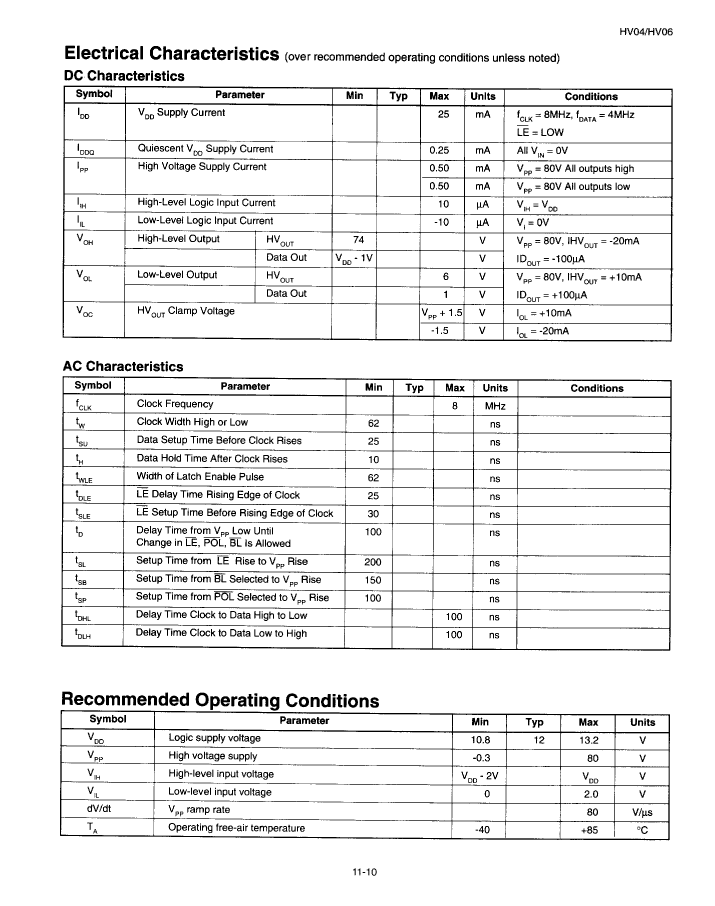

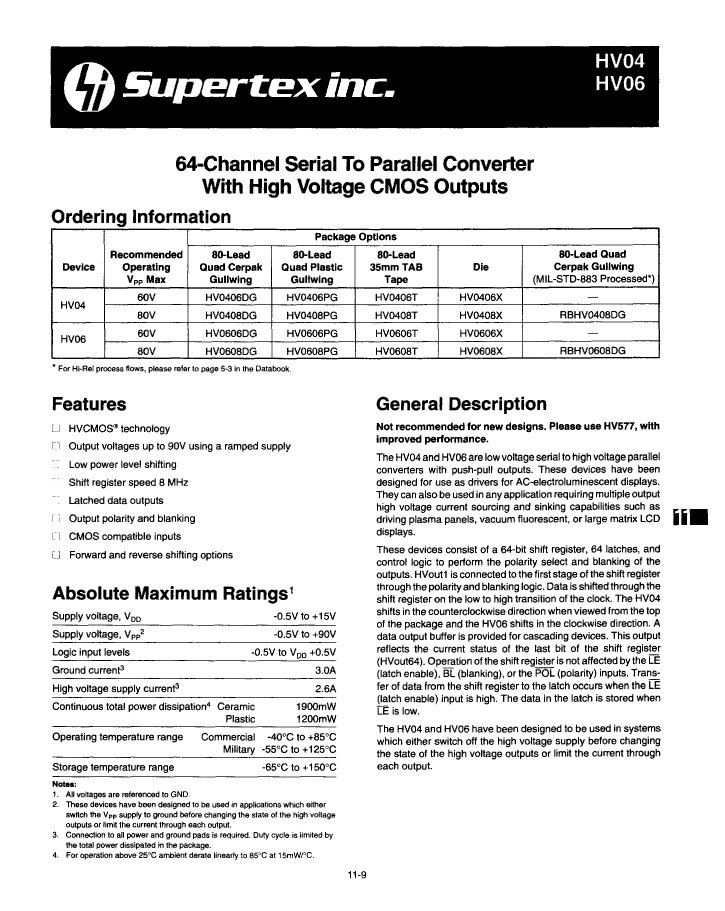

Preview

Download Datasheet

View All

HV0606X Related Products

	HV0606X	HV0406X	HV0608X	HV0408X
Description	EL Driver, 64-Segment, CMOS, 0.190 X 0.196 INCH, 0.020 INCH HEIGHT, DIE-80	EL Driver, 64-Segment, CMOS, 0.190 X 0.196 INCH, 0.020 INCH HEIGHT, DIE-80	EL Driver, 64-Segment, CMOS, 0.190 X 0.196 INCH, 0.020 INCH HEIGHT, DIE-80	EL Driver, 64-Segment, CMOS, 0.190 X 0.196 INCH, 0.020 INCH HEIGHT, DIE-80
Parts packaging code	DIE	DIE	DIE	DIE
package instruction	DIE,	DIE,	DIE,	DIE,
Contacts	80	80	80	80
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
data entry mode	SERIAL	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Input properties	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	EL DISPLAY DRIVER	EL DISPLAY DRIVER	EL DISPLAY DRIVER	EL DISPLAY DRIVER
JESD-30 code	R-XUUC-N80	R-XUUC-N80	R-XUUC-N80	R-XUUC-N80
Multiplex display function	NO	NO	NO	NO
Number of functions	1	1	1	1
Number of segments	64	64	64	64
Number of terminals	80	80	80	80
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	25 mA	25 mA	25 mA	25 mA
Maximum supply voltage	13.2 V	13.2 V	13.2 V	13.2 V
Minimum supply voltage	10.8 V	10.8 V	10.8 V	10.8 V
Nominal supply voltage	12 V	12 V	12 V	12 V
Supply voltage 1-max	60 V	60 V	80 V	80 V
Mains voltage 1-minute	-0.3 V	-0.3 V	-0.3 V	-0.3 V
Supply voltage1-Nom	30 V	30 V	60 V	60 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER
minfmax	8 MHz	8 MHz	8 MHz	8 MHz
Maker	Supertex	-	Supertex	Supertex
