K3023P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> K3023P

K3023P: DescriptionTriac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size327KB，12 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

K3023P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K3023P	-	-	View	Buy Now

K3023P Overview

Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6

K3023P Parametric

Parameter Name	Attribute value
Maker	TEMIC
package instruction	PLASTIC, DIP-6
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Configuration	SINGLE
Maximum forward current	0.08 A
Nominal input trigger current	2 mA
Maximum insulation voltage	3750 V
Number of components	1
Maximum on-state current	0.1 A
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	500 V

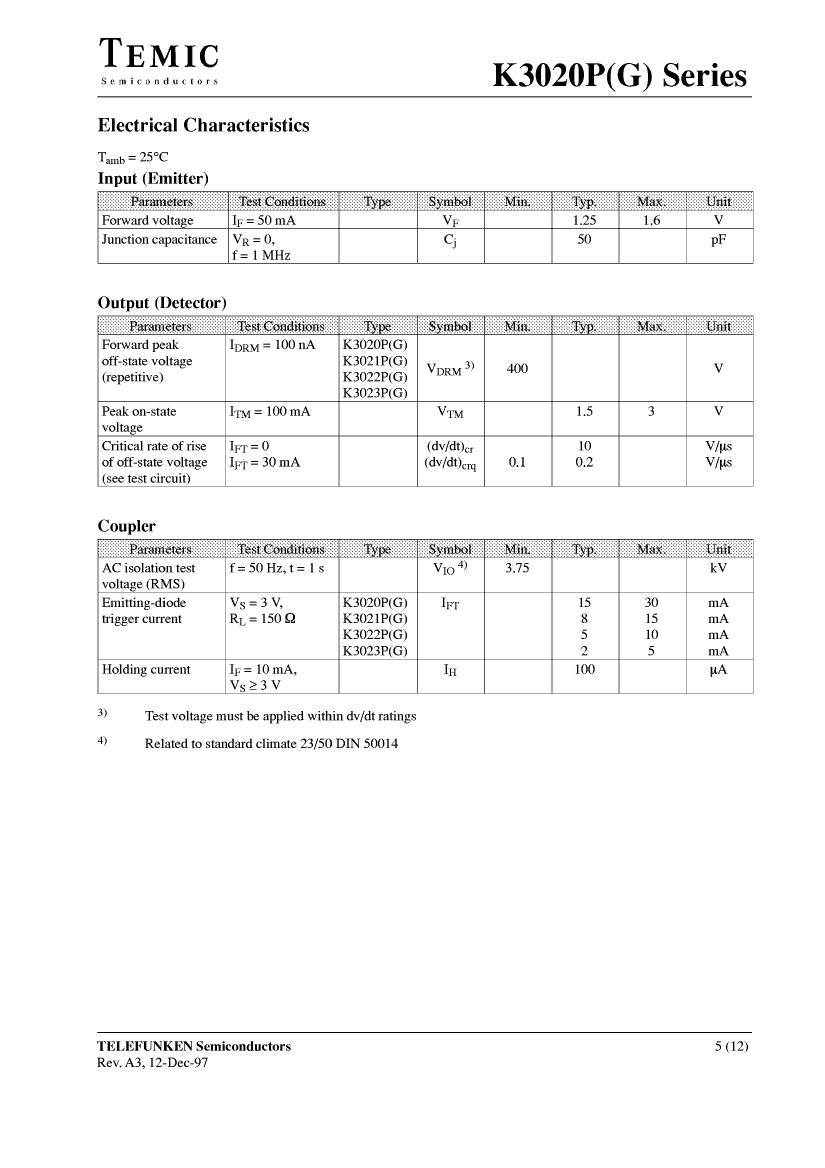

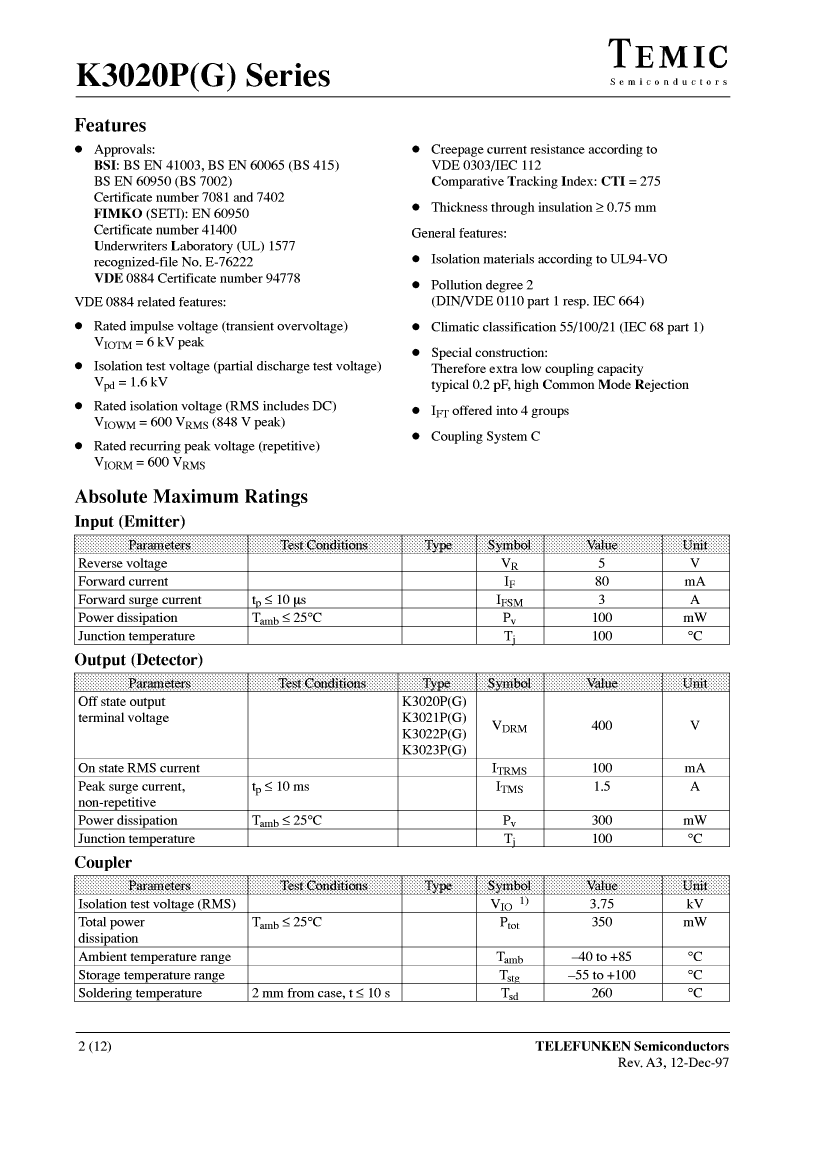

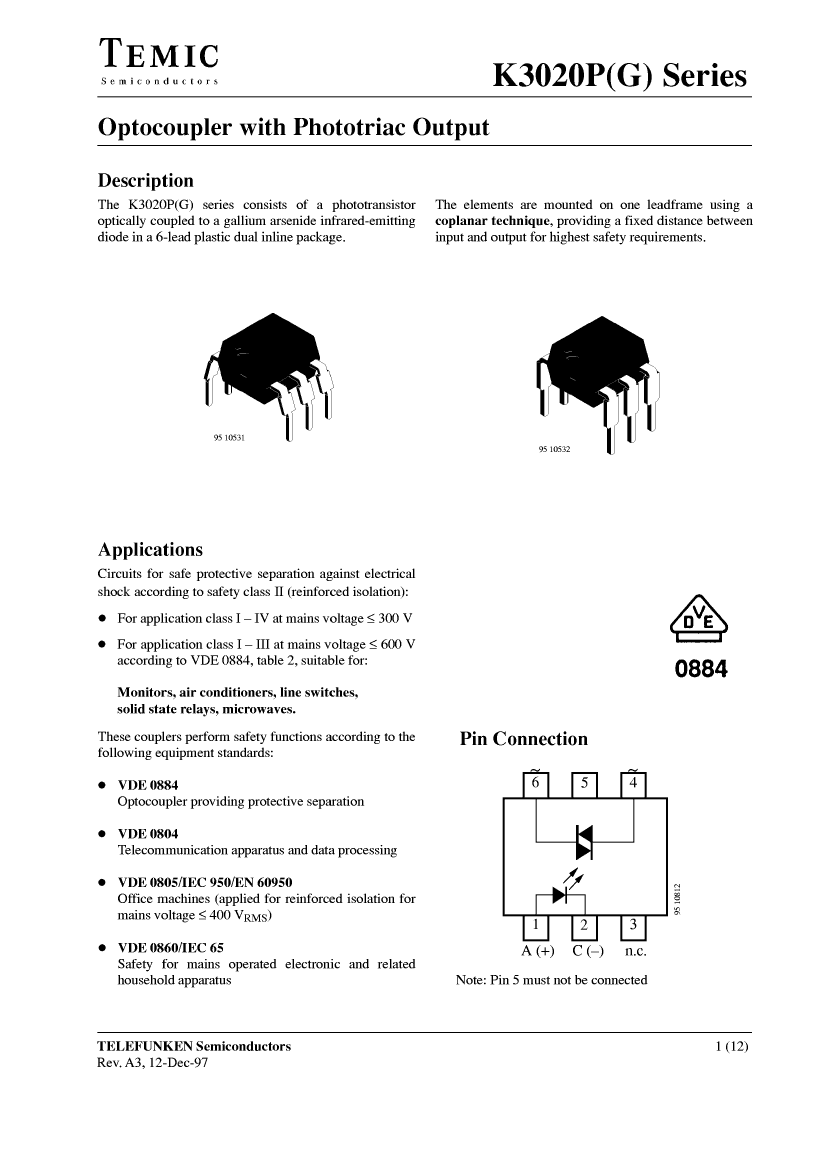

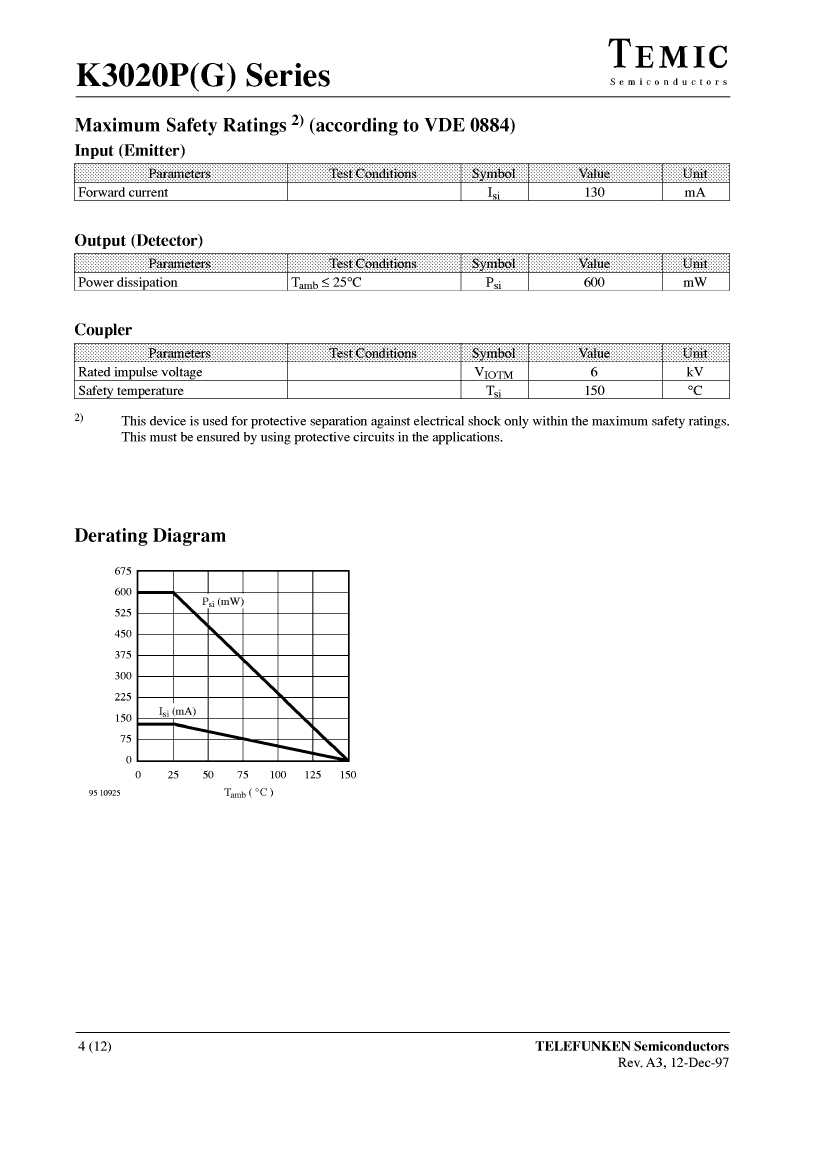

Preview

Download Datasheet

View All

K3023P Related Products

	K3023P	K3020P	K3020PG	K3022PG	K3023PG	K3021P	K3021PG	K3022P
Description	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6
Maker	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC
package instruction	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Nominal input trigger current	2 mA	15 mA	15 mA	5 mA	2 mA	8 mA	8 mA	5 mA
Maximum insulation voltage	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V
Number of components	1	1	1	1	1	1	1	1
Maximum on-state current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER	TRIAC OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V
