KS57C2504IFP datasheet, PDF - EEWORLD Datasheet

KS57C2504IFP: DescriptionMicrocontroller, 4-Bit, MROM, CMOS, PQFP80, 14 X 20 MM, QFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size240KB，12 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

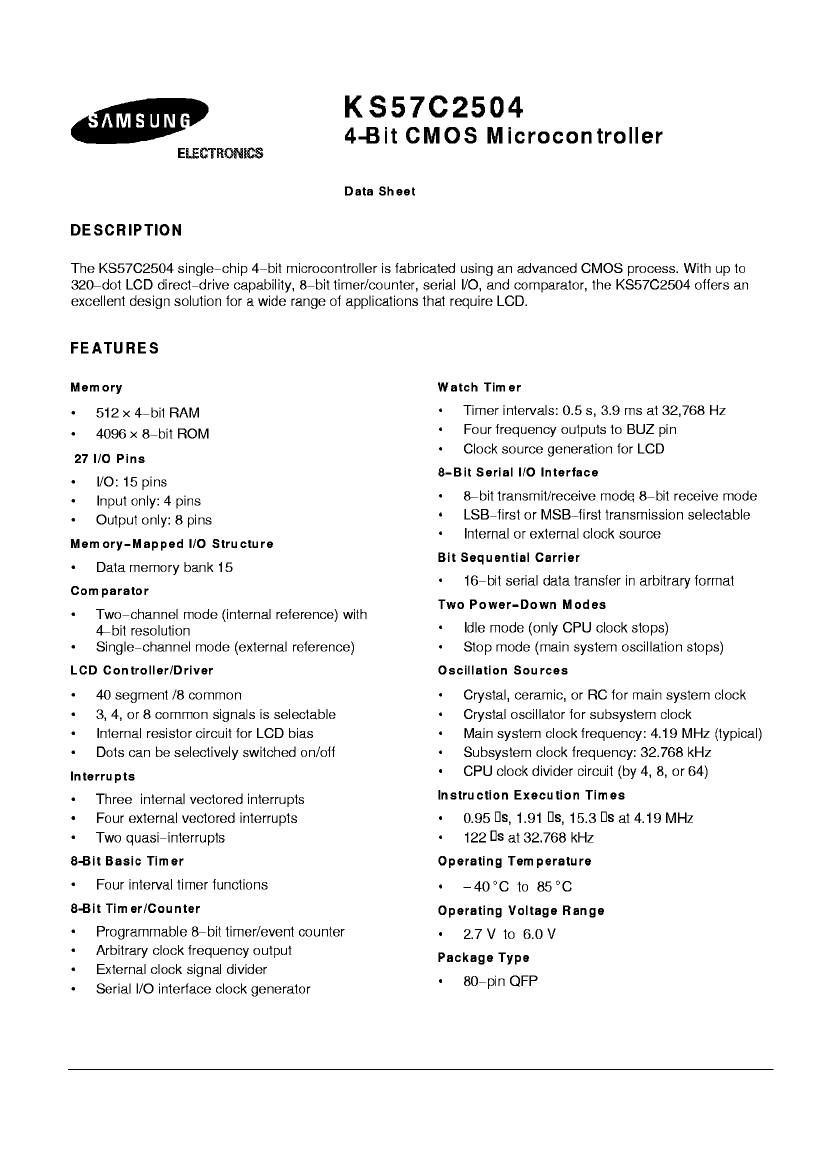

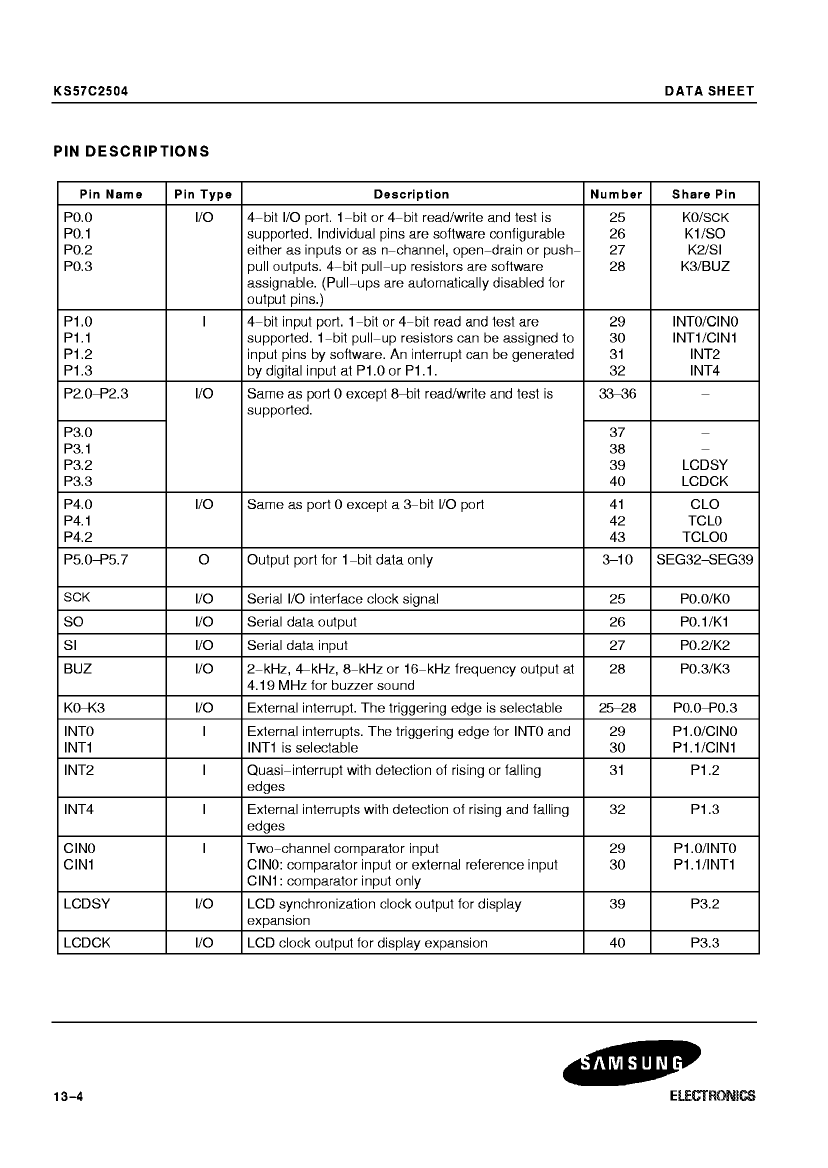

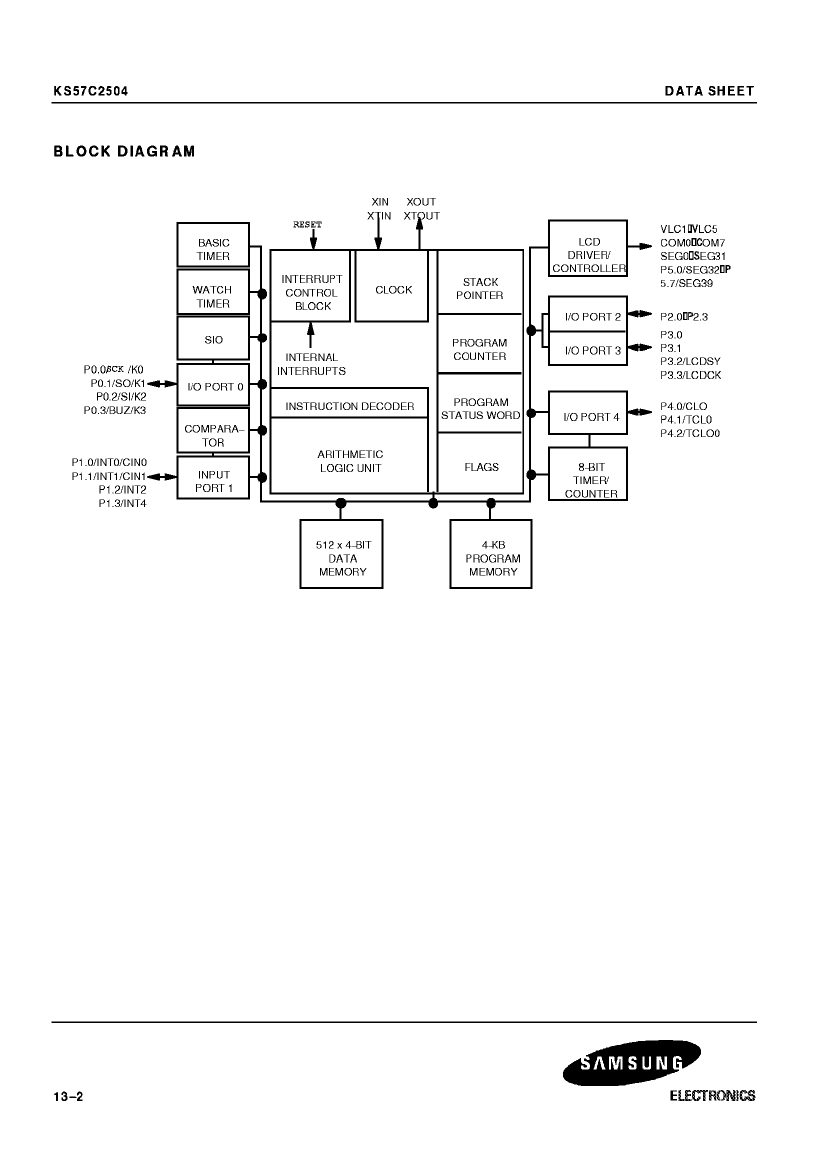

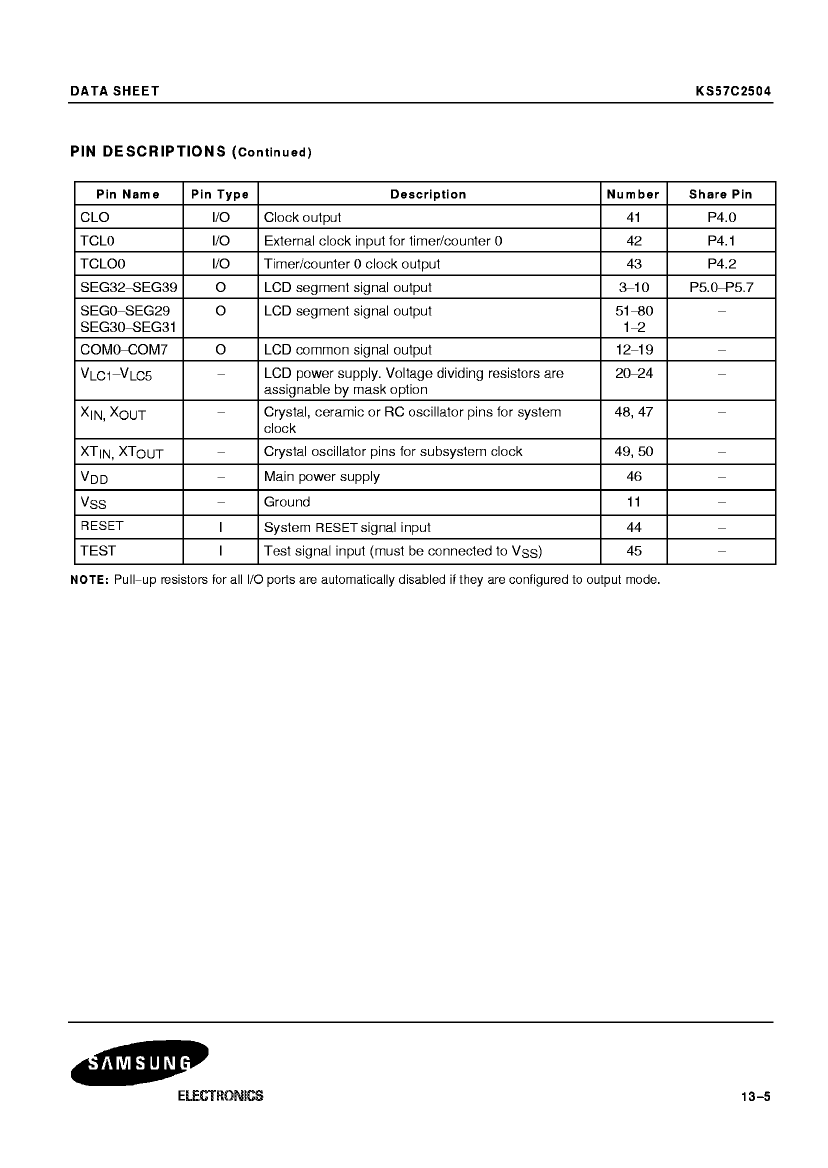

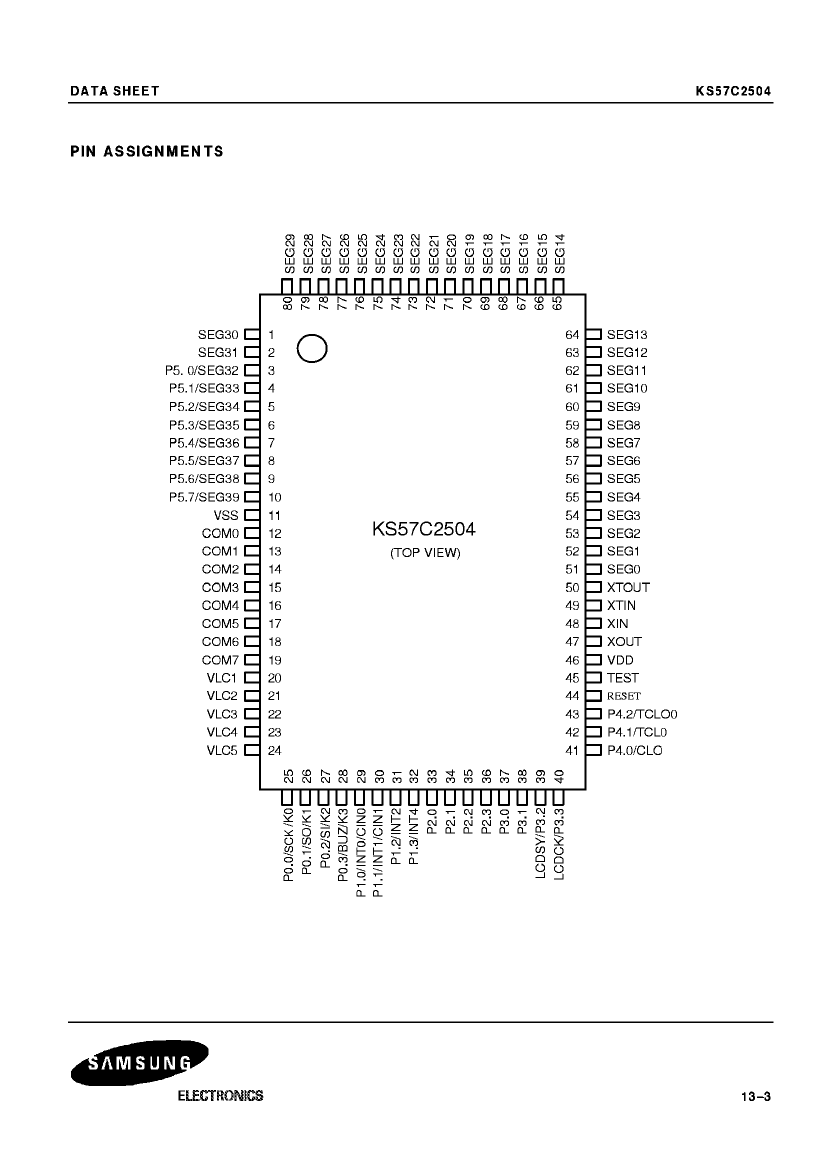

KS57C2504IFP Overview

Microcontroller, 4-Bit, MROM, CMOS, PQFP80, 14 X 20 MM, QFP-80

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	QFP,
Contacts	80
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G80
length	20 mm
Number of I/O lines	27
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3 mm
Maximum slew rate	8 mA
Maximum supply voltage	6 V
Minimum supply voltage	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
