Ordering number : EN880E
LA1407
LA1417
Overview
Functions
Monolithic Digital IC
AC/DC Voltage Level Meter
The LA1407 and LA1417 are AC/DC voltage level meter. The LB1407 is based on dB scale and the LB1417 is based on
linear scale respectively. The input level is indicated in the form of a bar by means of 7 LED’s.
•
The LED current is made variable with an external resistor.
•
An input amplifier is built in.
•
A wide range of supply voltages is available from 5.5V
Comparator Level
at Ta = 25°C, VCC=12V
LB1407
Comparator level
D1
D2
D3
D4
D5
D6
D7
Pin No.
8
9
10
11
12
13
14
dB scale
typ
-20
-10
-6
-3
0
3
6
Linear scale
typ
430
840
1280
1700
2150
2570
3000
unit
mV
mV
mV
mV
mV
mV
mV
unit
dB
dB
dB
dB
dB
dB
dB
(Reference: Linear scale)
typ
150
485
770
1090
1530
2105
3000
unit
mV
mV
mV
mV
mV
mV
mV
LB1417
Comparator level
D1
D2
D3
D4
D5
D6
D7
Pin No.
8
9
10
11
12
13
14
(Reference: dB scale)
typ
-14.0
-8.0
-4.4
-1.9
0
1.6
2.9
unit
dB
dB
dB
dB
dB
dB
dB
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be
intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace
instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety
equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case
of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee
thereof. If you should intend to use our products for applications outside the standard applications of our
customer who is considering such use and/or outside the scope of our intended standard applications, please
consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our
customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer
'
s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer
'
s products or
equipment.
53007 MS PC 20070524-S00009 / 22801 TN(KT) / O3195YK / 8227KI / 8065MW / O071KI,TS No.880-1/4
LB1407,LB1417
Specifications
Absolute
Maximum Ratings
at Ta = 25°C
Parameter
Maximum supply voltage
Input voltage
D1 to D7 output voltage
D1 to D7 output current
Reference flow-out current
VOUT supply voltage
Allowable power dissipation
Operating temperature
Symbol
VCC max
VIN
VOUT(D)
IOL(D)
Iref
VOUT
Pd max
Topr
Pin 1
Pin 4,5
D1 to D7 OFF
Pins 8 to 14, D1 to D7
Pin 3
Pin 6
Ta = 55°C
[LB1407]
[LB1417]
Storage temperature
Tstg
Conditions
Ratings
-0.3 to +18
-0.3 to +VCC
-0.3 to +18
+30
-1 to 0
-0.3 to +6
500
-20 to +70
-20 to +60
-40 to +125
Unit
V
V
V
mA
mA
V
mW
°C
°C
°C
Allowable Operating Conditions
at Ta = 25°C
Parameter
Recommended supply voltage
Input voltage
Output pin load resistance
Symbol
VCC
VIN+ to VIN-
RL
Pin 1
Pin 4 or 5
Between pin 6 OUT and pin 7 GND.
Conditions
Ratings
5.5 to 16
-0.3 to VCC
15k to 20k
Unit
V
V
Ω
Electrical Characteristics
at Ta
=
25°C, VCC = 12V (Unless VCC is otherwise specified)
Parameter
Input bias current
(Amplifier)
Input bias current
(Comparator)+output leak current
Offeset voltage
Symbol
IIN+(A)
IIN-(A)
IIN+(C)
+IOL(A)
Voffset(1)
Voffset(2)
Reference voltage
Current drain
Amplifier gain
Output flow-out current
Pin D output ON voltage
Pin D output leak current
Output voltage (Amplifier)
Vref
ICC
VG
IOH
VOL(D)
IOH(D)
VOH
Conditions
Pin 4, VIN+=0V, VIN-=3V, GND=0V
Pin 5, VIN+=3V, VIN-=0V, GND=0V
pin 6, VIN+=0V, VIN-=3V, OUT=0V, GND=0V
Pin 6, VCC=6V, VIN+=VIN-=0V,GND=-6V,
GAIN=20dB
Pin 6, VIN+=VIN-=0V, GND=0V, GAIN=20dB
Pin 2, Iref=0 to 1mA
Pin 1, VIN+=3V, VIN-=0V
Open loop
Pin 6, VIN+=3V, VIN-=0V, VOUT=0V
Pins 8 to 14, D1 to D7, IOL=20mA, VIN+=3V,
VIN-=0V
Pins 8 to 14, D1 to D7, VIN+=0V, VIN-=3V,
VD1 to D7=12V
Pin 6, VCC=5.5V, VIN+=3V,VIN-=0V, RL=15kΩ
Pin 6, VCC=12V, VIN+=3V,VIN-=0V, RL=15kΩ
30
-10
1.2
10
4
9.5
Ratings
min
-2
-2
-10
-150
0
2.7
8
typ
max
0
0
0
+150
+150
3.1
15
Unit
μA
μA
μA
mV
mV
V
mA
dB
mA
V
μA
V
V
No.A0195-2/4
LB1407,LB1417

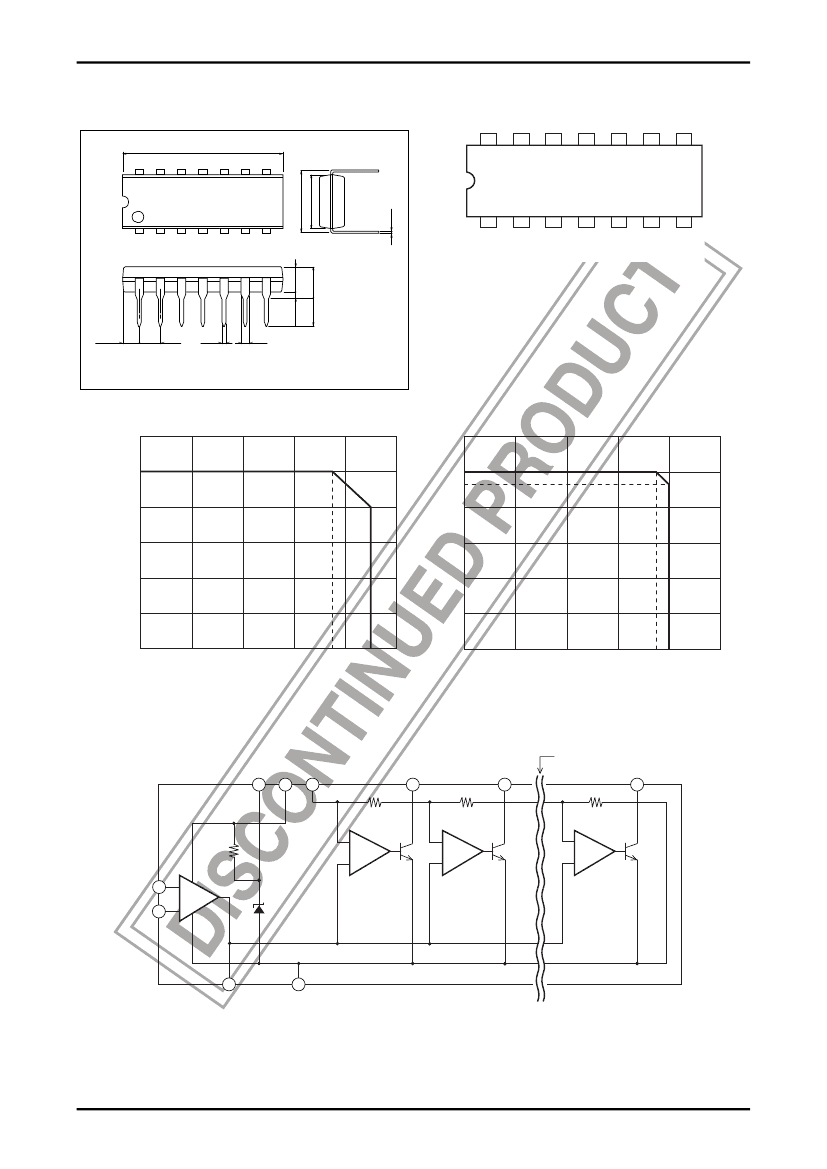

Package Dimensions
unit : mm (typ)
3003B
19.0
14
8
Pin Assignment
D7
14
D6
13
D5
12
D4
11
D3
10
D2
9
D1
8
LB1407, LB1417
7.62
6.4
0.25
1
7
3.65max
1
VCC
2
RCH
3
Vref
4
IN+
Top view
5
IN--
6
OUT
7
GND
0.51min
(3.0)
(1.88)
2.54
0.48
1.2
SANYO : DIP14(300mil)
600
Pd max -- Ta
3.4
[LB1407]
600
Pd max -- Ta
[LB1417]
Allowable power dissipation, Pd max -- mW
500
Allowable power dissipation, Pd max -- mW
0
20
40
55 60
70
80
500
465
400
400
300
300
200
200
100
100
0
-20
0
-20
0
20
40
55 60
80
Ambient temperature, Ta --
°C
Ambient temperature, Ta --
°C
Equivalent Circuit
12, 11, 10, 9
Vref VCC RCH
3
1
2
D7
14
D6
13
D1
8
R7
5.83kΩ
--
+
COM
7
R6
4.12kΩ
--
+
COM
6
R1
1kΩ
--
+
COM
1
IN+ 4
IN-- 5
6
OUT
7
GND
Internal resistors:
R5(2.92kΩ), R4(2.07kΩ), R3(1.85kΩ), R2(2.16kΩ),
(R1 toR7 of LB1417 are all 2.85kΩ)
No.A0195-3/4
LB1407,LB1417

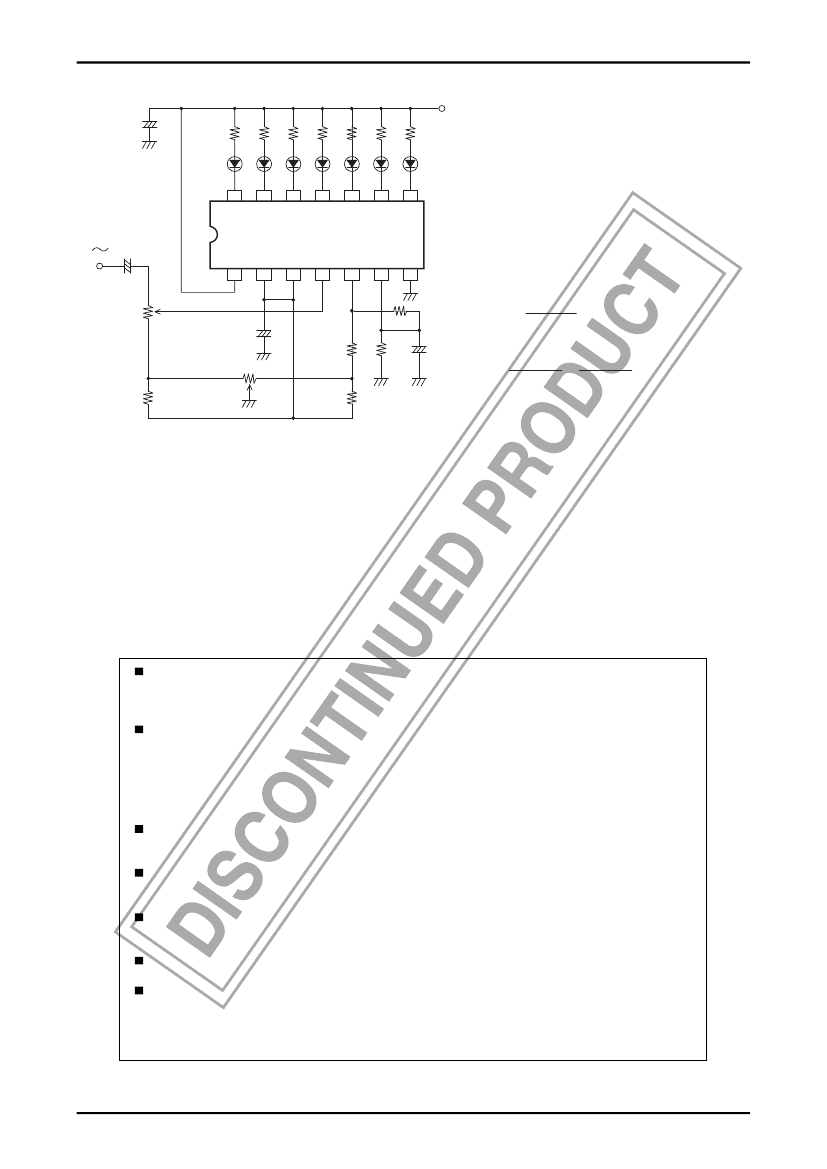

Application Circuit Example
100μF
+
R
VCC
14
D7
13
D6
12
D5
11
D4
10
D3
9
D2
8
D1
LB1407, 1417
AC IN
1μF
+
VCC RCH
1
2
Vref
3
IN+
4
IN--
5
OUT GND
6
7
1μF
+
91kΩ
Current flowing to LED:
VCC
−
3
LED =
R
(Example) Assuming ILED =10mA at VCC=12V, R is:
12
−
3
9
R=
= 900Ω
−3
=
10×10
−3
10×10
10kΩ
1kΩ
22kΩ
