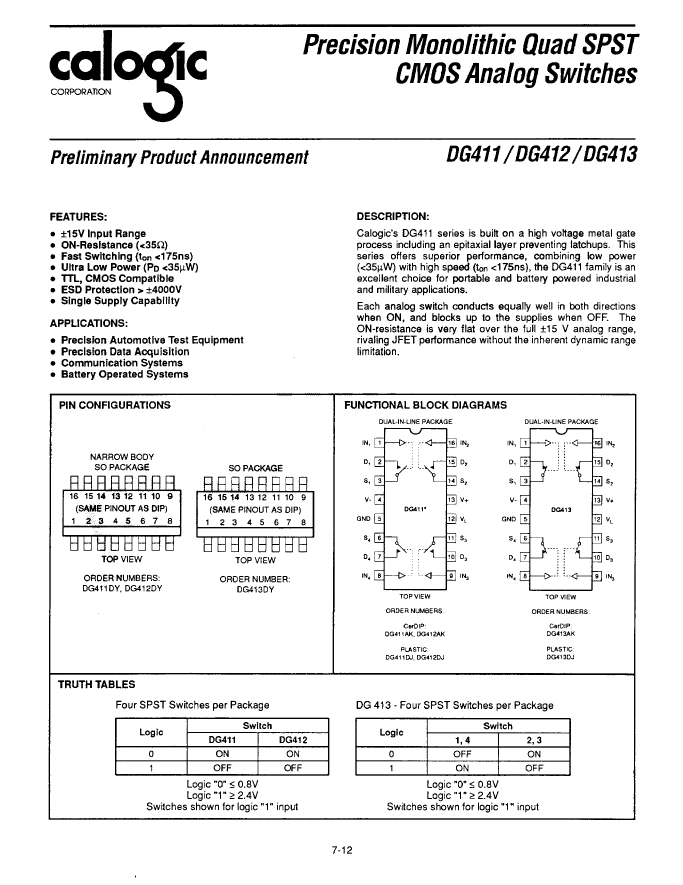

Multiplexers/Switches, 4 Func, 1 Channel, CMOS, PDSO16, SOP-16

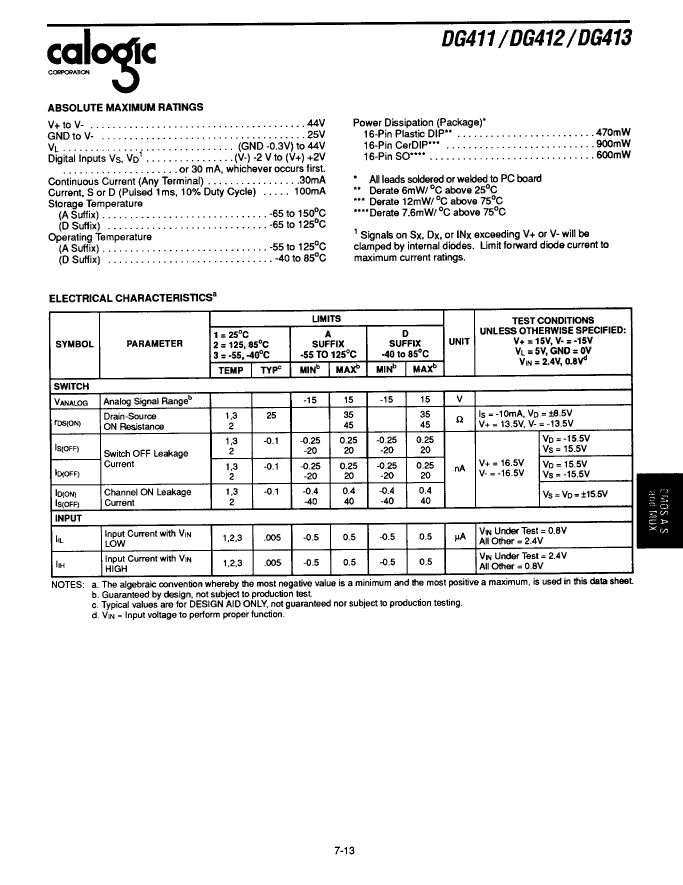

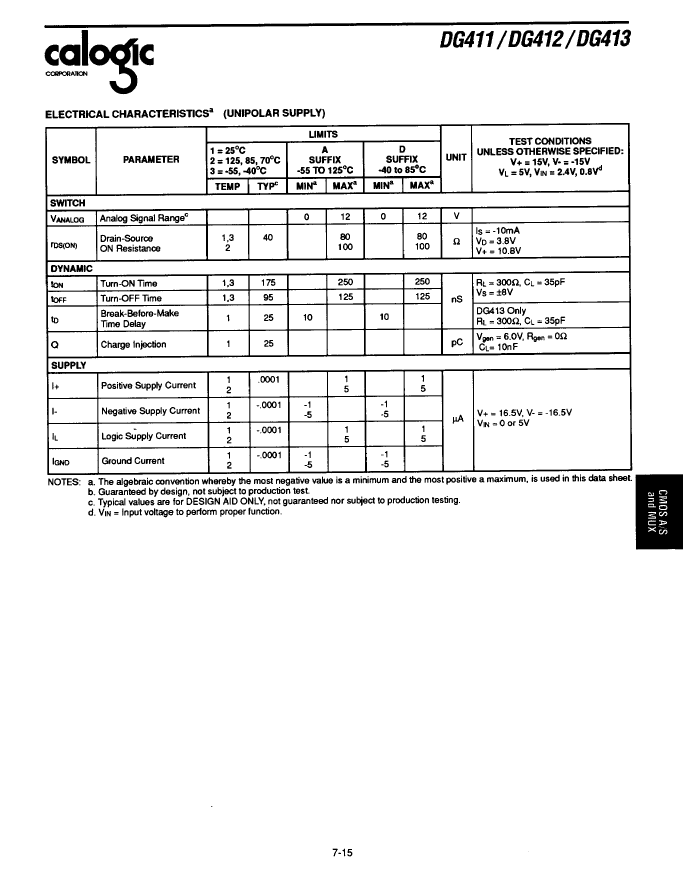

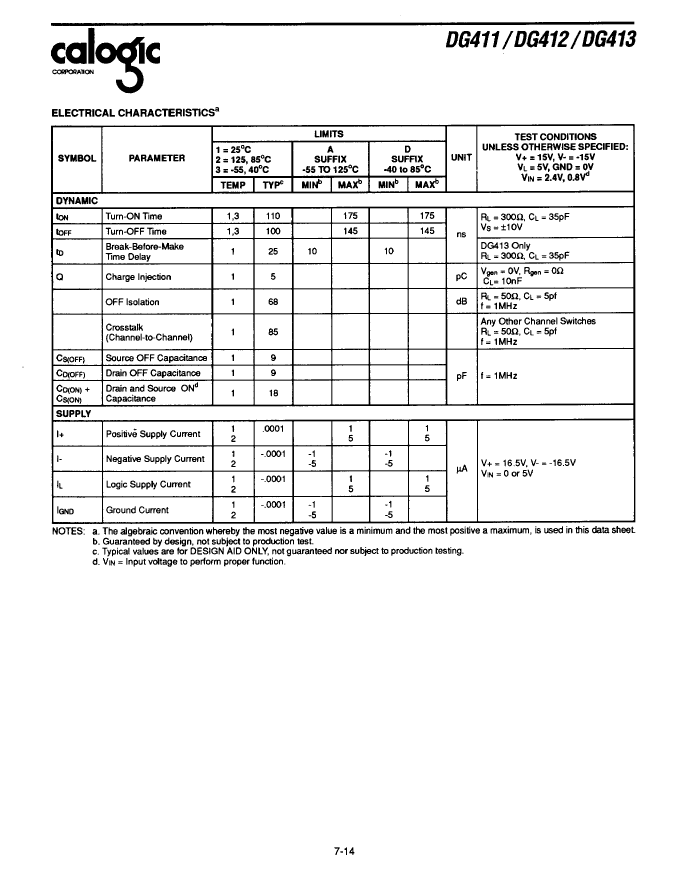

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Calogic |
| package instruction | SOP, SOP16,.25 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| normal position | NO |
| Number of channels | 1 |
| Number of functions | 4 |
| Number of terminals | 16 |
| Nominal off-state isolation | 68 dB |
| Maximum on-state resistance (Ron) | 35 Ω |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| output | SEPARATE OUTPUT |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 5,12/+-15 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| Maximum disconnect time | 145 ns |
| Maximum connection time | 175 ns |
| switch | BREAK-BEFORE-MAKE |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| DG412DY | DG411DY | DG412AK | DG411AK | DG411DJ | DG412DJ | DG413AK | DG413DJ | DG413DY | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Multiplexers/Switches, 4 Func, 1 Channel, CMOS, PDSO16, SOP-16 | Multiplexers/Switches, 4 Func, 1 Channel, CMOS, PDSO16, SOP-16 | SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16 | SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16 | Multiplexers/Switches, 4 Func, 1 Channel, CMOS, PDIP16, PLASTIC, DIP-16 | Multiplexers/Switches, 4 Func, 1 Channel, CMOS, PDIP16, PLASTIC, DIP-16 | SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16 | Multiplexers/Switches, 4 Func, 1 Channel, CMOS, PDIP16, PLASTIC, DIP-16 | Multiplexers/Switches, 4 Func, 1 Channel, CMOS, PDSO16, SOP-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | SOP, SOP16,.25 | SOP, SOP16,.25 | DIP, DIP16,.3 | DIP, DIP16,.3 | PLASTIC, DIP-16 | DIP, DIP16,.3 | CERAMIC, DIP-16 | DIP, DIP16,.3 | SOP-16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-CDIP-T16 | R-CDIP-T16 | R-PDIP-T16 | R-PDIP-T16 | R-CDIP-T16 | R-PDIP-T16 | R-PDSO-G16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| normal position | NO | NC | NO | NC | NC | NO | NO/NC | NO/NC | NO/NC |
| Number of channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Nominal off-state isolation | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB |
| Maximum on-state resistance (Ron) | 35 Ω | 35 Ω | 35 Ω | 35 Ω | 35 Ω | 35 Ω | 35 Ω | 35 Ω | 35 Ω |
| Maximum operating temperature | 85 °C | 85 °C | 125 °C | 125 °C | 85 °C | 85 °C | 125 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -55 °C | -55 °C | -40 °C | -40 °C | -55 °C | -40 °C | -40 °C |
| output | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP | DIP | DIP | DIP | DIP | DIP | SOP |
| Encapsulate equivalent code | SOP16,.25 | SOP16,.25 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | SOP16,.25 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| power supply | 5,12/+-15 V | 5,12/+-15 V | 5,12/+-15 V | 5,12/+-15 V | 5,12/+-15 V | 5,12/+-15 V | 5,12/+-15 V | 5,12/+-15 V | 5,12/+-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | YES | YES | NO | NO | NO | NO | NO | NO | YES |
| Maximum disconnect time | 145 ns | 145 ns | 145 ns | 145 ns | 145 ns | 145 ns | 145 ns | 145 ns | 145 ns |
| Maximum connection time | 175 ns | 175 ns | 175 ns | 175 ns | 175 ns | 175 ns | 175 ns | 175 ns | 175 ns |
| switch | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | MILITARY | MILITARY | INDUSTRIAL | INDUSTRIAL | MILITARY | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | Calogic | - | Calogic | Calogic | Calogic | Calogic | Calogic | Calogic | Calogic |
| Part Number | Manufacturer | Description |
|---|---|---|
| DG412DY+ | Maxim(美信半导体) | Analog Switch ICs Quad SPST Normally Open |
| DG412DY-T2-E3 | Vishay(威世) | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, ROHS COMPLIANT, SOIC-16, Multiplexer or Switch |
| DG412CY+ | Maxim(美信半导体) | analog switch ics quad spst normally open |
| DG412CY+T | Maxim(美信半导体) | analog switch ics quad spst normally open |
| DG412DY+T | Maxim(美信半导体) | analog switch ics quad spst normally open |
| DG412DYZ-T | Renesas(瑞萨电子) | Monolithic Quad SPST, CMOS Analog Switches; PDIP16, SOIC16, TSSOP16; Temp Range: -40° to 85°C |
| DG412DY-T | Harris | SPST, 4 Func, 1 Channel, CMOS, PDSO16, |
| DG412DYZ | Renesas(瑞萨电子) | Monolithic Quad SPST, CMOS Analog Switches; PDIP16, SOIC16, TSSOP16; Temp Range: -40° to 85°C |
| DG412CY | Rochester Electronics | SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, MS-012AC, SOIC-16 |
| DG412CY-T | Maxim(美信半导体) | Analog Switch ICs Quad SPST Normally Open |
| DG412EY | Harris | SPST, 4 Func, 1 Channel, CMOS, PDSO16, |
| DG412DY-T2 | Vishay(威世) | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, MS-012, SOIC-16, Multiplexer or Switch |
