DG413AK/883 datasheet, PDF - EEWORLD Datasheet

DG413AK/883: DescriptionSPST, 2 Func, 1 Channel, CMOS, CDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size239KB，8 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric View All

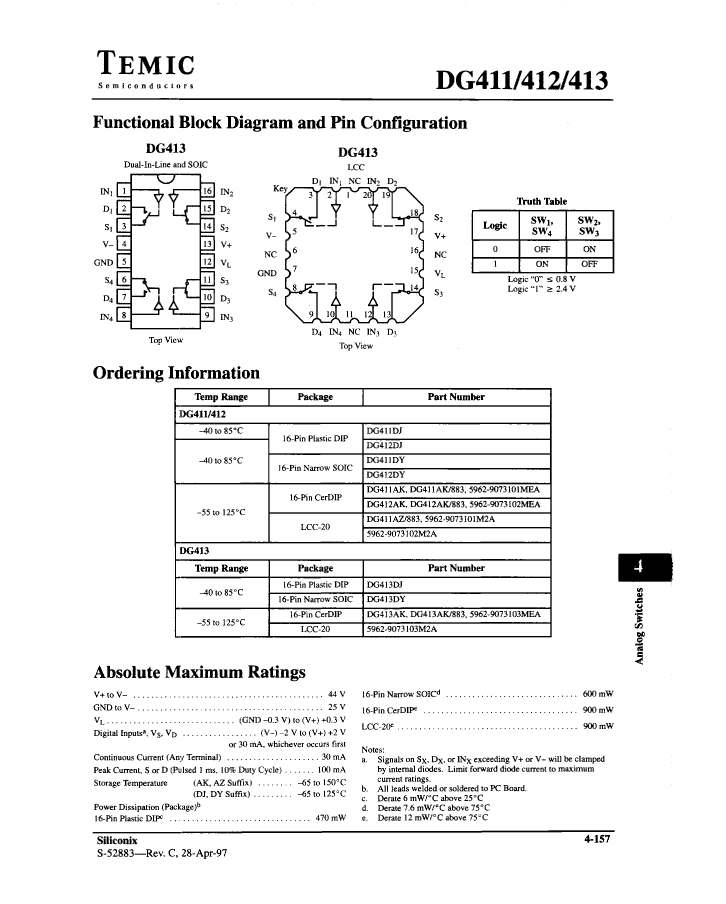

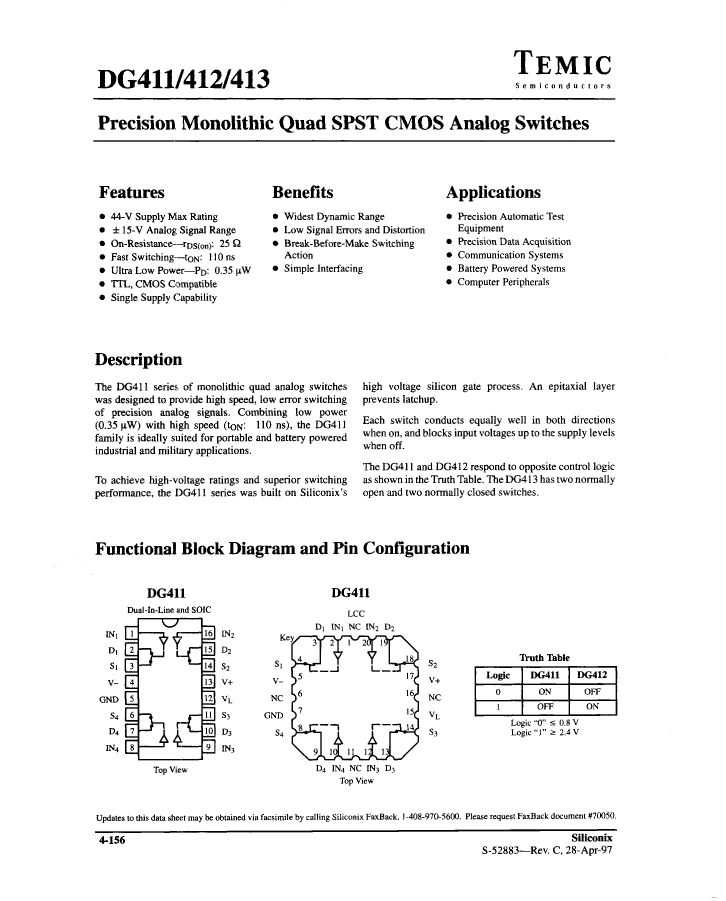

DG413AK/883 Overview

SPST, 2 Func, 1 Channel, CMOS, CDIP16,

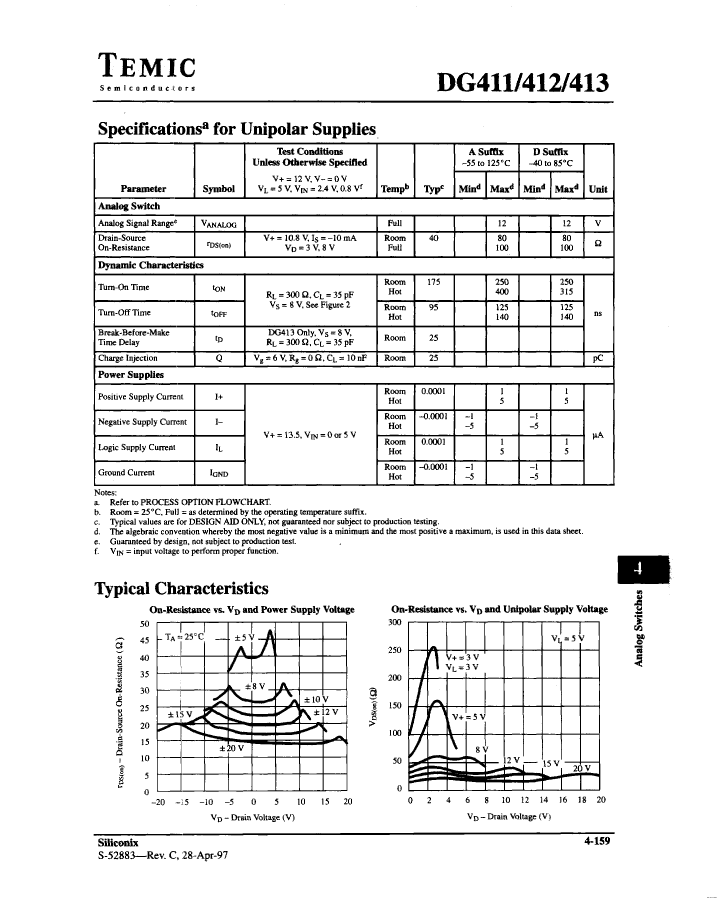

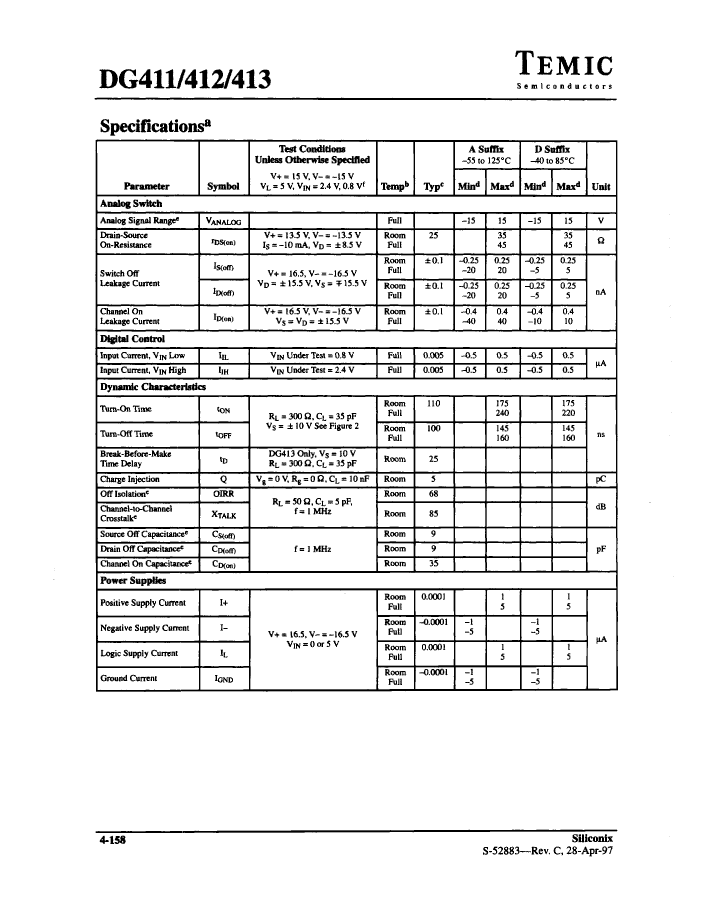

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	16

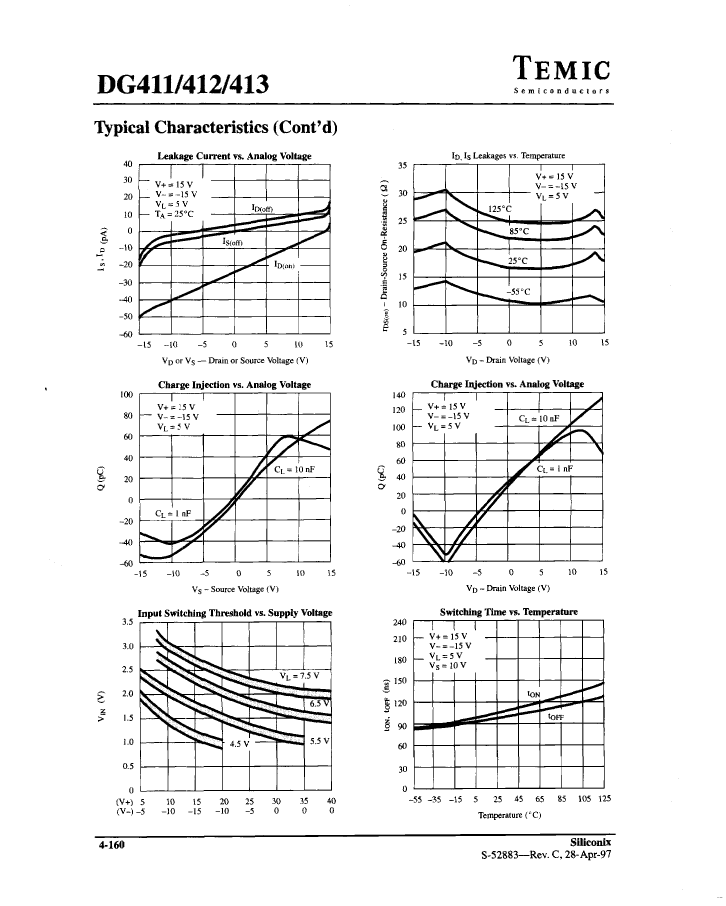

Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.005 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	145 ns
Maximum connection time	175 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
