MODM-D-04-8P8C-L-S-6-2

Description
Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size592KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

MODM-D-04-8P8C-L-S-6-2 Overview

Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT

MODM-D-04-8P8C-L-S-6-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresSTANDARD: RJ45, SHIELDED, 4 PORTS, 8-POSITION EACH
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD (15)
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberMODM-D
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialCOPPER ALLOY
Termination typeSOLDER
Total number of contacts32

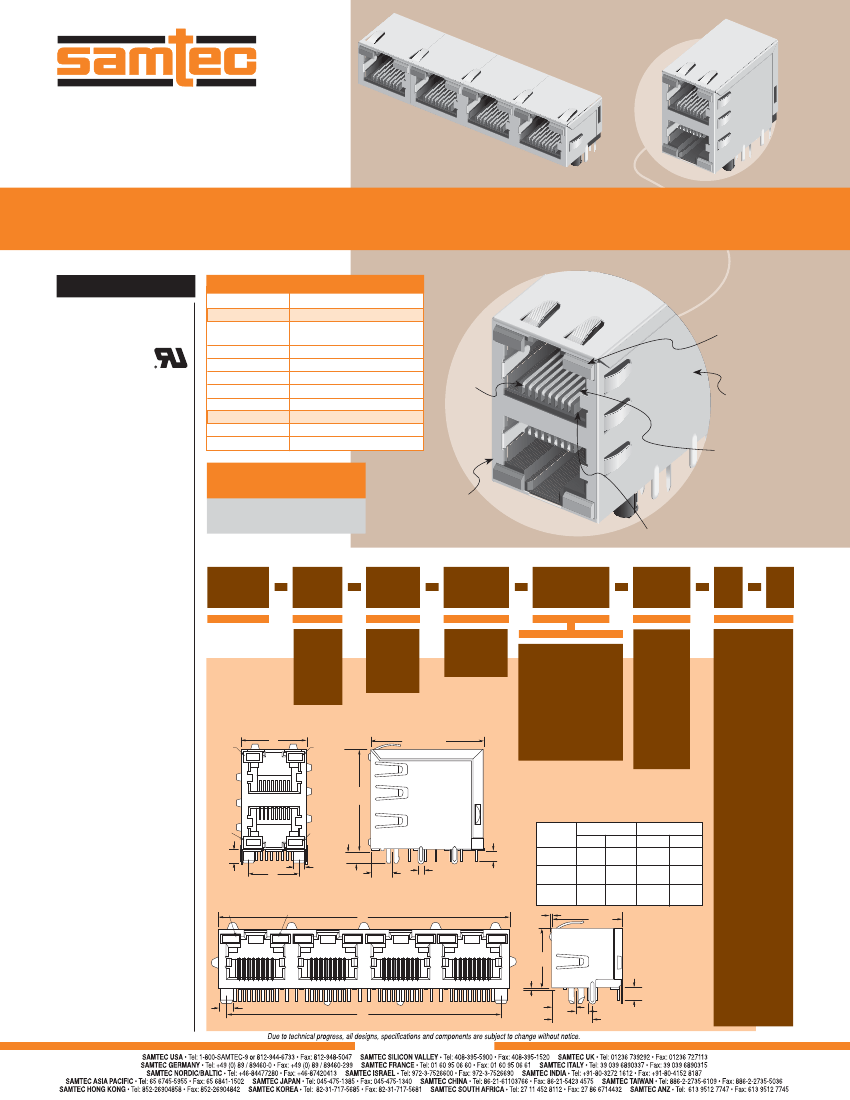

F-208
MODM–D–02–8P8C–U–S4–3–4
MODM–E–04–8P8C–L–S4–6–4
GANGED MOD JACKS WITH LED
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?MODM-D
or www.samtec.com?MODM-E
Insulator Material:
MODM-D: PBT
Glass Filled
FILE NO. E225096
MODM-E: Nylon 46
FILE(MODM-D)
NO. E244987
Contact Material:
(MODM-E)
Phosphor Bronze
Shield Material:
Copper Alloy
Plating:
Gold on Contacts,
Nickel on Shield, Tin on Tails
Operating Temp Range:
-25°C to +90°C
Current Rating:
1.5 A per contact
Voltage Rating:
120 VAC max
Contact Resistance:
20 mΩ max
Minimum Cycles:
500
System Applications:
CAT3
Packaging:
Packaged and shipped in
Bulk Packaging Trays; Trays
suitable for automation are
available upon request.
RoHS Compliant:
Yes
Lead–Free Solderable:
Yes (Wave Solder only)
MODM-D,
MODM-E
MODS-D & -E FEATURES
Category
Orientation
Shielding
Termination
Tab Orientation
Tab Orientation
Profile (-D)
Profile (-E)
LEDs
RJ45 Stacked
RJ45 In-line
CAT3
Side Entry, Ganged
Shielded, with or without
Panel Grounds
Through-Hole
Top Up, Bottom Down (-D)
Tab Up (-E)
(25,40mm) 1.000" +pnl gnds
(13,70mm) .545" +pnl gnds
Standard
MODM-D-XX-8P8C-X-XX-X-X
MODM-E-XX-8P8C-X-XX-X-X
Choice of
LED Color
8 Positions,
8 Contacts
Shielded
Selectively
Plated
Contacts
APPLICATION
SPECIFIC OPTION
Other plating options available.
Call Samtec.
Stacked or
In-line
2, 4 or 8 Ports
MODM
TYPE
NO. OF
PORTS
8P8C
–8P8C
= 8 Positions
8 Contacts
PLATING
SHIELD
OPTION
LED
1
LED
2
–D
= Stacked
–E
= In-line
–02,
–04,
–08
–L
= 15µ" (0,38 µm)
Gold on Mating Area,
Tin on Tails
–S
= Shielded
(No Panel
Grounds)
–G
= Green
–Y
= Yellow
–U
Top
LED1
–S4
= Shielded
with Top,
Bottom and
Side Panel
Grounds
–1*
= Green/Orange
A
Top
LED2
(28,15) 1.108
= 50µ" (1,27µm)
Gold on Mating Area,
Tin on Tails
–2*
= Yellow/Orange
(25,40)
1.000
–3*
= Green/Red
NO. OF
PORTS
–02
(5,46)
.215
(1,30) .051
(2,54)
.100
Bottom
LED1
Bottom
LED2
(2,74)
.108
(3,10)
.122
–D
A
(16,51)
.650
(32,26)
1.270
(63,65)
2.506
–E
B
A
B
(32,26) (28,45)
1.270 1.120
(63,80) (59,94)
2.512 2.359
(126,75) (122,94)
4.990 4.840
–4*
= Yellow/Red
(3,50)
.138
B
–04
–08
MODM-D
Top LED2
(12,70)
.500
(28,45)
1.120
(59,95)
2.360
–5*
= Green/Yellow
–6*
= Yellow/Green
Top LED1
A
(0,35)
.014
(15,75)
.620
–N
= No LED
(–E only)
(LED1 –N
requires
LED2 –N)
(2,54)
.100
(13,60)
.535
(0,25)
.010
(2,74) .108
B
(5,40)
.213
(8,83) .348
(2,54)
.100
*
Voltage
Forward/Reverse
MODM-E
WWW.SAMTEC.COM
