TCD4 Series
TCVCXO Oscillator
June 2008

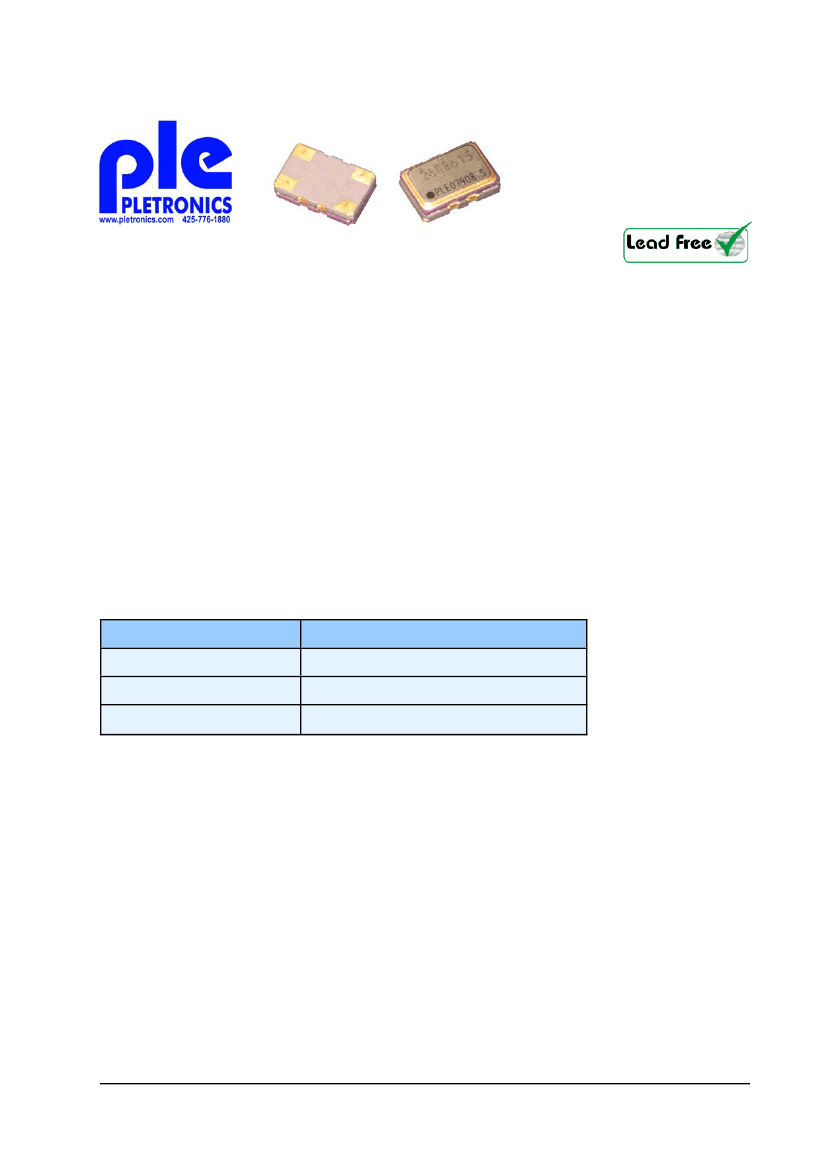

• Pletronics’ TCD4 Series is a temperature
compensated voltage controlled crystal
oscillator with a clipped sinewave output.
• The package is designed for high density
surface mount designs.
• Tape and Reel packaging is available.
• 10 to 26 MHz
• 3.2 x 5 mm LCC Ceramic Package
• Optional Voltage Control Function
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s
Weight of the Device: 0.2 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020C
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Input Voltage
Output Voltage
Unit
-0.5V to +6.5V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
Thermal Characteristics
The maximum die or junction temperature is 155
o
C
The thermal resistance junction to board is 30 to 50
o
C/Watt depending on the solder pads, ground plane
and construction of the PCB.
Product information is current as of publication date. The product conforms
to specifications per the terms of the Pletronics standard warranty. Production
processsing does not necessarily include testing of all parameters.
Copyright © 2008, Pletronics Inc.
TCD4 Series
TCVCXO Oscillator
June 2008
Part Number:
TCD4
027
050
G
H
015
008
-12.75M
-XX
Internal code or blank
Nominal Frequency in MHz
Pullability in ppm (Vcontrol)
000
= TCXO only
008
= _ 8 ppm minimum
+
015
= _ 15 ppm minimum
+
Stability in ppm
010
= _ 1 ppm
+
015
= _ 1.5 ppm
+
025
= _ 2.5 ppm
+
Highest Specified Operating Temperature
A
= +40
o
C
E
= +60
o
C
J
= +80
o
C
B
= +45
o
C
F
= +65
o
C
K
= +85
o
C
C
= +50
o
C
G
= +70
o
C
D
= +55
o
C
H
= +75
o
C
Lowest Specified Operating Temperature
J
= -30
o
C
A
= +10
o
C
E
= -10
o
C
F
= -15
o
C
K
= -35
o
C
B
= +5
o
C
o
o
G
= -20 C
L
= -40
o
C
C
= +0 C
H
= -25
o
C
M
= -45
o
C
D
= -5
o
C
Highest Supply Voltage *
055
= 5.5 volts
036
=3.6 volts
Lowest Supply Voltage
*
029
= 2.9 volts
027
= 2.7 volts
Series (Part Type, Logic & Package)
*
Supply Voltage: Select range between 2.7V and 5.0V with Highest / Lowest < 1.20
For Example: the part number for 3.3V nominal would be TCD4030036.........
Part Marking:
Pfff.fff
ymdXX
Where:
ymdxx
Pfff.fff
= Date code
= Pletronics and frequency in MHz
Specifications such as frequency stability, supply voltage and operating temperature range, etc. are
not identified from the marking. External packaging labels and packing list will correctly identify the
ordered Pletronics part number.
See next page for codes for date code
www.pletronics.com
425-776-1880
2
TCD4 Series
TCVCXO Oscillator
June 2008
Codes for Date Code YMD
Code
Year
Code
Month
Code
Day
Code
Day
Code
Day
1
1
D
13
T
25
6
2006
A
JAN
2
2
E
14
U
26
7
2007
B
FEB
3
3
F
15
V
27
8
2008
C
MAR
4
4
G
16
W
28
9
2009
D
APR
E
MAY
5
5
H
17
X
29
0
2010
F
JUN
6
6
J
18
Y
30
1
2011
G
JUL
7
7
K
19
Z
31
H
AUG
8
8
L
20
2
2012
J
SEP
9
9
M
21
K
OCT
A
10
N
22
L
NOV
B
11
P
23
M
DEC
C
12
R
24
Electrical Specification for specified Vcc over the specified temperature range
Item
Frequency Range
Frequency Accuracy
1
Frequency Stability / Supply
Output Waveform
Output Level
Phase Noise
V Supply Range
1
Supply Current
Aging
Vcontrol Range
Frequency Pullability
1
Operating Temperature Range
1
Storage Temperature Range
V
CC
I
CC
Min
10
-2.5
-0.2
Max
26
+2.5
+0.2
Unit
MHz
ppm
ppm
Vcontrol 1.50 volts if used
2
Load: 10K ohm // 10 pF & Vcc _ 5%
+
Condition
Clipped Sinewave
0.8
-
2.7
-
-1.0
0.5
-15
-45
-55
1.1
-135
5.0
2.0
+1.0
2.50
+15
+85
+95
V p-p
dBc/Hz
Volts
mA
ppm
Volts
ppm
o
Load: 10K ohm _ 10% // 10 pF _ 10%
+
+
Typical at 1 kHz
Per year
1.50 volts nominal
C
C
o
1
2
Specified by part number
For all supply voltages, load changes, aging for 1 year, shock, vibration and temperatures
www.pletronics.com
425-776-1880
3
TCD4 Series
TCVCXO Oscillator
June 2008
Reliability
: Environmental Compliance
Parameter
Mechanical Shock
Vibration
Solderability
Thermal Shock
Condition
MIL-STD-883 Method 2002, Condition B
MIL-STD-883 Method 2007, Condition A
MIL-STD-883 Method 2003
MIL-STD-883 Method 1011, Condition A
ESD Rating
Model
Human Body Model
Charged Device Model
Minimum Voltage
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101

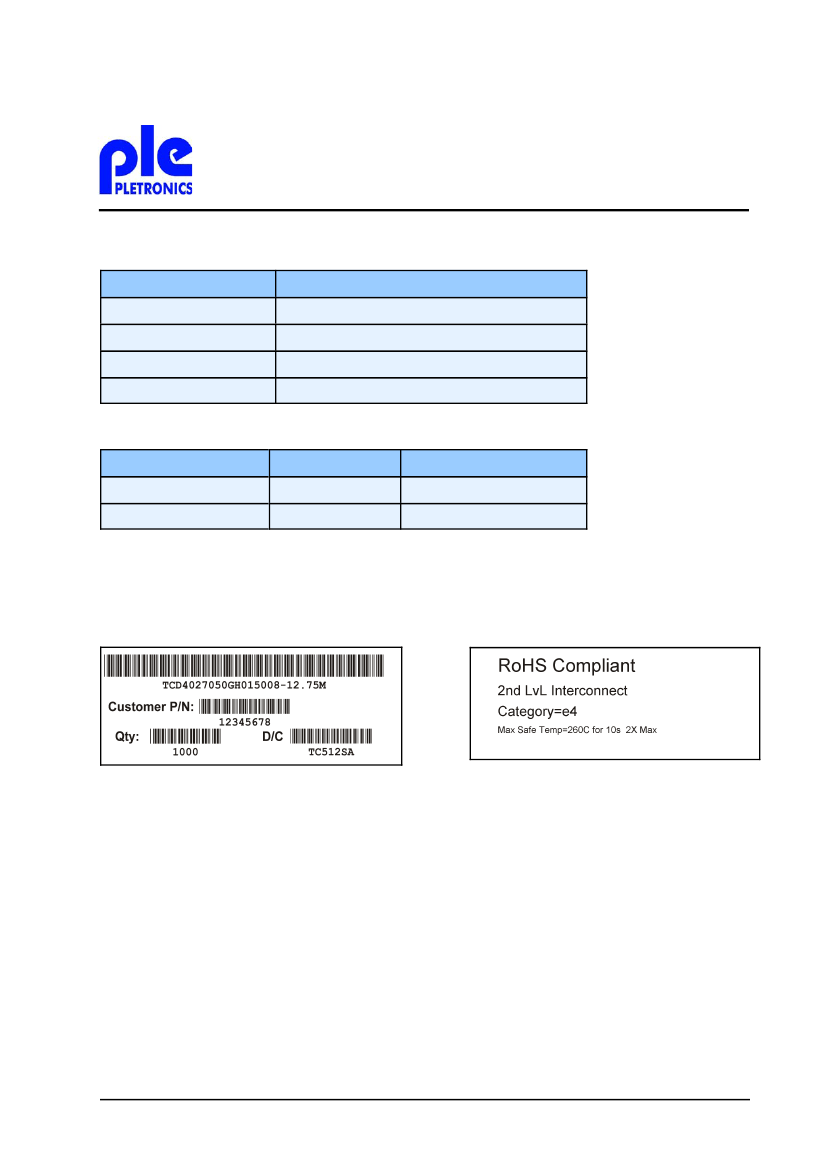

Package Labeling
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Courier New
Bar code is 39-Full ASCII
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Arial
www.pletronics.com
425-776-1880
4
TCD4 Series
TCVCXO Oscillator
June 2008

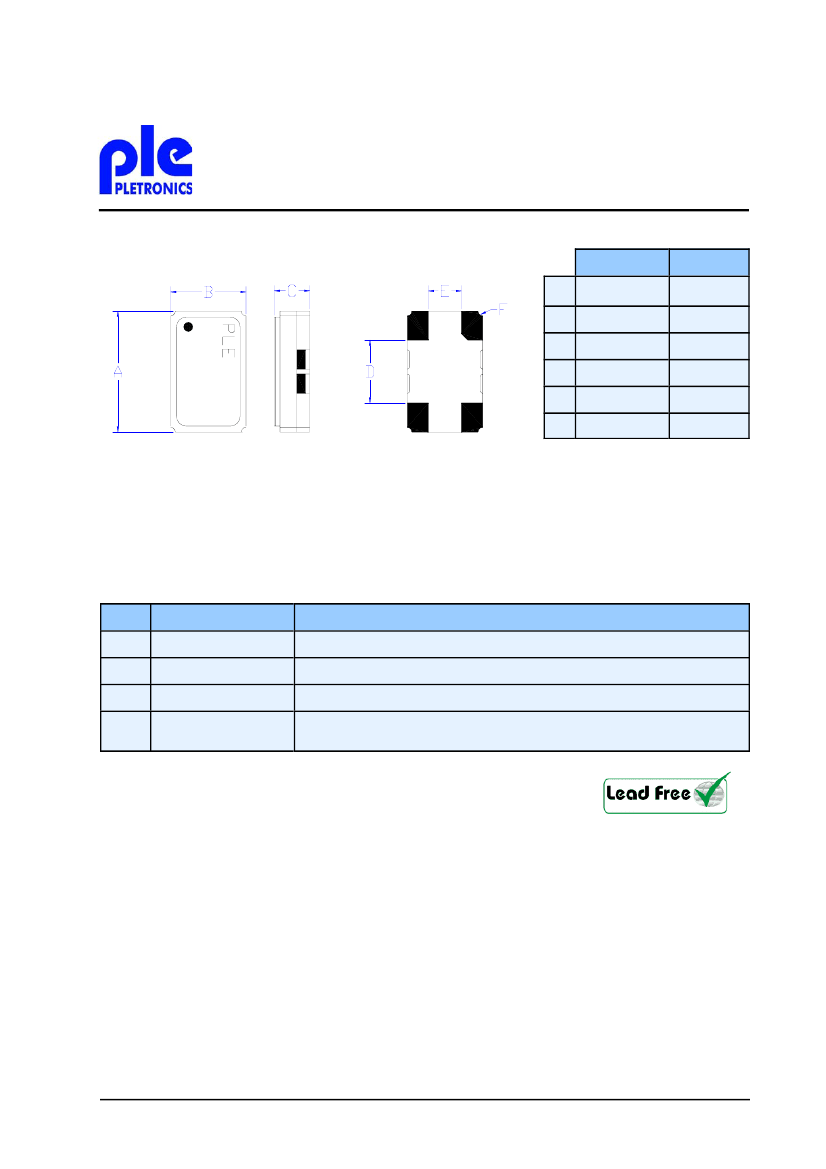

Mechanical:
Inches
A
B
C
D
1
3
1
mm
5.00 +0.15
_
3.20 +0.15
_
1.4 +0.15
_
2.60
1.40
0.020R
0.197 +0.006
_
0.126 +0.006
_
0.057 +0.002
_
0.102
0.055
0.008
4
1
2
E
1
F
1
Not to Scale
Contacts :
Gold 11.8 µinches
Typical dimensions
0.3 µm minimum over Nickel 50 to 350 µinches
1.27 to 8.89 µm
Pad
1
2
3
4
Function
Vcontrol Input
Ground (GND)
Output
Supply Voltage (V
CC
)
Note
If this function is not specified, recommend connecting this pad to ground.
Recommend connecting appropriate power supply bypass capacitors as close
as possible.
Layout and application information
For Optimum Jitter Performance, Pletronics recommends:
•
a ground plane under the device
•
no large transient signals (both current and voltage) should be routed under the device
•
do not layout near a large magnetic field such as a high frequency switching power supply
•
do not place near piezoelectric buzzers or mechanical fans.
www.pletronics.com
425-776-1880
5
