TCF4 Series
TCVCXO Oscillator
January 2009

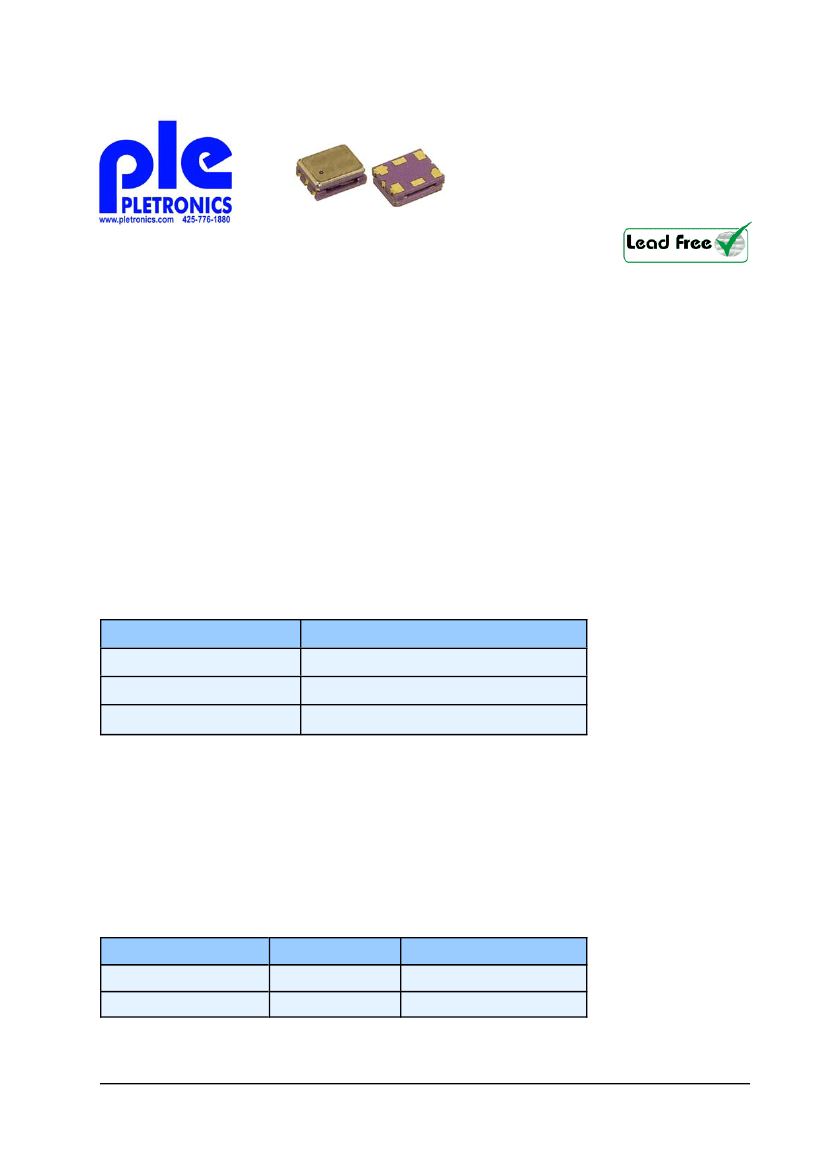

• Pletronics’ TCF4 Series is a temperature
compensated voltage controlled crystal
oscillator with a clipped sinewave output.
• The package is designed for high density
surface mount designs.
• Tape and Reel packaging is available.
• 10 to 40 MHZ
• 2.0 x 2.5 mm LCC Ceramic Package
• Optional Voltage Control Function
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s
Weight of the Device: 0.13 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020C
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Input Voltage
Output Voltage
Unit
-0.5V to +6.5V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
Thermal Characteristics
The maximum die or junction temperature is 155
o
C
The thermal resistance junction to board is 30 to 50
o
C/Watt depending on the solder pads, ground plane
and construction of the PCB.
ESD Rating
Model
Human Body Model
Charged Device Model
Minimum Voltage
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
Product information is current as of publication date. The product conforms
to specifications per the terms of the Pletronics standard warranty. Production
processsing does not necessarily include testing of all parameters.
Copyright © 2009, Pletronics Inc.
TCF4 Series
TCVCXO Oscillator
January 2009
Part Number:
TCF4
031
035
G
H
015
008
-12.75M
-XX
Internal code or blank
Nominal Frequency in MHZ
Pullability in ppm (Vcontrol)
000
= TCXO only
008
= + 8 ppm minimum
_
015
= + 15 ppm minimum
_
Stability in ppm
010
= + 1 ppm
_
015
= + 1.5 ppm
_
025
= + 2.5 ppm
_
Highest Specified Operating Temperature
A
= +40
o
C
E
= +60
o
C
J
= +80
o
C
B
= +45
o
C
F
= +65
o
C
K
= +85
o
C
C
= +50
o
C
G
= +70
o
C
D
= +55
o
C
H
= +75
o
C
Lowest Specified Operating Temperature
J
= -30
o
C
A
= +10
o
C
E
= -10
o
C
F
= -15
o
C
K
= -35
o
C
B
= +5
o
C
G
= -20
o
C
L
= -40
o
C
C
= +0
o
C
H
= -25
o
C
M
= -45
o
C
D
= -5
o
C
Highest Supply Voltage *
035
= 3.5 volts for 3.3 volts nominal
031
= 3.1 volts for 3.0 volts nominal
026
= 2.6 volts for 2.5 volts nominal
Lowest Supply Voltage
*
031
= 3.1 volts for 3.3 volts nominal
029
= 2.9 volts for 3.0 volts nominal
024
= 2.4 volts for 2.5 volts nominal
Series (Part Type, Logic & Package)
*
Supply Voltage: Select range between 2.7V and 5.0V with Highest / Lowest < 1.10
For Example: the part number for 3.3V nominal would be TCE4032034.........
Part Marking:
XXXXXX
Pwwyzz
Where:
XXXXX
= process code for crystal
wwyzz
= Date code
www.pletronics.com
425-776-1880
2
TCF4 Series
TCVCXO Oscillator
January 2009
Electrical Specification for specified Vcc range of 2.3V through 3.7V with a
variation of ±5% over the specified temperature range
Item
Frequency Range
Frequency Accuracy Range
1
Frequency setting
Frequency Stability vs. Supply
Frequency Stability vs. Load
Output Waveform
Output Level
Phase Noise
100 Hz
1 KHz
10 KHz
100 KHz
V
CC
I
CC
0.8
-
-
-
-
2.3
-
-1.0
0.5
-5
-30
-55
Min
10
-2.5
-0.5
-2
-0.2
-0.2
Typ
-
-
0
0
0
Max
40
+2.5
+0.5
+2
+0.2
+0.2
Unit
MHZ
ppm
ppm
ppm
ppm
Vcontrol 1.50 volts if used
2
Vcontrol 1.50 volts at 25
o
C
Load: 10K ohm // 10 pF & Vcc + 5%
_
Load: 10K ohm // 10 pF + 5%
_
Condition
Clipped Sinewave
-
-110
-130
-145
-145
-
-
-
-
±3
1.1
-
-
-
-
3.7
2.0
+1.0
2.50
+5
+85
+95
V p-p
dBc/Hz
Load: 10K ohm + 10% // 10 pF + 10%
_
_
V Supply Range
1
Supply Current
Aging
Vcontrol Range
Volts
mA
ppm
Volts
ppm
o
Per year at 25
o
C
1.50 volts nominal
Frequency Pullability
1
Operating Temperature Range
1
Storage Temperature Range
C
C
o
1
2
Specified by part number
For all supply voltages, load changes, aging for 1 year, shock, vibration and temperatures
Reliability
: Environmental Compliance
Parameter
Mechanical Shock
Vibration
Solderability
Thermal Shock
Condition
MIL-STD-883 Method 2002, Condition B
MIL-STD-883 Method 2007, Condition A
MIL-STD-883 Method 2003
MIL-STD-883 Method 1011, Condition A
www.pletronics.com
425-776-1880
3
TCF4 Series
TCVCXO Oscillator
January 2009
Package Labeling
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Courier New
Bar code is 39-Full ASCII
(the label will show the TCF4 actual part number)
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Arial

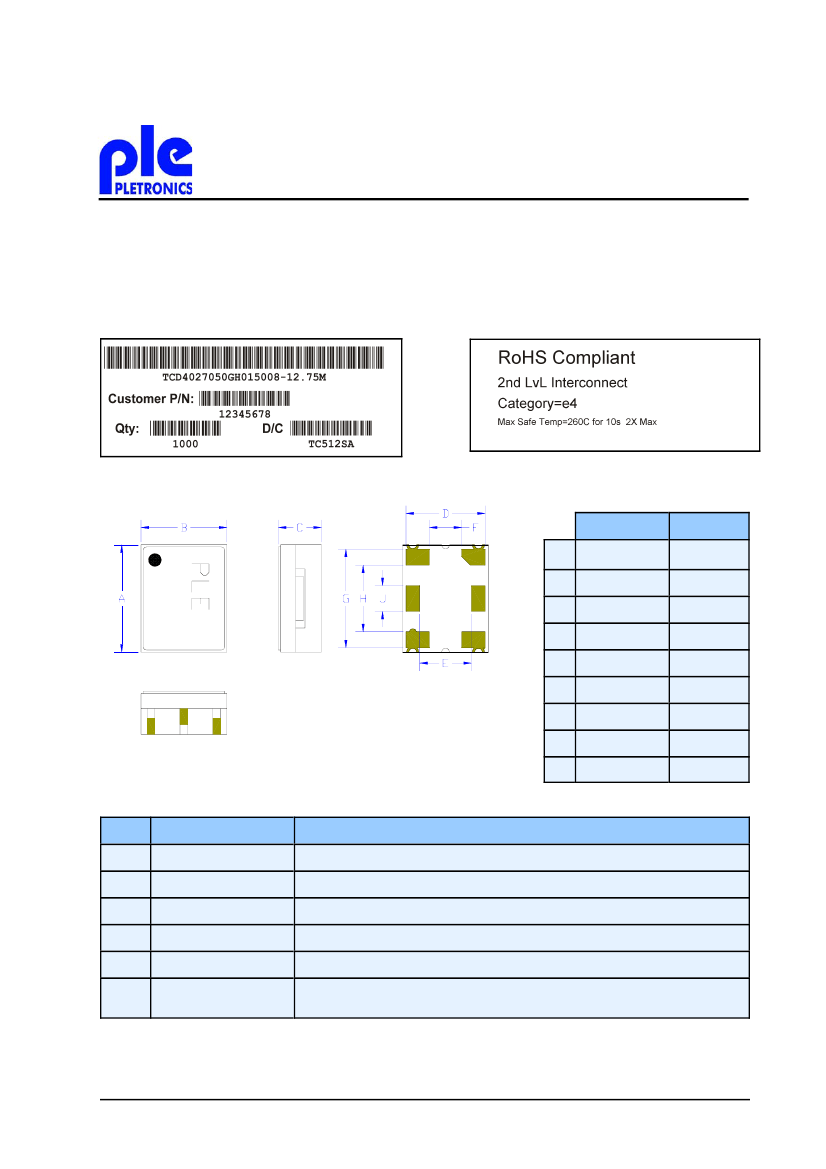

Mechanical:
Inches
6
5
4
1
2
3
mm
2.50 +0.20
_
2.00 +0.20
_
1.0 max
1.84
1.20
0.75
2.30
1.55
0.70
A
B
C
D
1
E
1
F
1
G
1
0.098 +0.008
_
0.079 +0.008
_
0.040 max
0.072
0.047
0.030
0.091
0.061
0.028
Not to Scale
Contacts: Gold 11.8 µinches 0.3 µm minimum
over Nickel 50 to 350 µinches 1.27 to 8.89 µm
Pad
1
2
3
4
5
6
Function
Vcontrol Input
none
Ground (GND)
Output
none
Supply Voltage (V
CC
)
Note
1
Typical dimensions
H
1
J
1
If this function is not specified, recommend connecting this pad to ground.
No connection or Ground. Ground is recommended)
No connection or Ground. Ground is recommended)
Recommend connecting appropriate power supply bypass capacitors as close
as possible.
www.pletronics.com
425-776-1880
4
TCF4 Series
TCVCXO Oscillator
January 2009

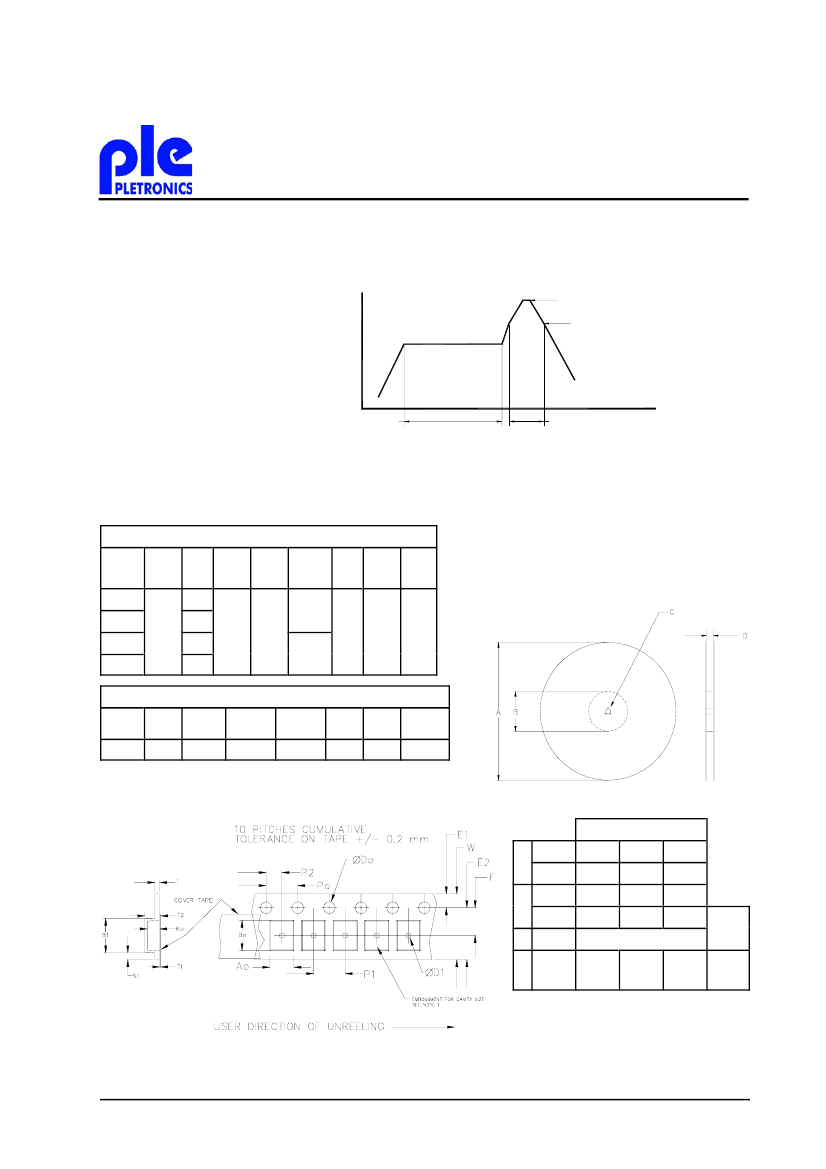

Reflow Cycle (typical for lead free processing)
Temperature (°C)
250
200
150
100
175°C±10°C
260°C Maximum
10 Seconds Maximum
215°C±10°C
120 to 160 Seconds
Approximately 50 Seconds
Allowed rate of temperature change
Maximum 4°C per second
The part may be reflowed 2 times without degradation.
Tape and Reel: available for quantities of 250 to 1000 per reel, cut tape for < 250
Constant Dimensions Table 1
Tape
Size
8mm
12mm
16mm
24mm
1.5
+0.1
-0.0
D1
Min
1.0
1.5
1.5
1.5
1.75
_0.1
+
4.0
0.6
_0.1
+
2.0
_0.1
+
0.6
0.1
S1
Min
T
Max
T1
Max
D0
E1
P0
P2
2.0
_
+0.05
Variable Dimensions Table 2
Tape
Size
16 mm
B1
Max
12.1
E2 Min
F
P1
T2
Max
8.0
W
Max
16.3
Ao, Bo &
Ko
Note 1
Not to scale
14.25
7.5 _0.1
+
8.0 +0.1
_
Note 1: Embossed cavity to conform to EIA-481-B
Dimensions in mm
REEL DIMENSIONS
A
inches
mm
B
inches
mm
C
D
mm
mm
16.4
+2.0
-0.0
7.0
177.8
2.50
63.5
10.0
254.0
4.00
101.6
13.0 +0.5 / -0.2
16.4
+2.0
-0.0
16.4
+2.0
-0.0
16.0
13.0
330.2
3.75
95.3
Tape
Width
Reel dimensions may vary from the above
www.pletronics.com
425-776-1880
5
ADI Reference Circuit
