PHLS75A48L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> PHLS75A48L

PHLS75A48L: DescriptionPower/Signal Relay, SPDT, Latched, 0.112A (Coil), 48VDC (Coil), 75A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size645KB，4 Pages; ManufacturerSTPI Siege Social

Download Datasheet Parametric View All

PHLS75A48L Overview

Power/Signal Relay, SPDT, Latched, 0.112A (Coil), 48VDC (Coil), 75A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount

PHLS75A48L Parametric

Parameter Name	Attribute value
Maker	STPI Siege Social
Reach Compliance Code	unknown
ECCN code	EAR99
body width	26.2 mm
body height	36.1 mm
Body length or diameter	47.8 mm
Maximum coil current (DC)	0.112 A
Coil operating voltage (DC)	36 V
Coil release voltage (DC)	36 V
Coil resistance	425 Ω
Maximum coil voltage (DC)	48 V
Coil/Input Power Type	DC
Maximum contact current (DC)	75 A
Contact (DC) maximum rated R load	75A@28VDC
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Electrical life	50000 Cycle(s)
Manufacturer's serial number	PHL
Installation features	PANEL MOUNT
operating hours	22 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C

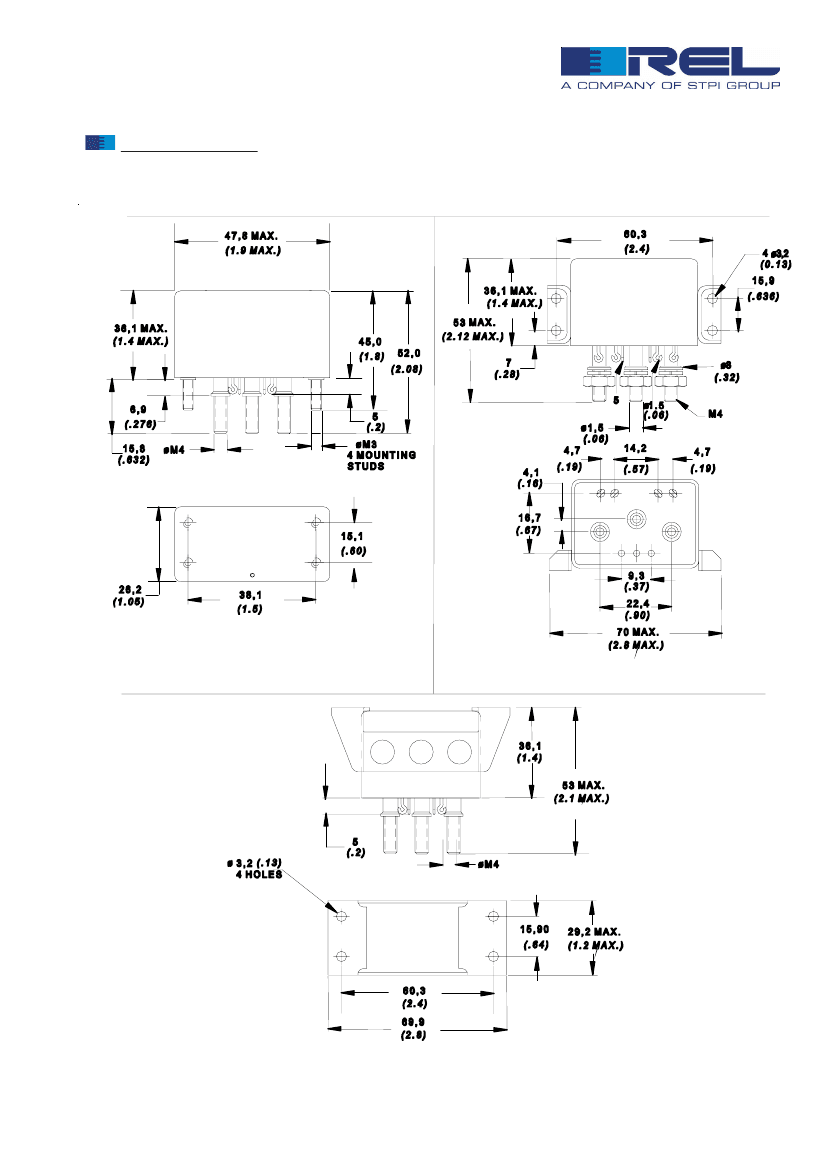

physical size	47.8mm X 26.2mm X 36.1mm
Relay action	LATCHED
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	22 ms
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SOLDER HOOK

Preview

Download Datasheet

View All

Series PHL

hermetically sealed relay

for severe environmental conditions

1 PDBDT 75 Amp 28 V

or 50 Amp 50 V

1 Pdt 2 Amp

latching relay

General characteristics

No. of poles

Volume

Mass

Characteristics in accordance with

1 Form Z (Main)

1 Form C (Aux)

45 cm

[2.75 in

]

193 g

[.43 lb. Max]

ESCC 3602 014

Switching characteristics

Operate time @ 25° C

Release time @ 25° C

Bounce time @ 25° C

Mechanical Life (reduced current)

Contact rating

Type of load

(High level)

Resistive

20 ms max

2 ms max

100 000 cycles

Cycles x 10

100

28 Vdc

75 amps

50 amps

50Vdc

n/a

50 amps

Resistive

n/a

Auxiliary contacts: Resistive 2 AMPS @ 28VDC

Environmental characteristics

Temperature Range

Vibration, any axis (sinusoidal)

Shock, any axis

Seal

-70°C to +125°C

20 g 10 to 2000 Hz

100 g 11 ms

Hermetic (1 x 10

-8

atm cm

/s)

Electrical characteristics

Contact voltage drop (@ Rated resistive load)

- Initial

- After guaranteed life

Dielectric strength @ sea level

- Initial @ 60Hz

Insulation Resistance

- Initial

Coil to case

1 000 Vrms

Main contacts

1 000 Vrms

125 mV Max.

250 mV Max.

Auxiliary contacts

500 Vrms

Contact to case

1 250 Vrms

100 Megohms min. @ 500 Vdc

22, rue des Chaises

45 140 SAINT JEAN DE LA RUELLE - FRANCE

www.stpigroup.com

Tél : +33 (0)2 38 70 45 00

series PHL

page 1 / 4
