HM2P87PKJ118GFLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P87PKJ118GFLF

HM2P87PKJ118GFLF: DescriptionBoard Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P87PKJ118GFLF Overview

Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P87PKJ118GFLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	10
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	220
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

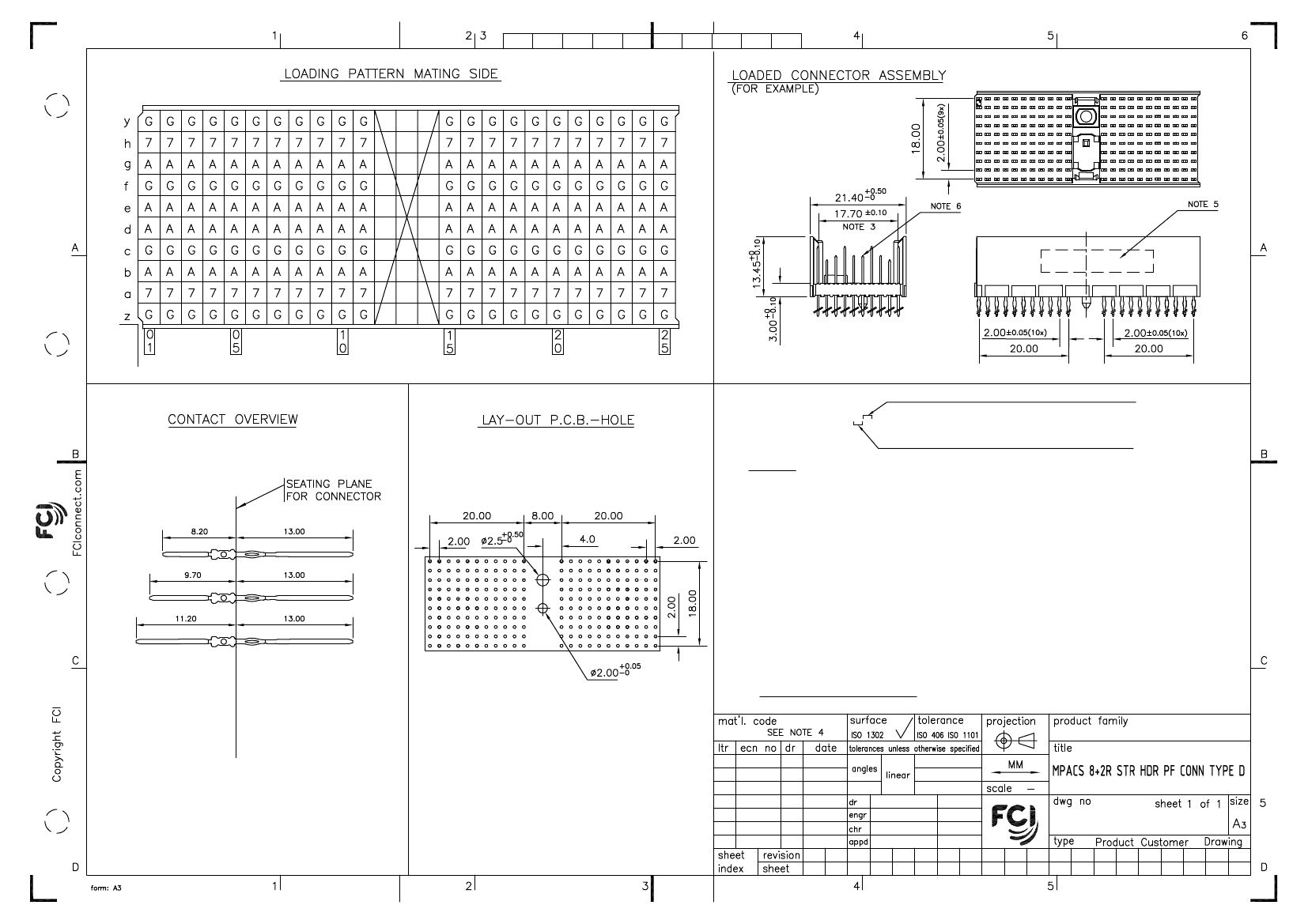

HM2P87PKJ118----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

PART NO: HM2P87PKJ118----

MILLIPACS

I05-0027

I05-0165

I05-0199

I06-0099

MINI

2005/02/23

2005/09/21

2005/11/07

2006/07/03

0°±1°

MINI K VANDANATH 2005/02/23

BIJU K PAUL

2005/02/23

2006/07/03

.0±0.2

.00±0.1

BS, C ,203028,217

PDM: Rev:D

STATUS:

Released

Printed: Dec 03, 2007
