FFC-9ASM22B: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size53KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FFC-9ASM22B Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

FFC-9ASM22B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

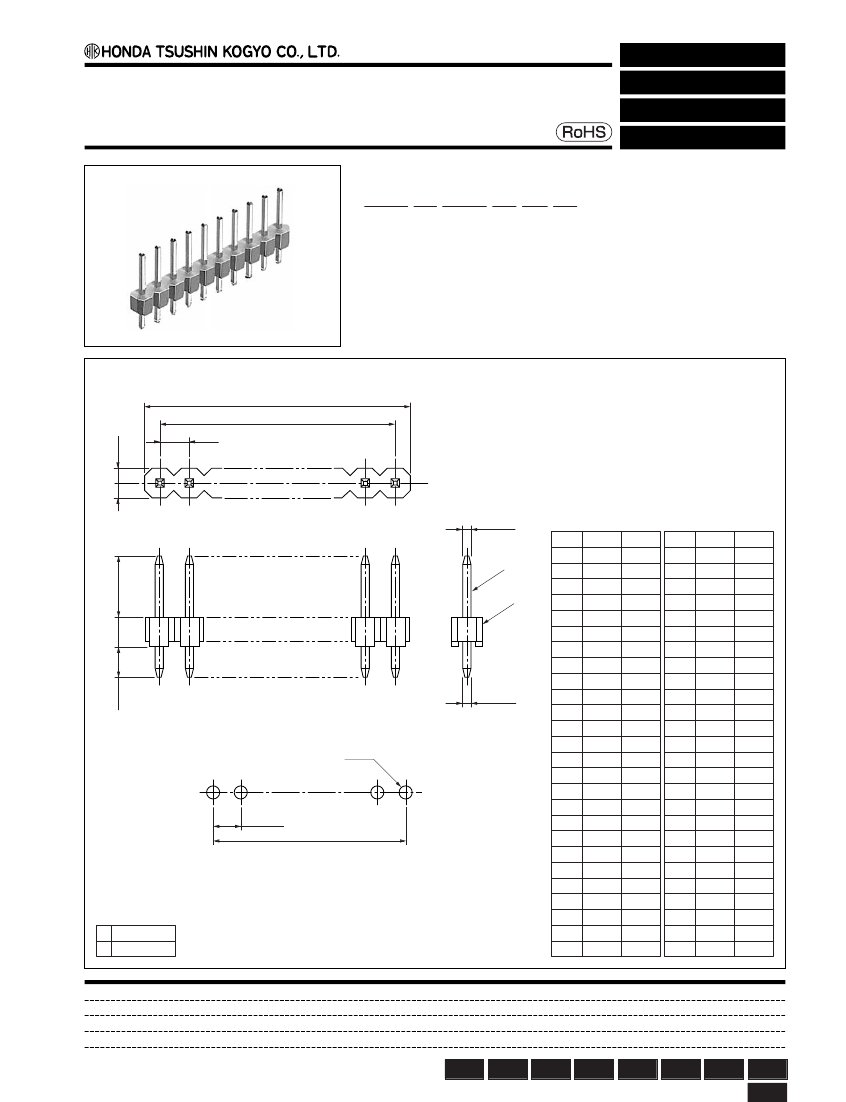

2.54 mm pitch connector

Straight through hole type male connector for PCB

FFC-( )ASM( )( )( )

●

Configuration of product Part No.

For PCB

Straight Through hole

Contact structure is designed to prevent flux

entry during contact soldering.

FFC- ( ) ASM ( ) ( ) ( )

➀

➁

➂

➃

➄

¢§

Contact plating

: Gold plate

22 : Tin plate

4 / +: Gold plate,

➄

Insulator color

Blank: Blue

: Black

➀

Series name

➁

No. of contacts: 1–52

➂

Type of contact

ASM: 0.635 mm square contacts,

single row type, contact

structure is designed to

prevent flux entry during

contact soldering.

2.54

œ0.635

●

Dimensions

No. of

contacts

(6.1)

➁

➀

–

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

No. of

contacts

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

2.54

2.5

(3.05)

œ0.635

The dimensions within parentheses are for ASM4( )+

configuration of product part numbers.

ø1

+0.1

99.06 101.60

101.60 104.14

104.14 106.68

106.68 109.22

109.22 111.76

111.76 114.30

114.30 116.84

116.84 119.38

119.38 121.92

121.92 124.46

124.46 127.00

127.00 129.54

129.54 132.08

2.54

+ 0.05

–

– 0.1

Recommended PCB layout

●

Components

➀

Insulator

➁

Contact

Note: Contact structure is designed to prevent flux

entry during contact soldering.

Mating connectors:

DIC series or HKP series female connector

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole
