Series 805
Series 805 “Mighty Mouse”
Triple-Start
Series 805 Receptacles With PCB or Solder Cup Contacts
These receptacles
feature a low
profile shell for minimum protrusion
inside enclosures. Contacts are non-
removable. Connectors are backfilled
with epoxy for a watertight seal.
Two Shell Styles:
jam nut with o-ring
for rear panel mounting, or square
flange.
PCB Contacts
feature gold-plated
tails for solder termination to rigid or
flexible circuits.
Solder Cup Contacts
are factory-
installed and fully sealed with epoxy.

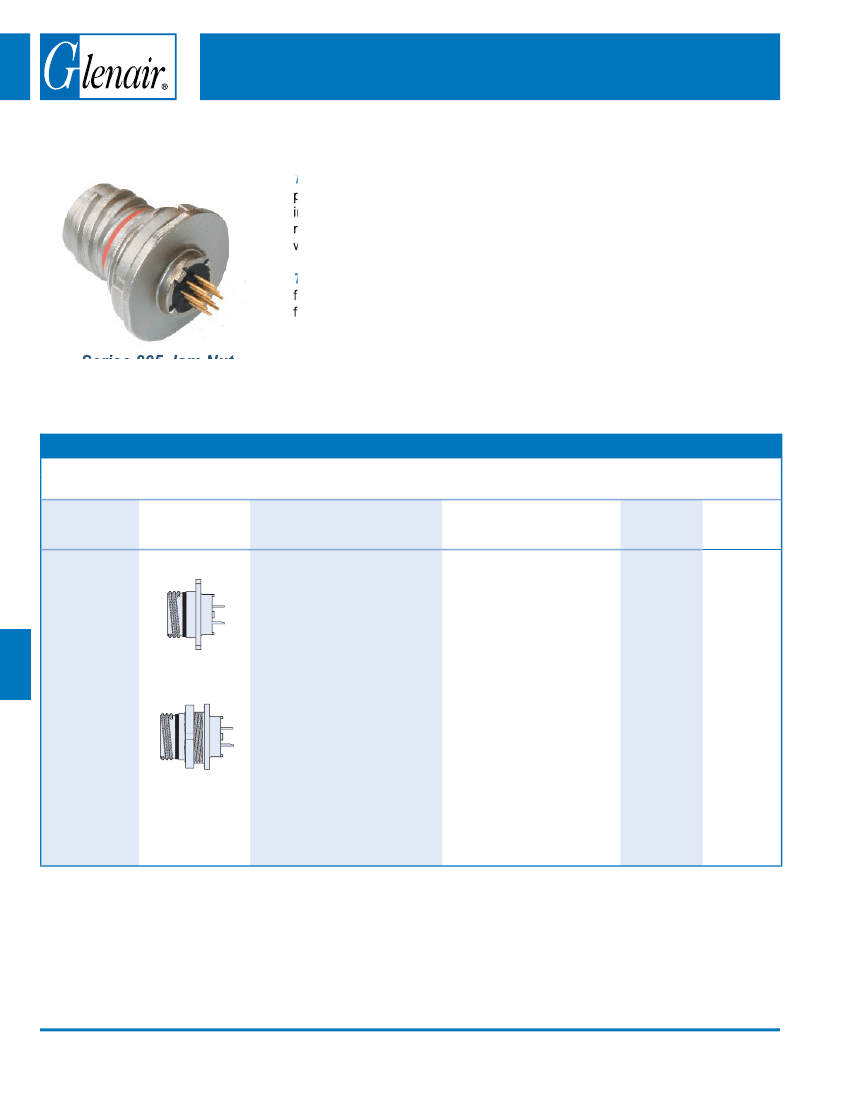

Series 805 Jam Nut
PCB Receptacle Connector
HOW TO ORDER
Sample Part Number
M
Shell Material / Finish
C
Aluminum / Black Anodize
10-13
Shell Size- Insert
Arrangement
8-1
8-4
8-7
9-1
9-10
10-13
11-4
11-19
12-26
15-2
1 #16 Contact
4 #23 Contacts
7 #23 Contacts
1 #12 Contact
10 #23 Contacts
13 #23 Contacts
4 #16 Contacts
19 #23 Contacts
26 #23 Contacts
2 #12 Contacts
15-37
37 #23 Contacts
18-55
55 #23 Contacts
19-85
85 #23 Contacts
P
Contact
Type
P
Pin,
PC Tail
B
Shell Key
Position
A
Position A
(Normal)
Series
805-005
Receptacle, with
Solder Cup or
Printed Circuit
Board Contacts
M
Aluminum / Electroless Nickel
B
S
Socket,
PC Tail
Position B
NF
-02
Square Flange
Aluminum / Cadmium with Olive
Drab Chromate
C
Position C
ZN
Aluminum / Zinc-Nickel with
Olive Drab Chromate
D
E
Pin,
Solder Cup
Position D
ZNU
-07
Jam Nut
Aluminum / Zinc-Nickel with
Black Chromate
F
Socket,
Solder Cup
Z1
Stainless Steel / Passivated
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
H-10
Rev. 05-APR-2007
E-Mail: sales@glenair.com
Series 805 “Mighty Mouse”
Triple-Start
Series 805 Receptacles With PCB or Solder Cup Contacts

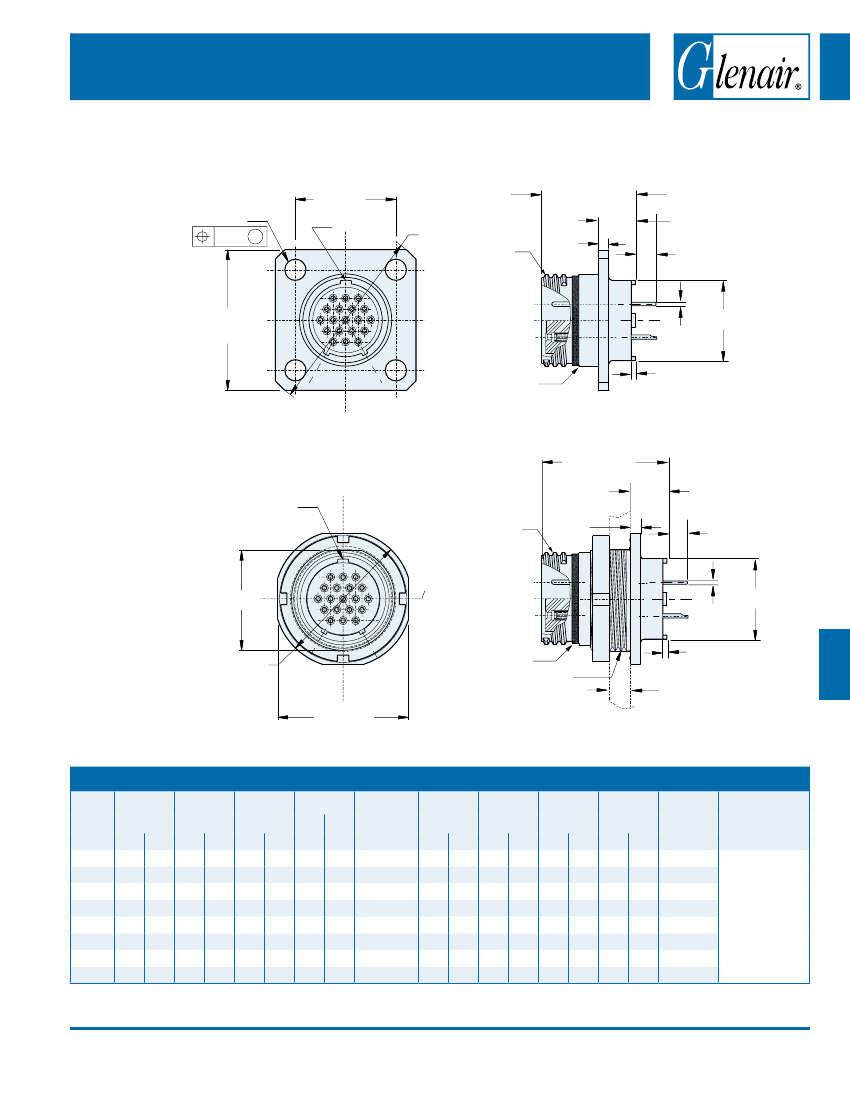

4X ø D
ø.005 M
B BSC
TYP
MASTER
KEYWAY
.809 (20.55)
øC
E
THREAD
.227 / .217
(5.77 / 5.51)
.060
(1.52)
.125 (3.18) MIN.
SQUARE
FLANGE WITH
PC TAIL
805-005-02
A SQ
TYP
øL
.025
(0.64)
øF
RED FULL MATE
INDICATOR BAND
.888 (22.56)
.165 / .155
(4.19 / 3.93)
MASTER½
KEYWAY
E
THREAD
.060
(1.52)
.125 (3.18) MIN.
JAM NUT
WITH PC TAIL
805-005-07
G FLAT
øL
.025
(0.64)
.100 MAX
PANEL THICKNESS
øF
øH
RED FULL MATE
INDICATOR BAND
J FLAT
TYP
K
THREAD
DIMENSIoNS
Shell
Size
8
9
10
11
12
15
18
19
ØD
E
A
B
ØC
In. mm.
Threads
In. mm. In. mm. In. mm.
± .003 ± .08
-.3L-TS-2A
.850 21.59 .660 16.76 1.150 29.21
.913 23.19 .723 18.36 1.230 31.24
.975 24.77 .785 19.94 1.330 33.78
1.039 26.39 .848 21.54 1.410 35.81
1.099 27.91 .909 23.09 1.500 38.10
1.288 32.74 1.058 26.87 1.750 44.45
1.475 37.47 1.255 31.88 2.000 50.80
1.537 71.06 1.327 33.71 2.094 53.19
.094 2.39
.094 2.39
.094 2.39
.094 2.39
.094 2.39
.128 3.25
.128 3.25
.128 3.25
.5000-.1P
.5625-.1P
.6250-.1P
.6875-.1P
.7500-.1P
.9375-.1P
1.1250-.1P
1.1875.1P
K
ØF
G
ØH
ØJ
Threads
In.
mm. In. mm. In. mm. In. mm.
UN-2A
.330 8.38
.432 10.97
.493 12.52
.551 14.00
.620 15.78
.703 17.86
.535 13.59
.661 16.79
.661 16.79
.760 19.30 .730 18.54
.880 22.35 .850 21.59
.880 22.35 .850 21.59
.5625-28
.6875-28
.6875-28
Tail Dia.
#23
.018/.022
(0.46/0.56)
#16
.060/.064
(1.52/1.63)
#12
.092/.096
(2.34/2.44)
ØL
.721 18.31 .955 24.26 .925 23.50
.7500-28
.784 19.91 1.060 26.92 1.035 26.29
.8125-28
.970 24.64 1.203 30.56 1.173 29.79
1.0000-28
.863 21.92 1.147 29.13 1.389 35.28 1.359 34.52
1.1875-28
.912 23.16 1.221 31.01 1.450 36.83 1.420 36.07
1.2500-28
