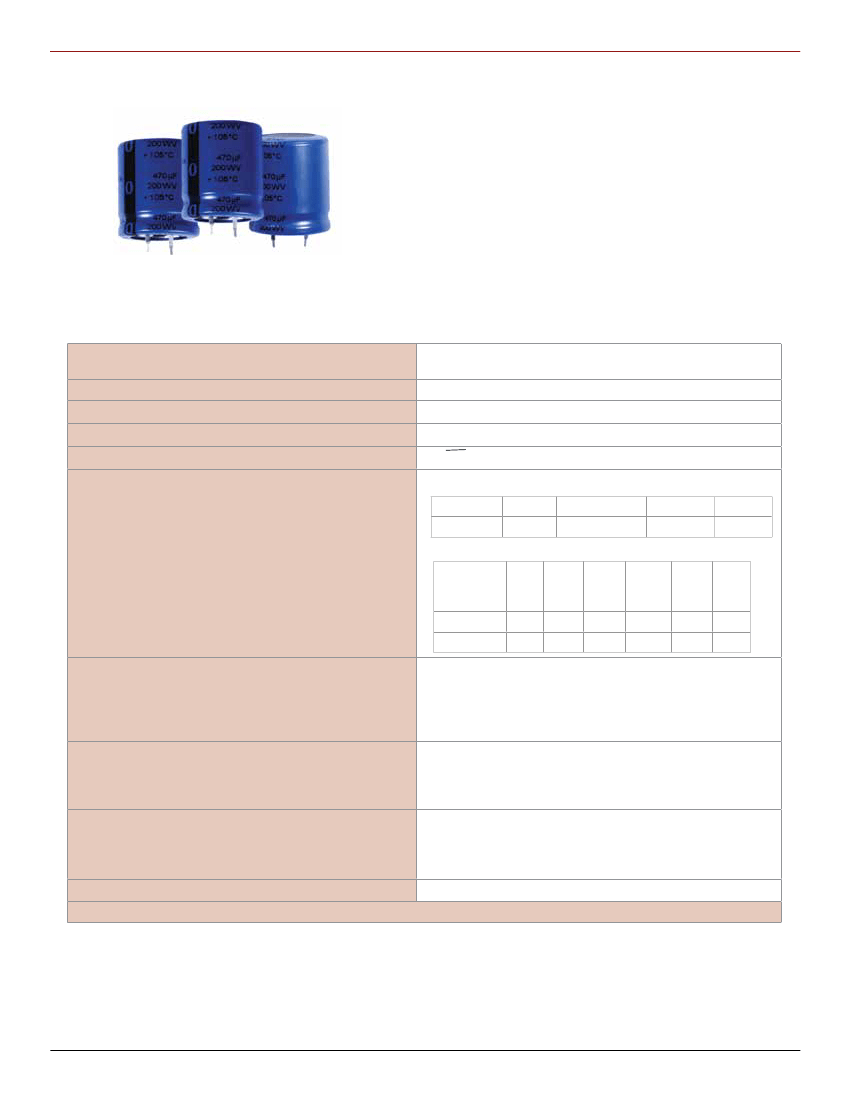

Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
Type 381LQ is on average 23% smaller and more than 5 mm
shorter than Type 381LX. This is achieved with a new can
closure method that permits installing capacitor elements into
smaller cans. Approaching the robust capability of the 381L
the new 381LQ enables you to shrink equipment size and
retain the original performance.
Highlights
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
- More capacitance per case
- Compares to the 381L
–40 °C to + 105 °C ≤ 315 Vdc
–25 °C to + 105 °C ≥ 350 Vdc
10 Vdc to 450 Vdc
100 µF to 100,000 µF
± 20%
≤3 √CV µA, 4 mA max, 5 minutes
Ambient Temperature
45 ºC
2.35
Frequency
10
50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &
Up
0.93
0.95
0.80
1.00
1.00
1.05
1.20
1.08
1.25
1.15
1.40
60 ºC
2.20
70 ºC
2.00
85 ºC
1.70
105 ºC
1.00
Voltage
10 - 100 WV
Low Temperature Characteristics
160 - 450 WV 0.75
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 10 (10 Vdc)
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc)
2000 h at full load at 105 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1000 h at 105 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h each plane
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
Part Numbering System
381LQ
821
M
400
A05
Case
2
Insulating
Sleeve
2
= PVC
A
+D
Blank =
no end disk if <250 V
Type
Cap
332
= 3300 µF
103
= 10,000 µF
Tolerance
M =
±20%
Voltage
160
= 160 Vdc
450
= 450 Vdc
Code
Pin Style
Blank
= 2 pins
snap-in 6.3 mm L
A
= 2 pins snap-in
4.0 mm L
D =
end disk, any voltage
381LQ 471
= 470 µF

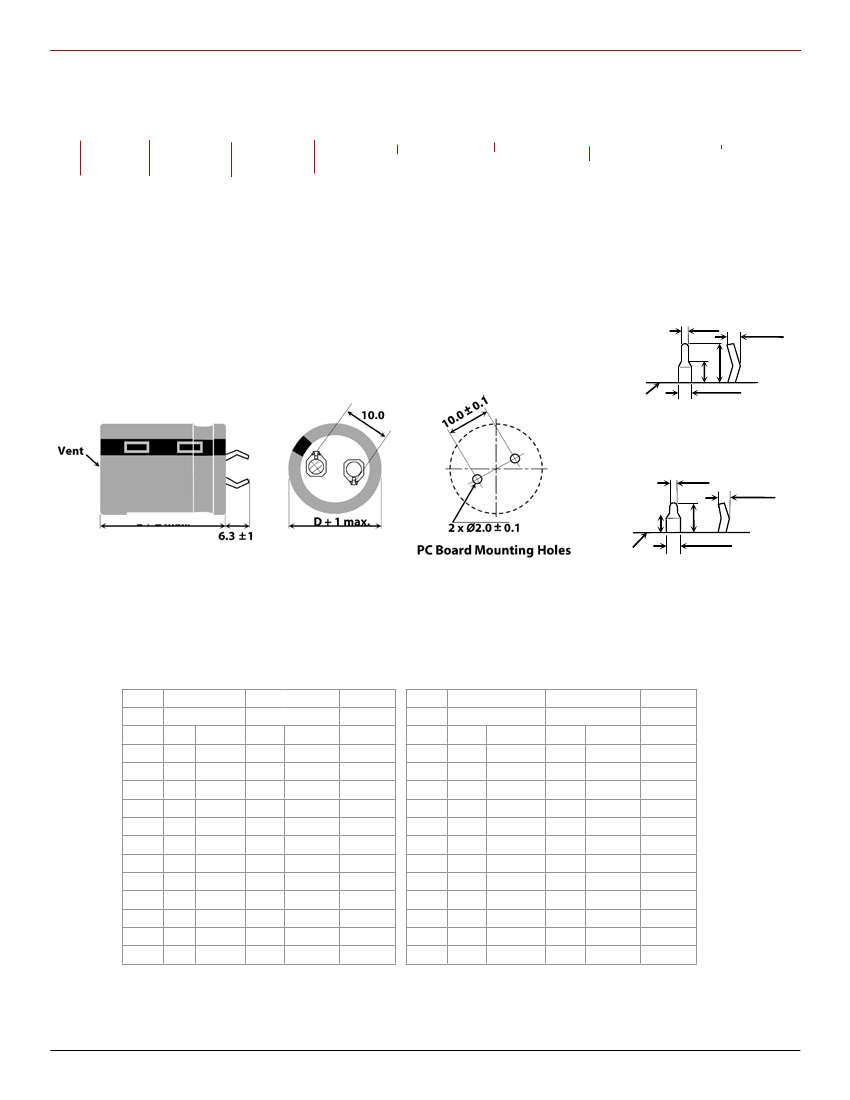

Outline Drawing
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
Top of
Capacitor
Body
1.5 0.2
6.3 mm pin length
+0.2
0.8 -0.1
2.0max.
L ± 2 max.
3.5
4.0
1.5 0.2
Dimensions shown are in mm
Top of
Capacitor
Body
4.0 mm pin length
option (add “A” to end
of part#)
Note that for 200 volts and under the insulating end disc is optional - If one is needed add a (+D) to the end of the part numbering system.
Insulated Case Dimensions
DIAMETER
Case
Code
H01
H02
H03
H04
H45
H05
J01
J02
J03
J04
J45
J05
mm
22
22
22
22
22
22
25
25
25
25
25
25
D
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
mm
25
30
35
40
45
50
25
30
35
40
45
50
LENGTH
L
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
16
19
22
24
28
31
20
24
27
31
35
38
Case
Code
K01
K02
K03
K04
K45
K05
A01
A02
A03
A04
A45
A05
mm
30
30
30
30
30
30
35
35
35
35
35
35
DIAMETER
D
inches
1.18
1.18
1.18
1.18
1.18
1.18
1.38
1.38
1.38
1.38
1.38
1.38
mm
25
30
35
40
45
50
25
30
35
40
45
50
LENGTH
L
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
30
35
40
44
49
53
42
48
54
60
67
74
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Higher Capacitance per Case Size
Ratings
ESR Max
@ 25 ºC
Cap.
(µF)
12000
18000
18000
22000
22000
27000
27000
27000
33000
33000
39000
39000
39000
47000
47000
47000
56000
56000
68000
68000
82000
100000
10000
12000
12000
15000
18000
18000
22000
22000
22000
27000
27000
27000
27000
33000
33000
33000
39000
39000
47000
47000
56000
Catalog
Part Number
381LQ123M010H012
381LQ183M010H022
381LQ183M010H012
381LQ223M010H032
381LQ223M010J022
381LQ273M010H042
381LQ273M010J032
381LQ273M010K012
381LQ333M010H452
381LQ333M010J042
381LQ393M010J452
381LQ393M010K022
381LQ393M010A012
381LQ473M010J052
381LQ473M010K032
381LQ473M010A022
381LQ563M010K042
381LQ563M010A032
381LQ683M010K452
381LQ683M010A042
381LQ823M010A452
381LQ104M010A052
381LQ103M016H012
381LQ123M016H022
381LQ123M016J012
381LQ153M016H032
381LQ183M016H042
381LQ183M016J022
381LQ223M016H452
381LQ223M016J032
381LQ223M016H012
381LQ273M016H052
381LQ273M016J042
381LQ273M016K022
381LQ273M016A012
381LQ333M016J452
381LQ333M016K032
381LQ333M016A022
381LQ393M016K042
381LQ393M016A032
381LQ473M016K452
381LQ473M016A042
381LQ563M016K052
Ω
0.076
0.051
0.051
0.041
0.041
0.034
0.034
0.034
0.028
0.028
0.026
0.026
0.026
0.024
0.024
0.024
0.023
0.023
0.022
0.022
0.021
0.020
0.075
0.062
0.062
0.050
0.041
0.041
0.034
0.034
0.034
0.028
0.028
0.028
0.028
0.023
0.023
0.023
0.022
0.022
0.016
0.021
0.020
Ω
0.065
0.043
0.043
0.035
0.035
0.029
0.029
0.029
0.023
0.023
0.022
0.023
0.022
0.021
0.022
0.021
0.021
0.020
0.020
0.019
0.019
0.019
0.063
0.053
0.053
0.042
0.035
0.035
0.029
0.029
0.029
0.023
0.023
0.023
0.023
0.019
0.019
0.020
0.018
0.020
0.014
0.019
0.018
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Ripple Amps
@ 105 ºC
(A)
2.20
2.40
2.40
2.60
2.60
3.10
3.10
3.10
3.40
3.40
3.70
3.70
3.70
4.20
4.20
4.20
5.00
5.00
5.40
5.40
6.10
6.90
2.60
2.90
2.90
3.20
3.50
3.50
3.80
3.80
3.80
4.20
4.20
4.20
4.20
4.70
4.70
4.70
5.10
5.10
5.50
5.50
6.00
(A)
2.53
2.76
2.76
2.99
2.99
3.57
3.57
3.57
3.91
3.91
4.26
4.26
4.26
4.83
4.83
4.83
5.75
5.75
6.21
6.21
7.02
7.94
2.99
3.34
3.34
3.68
4.03
4.03
4.37
4.37
4.37
4.83
4.83
4.83
4.83
5.41
5.41
5.41
5.87
5.87
6.33
6.33
6.90
Nominal
Size
DxL
(mm)
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 40
25 x 45
30 x 30
35 x 25
25 x 50
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
22 x 35
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
30 x 50
4700
5600
5600
6800
8200
8200
10000
10000
10000
12000
12000
12000
15000
15000
15000
18000
18000
22000
22000
6800
8200
8200
10000
12000
12000
15000
15000
15000
18000
18000
18000
18000
22000
22000
22000
27000
27000
33000
33000
39000
39000
47000
Cap.
(µF)
56000
Catalog
Part Number
381LQ563M016A452
381LQ682M025H012
381LQ822M025H022
381LQ822M025J012
381LQ103M025H032
381LQ123M025H042
381LQ123M025J022
381LQ153M025H452
381LQ153M025J032
381LQ153M025K012
381LQ183M025H052
381LQ183M025J042
381LQ183M025K022
381LQ183M025A012
381LQ223M025J452
381LQ223M025K032
381LQ223M025A022
381LQ273M025K042
381LQ273M025A032
381LQ333M025K452
381LQ333M025A042
381LQ393M025K052
381LQ393M025A452
381LQ473M025A052
381LQ472M035H012
381LQ562M035H022
381LQ562M035J012
381LQ682M035H032
381LQ822M035H042
381LQ822M035J022
381LQ103M035H452
381LQ103M035J032
381LQ103M035K012
381LQ123M035J042
381LQ123M035K022
381LQ123M035A012
381LQ153M035J452
381LQ153M035K032
381LQ153M035A022
381LQ183M035K042
381LQ183M035A032
381LQ223M035K452
381LQ223M035A042
ESR Max
@ 25 ºC
Ω
0.020
0.085
0.071
0.071
0.058
0.048
0.048
0.039
0.039
0.039
0.032
0.032
0.032
0.032
0.026
0.026
0.026
0.021
0.021
0.018
0.018
0.017
0.017
0.017
0.106
0.089
0.089
0.073
0.061
0.061
0.050
0.050
0.050
0.041
0.041
0.041
0.033
0.033
0.033
0.028
0.028
0.023
0.023
Ω
0.018
0.064
0.053
0.053
0.044
0.036
0.036
0.029
0.029
0.029
0.024
0.024
0.024
0.024
0.020
0.020
0.020
0.016
0.016
0.013
0.014
0.013
0.014
0.014
0.079
0.067
0.067
0.055
0.045
0.045
0.037
0.037
0.037
0.031
0.031
0.031
0.025
0.025
0.025
0.021
0.021
0.017
0.017
Ripple Amps
@ 105 ºC
(A)
6.00
2.40
2.70
2.70
3.00
3.20
3.20
3.60
3.60
3.60
3.90
3.90
3.90
3.90
4.30
4.30
4.30
4.80
4.80
5.50
5.50
5.80
5.80
6.30
2.20
2.40
2.40
2.60
2.90
2.90
3.20
3.20
3.20
3.50
3.50
3.50
3.90
3.90
3.90
4.30
4.30
5.00
5.00
(A)
6.90
2.76
3.11
3.11
3.45
3.68
3.68
4.14
4.14
4.14
4.49
4.49
4.49
4.49
4.95
4.95
4.95
5.52
5.52
6.33
6.33
6.67
6.67
7.25
2.53
2.76
2.76
2.99
3.34
3.34
3.68
3.68
3.68
4.03
4.03
4.03
4.49
4.49
4.49
4.95
4.95
5.75
5.75
Nominal
Size
DxL
(mm)
35 x 45
22 x 25
22 x 30
25 x 25
22 x 35
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
30 x 50
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
22 x 35
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
120 Hz 20 kHz 120 Hz 20 kHz
10 Vdc (13 Vdc Surge)
120 Hz 20 kHz 120 Hz 20 kHz
25 Vdc (32 Vdc Surge)
16 Vdc (20 Vdc Surge)
35 Vdc (44 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
ESR Max
@ 25 ºC
Cap.
(µF)
27000
27000
33000
2700
3300
3900
3900
4700
4700
5600
5600
4700
4700
5600
5600
5600
6800
6800
6800
6800
8200
8200
10000
10000
10000
12000
12000
15000
15000
18000
2200
2700
2700
3300
3900
3900
3900
4700
4700
5600
5600
5600
Catalog
Part Number
381LQ273M035K052
381LQ273M035A452
381LQ333M035A052
381LQ272M050H012
381LQ332M050H022
381LQ392M050H032
381LQ392M050J012
381LQ472M050H042
381LQ472M050J022
381LQ562M050H452
381LQ562M050J032
381LQ472M050H042
381LQ472M050J022
381LQ562M050H452
381LQ562M050J032
381LQ562M050K012
381LQ682M050H052
381LQ682M050J042
381LQ682M050K022
381LQ682M050A012
381LQ822M050J452
381LQ822M050K032
381LQ103M050J052
381LQ103M050K042
381LQ103M050A022
381LQ123M050K452
381LQ123M050A032
381LQ153M050K052
381LQ153M050A042
381LQ183M050A452
381LQ222M063H012
381LQ272M063H022
381LQ272M063J012
381LQ332M063H032
381LQ392M063H042
381LQ392M063J022
381LQ392M063K012
381LQ472M063H452
381LQ472M063J032
381LQ562M063H052
381LQ562M063J042
381LQ562M063K022
Ω
0.018
0.018
0.015
0.154
0.126
0.106
0.106
0.088
0.088
0.074
0.074
0.088
0.088
0.074
0.074
0.074
0.061
0.061
0.061
0.061
0.051
0.051
0.041
0.041
0.041
0.035
0.035
0.028
0.028
0.023
0.151
0.123
0.123
0.100
0.085
0.085
0.085
0.071
0.071
0.059
0.059
0.059
Ω
0.014
0.014
0.012
0.115
0.094
0.080
0.080
0.066
0.066
0.056
0.056
0.066
0.066
0.056
0.056
0.056
0.046
0.046
0.046
0.046
0.038
0.038
0.031
0.031
0.031
0.026
0.028
0.021
0.022
0.018
0.113
0.092
0.092
0.075
0.064
0.064
0.064
0.053
0.053
0.044
0.044
0.044
Ripple Amps
@ 105 ºC
(A)
5.30
5.30
5.90
1.80
2.00
2.20
2.20
2.50
2.50
2.80
2.80
2.50
2.50
2.80
2.80
2.80
3.30
3.30
3.30
3.30
3.60
3.60
4.00
4.00
4.00
4.50
4.50
4.80
4.80
5.60
2.00
2.20
2.20
2.50
2.70
2.70
2.70
3.00
3.00
3.30
3.30
3.30
(A)
6.10
6.10
6.79
2.07
2.30
2.53
2.53
2.88
2.88
3.22
3.22
2.88
2.88
3.22
3.22
3.22
3.80
3.80
3.80
3.80
4.14
4.14
4.60
4.60
4.60
5.18
5.18
5.52
5.52
6.44
2.30
2.53
2.53
2.88
3.11
3.11
3.11
3.45
3.45
3.80
3.80
3.80
Nominal
Size
DxL
(mm)
30 x 50
35 x 45
35 x 50
22 x 25
22 x 30
22 x 35
25 x 25
22 x 40
25 x 30
22 x 45
25 x 35
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
22 x 25
22 x 30
25 x 25
22 x 35
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
22 x 50
25 x 40
30 x 30
820
1200
1200
1500
1500
1800
1800
1800
1200
1500
1500
1800
2200
2200
2700
2700
2700
3300
3300
3300
3300
3900
3900
4700
4700
4700
5600
5600
6800
6800
8200
Cap.
(µF)
5600
6800
6800
6800
8200
8200
Catalog
Part Number
381LQ562M063A012
381LQ682M063J452
381LQ682M063K032
381LQ682M063A022
381LQ822M063K042
381LQ822M063A032
ESR Max
@ 25 ºC
Ω
0.059
0.049
0.049
0.049
0.040
0.040
0.033
0.033
0.028
0.028
0.022
0.235
0.188
0.188
0.157
0.128
0.128
0.104
0.104
0.104
0.085
0.085
0.085
0.085
0.072
0.072
0.060
0.060
0.060
0.050
0.050
0.041
0.041
0.034
0.303
0.207
0.207
0.166
0.166
0.138
0.138
0.138
Ω
0.044
0.037
0.037
0.037
0.030
0.030
0.025
0.025
0.021
0.022
0.018
0.176
0.141
0.141
0.117
0.096
0.096
0.078
0.078
0.078
0.064
0.064
0.064
0.064
0.054
0.054
0.045
0.045
0.045
0.038
0.038
0.031
0.032
0.027
0.197
0.135
0.135
0.108
0.108
0.090
0.090
0.090
Ripple Amps
@ 105 ºC
(A)
3.30
3.60
3.60
3.60
3.90
3.90
4.40
4.40
4.80
4.80
5.40
1.50
1.70
1.70
1.80
2.10
2.10
2.40
2.40
2.40
2.60
2.60
2.60
2.60
3.00
3.00
3.30
3.30
3.30
3.70
3.70
3.90
3.90
4.50
1.40
1.80
1.80
2.10
2.10
2.30
2.30
2.30
(A)
3.80
4.14
4.14
4.14
4.49
4.49
5.06
5.06
5.52
5.52
6.21
1.73
1.96
1.96
2.07
2.42
2.42
2.76
2.76
2.76
2.99
2.99
2.99
2.99
3.45
3.45
3.80
3.80
3.80
4.26
4.26
4.49
4.49
5.18
1.61
2.07
2.07
2.42
2.42
2.65
2.65
2.65
Nominal
Size
DxL
(mm)
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
30 x 50
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
22 x 35
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
120 Hz 20 kHz 120 Hz 20 kHz
120 Hz 20 kHz 120 Hz 20 kHz
50 Vdc (63 Vdc Surge)
10000 381LQ103M063K452
10000 381LQ103M063A042
12000 381LQ123M063K052
12000 381LQ123M063A452
15000 381LQ153M063A052
381LQ122M080H012
381LQ152M080H022
381LQ152M080J012
381LQ182M080H032
381LQ222M080H042
381LQ222M080J022
381LQ272M080H452
381LQ272M080J032
381LQ272M080K012
381LQ332M080H052
381LQ332M080J042
381LQ332M080K022
381LQ332M080A012
381LQ392M080J452
381LQ392M080K032
381LQ472M080J052
381LQ472M080K042
381LQ472M080A022
381LQ562M080K452
381LQ562M080A032
381LQ682M080K052
381LQ682M080A042
381LQ822M080A452
381LQ821M100H012
381LQ122M100H022
381LQ122M100J012
381LQ152M100H032
381LQ152M100J022
381LQ182M100H042
381LQ182M100J032
381LQ182M100K012
80 Vdc (100 Vdc Surge)
63 Vdc (79 Vdc Surge)
100 Vdc (125 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
ESR Max
@ 25 ºC
Cap.
(µF)
2200
2200
2200
2200
2700
2700
3300
3300
3300
3900
3900
4700
4700
5600
6800
470
560
680
680
820
820
1000
1000
1000
1200
1200
1200
1200
1500
1500
1500
1800
1800
1800
2200
2200
2700
2700
3300
560
560
Catalog
Part Number
381LQ222M100H452
381LQ222M100J042
381LQ222M100K022
381LQ222M100A012
381LQ272M100J452
381LQ272M100K032
381LQ332M100J052
381LQ332M100K042
381LQ332M100A022
381LQ392M100K452
381LQ392M100A032
381LQ472M100K052
381LQ472M100A042
381LQ562M100A452
381LQ682M100A052
381LQ471M160H012
381LQ561M160H022
381LQ681M160H022
381LQ681M160J012
381LQ821M160H032
381LQ821M160J022
381LQ102M160H042
381LQ102M160J032
381LQ102M160K012
381LQ122M160H452
381LQ122M160J042
381LQ122M160K022
381LQ122M160A012
381LQ152M160J452
381LQ152M160K032
381LQ152M160A022
381LQ182M160J052
381LQ182M160K042
381LQ182M160A022
381LQ222M160K452
381LQ222M160A032
381LQ272M160K052
381LQ272M160A042
381LQ332M160A052
Ω
0.113
0.113
0.113
0.113
0.092
0.092
0.075
0.075
0.075
0.064
0.064
0.053
0.053
0.044
0.037
0.423
0.355
0.293
0.293
0.243
0.243
0.199
0.199
0.216
0.166
0.166
0.166
0.180
0.133
0.133
0.155
0.110
0.110
0.120
0.090
0.098
0.080
0.086
0.070
Ω
0.073
0.073
0.073
0.073
0.060
0.060
0.049
0.049
0.049
0.043
0.043
0.038
0.037
0.031
0.027
0.190
0.160
0.132
0.132
0.109
0.109
0.090
0.090
0.108
0.075
0.075
0.075
0.090
0.060
0.060
0.077
0.055
0.055
0.060
0.045
0.049
0.040
0.043
0.042
0.160
0.160
Ripple Amps
@ 105 ºC
(A)
2.60
2.60
2.60
2.60
2.90
2.90
3.20
3.20
3.20
3.60
3.60
3.80
3.80
4.20
4.70
1.40
1.50
1.70
1.70
2.00
2.00
2.20
2.20
2.20
2.30
2.30
2.30
2.30
2.50
2.50
2.50
2.70
2.70
2.70
2.90
2.90
3.10
3.10
3.30
1.50
1.50
(A)
2.99
2.99
2.99
2.99
3.34
3.34
3.68
3.68
3.68
4.14
4.14
4.37
4.37
4.83
5.41
1.96
2.10
2.38
2.38
2.80
2.80
3.08
3.08
3.08
3.22
3.22
3.22
3.22
3.50
3.50
3.50
3.78
3.78
3.78
4.06
4.06
4.34
4.34
4.62
2.10
2.10
Nominal
Size
DxL
(mm)
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 50
22 x 30
25 x 25
390
470
560
680
680
820
820
820
1000
1000
1000
1000
1000
1200
1200
1200
1200
1500
1500
1800
1800
2200
2200
Cap.
(µF)
680
680
820
820
820
1000
1000
1000
1000
1200
1200
1500
1500
1500
1800
1800
2200
2200
2700
Catalog
Part Number
381LQ681M180H032
381LQ681M180J022
381LQ821M180H042
381LQ821M180J022
381LQ821M180K012
381LQ102M180H452
381LQ102M180J042
381LQ102M180K022
381LQ102M180A012
381LQ122M180J452
381LQ122M180K032
381LQ152M180J052
381LQ152M180K042
381LQ152M180A022
381LQ182M180K452
381LQ182M180A032
381LQ222M180K052
381LQ222M180A042
381LQ272M180A052
381LQ391M200H012
381LQ471M200H022
381LQ561M200H022
381LQ681M200H042
381LQ681M200J022
381LQ821M200H452
381LQ821M200J032
381LQ821M200K012
381LQ102M200H052
381LQ102M200J042
381LQ102M200J452
381LQ102M200K022
381LQ102M200A012
381LQ122M200J452
381LQ122M200J052
381LQ122M200K032
381LQ122M200A022
381LQ152M200K042
381LQ152M200A022
381LQ182M200K452
381LQ182M200A042
381LQ222M200K052
381LQ222M200A452
ESR Max
@ 25 ºC
Ω
0.293
0.293
0.243
0.243
0.243
0.199
0.199
0.199
0.216
0.166
0.166
0.133
0.133
0.155
0.110
0.129
0.090
0.098
0.086
0.510
0.423
0.355
0.293
0.293
0.243
0.243
0.243
0.199
0.199
0.199
0.199
0.216
0.166
0.166
0.166
0.180
0.133
0.114
0.110
0.129
0.090
0.096
Ω
0.132
0.132
0.109
0.109
0.109
0.090
0.090
0.090
0.097
0.075
0.075
0.060
0.060
0.077
0.050
0.064
0.041
0.049
0.043
0.230
0.190
0.160
0.132
0.132
0.109
0.109
0.109
0.090
0.090
0.090
0.090
0.097
0.075
0.075
0.075
0.090
0.060
0.072
0.050
0.084
0.041
0.044
Ripple Amps
@ 105 ºC
(A)
1.70
1.70
2.00
2.00
2.00
2.20
2.20
2.20
2.20
2.30
2.30
2.50
2.50
2.50
2.70
2.70
2.90
2.90
3.10
1.31
1.45
1.67
1.75
1.75
2.04
2.04
2.04
2.30
2.10
2.30
2.30
2.30
2.40
2.65
2.65
2.65
2.80
2.80
3.08
3.08
3.48
3.48
(A)
2.38
2.38
2.80
2.80
2.80
3.08
3.08
3.08
3.08
3.22
3.22
3.50
3.50
3.50
3.78
3.78
4.06
4.06
4.34
1.83
2.03
2.34
2.45
2.45
2.86
2.86
2.86
3.22
2.90
3.22
3.22
3.22
3.30
3.71
3.71
3.71
3.92
3.92
4.31
4.31
4.87
4.87
Nominal
Size
DxL
(mm)
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 50
22 x 25
22 x 30
22 x 30
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
25 x 45
30 x 30
35 x 25
25 x 45
25 x 50
30 x 35
35 x 30
30 x 40
35 x 30
30 x 45
35 x 40
30 x 50
35 x 45
120 Hz 20 kHz 120 Hz 20 kHz
100 Vdc (125 Vdc Surge)
120 Hz 20 kHz 120 Hz 20 kHz
180 Vdc (225 Vdc Surge)
160 Vdc (200 Vdc Surge)
200 Vdc (250 Vdc Surge)
180 Vdc (225 Vdc Surge)
381LQ561M180H022 0.355
381LQ561M180J012 0.355
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
PCB Design
京公网安备 11010802033920号
EEWORLD
