QS74LVC245APA datasheet, PDF - EEWORLD Datasheet

QS74LVC245APA: DescriptionBus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20; Categorylogic logic; File Size145KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

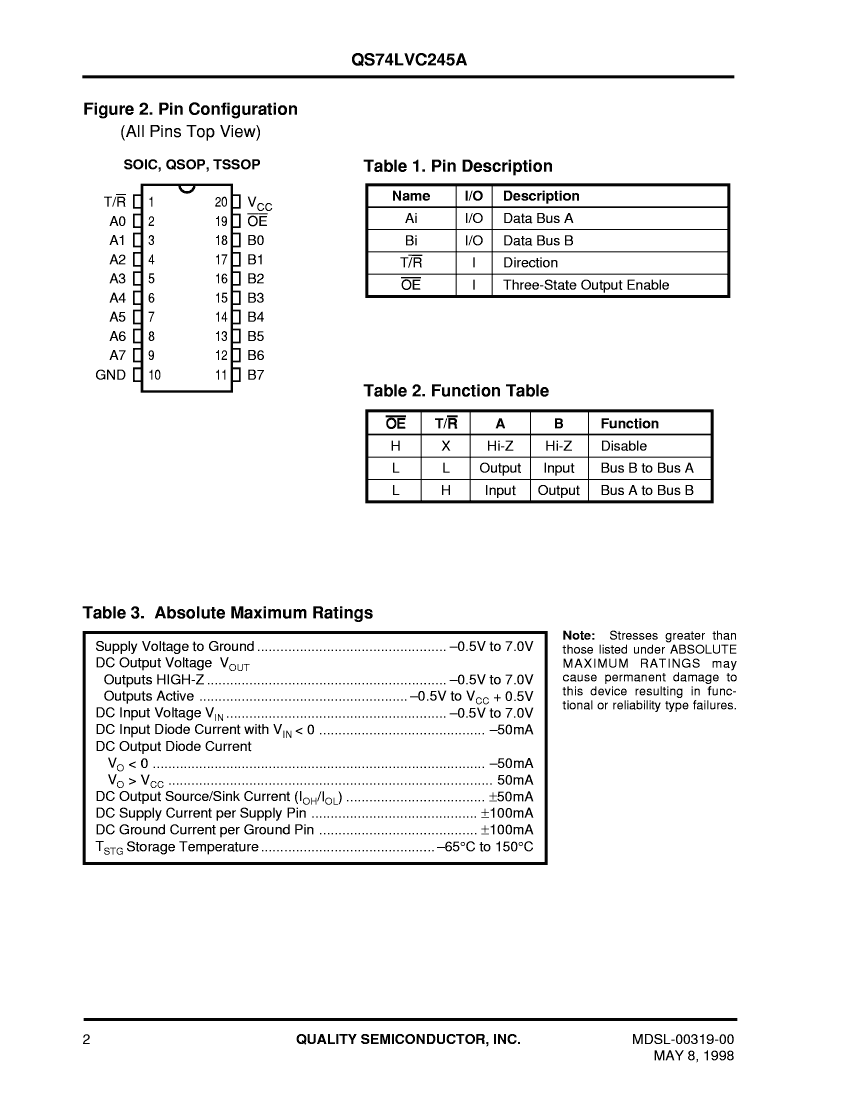

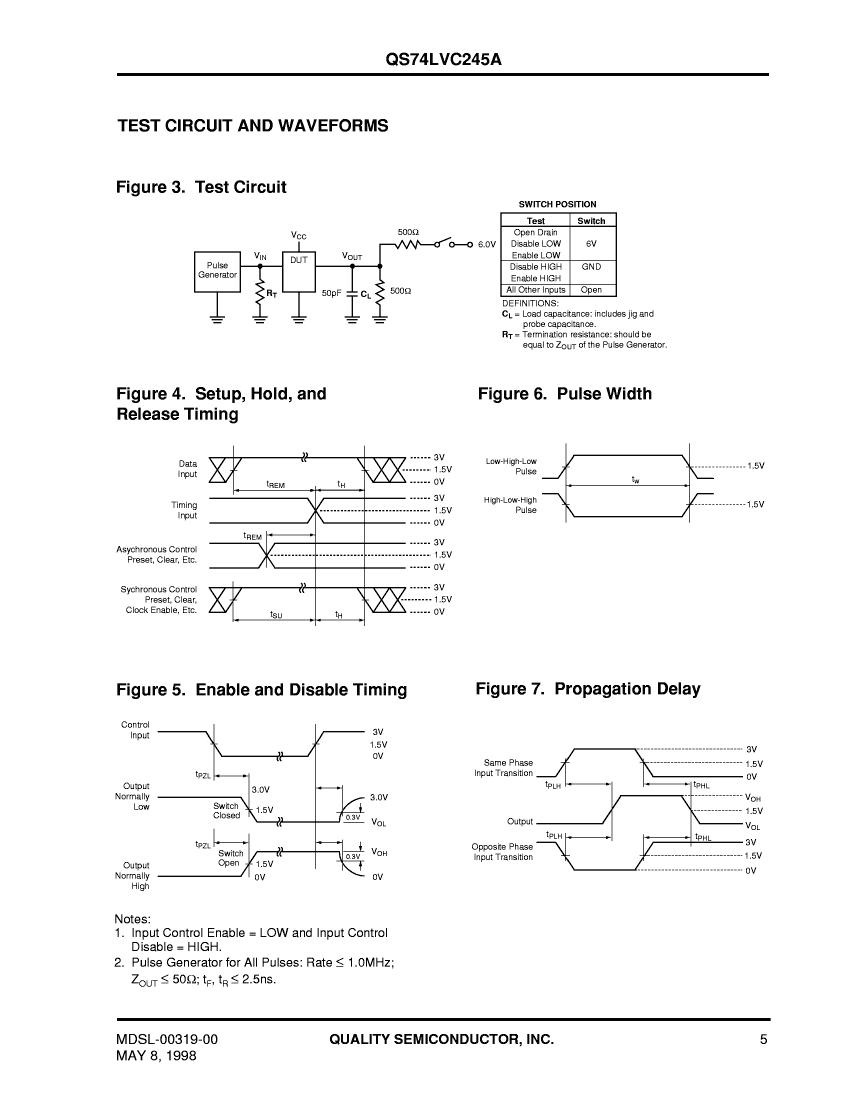

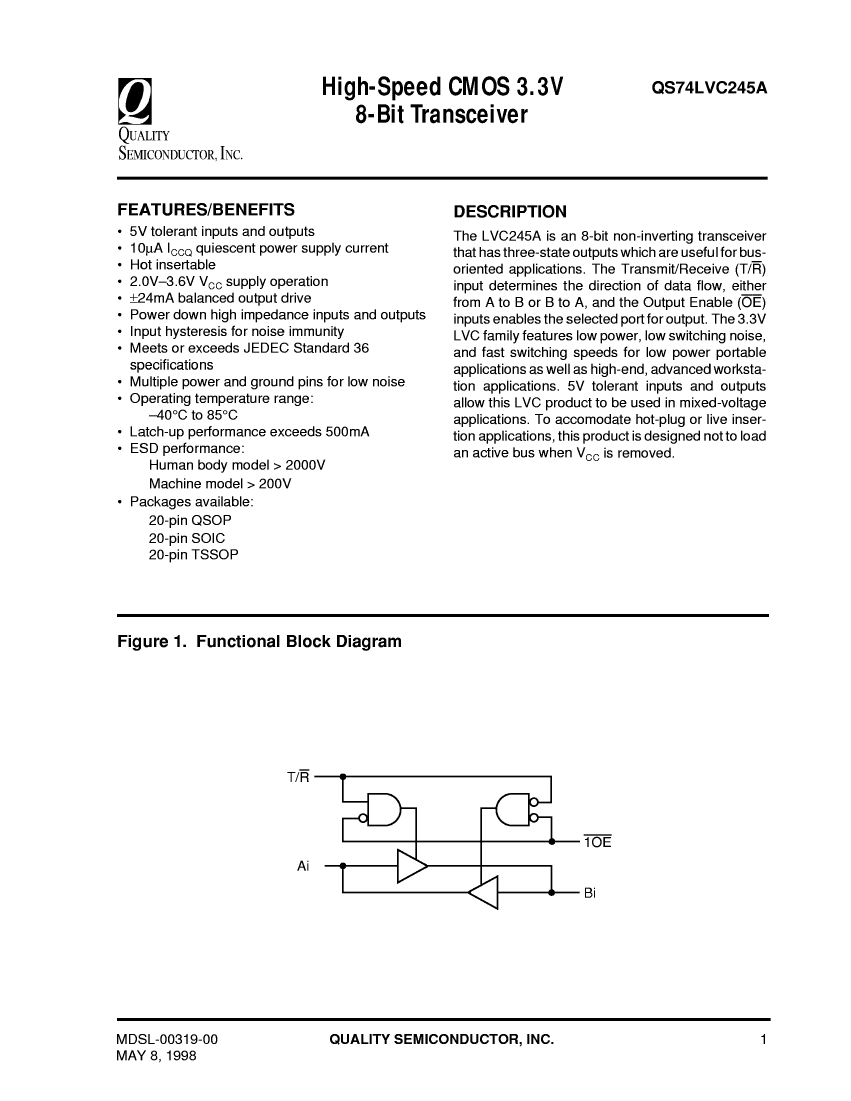

QS74LVC245APA Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20

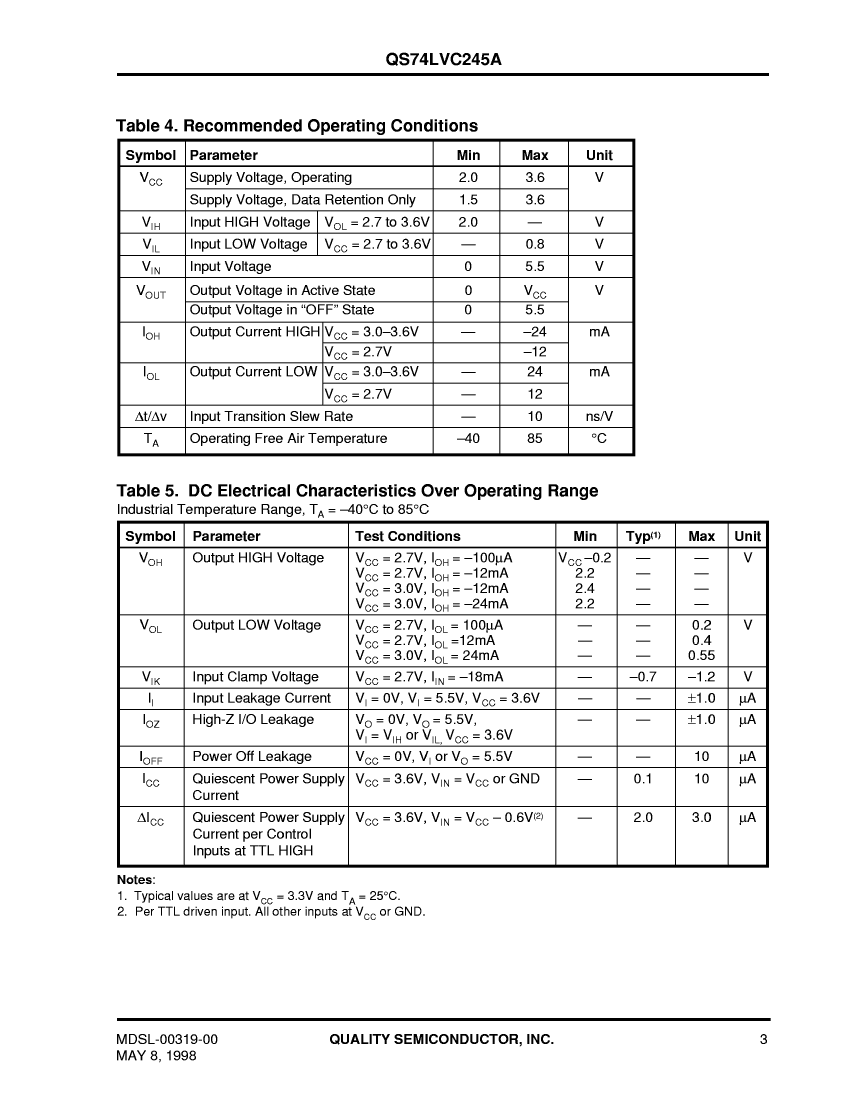

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
package instruction	TSSOP, TSSOP20,.25
Reach Compliance Code	not_compliant
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V

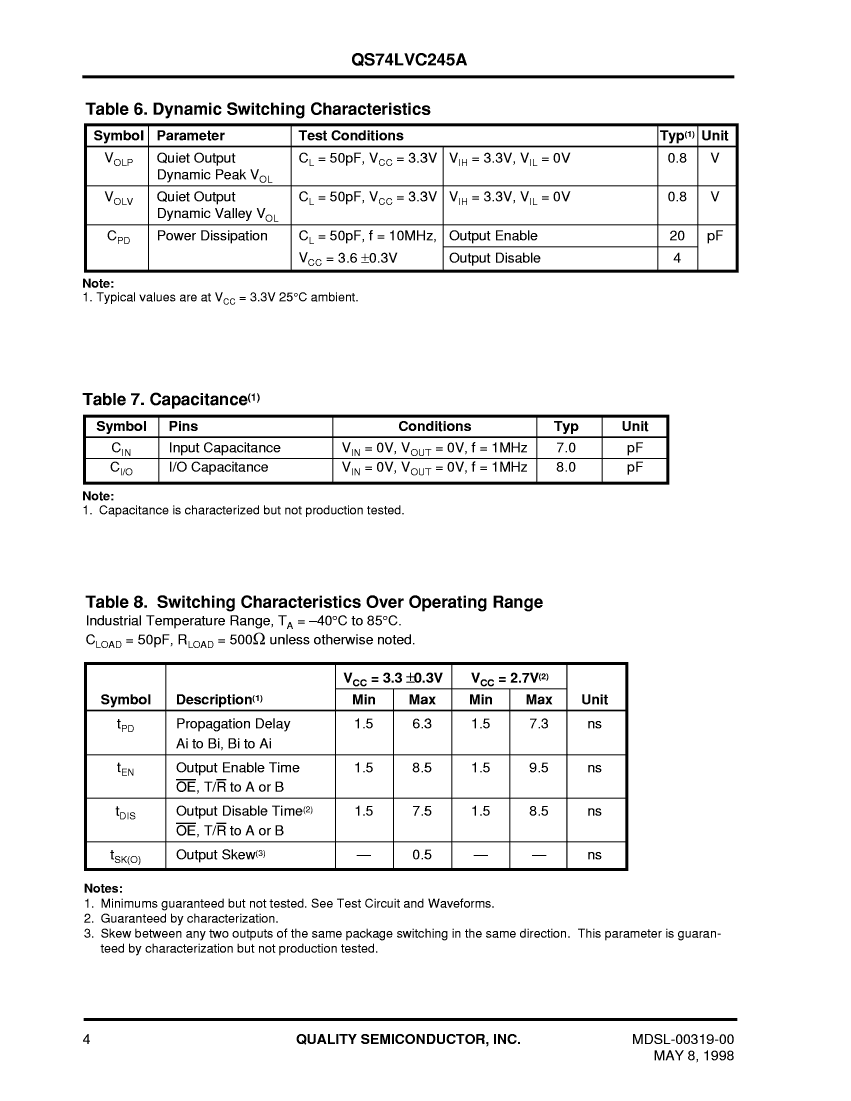

Prop。Delay @ Nom-Sup	6.3 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

	QS74LVC245APA	QS74LVC245APAX	5308084	QS74LVC245AQX	QS74LVC245ASO	53088203403
Description	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20	FIBER-OPTIC SENSORS AND FIBERS	Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20	Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20	E-Series SMT Chip Inductors
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	-
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-
package instruction	TSSOP, TSSOP20,.25	TSSOP, TSSOP20,.25	-	SSOP, SSOP20,.25	SOP, SOP20,.4	-
Reach Compliance Code	not_compliant	not_compliant	-	not_compliant	not_compliant	-
