NJU6323JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> NJU6323JC

NJU6323JC: DescriptionClock Generator, 50MHz, CMOS, 1.28 X 0.80 MM, DIE-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size280KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU6323JC Overview

Clock Generator, 50MHz, CMOS, 1.28 X 0.80 MM, DIE-8

NJU6323JC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	DIE
package instruction	DIE,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-XUUC-N8
JESD-609 code	e6
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	50 MHz
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	260
Master clock/crystal nominal frequency	50 MHz
Certification status	Not Qualified
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

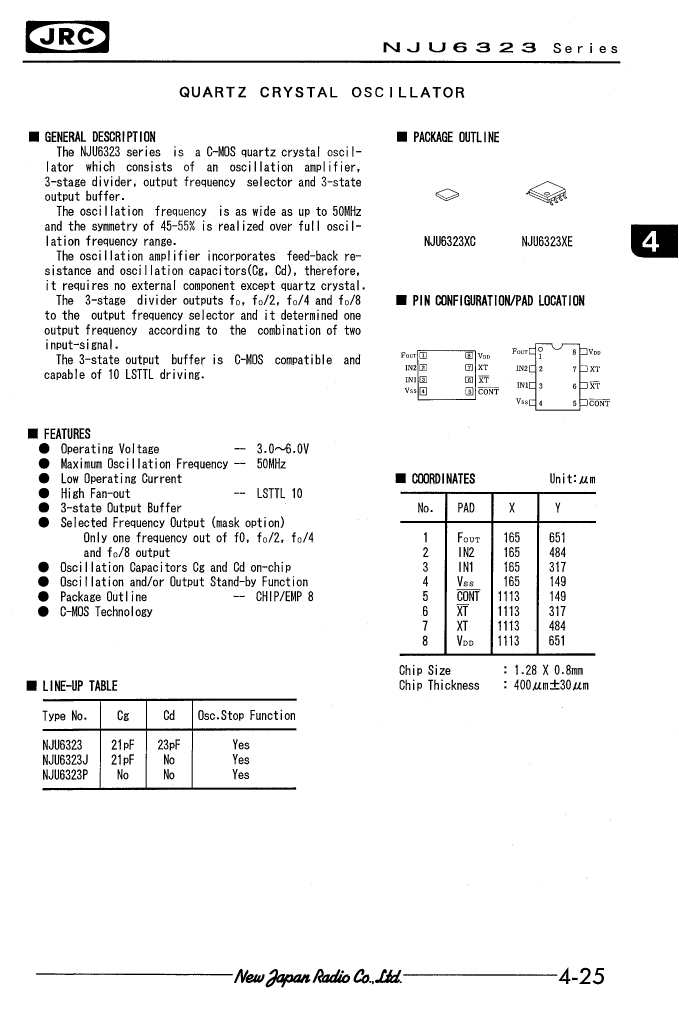

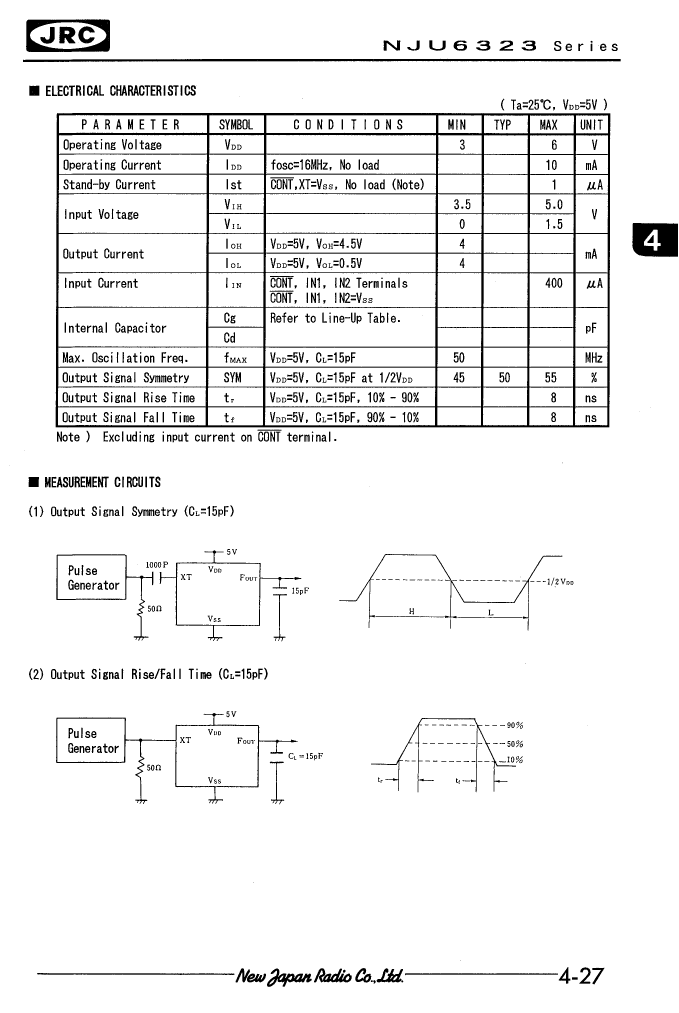

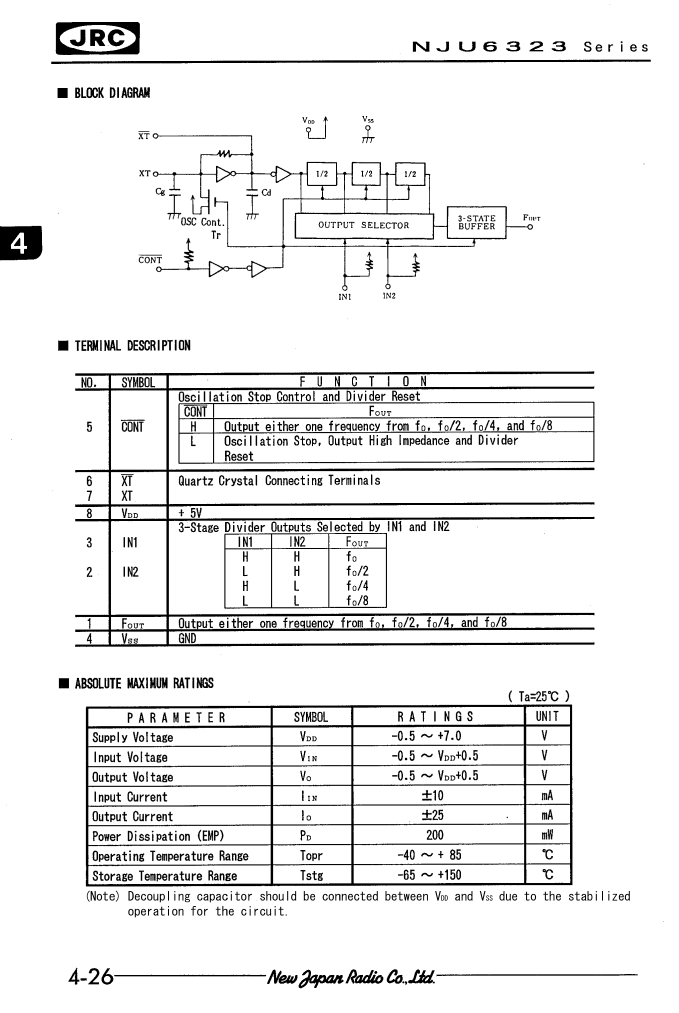

Preview

Download Datasheet

View All

NJU6323JC Related Products

	NJU6323JC	NJU6323E	NJU6323JE	59025-4-V-02-E	NJU6323PC	NJU6323C
Description	Clock Generator, 50MHz, CMOS, 1.28 X 0.80 MM, DIE-8	Clock Generator, 50MHz, CMOS, PDSO8, EMP-8	Clock Generator, 50MHz, CMOS, PDSO8, EMP-8	Reed Sensors	Clock Generator, 50MHz, CMOS, 1.28 X 0.80 MM, DIE-8	Clock Generator, 50MHz, CMOS, 1.28 X 0.80 MM, DIE-8
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	-	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	DIE	SOIC	SOIC	-	DIE	DIE
package instruction	DIE,	SOP,	SOP,	-	DIE,	DIE,
Contacts	8	8	8	-	8	8
Reach Compliance Code	compliant	compliant	compliant	-	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
JESD-30 code	R-XUUC-N8	R-PDSO-G8	R-PDSO-G8	-	R-XUUC-N8	R-XUUC-N8
JESD-609 code	e6	e6	e6	-	e6	e6
Number of terminals	8	8	8	-	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C
Maximum output clock frequency	50 MHz	50 MHz	50 MHz	-	50 MHz	50 MHz
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	-	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	SOP	SOP	-	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	SMALL OUTLINE	SMALL OUTLINE	-	UNCASED CHIP	UNCASED CHIP
Peak Reflow Temperature (Celsius)	260	260	260	-	260	260
Master clock/crystal nominal frequency	50 MHz	50 MHz	50 MHz	-	50 MHz	50 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum supply voltage	6 V	6 V	6 V	-	6 V	6 V
Minimum supply voltage	3 V	3 V	3 V	-	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V
surface mount	YES	YES	YES	-	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	-	TIN BISMUTH	TIN BISMUTH
Terminal form	NO LEAD	GULL WING	GULL WING	-	NO LEAD	NO LEAD
Terminal location	UPPER	DUAL	DUAL	-	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	-	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
