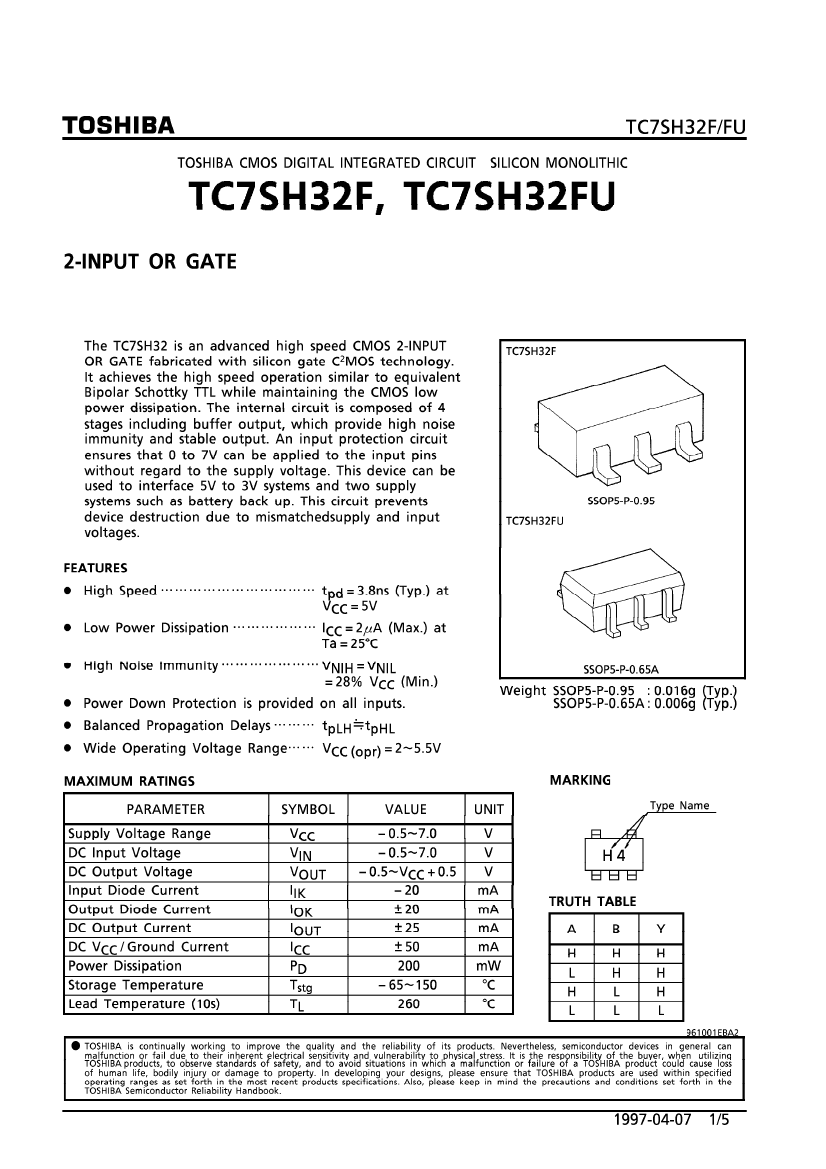

2-INPUT OR GATE

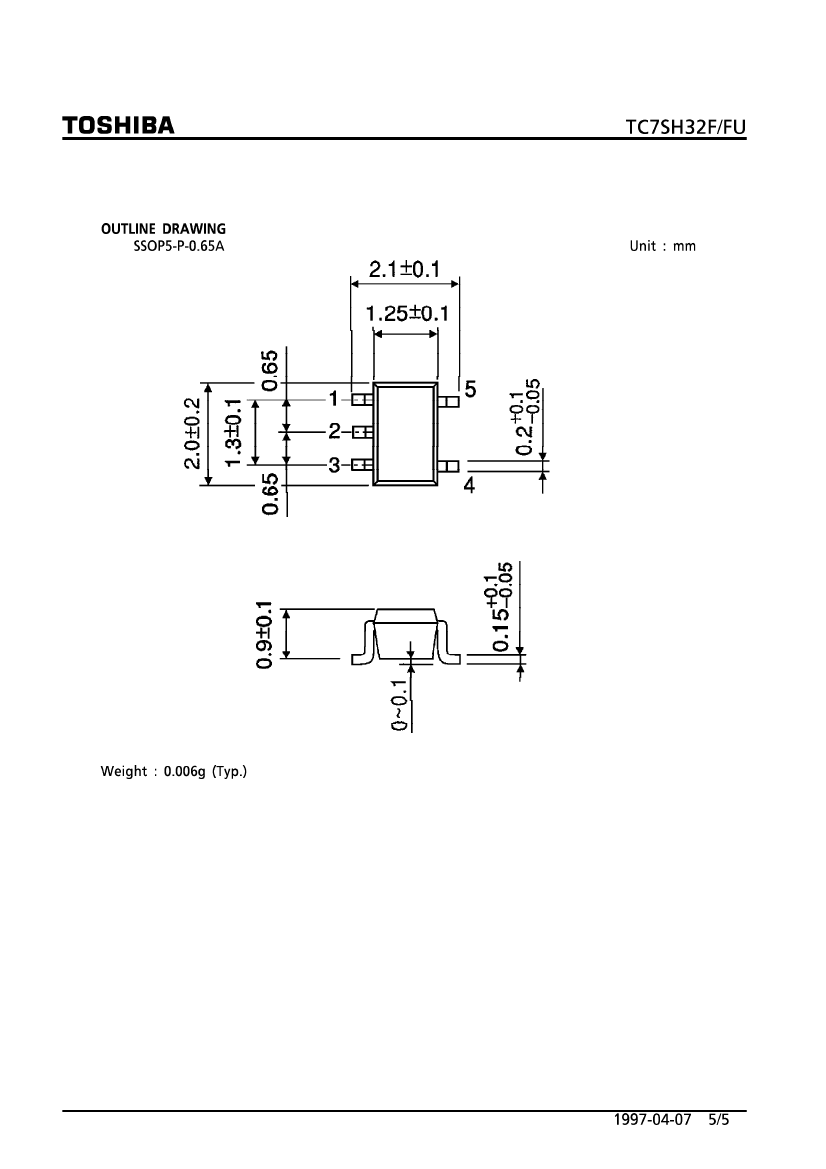

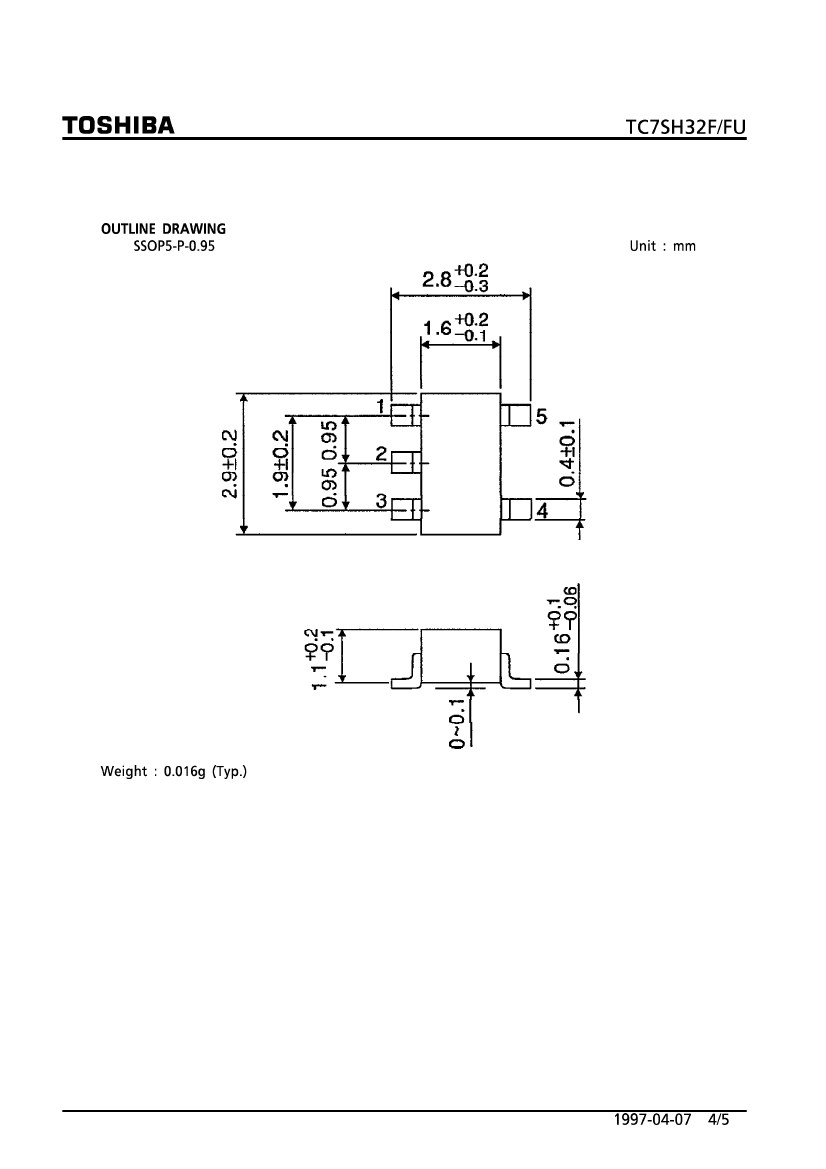

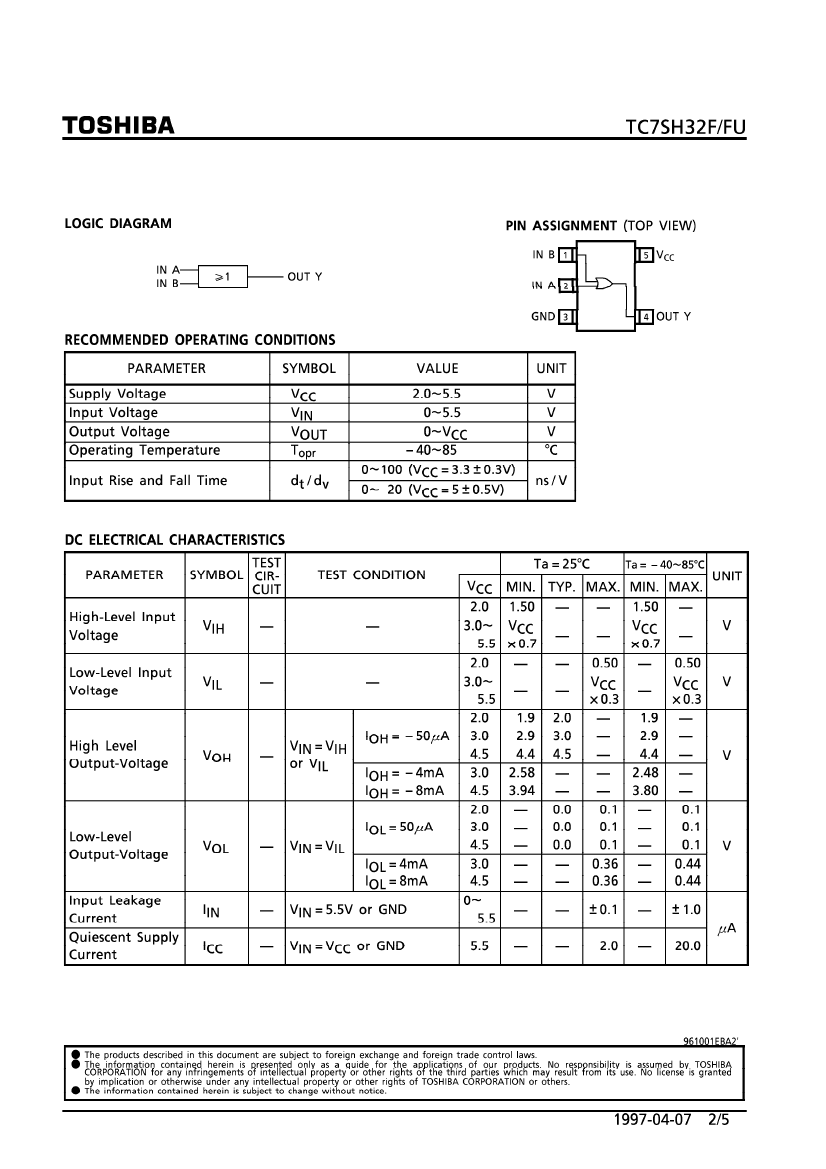

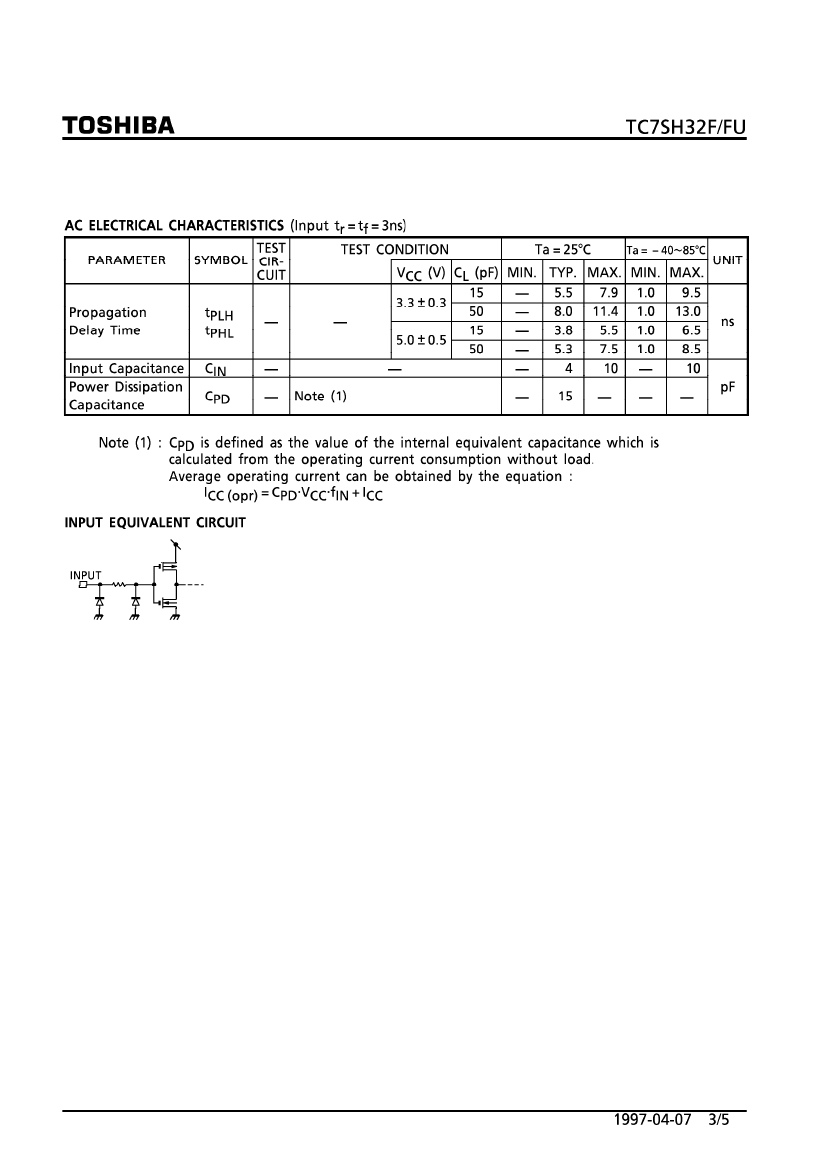

| TC7SH32 | TC7SH32FU | TC7SH32F | |
|---|---|---|---|
| Description | 2-INPUT OR GATE | 2-INPUT OR GATE | 2-INPUT OR GATE |
| Is it Rohs certified? | - | conform to | conform to |
| Parts packaging code | - | SSOP | SSOP |
| package instruction | - | TSSOP, TSSOP6,.08 | LSSOP, TSOP5/6,.11,37 |
| Contacts | - | 5 | 5 |
| Reach Compliance Code | - | unknow | unknow |
| series | - | HC/UH | HC/UH |
| JESD-30 code | - | R-PDSO-G5 | R-PDSO-G5 |
| length | - | 2 mm | 2.9 mm |
| Load capacitance (CL) | - | 50 pF | 50 pF |
| Logic integrated circuit type | - | OR GATE | OR GATE |
| MaximumI(ol) | - | 0.00005 A | 0.00005 A |
| Number of functions | - | 1 | 1 |
| Number of entries | - | 2 | 2 |
| Number of terminals | - | 5 | 5 |
| Maximum operating temperature | - | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | -40 °C |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | TSSOP | LSSOP |
| Encapsulate equivalent code | - | TSSOP6,.08 | TSOP5/6,.11,37 |
| Package shape | - | RECTANGULAR | RECTANGULAR |
| Package form | - | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| power supply | - | 2/5.5 V | 2/5.5 V |
| Prop。Delay @ Nom-Su | - | 13 ns | 13 ns |
| propagation delay (tpd) | - | 13 ns | 13 ns |
| Certification status | - | Not Qualified | Not Qualified |
| Schmitt trigger | - | NO | NO |
| Maximum seat height | - | 1.1 mm | 1.4 mm |
| Maximum supply voltage (Vsup) | - | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | - | 2 V | 2 V |
| surface mount | - | YES | YES |
| technology | - | CMOS | CMOS |
| Temperature level | - | INDUSTRIAL | INDUSTRIAL |
| Terminal form | - | GULL WING | GULL WING |
| Terminal pitch | - | 0.65 mm | 0.95 mm |
| Terminal location | - | DUAL | DUAL |
| width | - | 1.25 mm | 1.6 mm |
| Base Number Matches | - | 1 | 1 |
