MC74LCX652DTR2 datasheet, PDF - EEWORLD Datasheet

MC74LCX652DTR2: DescriptionLVC/LCX/Z SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24, PLASTIC, TSSOP-24; Categorylogic logic; File Size182KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

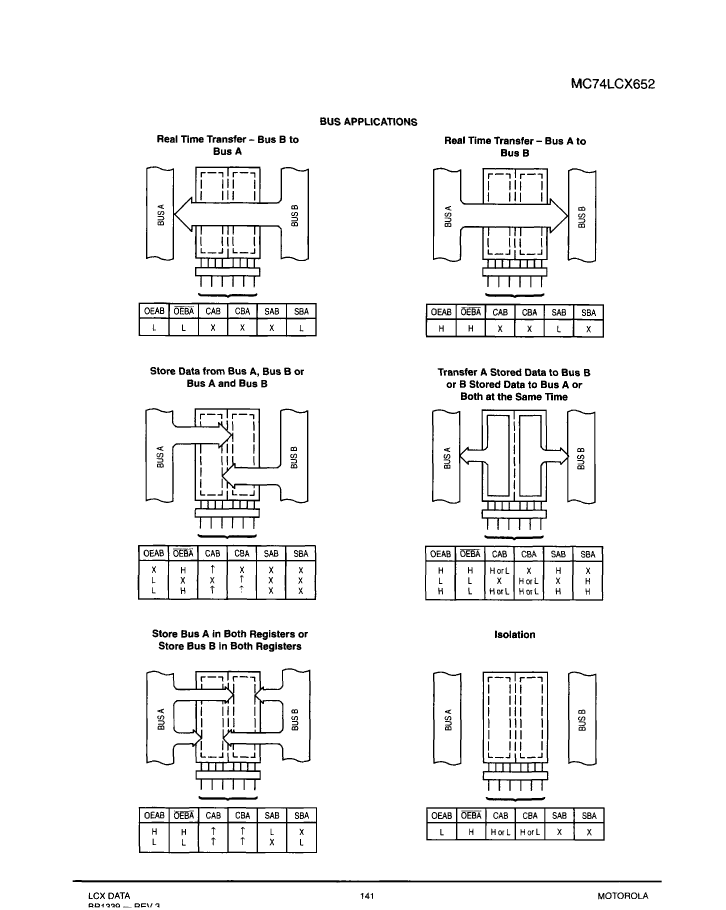

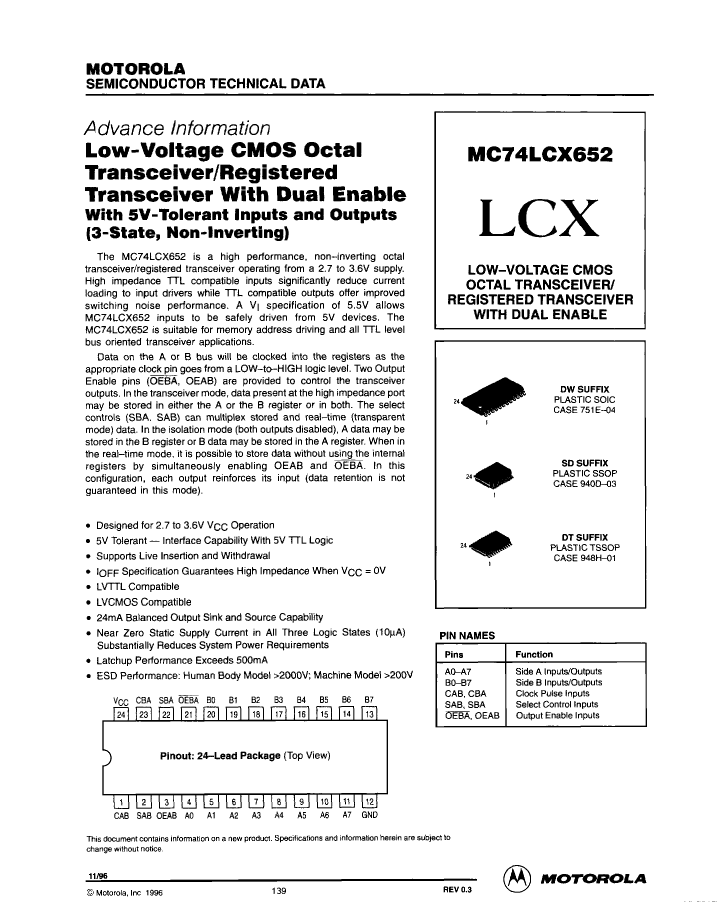

MC74LCX652DTR2 Overview

LVC/LCX/Z SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24, PLASTIC, TSSOP-24

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	24
Reach Compliance Code	unknown
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G24
length	7.8 mm
Load capacitance (CL)	50 pF

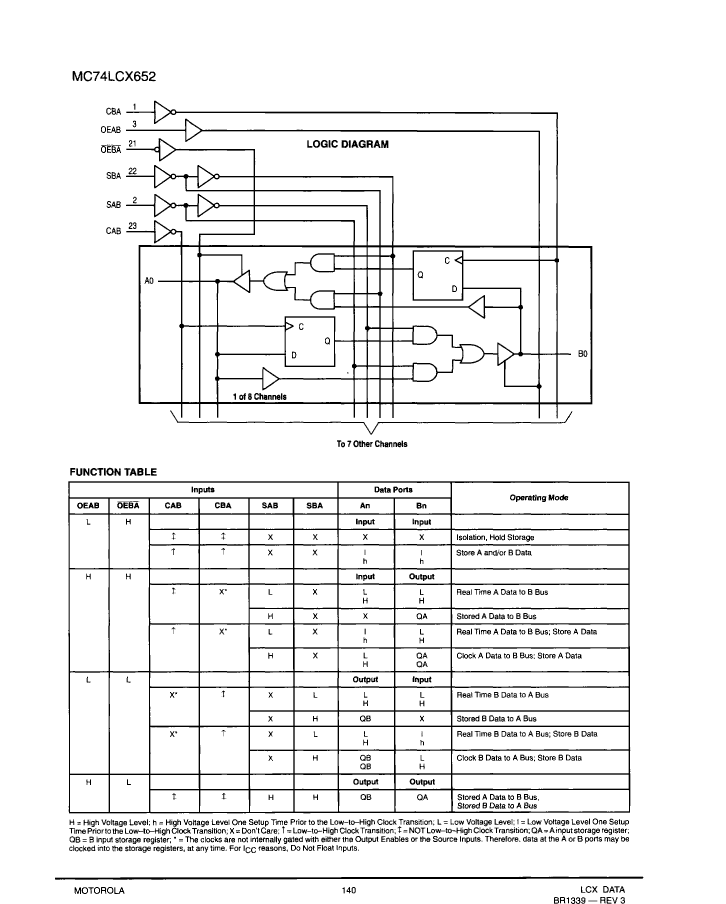

Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24

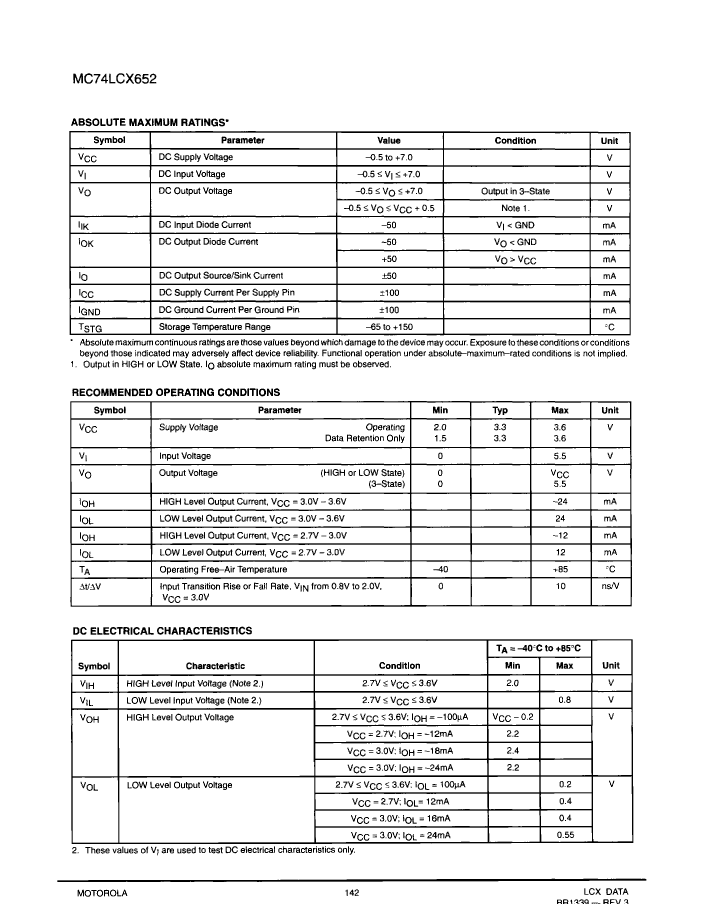

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

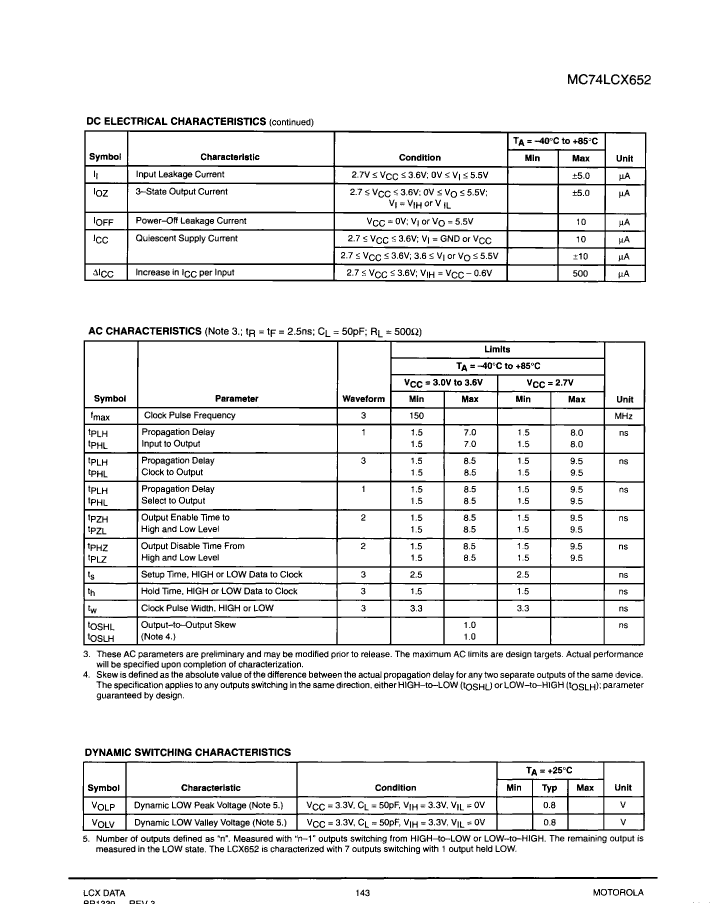

propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

	MC74LCX652DTR2	MC74LCX652DWR2
Description	LVC/LCX/Z SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24, PLASTIC, TSSOP-24	Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, PLASTIC, SOIC-24
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	TSSOP,	SOP,
Reach Compliance Code	unknown	unknown
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G24	R-PDSO-G24
length	7.8 mm	15.4 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	24	24
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
propagation delay (tpd)	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.65 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL
width	4.4 mm	7.5 mm
