CYStech Electronics Corp.
1.0Amp. Surface Mount Schottky Barrier Diodes
Spec. No. : C338SF
Issued Date : 2003.06.16
Revised Date :
Page No. : 1/3
CSOD120-1100SF Series
Features
•
For surface mounted applications.
•
For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
•
Plastic material used carries Underwriters Laboratory Flammability Classification 94V-0
•
Low leakage current
•
High surge capability
•
High temperature soldering: 250°C/10 seconds at terminals
•
Exceeds environmental standards of MIL-S-19500/228
Mechanical Data
•
Case: Molded plastic, JEDEC SOD-123/Mini SMA.
•
Terminals: Solder plated, solderable per MIL-STD-750 method 2026
•
Polarity: Indicated by cathode band.
•
Packaging: 12mm tape per EIA STD RS-481.
•
Weight: 0.04 gram
Maximum Ratings and Electrical Characteristics
(
Rating at 25°C ambient temperature unless otherwise specified. )
Parameter
Repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum instantaneous
forward voltage, IF=1A
(Note 1)
Average forward rectified current
Peak forward surge current @8.3ms
single half sine wave superimposed
on rated load (JEDEC method)
Maximum DC reverse current
V
R
=V
RRM
,T
A
=25
℃
(Note 1)
V
R
=V
RRM
,T
A
=125
℃
(Note 1)
Maximum thermal resistance,
Junction to ambient
Diode junction capacitance @
f=1MHz and applied 4V reverse
voltage
Storage temperature
Operating temperature
Type
Symbol CSOD CSOD CSOD CSOD CSOD CSOD CSOD Units
120
130
140
150
160
180
1100
V
RRM
20
30
40
50
60
80
100
V
V
RMS
14
21
28
35
42
56
70
V
V
R
20
30
40
50
60
80
100
V
V
F
I
O
I
FSM
0.5
0.5
0.5
0.7
1
30
0.7
0.85
0.85
V
A
A
mA
mA
℃
/W
pF
℃
℃
I
R
R
th,JA
C
J
Tstg
T
J
0.5
10
98 (typ)
120 (typ)
-55 ~ +150
-55 ~ +125
-55 ~ +150
Notes : 1.Pulse test, pulse width=300μsec, 2% duty cycle
CSOD120-1100SF
CYStek Product Specification
CYStech Electronics Corp.

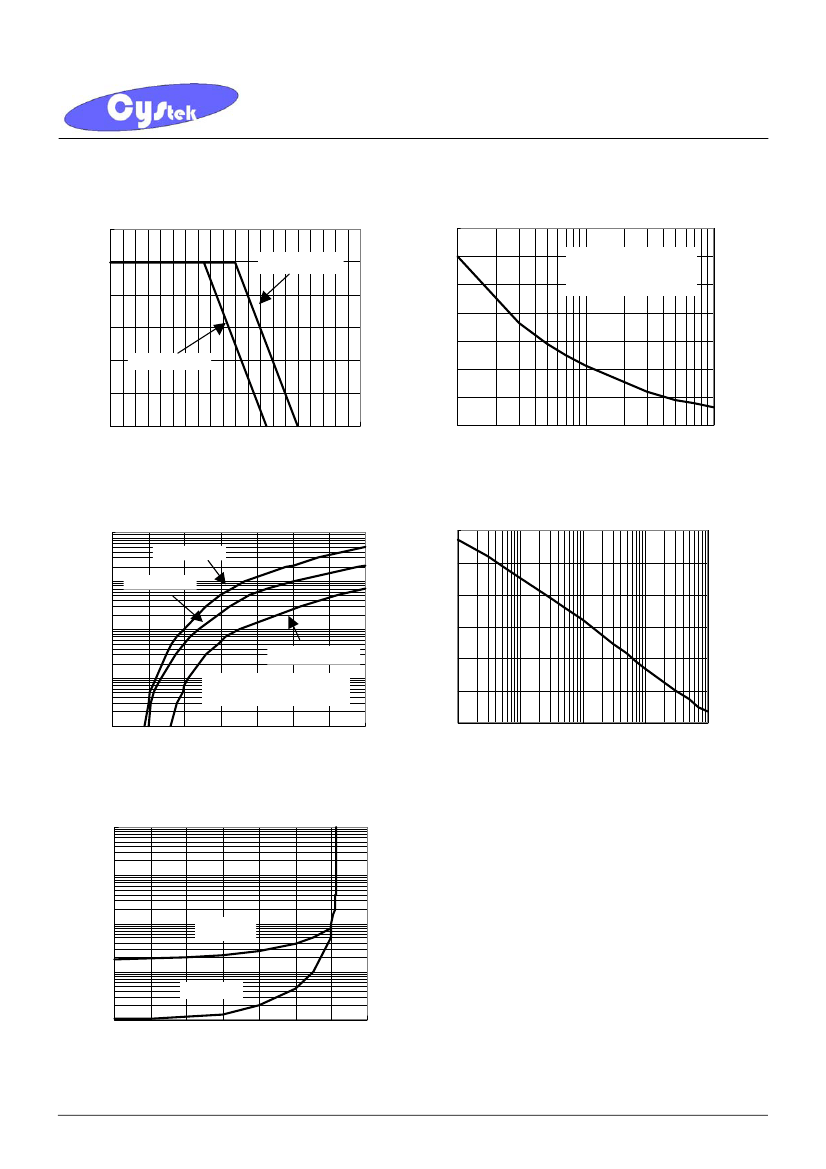

Characteristic Curves
Forward Current Derating Curve
1.2
Peak Forward Surge Current---IFSM(A)
35
CSOD150-1100
30
25
20
15
10
5
0
Spec. No. : C338SF
Issued Date : 2003.06.16
Revised Date :
Page No. : 2/3
Maximum Non-Repetitive Forward Surge Current
Average Forward Current---Io(A)
1
0.8
0.6
0.4
0.2
0
0
50
100
CSOD120-140
Tj=25℃, 8.3ms Single Half
Sine Wave
JEDEC method
150
200
1
10
100
Ambient Temperature---TA(℃)
Number of Cycles at 60Hz
Forward Current vs Forward Voltage
100
Junction Capacitance---CJ(pF)
CSOD120-140
300
250
200
150
100
50
0
0.01
Junction Capacitance vs Reverse Voltage
Forward Current---IF(A)
10
CSOD150-160
1
CSOD180-1100
0.1
Tj=25℃, Pulse width=300μs,
1% Duty cycle
0.01
0.1
0.3
0.5
0.7
0.9
1.1
1.3
1.5
0.1
1
10
100
Forward Voltage---VF(V)
Reverse Voltage---VR(V)
Reverse Leakage Current vs Reverse Voltage
100
10
1
Tj=75℃
0.1
Tj=25℃
0.01
0
20
40
60
80
100
120
140
CSOD120-1100SF
CYStek Product Specification
CYStech Electronics Corp.

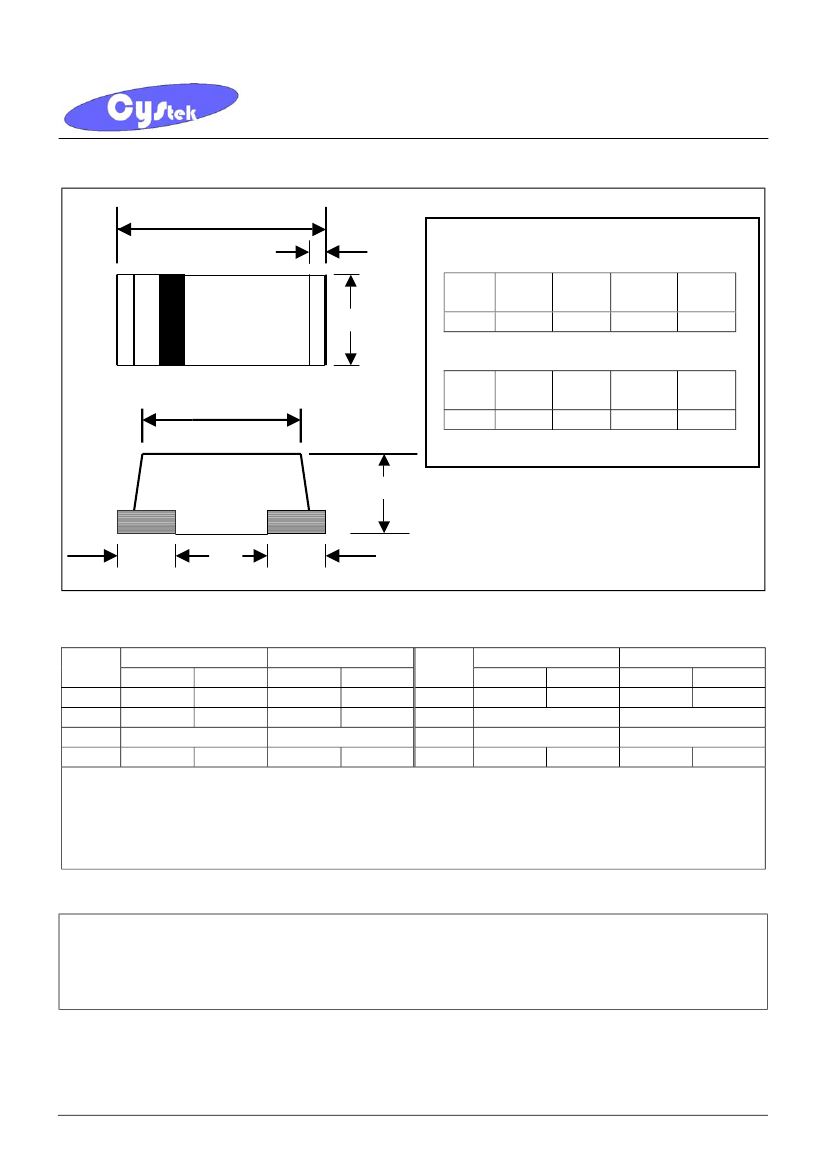

SOD-123 Dimension
Spec. No. : C338SF
Issued Date : 2003.06.16
Revised Date :
Page No. : 3/3
A
C
Marking Code:
Device CSOD CSOD
120
130
Code
12
13
Device CSOD CSOD
160
180
Code
16
18
CSOD
140
14
CSOD
1100
10
CSOD
150
15
B
D
E
SOD-123 Plastic Surface
Mounted Package
CYStek Package Code: SF
G
F
*:Typical
DIM
A
B
C
D
Inches
Min.
Max.
0.146
0.161
0.055
0.071
0.012(typ)
0.094
0.110
Millimeters
Min.
Max.
3.7
4.1
1.4
1.8
0.3(typ)
2.4
2.8
DIM
E
F
G
-
Inches
Min.
Max.
0.055
0.063
0.035(typ)
0.035(typ)
-
-
Millimeters
Min.
Max.
1.4
1.6
0.9(typ)
0.9(typ)
-
-
Notes :
1.Controlling dimension : millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material :
•
Lead : 42 Alloy ; solder plating
•
Mold Compound : Epoxy resin family, flammability solid burning class:UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
CSOD120-1100SF
CYStek Product Specification
