MODM-LJ-04-8P8C-H-S3-3-6 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MODM-LJ-04-8P8C-H-S3-3-6

MODM-LJ-04-8P8C-H-S3-3-6: Description32 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, JACK, ROHS COMPLIANT; CategoryThe connector The connector; File Size389KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

MODM-LJ-04-8P8C-H-S3-3-6 Overview

32 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, JACK, ROHS COMPLIANT

MODM-LJ-04-8P8C-H-S3-3-6 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	4 PORTS, 8 POSITIONS EACH, SHEILDED
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	MODM-LJ
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	BRASS
Termination type	SURFACE MOUNT
Total number of contacts	32

Preview

Download Datasheet

View All

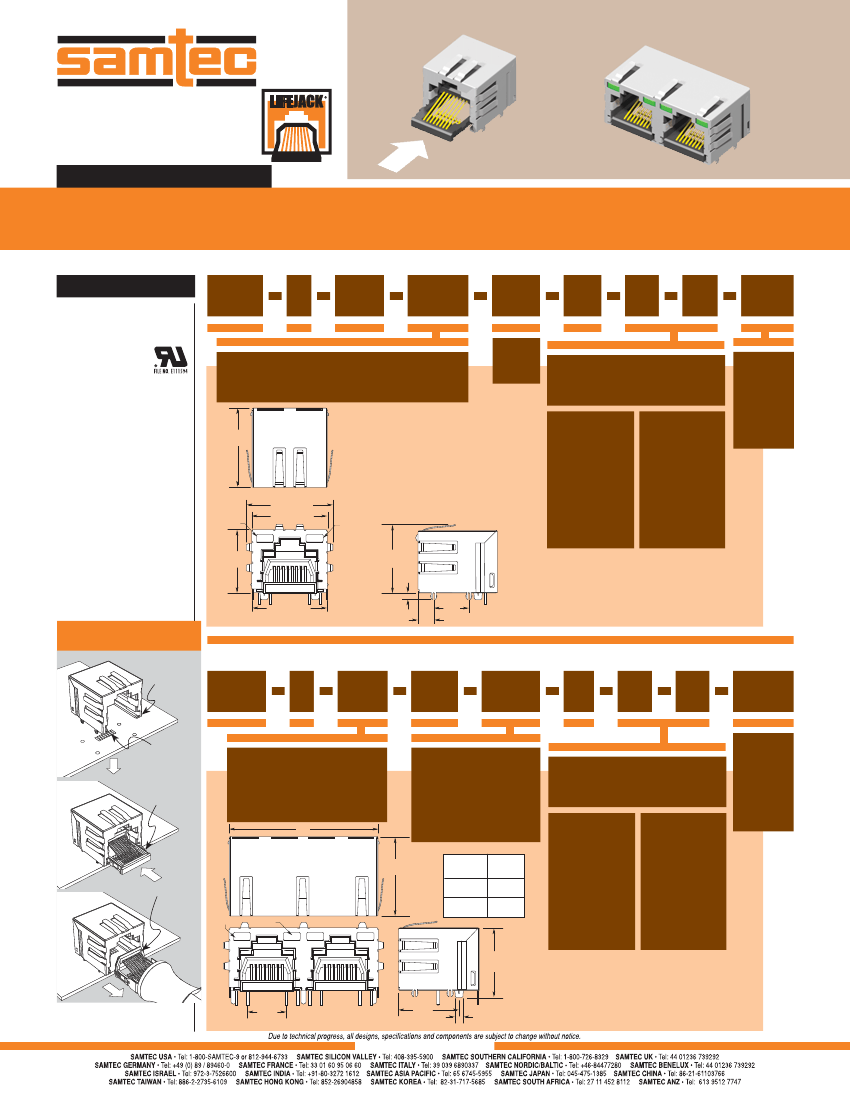

F-210

MODS–LJ–8P8C–H–01–S3

MODM–LJ–02–8P8C–H–S3–G–G

MODS-LJ, MODM-LJ SERIES

FIELD REPLACEABLE MOD JACKS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?MODS-LJ or

www.samtec.com?MODM-LJ

Insulator Material:

Black LCP

Contact Material:

BeCu

Shield Material:

Brass

Operating Temp Range:

-55°C to +90°C

Current Rating:

1.5 A per contact

Voltage Rating:

120 VAC max

Contact Resistance:

20 mΩ max

Minimum Cycles:

500 per contact array (LJRS)

System Applications:

CAT3, CAT5, CAT5e

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Packaging:

Packaged and shipped in

Bulk Packaging Trays; Trays

suitable for automation are

available upon request.

MODS

8P8C

PLATING

NO. OF

PORTS

LED

OPTION

–01

–H

= 30µ" (0,76µm) Gold on contact assembly, Tin on shield

(See LJRS Series for replacement contact assemblies)

= One

Port

(Leave Blank for no LED)

(Callouts required for both LED options)

Voltage Forward/Reverse

(Leave

Blank for no

Alignment

Pin)

(17,81)

.701

–G

= Green

–3*

=Green/Red

–A

= Alignment

–Y

= Yellow

–4*

=Yellow/Red

–1*

(19,56) .770

(16,92) .666

LED 1

LED 2

–5*

=Green/Yellow

= Green/Orange

–2*

=Yellow/Orange

(15,75)

.620

(1,38)

.055

(7,87)

.310

(3,56) .140

–6*

= Yellow/Green

(14,11)

.556

(16,71) .658

Signal Contact Array Shown inserted.

(Customer assembly required after

soldering shield with insulator to PCB)

Housing and contact array shipped separately.

APPLICATIONS

Solder

housing

to PCB

MODM

NO. OF

PORTS

8P8C

PLATING

LED

OPTION

Serial in-line

pinout (Gold)

Easily insert

contact array

–02

= Two Ports

–H

= 30µ" (0,76µm) Gold on

contact assembly,

Nickel on shield

(See LJRS Series for

replacement contact

assemblies)

(17,81)

.701

–04

= Four Ports

(Leave Blank for no LED)

(Callouts required for both LED options)

Voltage Forward/Reverse

(Leave Blank

for no

Alignment

Pin)

–A

= Alignment

–G

= Green

–3*

=Green/Red

NO. OF

PORTS

–02

–04

(33,27)

1.310

(66,04)

2.600

–Y

= Yellow

–4*

=Yellow/Red

Easily

remove

contact

array

–1*

= Green/Orange

–5*

=Green/Yellow

LED 1

LED 2

–2*

=Yellow/Orange

(15,62)

.615

–6*

= Yellow/Green

(8,64)

.340

(13,54)

.533

(1,78)

.070

DIA

Signal Contact Array Shown inserted.

(Customer assembly required after

soldering shield with insulator to PCB)

Housing and contact array shipped separately.
