PCI-1612B: Description4-port RS-232/422/485 PCI Communication Cards; File Size534KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Compare View All

PCI-1612B Overview

4-port RS-232/422/485 PCI Communication Cards

Preview

Download Datasheet

View All

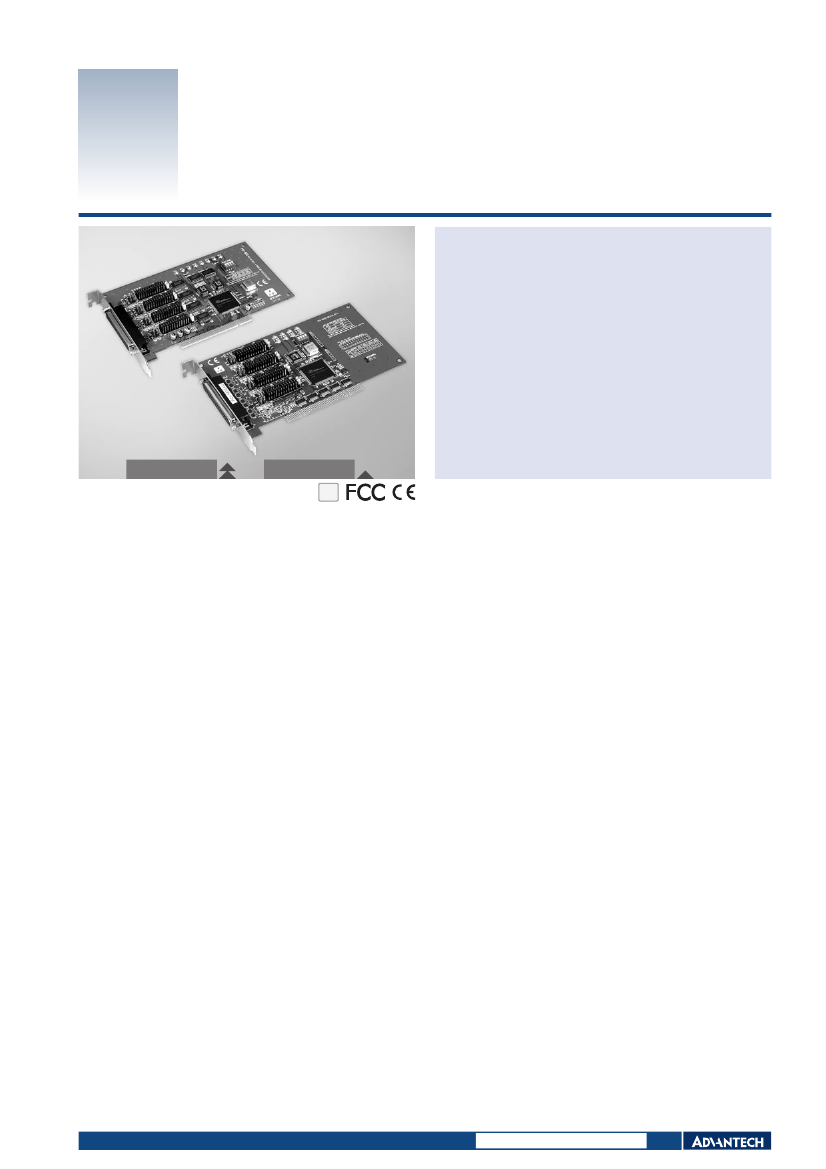

PCI-1612 Series

Features

4-port RS-232/422/485 PCI

Communication Cards

PCI-1612A/B

PCI-1612AU/U

RoHS

2002/95/EC



PCI bus 2.1 (PCI-1612A/1612B), 2.2 (PCI-1612AU/1612BU/1612CU)

compliant



Speeds up to 921.6 kbps



4-port RS-232/422/485



16PCI954 UARTs with 128-byte FIFOs standard



I/O address automatically assigned by PCI Plug & Play



OS supported: Windows

98/ME/2000/XP/XP Embedded/Vista, Windows CE

5.0/6.0, Linux



Interrupt status register for increased performance



Space reserved for termination resistors



Automatic RS-485 data flow control



Powerful and easy to use utility (ICOM Tools)



Universal PCI (Supports 3.3 V or 5 V PCI bus signal)

(PCI-1612AU,PCI-1612BU, PCI-1612CU)



2,500 V

EFT Protection (PCI-1612B/1612BU/1612CU)



2,500 V

Isolation Protection (PCI-1612CU only)

COMPLIANT

Introduction

PCI-1612 is a 4-port RS-232/422/485 PCI communication card that is compatible with the PCI 2.1/2.2 bus specification and offer transmission rates up to 921.6 kbps. PCI-1612

comes with high-performance 16PCI954 UARTs with a 128-byte FIFO to reduce CPU load. These components make your system more stable and reliable. Thus, the PCI-1612 is

especially suitable for multitasking environments. PCI-1612AU, PCI-1612BU and PCI-1612CU have universal PCI connectors that are compatible with both newer 3.3 V signaling

systems and the traditional 5 V signaling system. This gives highly-compatibility and allows usage in diverse systems. To further increase reliability, PCI-1612B, PCI-1612BU and

PCI-1612CU offers EFT protection for high voltages up to 2,500 V

. Meanwhile, PCI-1612CU provides 2,500 V

isolation to protect your PC and equipment against damages from

ground loops in harsh environments. Advantech also provides a convenient utility program called ICOM Tools to help test the PCI card performance by analyzing the port status. The

menu commands and toolbar buttons of ICOM Tools acts as a PC-based data scope that lets you set a trigger condition, capture the communications data and monitor the signal

status. ICOM Tools is applicable to all series of Advantech ICOM cards.

Specifications

General



Card Interface

PCI V 2.1 (PCI-1612A, PCI-1612B)

Universal PCI V2.2 (PCI-1612BU, PCI-1612AU,

1612CU)

CE, FCC class A

1 x DB37-F

185 x 100 mm (7.3" x 3.9")

Typical

Max

+12 V: 60 mA

+12 V: 80 mA

+5 V: 270 mA

+5 V: 338 mA

Protection



ESD Protection



EFT Protection



Isolation Protection

8 kV

2,500 V

(PCI-1612B/1612BU/1612CU only)

2,500 V

(PCI-1612CU only)



Certifications

Connectors

Dimensions

Power Consumption

Software



Bundled Software



OS Support

ICOM Tools

Windows 98/ME/2000/XP/XP Embedded, Windows CE

5.0/6.0, Linux

Environment



Humidity (Operating)

5 ~ 95% RH, non-condensing (refer to IEC 68-2-3)



Operating Temperature

0 ~ 65° C (refer to IEC 68-2-1, 2), (32 ~ 149° F)



Storage Temperature

-25 ~ 85° C (-13 ~ 185° F)

Communications



Communication

Controller



Data Bits



Data Signals

16PCI954

5, 6, 7, 8

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI,

GND

RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-

RS-485: Data+, Data-

128 bytes

RTS/CTS, Xon/Xoff

Assigned by Plug & Play

None, even, odd

50 bps ~ 921.6 kbps

1, 1.5, 2

Ordering Information



PCI-1612A

4-port RS-232/422/485 PCI Comm, 4 x DB25



PCI-1612A/9

4-port RS-232/422/485 PCI Comm, 4 x DB9



PCI-1612B

4-port RS-232/422/485 PCI Comm w/EFT, 4 x DB25



PCI-1612B/9

4-port RS-232/422/485 PCI Comm w/EFT, 4 x DB9



PCI-1612AU

4-port RS-232/422/485 Uni PCI Comm, 4 x DB25



PCI-1612AU/9

4-port RS-232/422/485 Uni PCI Comm, 4 x DB9



PCI-1612BU

4-port RS-232/422/485 Uni PCI Comm w/EFT, 4 x DB25



PCI-1612BU/9

4-port RS-232/422/485 Uni PCI Comm w/EFT, 4 x DB9



PCI-1612CU

4-port RS-232/422/485 Uni PCI, Iso/EFT, 4 x DB25



PCI-1612CU/9

4-port RS-232/422/485 Uni PCI, Iso/EFT, 4 x DB9

Note:

30 cm DB37 to 4 x DB25 or DB37 to 4 x DB9 cable included



FIFO

Flow Control

IRQ

Parity

Speed

Stop Bits

Online Download

www.advantech.com/products

PCI-1612B Related Products

	PCI-1612B	PCI-1612A	PCI-1612AU	PCI-1612A-9	PCI-1612AU-9	PCI-1612BU	PCI-1612B-9	PCI-1612BU-9
Description	4-port RS-232/422/485 PCI Communication Cards	4-port RS-232/422/485 PCI Communication Cards	4-port RS-232/422/485 PCI Communication Cards	4-port RS-232/422/485 PCI Communication Cards	4-port RS-232/422/485 PCI Communication Cards	4-port RS-232/422/485 PCI Communication Cards	4-port RS-232/422/485 PCI Communication Cards	4-port RS-232/422/485 PCI Communication Cards
