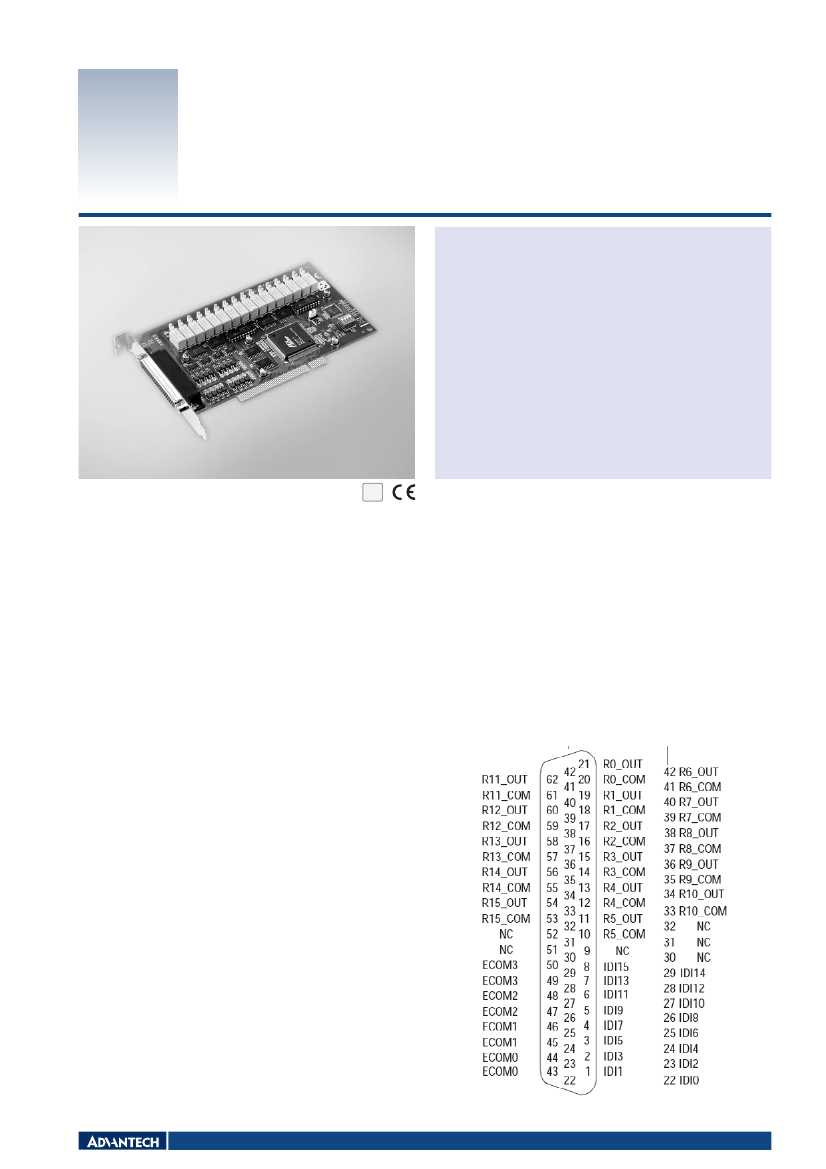

PCI-1762
16-ch Relay and 16-ch Isolated
Digital Input PCI Card
Features
16 relay output channels and 16 isolated digital input channels
LED indicators to show activated relays
Jumper selectable Form A/Form B-type relay output channel
Output status readback
Retain relay output values when hot system reset
High-voltage isolation on input channels (2,500 V
DC
)
High ESD protection (2,000 V
DC
)
High over-voltage protection (70 V
DC
)
Wide input range (10 ~ 50 V
DC
)
Interrupt handling capability
High-density DB62 connector
BoardID™ switch
RoHS
2002/95/EC
COMPLIANT
Introduction
The PCI-1762 relay actuator and isolated DI card is a PC add-on card for the PCI bus. It provides 16 opto-isolated digital inputs with isolation protection of 2,500 V
DC
for collecting
digital inputs in noisy environments, 16 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED
to show its on/off status. The PCI-1762’s sixteen optically-isolated digital input channels are ideal for digital input in noisy environments or with floating potentials.
Specifications
Isolated Digital Input
Channels
Input Voltage
16
Logic 0: 3 V max.
Logic 1: 10 V min. (50 V max.)
Interrupt Capable Ch.
2
Isolation Protection
2,500 V
DC
Overvoltage Protection
70 V
DC
Opto-Isolator Response
25 µs
Input Resistance
4.7 KW
Ordering Information
PCI-1762
PCL-10162-1
PCL-10162-3
ADAM-3962
16-ch Relay/Isolated Digital Input PCI Card
DB62 Cable, 1 m
DB62 Cable, 3 m
DB62 DIN-rail Wiring Board
Pin Assignments
Relay Output
Channels
Relay Type
Contact Rating
Relay on Time
Relay off Time
Life Span
16
SPDT (Form A or Form B, jumper selectable)
0.5 A @ 125 V
AC
or 1 A @ 30 V
DC
6 ms max.
4 ms max.
2 x 10
5
ops. min. (0.5 A @ 125 V
AC
),
5 x 10
5
ops. min. (1 A @ 30 V
DC
)
Contact: 50 MW
Insulation: 1,000 MW min. (at 500 V
DC
)
Resistance
General
PCI V2.2
1 x DB62 female connector
175 x 100 mm (69" x 3.9")
Typical: +5 V @ 250 mA
Max: +5 V @ 620 mA
Operating Temperature
0 ~ 60° C (32 ~ 140° F) (IEC 68-2-1, 2)
Storage Temperature
-20 ~ 70° C (-4 ~ 158° F)
Storage Humidity
5 - 95 % non-condensing (IEC 68-2-3)
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
Data Acquisition Boards
