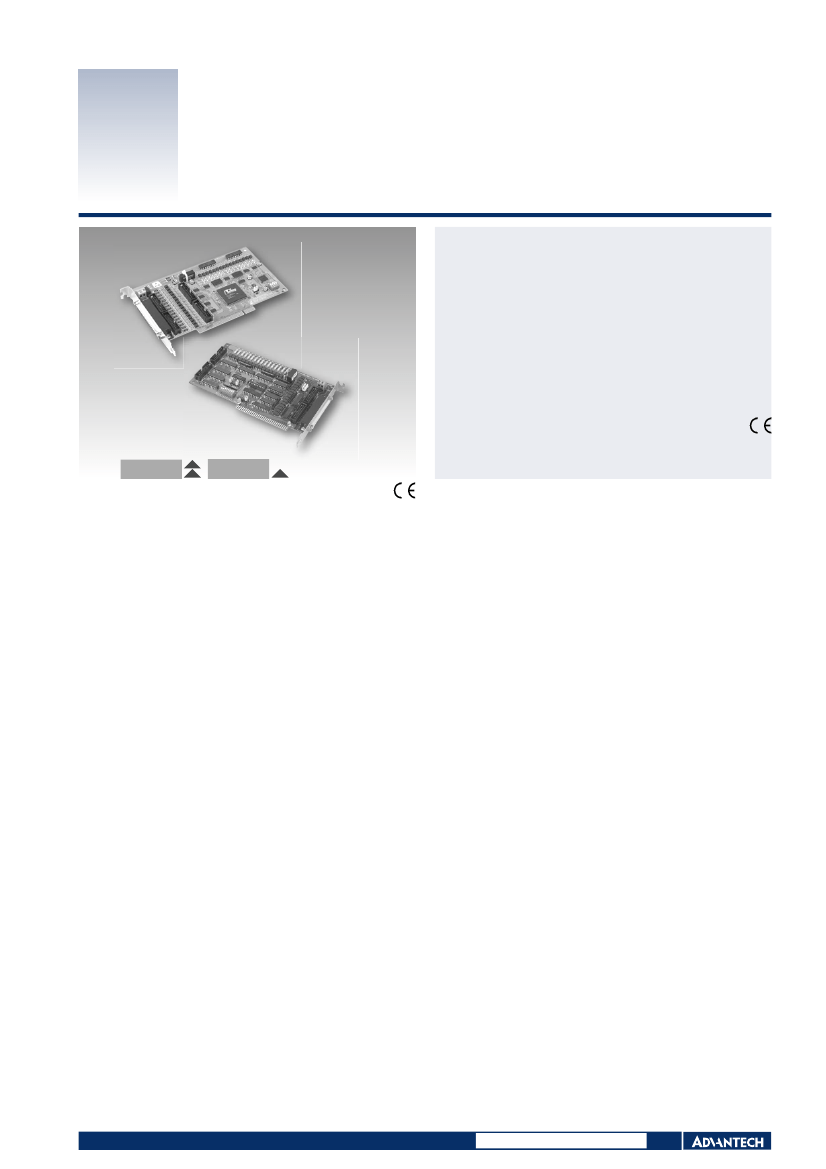

PCI-1730

PCL-730

32-ch Isolated Digital I/O card with

32 TTL Channels and PCI Interface

32-ch Isolated Digital I/O card with

32 TTL Channels and ISA Interface

Features



32 isolated DIO ch. (16 inputs and 16 outputs)



32 TTL-level DIO ch. (16 inputs and 16 outputs)



High output driving capacity



Interrupt capability



Two 20-pin connectors for isolated digital I/O channels and two for TTL

digital I/O channels



D-type connector for isolated input and output channels



High-voltage isolation on output channels

PCI-1730

PCL-730

Introduction

PCI-1730 and PCL-730 offer isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 V

, which makes them ideal for industrial

applications where high-voltage isolation is required. There are also 32 TTL DIO channels.

Speciﬁcations

Digital Input



Channels



Compatibility



Input Voltage



Interrupt Capable Ch.

16 (16-ch/group)

5 V/TTL

Logic 0: 0.8 V max.

Logic 1: 2.0 V min.

2 (DI0, DI1)

General



Bus Type



I/O Connectors



Dimensions (L x H)



Power Consumption

PCL-730:

PCI-1730: PCI V2.2

PCL-730: ISA

1 x 37-pin D-type female

2 x 20-pin box header for ﬂat cable

PCL-730: 185 x 100 mm (7.3” x 3.9”)

PCI-1730: 175 x 100 mm (6.9” x 3.9”)

Isolated Digital Input



Channels



Input Voltage



16 (16-ch/group)

Logic 0: 1 V max. (PCI-1730 2 V max.)

Logic 1: 5V min. (PCI-1730: 30V max., PCL-730: 24 V)

Interrupt Capable Ch.

PCI-1730: 2 (IDI0, IDI1)

PCL-730: 2 (IDI0, IDI1)

Isolation Protection

2,500 V

Opto-Isolator Response

PCL-730: 100 µs, PCI-1730: 25 µs

Input Resistance

PCI-1730: 2.7 kΩ @ 1 W

PCL-730: 1.2 kΩ @ 0.5 W

16 (16-ch/group)

5 V/TTL

Logic 0: 0.8 V max.

Logic 1: 2.0 V min.

Sink: PCI-1730: 24 mA, PCL-730: 8 mA

Source: PCI-1730: 15 mA, PCL-730: 0.4 mA

Typical: +5 V @ 330 mA

Max: +5 V @ 500 mA

PCI-1730:

Typical: 5 V @ 250 mA, 12 V @ 35 mA

Max: 5 V @ 400 mA, 12 V @ 60 mA



Operating Temperature

0 ~ 60° C (32 ~ 140° F)



Storing Temperature

PCL-730: -20 ~ 70° C (-4 ~ 158° F)

PCI-1730: -25 ~ 85° C (-13 ~ 185° F)



Storing Humidity

5 ~ 95% RH, non-condensing (see IEC 68-2-3)

Ordering Information



PCI-1730



PCL-730



PCL-10120-1

PCL-10120-2

PCLD-782

ADAM-3920

PCLD-885

PCLD-785

PCLD-786

PCLD-780

PCLD-880

ADAM-3937

PCL-10137-1

PCL-10137-2

PCL-10137-3

32-ch Isolated DIO Card, manual and driver CD-ROM

(cable not. included.)

32-channel isolated digital I/O card, user’s manual and

driver CD-ROM (cable not included)

20-pin ﬂat cable, 1m

20-pin ﬂat cable, 2m

16-channel opto-isolated D/I board

20-pin ﬂat cable wiring terminal for DIN-rail mounting

16-channel power relay (form A) output board

16-channel relay output board

8-channel SSR I/O module carrier board

Universal screw terminal board

DB37 wiring terminal for DIN-rail mounting

DB37 cable, 1m

DB37 cable, 2m

DB37 cable, 3m

Digital Output



Channels



Compatibility



Output Voltage



Output Capability

Isolated Digital Output



Channels



Output Type



Isolation Protection

16 (16-ch/group)

Sink type (NPN)

2,500 V

(PCL-730: 1,000 V

)



Output Voltage

5 ~ 40 V



Sink Current

200 mA max./channel



Opto-Isolator Response

PCL-730: 100 ms, PCI-1730: 25 ms

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 20-Jan-2006
