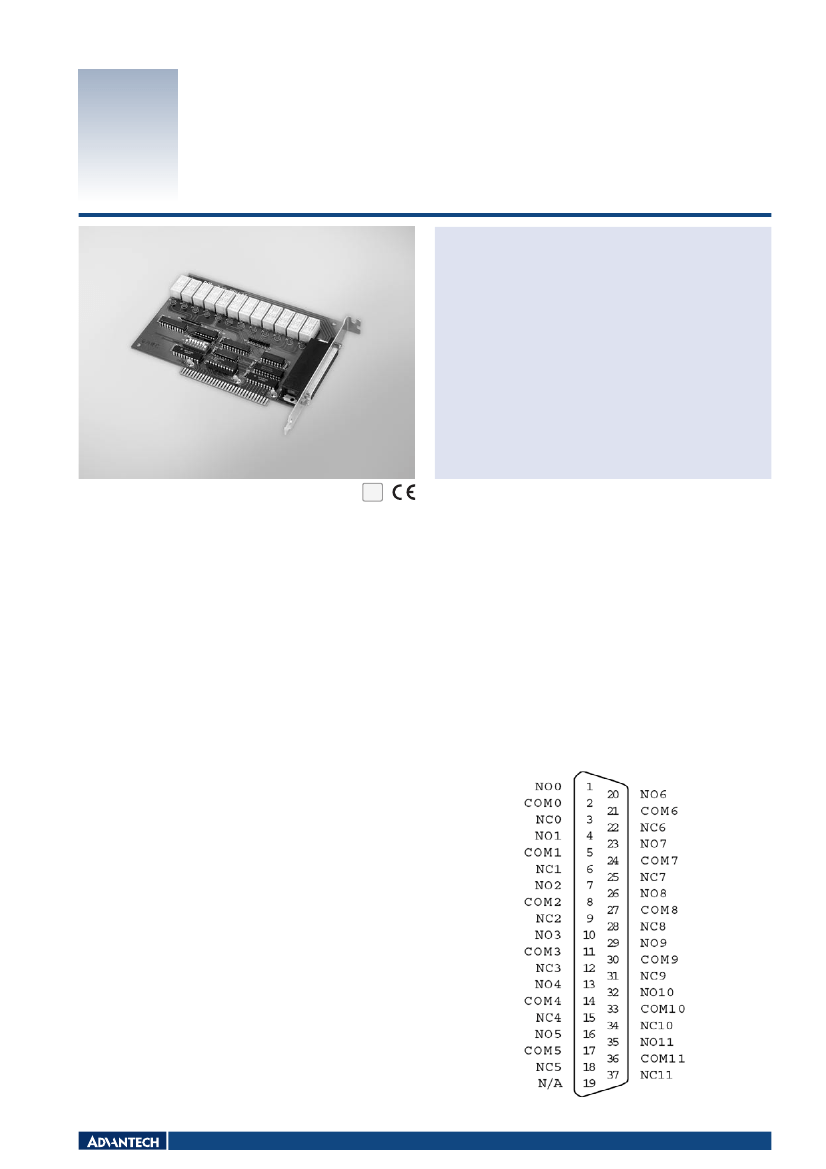

PCL-735
Features
12 relay outputs
Output status readback
12-ch Relay ISA Card with
16-ch Digital I/O
LED indicators to show activated relays
Male DB37 matching connector included
RoHS
2002/95/EC
COMPLIANT
Introduction
Ideal for applications such as on/off control or signal switching, the PCL-735 12-channel relay actuator provides 12 SPDT relays on a half-size card. The on/off status of each relay is easy
to monitor. A red LED next to each relay shows its on/off status, and the software can read each relay’s status. An onboard DB-37 connector provides access to all output channels.
Specifications
Relay Output
Channels
Relay Type
Contact Rating
Relay on Time
Relay off Time
Life Span
12
SPDT, Form C
2 A @ 30 V
DC
, 1 A @ 125 V
AC
5 ms typical
5 ms typical
> 5 x 10
5
operations @ 30 V
DC
and 2 A
> 2 x 10
6
operations @ 30 V
DC
and 1 A
Contact: 50 MW
Insulation: 1 GW @ 500 V
DC
min.
Ordering Information
PCL-735
PCL-10137-1
PCL-10137-2
PCL-10137-3
ADAM-3937
PCLD-880
12-ch Relay ISA Card w/ 16-ch Digital I/O
DB37 Cable, 1 m
DB37 Cable, 2 m
DB37 Cable, 3 m
DB37 DIN-rail Wiring Board
Wiring Board w/ Two 20-pin Flat Cables & Adapter
Pin Assignments
Resistance
General
ISA
1 x DB37 female connector
155 x 100 mm (6.1" x 3.9")
Typical: +5 V @ 280 mA
Max.: +12 V @ 200 mA
Operating Temperature
0 ~ 60° C (32 ~ 140° F)
Storage Temperature
-20 ~ 70° C (-4 ~ 158° F)
5 ~ 95% RH, non-condensing (refer to IEC 68-2-3)
Storage Humidity
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
Data Acquisition Boards
