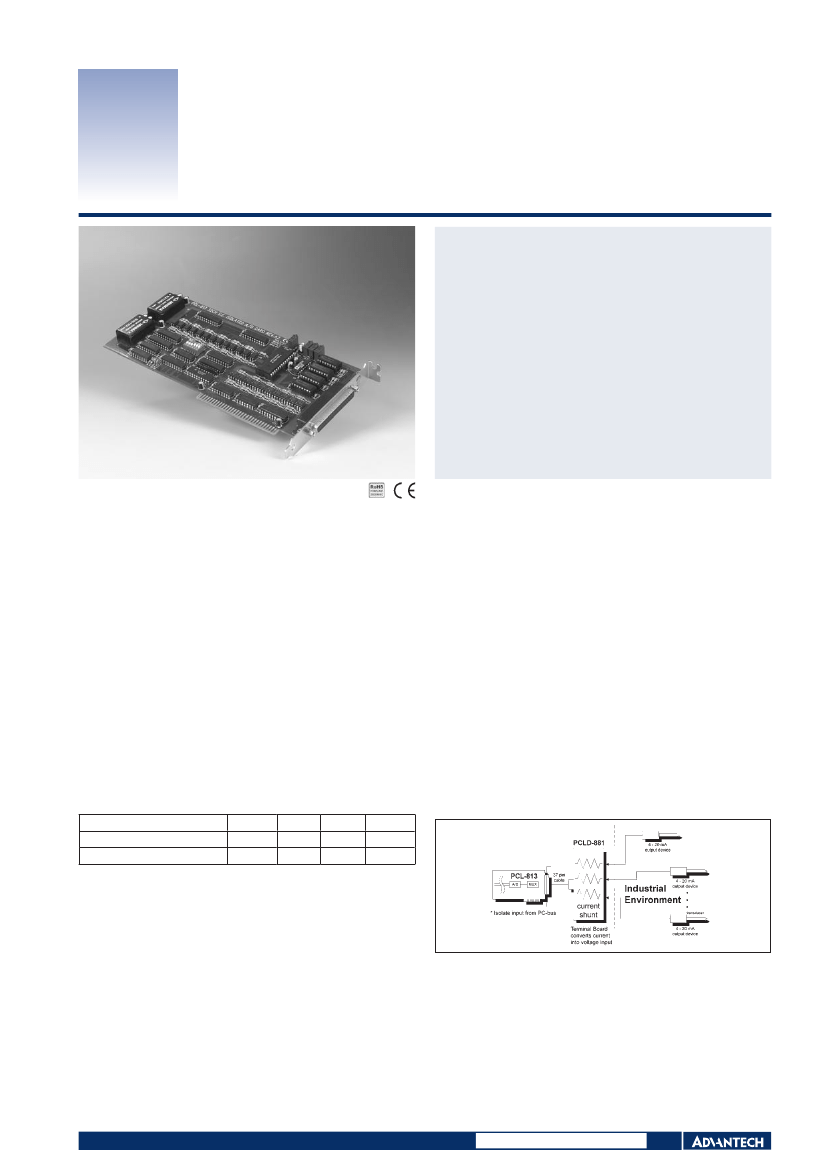

PCL-813B
25 kS/s, 12-bit, 32-ch SE Isolated
Analog Input ISA Card
Features
32 single-ended analog input channels
12-bit A/D converter, with up to 100 kHz sampling rate
Isolation protection (500 V
DC
)
Program-controlled A/D trigger and data transfer
Introduction
PCL-813B is a 12-bit 32-channel analog input card that offers high-voltage isolation on each analog input. It is an extremely cost effective solution for applications in industrial
measurement and monitoring. The card offers 32 analog input channels with software programmable gain on each channel and two DC-to-DC converters on a 4-layer PCB with an
integral ground plane. Optically-isolated inputs provide over 500 V
DC
of isolation between the analog inputs and the PC, protecting the PC and peripherals from damage due to high
voltages on the input lines. PCL-813B is ideal for situations where the budget-conscious user requires flexibility, stability and a high level of isolation protection. PCL-813B comes
with the PCLD-881 wiring terminal board and a DB-37 cable assembly.
Specifications
Analog Input
Channels
Resolution
Max. Sampling Rate
Overvoltage Protection
Isolation Protection
Input Impedance
Sampling Modes
Input Range
32 single-ended
12 bits,
25 kHz
Continuous ±30 V (max.)
500 V
DC
from analog input to PC
> 10 MΩ
software trigger
(V)
0 ~ 10
±5
0~5
±2.5
0 ~ 2.5
±1.25
0.01
0 ~ 1.25
±0.625
0.01
Ordering Information
PCL-813B
PCLD-881B
PCL-10137-1
PCL-10137-2
PCL-10137-3
ADAM-3937
32-ch. isolated analog input card, PCLD-881B wiring
terminal board, DB-37 cable assembly, manual and
driver CD-ROM.
Industrial terminal board for PCI-1713 & PCL-813B
DB37 cable assembly, 1 m
DB37 cable assembly, 2 m
DB37 cable assembly, 3 m
DB37 wiring terminal for DIN-rail mounting
Typical application for PCL-813B:
Unipolar (jumper selection)
Bipolar (software selection)
Accuracy (% of FSR ±1LSB)
0.01
0.01
Accuracy
0.01% of reading ±1 LSB
General
ISA
1 x DB37-F
219 x 100 mm (8.6" x 3.9")
+5 V @ 660 mA max.
+12 V @ 140 mA max.
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Storing Temperature
-20 ~ 65° C (-4 ~ 149° F)
Storing Humidity
5 ~ 95% RH non-condensing (refer to IEC 68-2-3)
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
Industrial 4 ~ 20 mA Output Device Monitoring
Online Download
www.advantech.com/products
