HC3-5509B-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> HC3-5509B-9

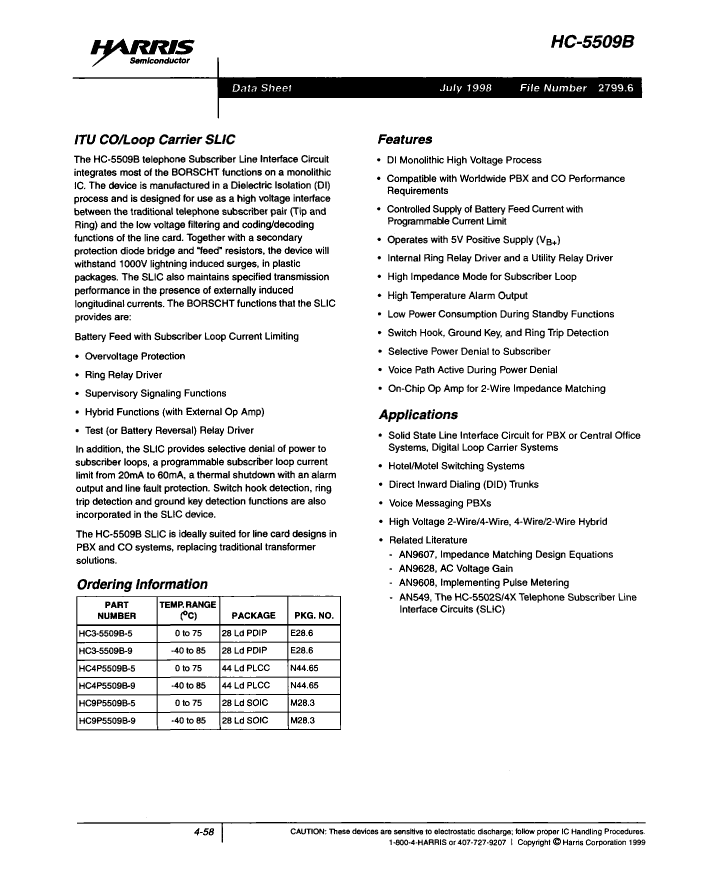

HC3-5509B-9: DescriptionSLIC, 2-4 Conversion, PDIP28,; CategoryWireless rf/communication Telecom circuit; File Size44KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HC3-5509B-9 Overview

SLIC, 2-4 Conversion, PDIP28,

HC3-5509B-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
battery fed	RESISTIVE
Battery powered	-48 V
mix	2-4 CONVERSION
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
maximum noise	5 dBrnC
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PSRR-Min	20 dB
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	6 mA
Nominal supply voltage	5 V
surface mount	NO
Telecom integrated circuit types	SLIC
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

HC3-5509B-9 Related Products

	HC3-5509B-9	HC3-5509B-5	HC9P5509B-5	HC9P5509B-9	HC4P5509B-5	HC4P5509B-9
Description	SLIC, 2-4 Conversion, PDIP28,	SLIC, 2-4 Conversion, PDIP28,	SLIC, 2-4 Conversion, PDSO28,	SLIC, 2-4 Conversion, PDSO28,	SLIC, 2-4 Conversion, PQCC44,	SLIC, 2-4 Conversion, PQCC44,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris	Harris	Harris
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	SOP, SOP28,.4	SOP, SOP28,.4	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
battery fed	RESISTIVE	RESISTIVE	RESISTIVE	RESISTIVE	RESISTIVE	RESISTIVE
Battery powered	-48 V	-48 V	-48 V	-48 V	-48 V	-48 V
mix	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0
maximum noise	5 dBrnC	5 dBrnC	5 dBrnC	5 dBrnC	5 dBrnC	5 dBrnC
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	44	44
Maximum operating temperature	85 °C	75 °C	75 °C	85 °C	75 °C	85 °C
PSRR-Min	20 dB	20 dB	20 dB	20 dB	20 dB	20 dB
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	QCCJ	QCCJ
Encapsulate equivalent code	DIP28,.6	DIP28,.6	SOP28,.4	SOP28,.4	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES
Telecom integrated circuit types	SLIC	SLIC	SLIC	SLIC	SLIC	SLIC
Temperature level	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL	COMMERCIAL EXTENDED	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD
