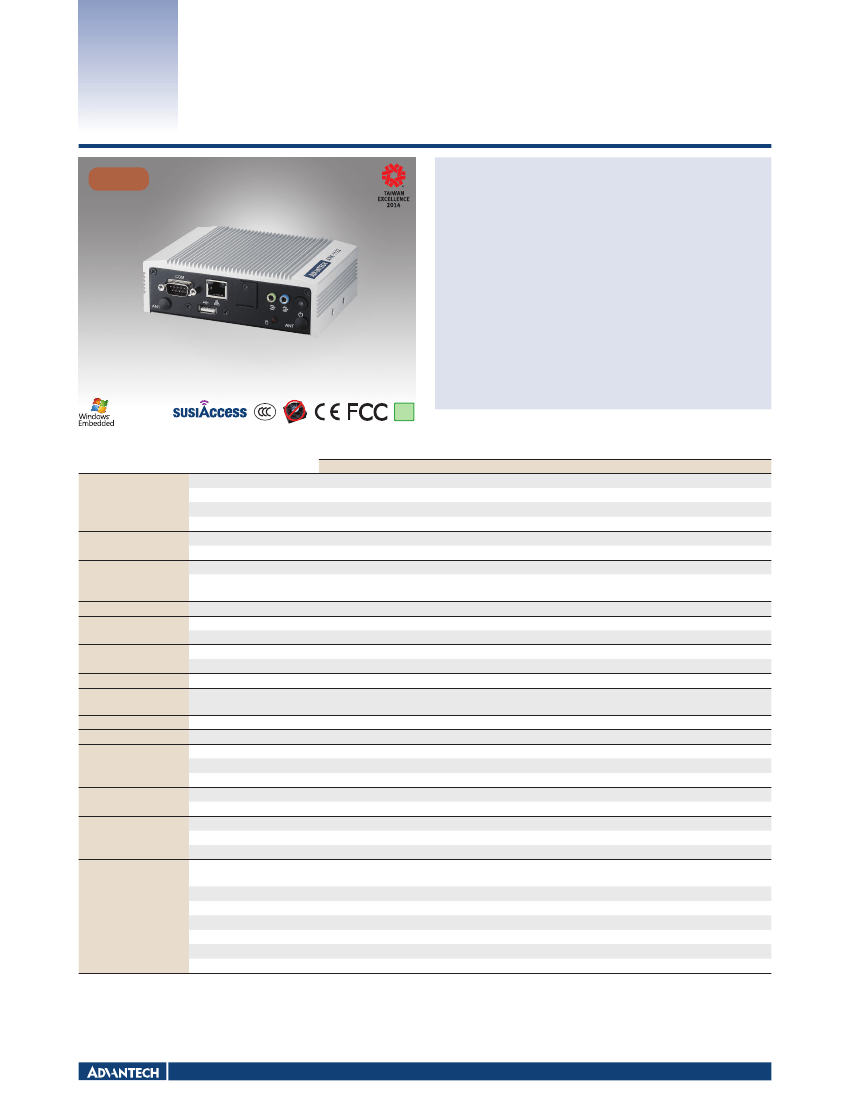

ARK-1122F

NEW

Intel

Atom™ Dual Core N2800 with

Diverse Communications Fanless Box PC

Features

Intel

Atom™ Dual Core N2800, 1.86 GHz

Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm

Supports 2 x Intel GbE

Built-in 2 x Mini PCIe slots for Wi-Fi/3G communications (1 w/ SIM)

Supports independent dual displays interfaces : VGA + HDMI

Supports 1 x RS-232, Audio line in / line out and 3 USB 2.0 ports

Supports mSATA storage

Wide operating temperature -20 ~ 60 C support

Optional VESA / DIN-Rail / Wall mounts

Lockable DC jack design

Supports SUSIAccess and Embedded Software APIs

RoHS

COMPLIANT

2002/95/EC

Specifications

Processor System

CPU

L2 Cache

System Chipset

BIOS

Technology

Socket

Chipset

Interface

LAN

Chipset

Interface

Serial Ports

USB Interface

Watchdog timer

Mini PCIe

mSATA

Microsoft Windows

Power Input Voltage

DC Jack Type

Power Adaptor

Typical

Max.

Construction

Mounting

Dimensions (W x H x D)

Operating Temperature

Environmental and

Certifications

Storage Temperature

Relative Humidity

Vibration During Operation

Shock During Operation

EMC

Safety Certifications

ARK-1122F-S8A1E

Intel Atom Dual Core N2800 1.86 GHz

1MB

Intel NM10

AMI EFI 16 Mbit

DDR3 1066 MHz up to 4 GB

1 x 204-pin SO-DIMM

Intel Atom N2800

VGA (1920 x 1200)

HDMI (1920 x 1200) with lockable design (please choose the lockable HDMI cable)

2 x 10/100/1000 Mbps Intel 82583V GbE

Realtek ALC892, High Definition Audio (HD)

Line-in and Line-out

1 x RS-232

3 x USB ports, USB2.0 Compliant

255-level timer interval, setup by software

1 x half-size Mini PCIe supports WIFI only

1 x full-size Mini PCIe w/SIM Holder

1 x full-size Mini PCIe slot (Suggest to assembly by CTOS or T-Part due to complex installation)

Windows 7 Pro 32bit, WES7 32bit,, XP Embedded (XP Embedded by project support)

12 V

, ± 10%

Support lockable design

AC to DC, DC12 V/3 A, 36 W with lockable design

7.84 W

13.15 W

Aluminum housing

Support VESA/DIN Rail/Wall mounting (Optional)

133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")

With standard temperature HDD/SSD/mSATA devices: 0 ~ 40° C with 0.7 m/s air flow

With extended temperature SSD/mSATA devices: -20 ~ 60° C with 0.7 m/s air flow

-40 ~ 85° C

95% @ 40° C (non-condensing)

With mSATA: 3Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis

With mSATA:30Grms, IEC 60068-2-27, half sine, 11ms duration

CE/FCC Class A, CCC, BSMI

CB, UL, CCC, BSMI

Memory

Graphics

Ethernet

Audio

I/O Interface

Other

Expansion

Storage

Software Support

Power Requirement

Power Consumption

Mechanical

Fanless Embedded Box PCs

All product specifications are subject to change without notice.

Last updated: 25-Jul-2017
