884030004/10 | CS34R WHT C6 4/23 F/UTP RL 1KFT
CS34R Category 6 F/UTP Cable, non-plenum, white jacket, 4 pair count,
1000 ft (305 m) length, reel
Product Classification
Portfolio
Product Type
Regional Availability
NETCONNECT®
Twisted pair cable
Asia | Australia/New Zealand | EMEA | Latin America

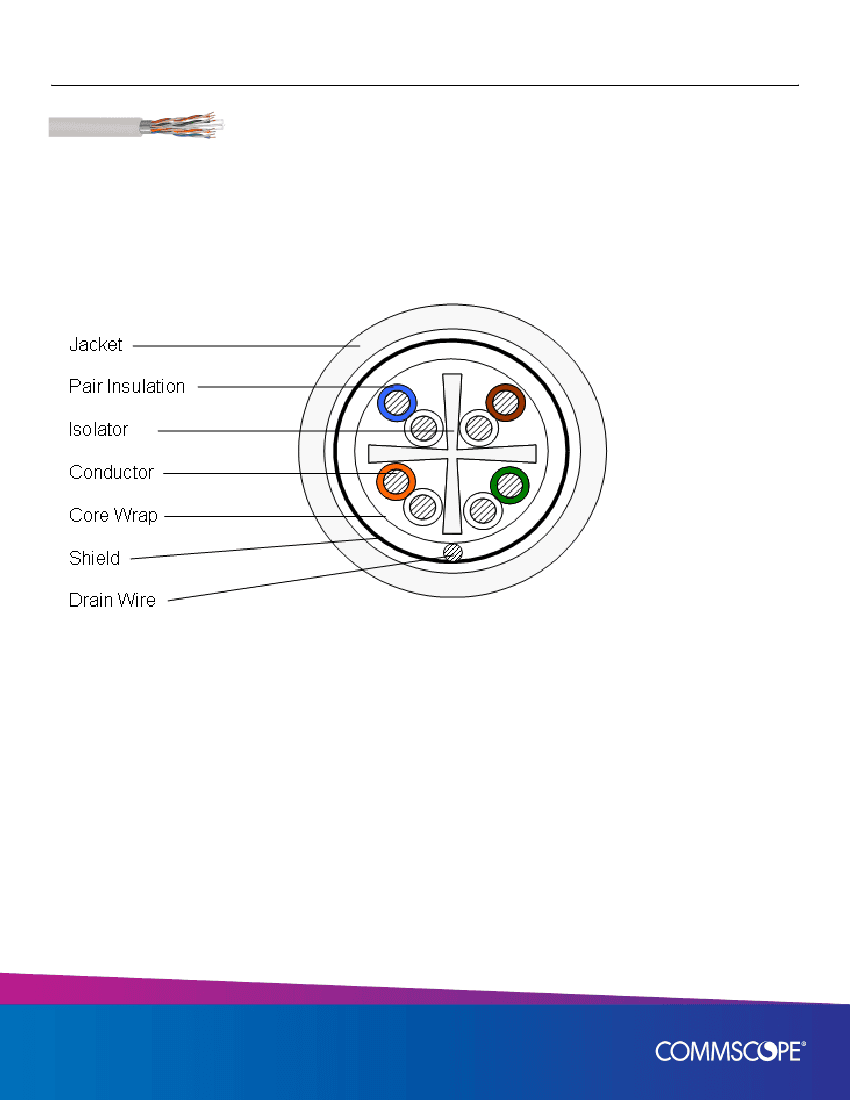

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Drain Wire Material
Insulation Material
Separator Material
Shield (Tape) Material
PVC
Bare copper
Tinned copper
Polyolefin
Polyolefin
Polyester/Aluminum shield
Dimensions
Cable Length
Cable Weight
Diameter Over Jacket, nominal
Jacket Thickness
page 1 of 4
June 1, 2019
305 m | 1000 ft
34.10 lb/kft
7.315 mm | 0.288 in
0.508 mm | 0.020 in
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: May 3, 2019
884030004/10 | CS34R WHT C6 4/23 F/UTP RL 1KFT
Electrical Specifications
ANSI/TIA Category
Characteristic Impedance
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Operating Voltage, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
Note
6
100 ohm
5%
8.00 ohms/100 m
45 ns
5.6 nF/100 m @ 1 kHz
250 MHz
80 V
ANSI/TIA-568-C.2 | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
300 V
1500 Vac | 2500 Vdc
All electrical transmission tests include swept frequency measurements
Nominal Velocity of Propagation (NVP)
68 %
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Operating Temperature
Non-plenum
CMR | NEC Article 800 | UL 1666 | UL 444
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Drain Wire Gauge
Drain Wire Type
Separator Type
F/UTP (shielded)
Reel
4
Horizontal
White
CS34R
23 AWG
Solid
8
24 AWG
Solid
Isolator
Mechanical Specifications
Pulling Tension, maximum
11 kg | 25 lb
page 2 of 4
June 1, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: May 3, 2019
884030004/10 | CS34R WHT C6 4/23 F/UTP RL 1KFT
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
page 3 of 4
June 1, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: May 3, 2019
884030004/10 | CS34R WHT C6 4/23 F/UTP RL 1KFT
Electrical Performance
Std
Typ
IL
NEXT
ACR
PSNEXT
PSACR
ACRF
PSACRF
RL
Freq.
MHz
1
4
8
10
16
20
25
31.25
62.5
100
155
200
250
300
350
400
500
550
650
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Typical
Insertion Loss (dB/100m)
Near End Crosstalk (dB/100m)
Attenuation to Crosstalk Ratio (dB/100m)
Power Sum Near End Crosstalk (db/100m)
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
Attenuation to Crosstalk Ratio - Far End (dB/100m)
Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
Return Loss (dB)
IL
Std
2.0
3.8
5.3
6.0
7.6
8.5
9.5
10.7
15.4
19.8
25.2
29.0
32.8
Typ
1.7
3.3
4.7
5.2
6.7
7.5
8.4
9.3
13.3
16.9
21.1
24.1
27.0
29.7
32.2
34.5
39.0
41.1
45.0
Std
74.3
65.3
60.8
59.3
56.2
54.8
53.3
51.9
47.4
44.3
41.4
39.8
38.3
NEXT
Typ
87.7
82.0
76.7
74.4
71.2
69.8
68.4
66.9
62.8
59.0
55.6
52.1
51.1
50.1
48.8
47.3
44.0
43.2
43.4
Std
72.3
61.5
55.4
53.3
48.7
46.3
43.8
41.2
32.0
24.5
16.3
10.8
5.5
ACR
Typ
85.9
78.7
72.0
69.1
64.6
62.3
60.1
57.6
49.5
42.2
34.5
28.0
24.1
20.4
16.7
12.7
5.0
2.1
-1.6
PSNEXT
Std
72.3
63.3
58.8
57.3
54.2
52.8
51.3
49.9
45.4
42.3
39.4
37.8
36.3
Typ
85.3
79.8
74.6
72.5
69.3
67.9
66.4
64.9
60.8
57.1
53.8
50.6
49.4
48.3
47.0
45.6
42.5
41.6
41.5
Std
70.3
59.5
53.4
51.3
46.7
44.3
41.8
39.2
30.0
22.5
14.3
8.8
3.5
PSACR
Typ
83.6
76.4
69.9
67.3
62.6
60.4
58.1
55.6
47.6
40.3
32.7
26.6
22.4
18.6
14.8
11.0
3.5
0.5
-3.5
Std
67.8
55.8
49.7
47.8
43.7
41.8
39.8
37.9
31.9
27.8
24.0
21.8
19.8
ACRF
Typ
88.5
80.8
75.0
73.0
69.2
67.3
65.3
63.4
57.3
53.4
49.5
47.6
45.3
43.5
42.3
40.9
39.0
36.2
34.6
PSACRF
Std
64.8
52.8
46.7
44.8
40.7
38.8
36.8
34.9
28.9
24.8
21.0
18.8
16.8
Typ
85.8
79.0
73.2
71.2
67.2
65.4
63.5
61.6
55.4
51.6
47.5
45.5
43.2
41.6
40.2
38.9
36.9
33.8
32.3
Std
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
18.8
18.0
17.3
RL
Typ
31.2
32.7
35.3
36.5
36.6
36.3
35.6
33.9
31.3
27.1
23.7
21.8
20.1
19.1
18.1
17.2
15.9
15.5
15.0
page 4 of 4
June 1, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: May 3, 2019
