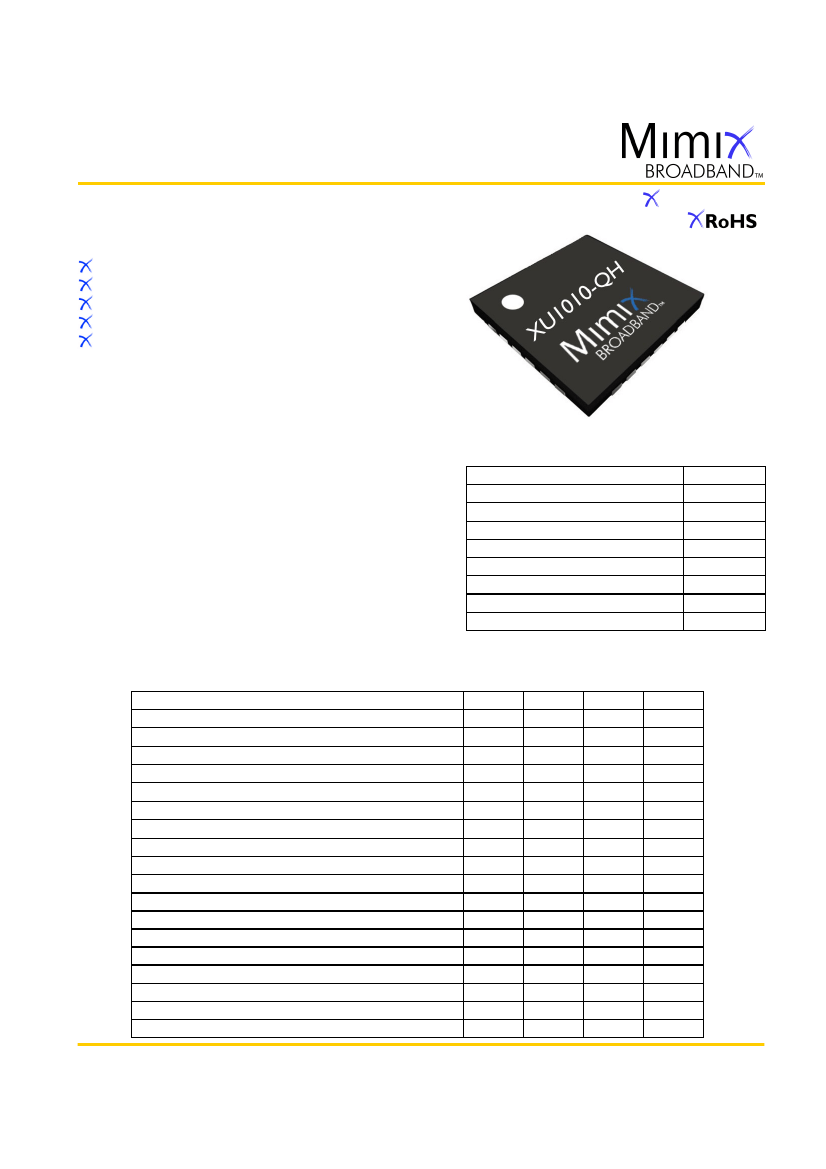

17.0-34.0 GHz Up-Converter
QFN, 4x4mm
February 2010 - Rev 12-Feb-10
U1010-QH
Features
Integrated Balanced Mixer, LO Buffer and LO Doubler
+23.0 dBm Input Third Order Intercept (IIP3)
+2.0 dBm LO Drive Level
4x4mm QFN Package
100% RF and DC Testing
General Description
Mimix Broadband’s 17.0-34.0 GHz GaAs packaged
up-converter has an input third order intercept point
of +23.0 dBm and 10.0 dB of conversion loss. The
device consists of a balanced resistive pHEMT mixer,
LO buffer amplifier and LO doubler packaged in an
industry standard, fully molded 4x4mm QFN package.
IF and *IF mixer inputs are provided and an external
180 degree hybrid is required. The device includes
on-chip ESD protection structures and DC by-pass
capacitors to ease the implementation and volume
assembly of the packaged part. This device is well
suited for Millimeter-wave Point-to-Point Radio, LMDS,
SATCOM and VSAT applications.
Absolute Maximum Ratings
1
Drain Voltage Supply (Vdd)
Drain Current (Ids)
Input Power (Pin) IF
Input Power (Pin) LO
Storage Temperature (Tstg)
Operating Temperature (Tb)
ESD Min. - Machine Model (MM)
ESD Min. - Human Body Model (HBM)
MSL Level
+4.3V
350 mA
+5 dBm
+10 dBm
-65 to +165 ºC
-55 to +85 ºC
Class A
Class 0
MSL3
Electrical Characteristics (Ambient Temperature T = 25
o
C)
Parameter
Frequency Range (RF)
Frequency Range (LO)
Frequency Range (IF)
Conversion Loss (CL)
Input Third Order Intercept (IIP3)
LO Input Drive
RF Input Return Loss
LO Input Return Loss
IF Input Return Loss
2xLO Leakage at RF
1xLO Leakage at RF
Drain Bias Voltage (Vd1,2)
Gate Bias Voltage (Vg1)
Gate Bias Voltage (Vg2,3)
Gate Bias Voltage (Vss)
Supply Current (Id1)
Supply Current (Id2)
Supply Current (Iss)
Units
GHz
GHz
GHz
dB
dBm
dBm
dB
dB
dB
dBm
dBm
VDC
VDC
VDC
VDC
mA
mA
mA
Min.
17
8
DC
Typ.
Max.
34
20
3.5
10
23
2
15
15
15
-20
-30
4.0
~ -0.2
-0.8
-4.0
130
~ 60
45
Page 1 of 5
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
17.0-34.0 GHz Up-Converter
QFN, 4x4mm
February 2010 - Rev 12-Feb-10
U1010-QH

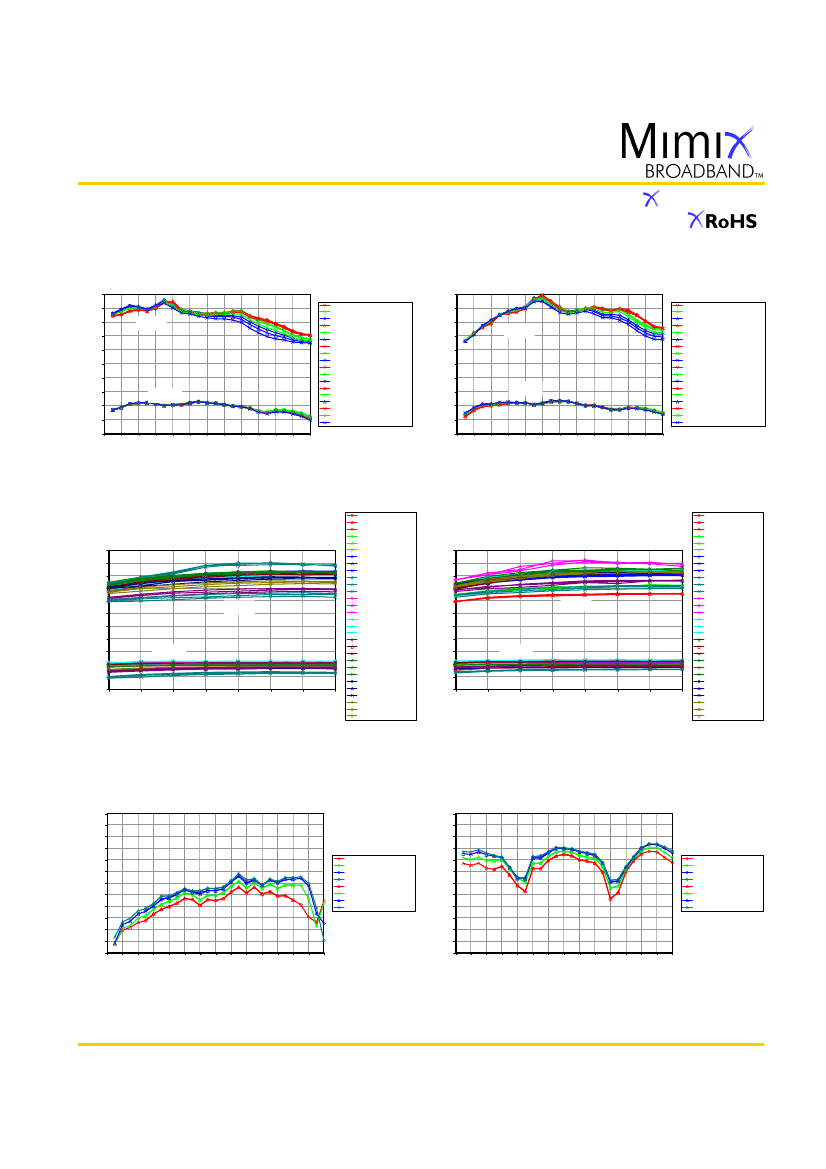

Up-Converter Measurements
XU1010-QH, Glob Top, R10C2: LSB Conversion Loss & IIP3 vs. RF,
PLO = 2 dBm, PIFscl = 0 dBm, IF1 - IF2 = 10 MHz, Doubler and Mixer bias swept
30
USB Conversion Gain/ IIP3 (dB/dBm)
LSB Conversion Gain/ IIP3 (dB/dBm)
25
20
15
10
5
0
-5
-10
-15
-20
14
16
18
20
22
24
26
28
30
32
34
36
38
LSB RF (GHz) [IF = 2 GHz]
Loss, VD2 (V)=4.5, VG2VG3 (V)=-0.8
Loss, VD2 (V)=4.5, VG2VG3 (V)=-0.7
Loss, VD2 (V)=4.5, VG2VG3 (V)=-0.6
Loss, VD2 (V)=5, VG2VG3 (V)=-0.8
Loss, VD2 (V)=5, VG2VG3 (V)=-0.7
Loss, VD2 (V)=5, VG2VG3 (V)=-0.6
Loss, VD2 (V)=5.5, VG2VG3 (V)=-0.8
Loss, VD2 (V)=5.5, VG2VG3 (V)=-0.7
Loss, VD2 (V)=5.5, VG2VG3 (V)=-0.6
IIP3, VD2 (V)=4.5, VG2VG3 (V)=-0.8
IIP3, VD2 (V)=4.5, VG2VG3 (V)=-0.7
IIP3, VD2 (V)=4.5, VG2VG3 (V)=-0.6
IIP3, VD2 (V)=5, VG2VG3 (V)=-0.8
IIP3, VD2 (V)=5, VG2VG3 (V)=-0.7
IIP3, VD2 (V)=5, VG2VG3 (V)=-0.6
IIP3, VD2 (V)=5.5, VG2VG3 (V)=-0.8
IIP3, VD2 (V)=5.5, VG2VG3 (V)=-0.7
IIP3, VD2 (V)=5.5, VG2VG3 (V)=-0.6
XU1010-QH, Glob Top, R10C2: USB Conversion Loss & IIP3 vs. RF,
PLO = 2 dBm, PIFscl = 0 dBm, IF1 - IF2 = 10 MHz, Doubler and Mixer bias swept
30
25
20
15
10
5
0
-5
-10
-15
-20
14
16
18
20
22
24
26
28
30
32
34
36
38
USB RF (GHz) [IF = 2 GHz]
Loss, VD2 (V)=4.5, VG2VG3 (V)=-0.8
Loss, VD2 (V)=4.5, VG2VG3 (V)=-0.7
Loss, VD2 (V)=4.5, VG2VG3 (V)=-0.6
IIP3
IIP3
Loss, VD2 (V)=5, VG2VG3 (V)=-0.8
Loss, VD2 (V)=5, VG2VG3 (V)=-0.7
Loss, VD2 (V)=5, VG2VG3 (V)=-0.6
Loss, VD2 (V)=5.5, VG2VG3 (V)=-0.8
Loss, VD2 (V)=5.5, VG2VG3 (V)=-0.7
Loss, VD2 (V)=5.5, VG2VG3 (V)=-0.6
IIP3, VD2 (V)=4.5, VG2VG3 (V)=-0.8
IIP3, VD2 (V)=4.5, VG2VG3 (V)=-0.7
IIP3, VD2 (V)=4.5, VG2VG3 (V)=-0.6
IIP3, VD2 (V)=5, VG2VG3 (V)=-0.8
IIP3, VD2 (V)=5, VG2VG3 (V)=-0.7
IIP3, VD2 (V)=5, VG2VG3 (V)=-0.6
IIP3, VD2 (V)=5.5, VG2VG3 (V)=-0.8
IIP3, VD2 (V)=5.5, VG2VG3 (V)=-0.7
IIP3, VD2 (V)=5.5, VG2VG3 (V)=-0.6
Loss
Loss
VD1 = 5 V, ID1 = 140 mA, VD2 = 5 V, VG2VG3 = - 0.8 V, VSS = - 5 V
VD1 = 5 V, ID1 = 140 mA, VD2 = 5 V, VG2VG3 = - 0.8 V, VSS = - 5 V
XU1010-QH: LSB IIP3 & Loss vs. ID1 (LO buffer),
PLO = 4 dBm, PIFscl = 0 dBm, IF1 - IF2 = 10 MHz
35
30
LSB Conv. Loss & IIP3 (dB/dBm)
25
20
15
10
5
0
-5
-10
-15
-20
60
80
100
120
140
160
180
200
ID1 (mA)
IIP3, RF=16, VD1 (V)=4.5
IIP3, RF=16, VD1 (V)=5
IIP3, RF=16, VD1 (V)=5.5
IIP3, RF=18, VD1 (V)=4.5
IIP3, RF=18, VD1 (V)=5
IIP3, RF=18, VD1 (V)=5.5
IIP3, RF=20, VD1 (V)=4.5
XU1010-QH: USB IIP3 & Loss vs. ID1 (LO buffer),
PLO = 4 dBm, PIFscl = 0 dBm, IF1 - IF2 = 10 MHz
35
30
USB Conv. Loss & IIP3 (dB/dBm)
25
20
15
10
5
0
-5
-10
-15
-20
60
80
100
120
140
160
180
200
ID1 (mA)
IIP3, RF=16, VD1 (V)=4.5
IIP3, RF=16, VD1 (V)=5
IIP3, RF=16, VD1 (V)=5.5
IIP3, RF=18, VD1 (V)=4.5
IIP3, RF=18, VD1 (V)=5
IIP3, RF=18, VD1 (V)=5.5
IIP3, RF=20, VD1 (V)=4.5
IIP3, RF=20, VD1 (V)=5
IIP3, RF=20, VD1 (V)=5.5
IIP3, RF=22, VD1 (V)=4.5
IIP3, RF=22, VD1 (V)=5
IIP3, RF=22, VD1 (V)=5.5
IIP3, RF=24, VD1 (V)=4.5
IIP3, RF=24, VD1 (V)=5
IIP3, RF=24, VD1 (V)=5.5
IIP3, RF=26, VD1 (V)=4.5
IIP3, RF=26, VD1 (V)=5
IIP3, RF=26, VD1 (V)=5.5
IIP3, RF=28, VD1 (V)=4.5
IIP3, RF=28, VD1 (V)=5
IIP3, RF=28, VD1 (V)=5.5
IIP3, RF=30, VD1 (V)=4.5
IIP3, RF=30, VD1 (V)=5
IIP3, RF=30, VD1 (V)=5.5
IIP3, RF=32, VD1 (V)=4.5
IIP3, RF=32, VD1 (V)=5
IIP3, RF=32, VD1 (V)=5.5
IIP3, RF=34, VD1 (V)=4.5
IIP3, RF=34, VD1 (V)=5
IIP3, RF=34, VD1 (V)=5.5
IIP3
IIP3, RF=20, VD1 (V)=5
IIP3, RF=20, VD1 (V)=5.5
IIP3, RF=22, VD1 (V)=4.5
IIP3, RF=22, VD1 (V)=5
IIP3, RF=22, VD1 (V)=5.5
IIP3, RF=24, VD1 (V)=4.5
IIP3, RF=24, VD1 (V)=5
IIP3, RF=24, VD1 (V)=5.5
IIP3, RF=26, VD1 (V)=4.5
IIP3, RF=26, VD1 (V)=5
IIP3, RF=26, VD1 (V)=5.5
IIP3, RF=28, VD1 (V)=4.5
IIP3, RF=28, VD1 (V)=5
IIP3, RF=28, VD1 (V)=5.5
IIP3, RF=30, VD1 (V)=4.5
IIP3, RF=30, VD1 (V)=5
IIP3, RF=30, VD1 (V)=5.5
IIP3, RF=32, VD1 (V)=4.5
IIP3, RF=32, VD1 (V)=5
IIP3, RF=32, VD1 (V)=5.5
IIP3, RF=34, VD1 (V)=4.5
IIP3, RF=34, VD1 (V)=5
IIP3, RF=34, VD1 (V)=5.5
IIP3
Loss
Loss
VD1 = 4.5, 5 & 5.5 V, ID1 swept, VD2 = 5 V, VG2VG3 = - 0.8 V, VSS = - 5 V
VD1 = 4.5, 5 & 5.5 V, ID1 swept, VD2 = 5 V, VG2VG3 = - 0.8 V, VSS = - 5 V
XU1010-QH, Glob Top, R10C2: 1xLO output power @ RF port,
PLOswp, PIFscl = 0 dBm, IF1 - IF2 = 10 MHz
0
1xLO output power @ RF port (dBm)
-10
-15
-20
-25
-30
-35
-40
-45
-50
-55
-60
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1xLO (GHz) [IF = 2 GHz]
1xLO, Side=LSB, PLO (dBm)=0
1xLO, Side=LSB, PLO (dBm)=2
1xLO, Side=LSB, PLO (dBm)=4
1xLO, Side=LSB, PLO (dBm)=5
1xLO, Side=USB, PLO (dBm)=0
1xLO, Side=USB, PLO (dBm)=2
1xLO, Side=USB, PLO (dBm)=4
1xLO, Side=USB, PLO (dBm)=5
XU1010-QH, Glob Top, R10C2: 2xLO output power @ RF port,
PLOswp, PIFscl = 0 dBm, IF1 - IF2 = 10 MHz
0
2xLO output power @ RF port (dBm)
-5
-10
-15
-20
-25
-30
-35
-40
-45
-50
-55
-60
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2xLO (GHz) [IF = 2 GHz]
2xLO, Side=LSB, PLO (dBm)=0
2xLO, Side=LSB, PLO (dBm)=2
2xLO, Side=LSB, PLO (dBm)=4
2xLO, Side=LSB, PLO (dBm)=5
2xLO, Side=USB, PLO (dBm)=0
2xLO, Side=USB, PLO (dBm)=2
2xLO, Side=USB, PLO (dBm)=4
2xLO, Side=USB, PLO (dBm)=5
-5
VD1 = 5 V, ID1 = 140 mA, VD2 = 5 V, VG2VG3 = - 0.8 V, VSS = - 5 V
VD1 = 5 V, ID1 = 140 mA, VD2 = 5 V, VG2VG3 = - 0.8 V, VSS = - 5 V
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 5
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.

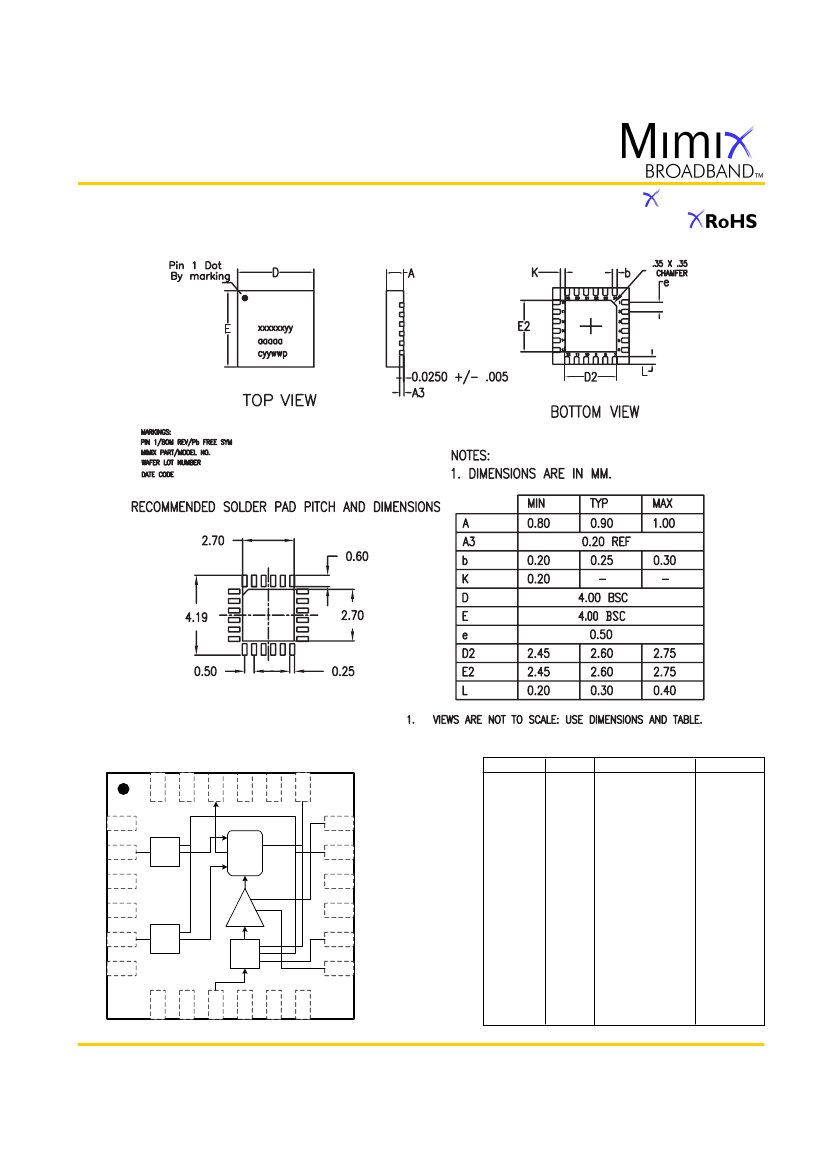

17.0-34.0 GHz Up-Converter
QFN, 4x4mm
February 2010 - Rev 12-Feb-10
U1010-QH
Handling and Assembly Information
CAUTION!
- Mimix Broadband MMIC Products contain gallium arsenide (GaAs) which can be hazardous to the human body and the
environment. For safety, observe the following procedures:
• Do not ingest.
• Do not alter the form of this product into a gas, powder, or liquid through burning, crushing, or chemical processing as these
by-products are dangerous to the human body if inhaled, ingested, or swallowed.
• Observe government laws and company regulations when discarding this product. This product must be discarded in
accordance with methods specified by applicable hazardous waste procedures.
Electrostatic Sensitive Device -
Observe all necessary precautions when handling.
Life Support Policy
- Mimix Broadband's products are not authorized for use as critical components in life support devices or
systems without the express written approval of the President and General Counsel of Mimix Broadband. As used herein: (1) Life
support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain
life, and whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury to the user. (2) A critical component is any component of a life support device or
system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its
safety or effectiveness.
Package Attachment
- This packaged product from Mimix Broadband is provided as a rugged surface mount package compatible
with high volume solder installation. Vacuum tools or other suitable pick and place equipment may be used to pick and place this
part. Care should be taken to ensure that there are no voids or gaps in the solder connection so that good RF, DC and ground
connections are maintained. Voids or gaps can eventually lead not only to RF performance degradation, but reduced reliability and
life of the product due to thermal stress.
Typical Reflow Profiles
Reflow Profile
Ramp Up Rate
Activation Time and Temperature
Time Above Melting Point
Max Peak Temperature
Time Within 5 ºC of Peak
Ramp Down Rate
SnPb
3-4 ºC/sec
60-120 sec @ 140-160 ºC
60-150 sec
240 ºC
10-20 sec
4-6 ºC/sec
Pb Free
3-4 ºC/sec
60-180 sec @ 170-200 ºC
60-150 sec
265 ºC
10-20 sec
4-6 ºC/sec
Mimix Lead-Free RoHS Compliant Program
- Mimix has an active program in place to meet customer and governmental
requirements for eliminating lead (Pb) and other environmentally hazardous materials from our products. All Mimix RoHS compliant
components are form, fit and functional replacements for their non-RoHS equivalents. Lead plating of our RoHS compliant parts is
100% matte tin (Sn) over copper alloy and is backwards compatible with current standard SnPb low-temperature reflow processes as
well as higher temperature (260°C reflow) “Pb Free” processes.
Part Number for Ordering
XU1010-QH-0G00
XU1010-QH-0G0T
XU1010-QH-EV1
Description
Matte Tin plated RoHS compliant 4x4 24L QFN surface mount package in bulk quantity
Matte Tin plated RoHS compliant 4x4 24L QFN surface mount package in tape and reel

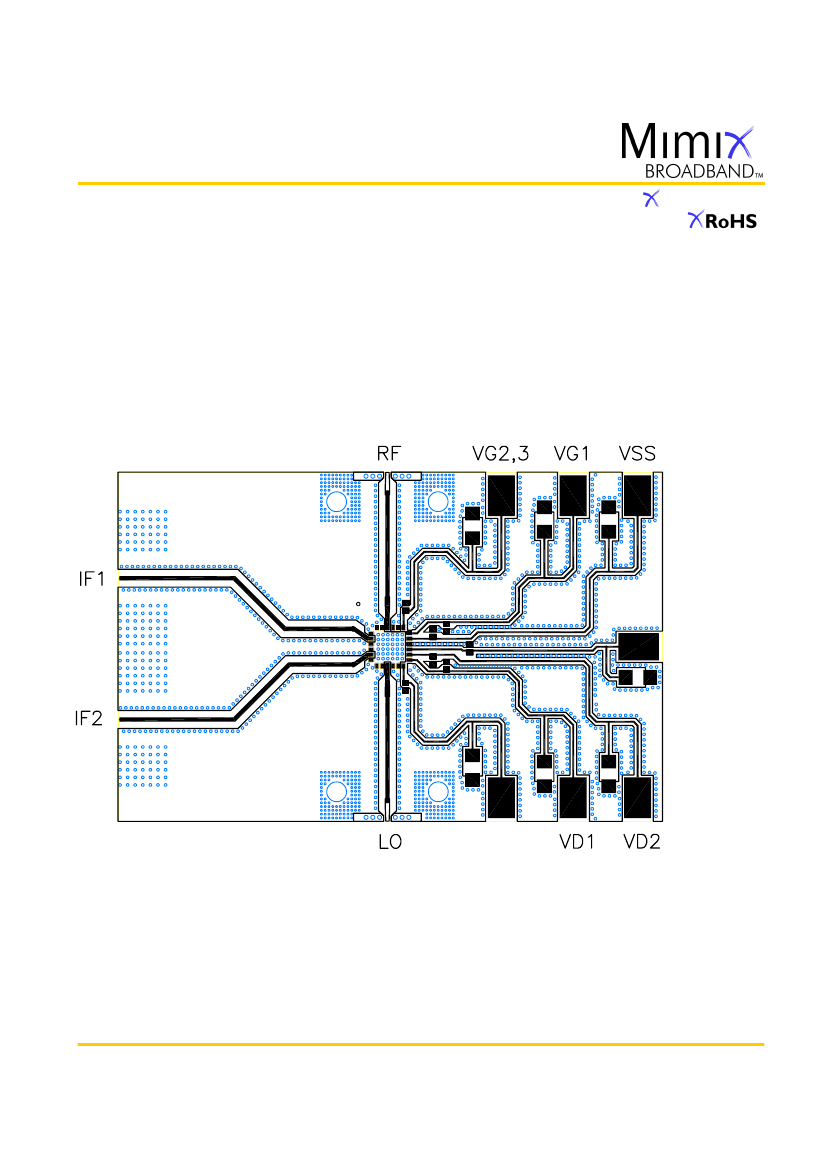

XU1010-QH evaluation board
Appropriate precautions in handling, packaging
and testing devices must be observed.
C a u t i o n : E S D S e n s i t i ve
Proper ESD procedures should be followed when handling this device.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 5 of 5
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
PCB Design
京公网安备 11010802033920号
EEWORLD
